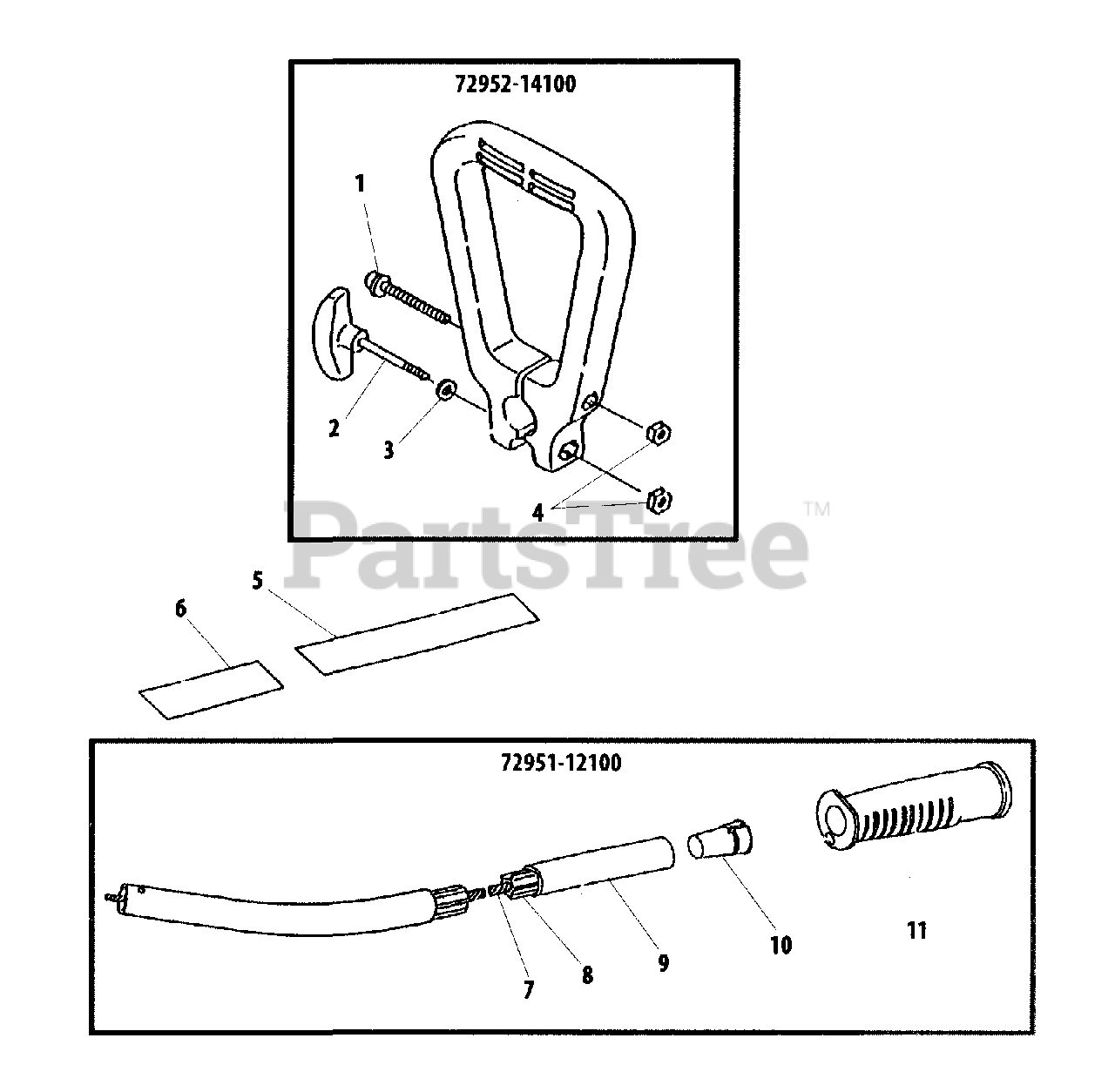

LE 230 - Shindaiwa Lawn Edger Handle/Outer Tube Parts Diagram

Lawn Edger

Handle/Outer Tube Parts Diagram

  • Title

72952-14100

Echo 72952-14100

HANDLE ASSY
(Superseded to P021038210)

$19.99

$

Usually ships in 2-4 days

0

1

Echo 72030-14141

SCREW
(Superseded to V254000040)

$0.99

$

Usually ships in 2-4 days

0

2

Echo 72030-14120

THUMBSCREW
(Superseded to V299000380)

$5.49

$

Usually ships in 2-4 days

0

3

Echo 72030-14130

WASHER
(Superseded to V304000160)

$0.99

$

In Stock, only 3 left!

0

4

Echo 01500-06051

NUT - 6
(Superseded to 90050000006)

$0.99

$

In Stock, Qty 20+

0

5

Echo 19420-00028

LABEL - MODEL
(Superseded to Discontinued)

$

$

Not available

6

Echo 72460-12530

LABEL - CAUTION
(Superseded to 19422-00029)

$5.49

$

Usually ships in 2-4 days

0

72951-12100

Echo 72951-12100

MAIN PIPE ASSY
(Superseded to 72951-12101)

$196.99

$

Usually ships in 2-4 days

0

7

Echo 72951-12410

DRIVESHAFT - FLEXIBLE
(Superseded to C506000180)

$10.99

$

In Stock, only 2 left!

0

8

Echo 72950-12120

LINER - FLEXIBLE
(Superseded to 72950-12121)

$43.99

$

Usually ships in 2-4 days

0

9

Echo 72950-12110

MAIN PIPE ASSY
(Superseded to 80027)

$184.99

$

Usually ships in 2-4 days

0

10

Echo 72950-12130

GUIDE, SHAFT
(Superseded to 72495-12130)

$1.99

$

Usually ships in 2-4 days

0

11

Echo 22422-12610

GRIP - REAR
(Superseded to C412000390)

$12.99

$

In Stock, only 2 left!

0
