LE 230 - Shindaiwa Lawn Edger Fuel Tank Parts Diagram

Lawn Edger

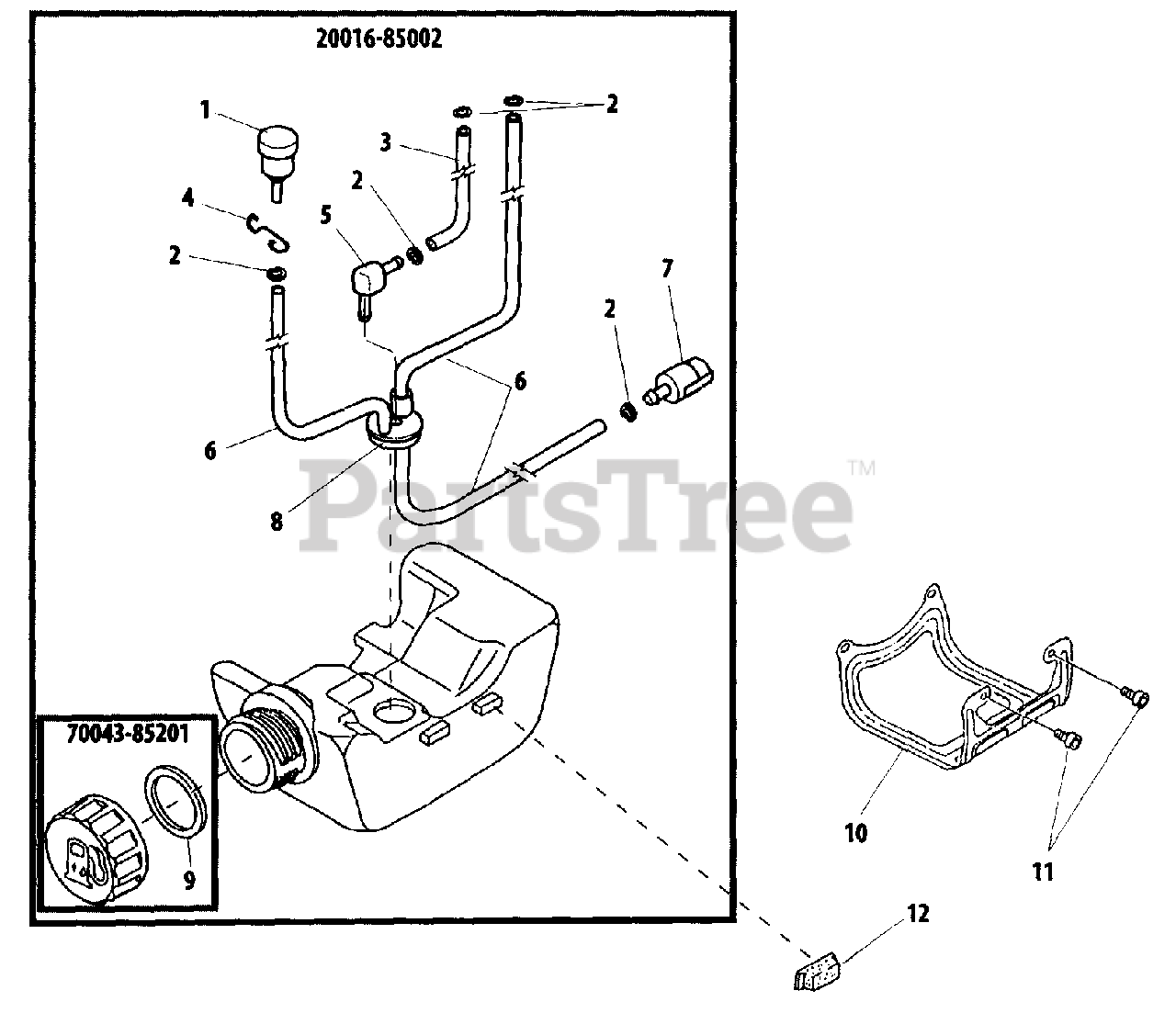

Fuel Tank Parts Diagram

  • Title

20016-85002

Echo 20016-85002

FUEL TANK ASSY
(Superseded to 20016-85003)

$46.99

$

In Stock, only 1 left!

0

1

Echo 20035-85522

VENT, FUEL TANK
(Superseded to A356000040)

$6.99

$

In Stock, Qty 20+

0

2

Echo 20020-85540

RING, RETAINING - 6
(Superseded to V490000500)

$0.99

$

In Stock, Qty 20+

0

3

Echo 20089-83310

PIPE - RETURN
(Superseded to 20089-83311)

$1.99

$

In Stock, only 4 left!

0

4

Echo 20016-12310

HOLDER, VENT
(Superseded to A358000040)

$0.99

$

In Stock, Qty 6

0

5

Echo 20087-85340

CONNECTOR, PIPE
(Superseded to V186000270)

$2.99

$

In Stock, Qty 17

0

6

Echo 70064-85311

PIPE - FUEL
(Superseded to 20016-85310)

$4.99

$

In Stock, Qty 15

0

7

Echo 20016-85400

FILTER, FUEL
(Superseded to A369000070)

$8.99

$

In Stock, Qty 20+

0

8

Echo 20089-85350

GROMMET
(Superseded to V470001140)

$5.49

$

In Stock, Qty 12

0

70043-85201

Echo 70043-85201

CAP ASSY
(Superseded to A033000070)

$3.99

$

In Stock, Qty 12

0

9

Echo 20000-85221

GASKET, CAP
(Superseded to V107000010)

$1.99

$

In Stock, Qty 17

0

10

Echo 70135-86130

GUARD, FUEL TANK
(Superseded to 62902-85320)

$12.99

$

In Stock, only 1 left!

0

11

Echo 11022-05120

SCREW - 5X12
(Superseded to V203000700)

$0.99

$

In Stock, Qty 20+

0

12

Echo 20024-86120

CUSHION, TANK
(Superseded to V420002630)

$1.49

$

In Stock, Qty 12

0
