LE 221 R (967820501) - Husqvarna Walk-Behind Mower (2018-01) MOTOR Parts Diagram

Walk-Behind Mower

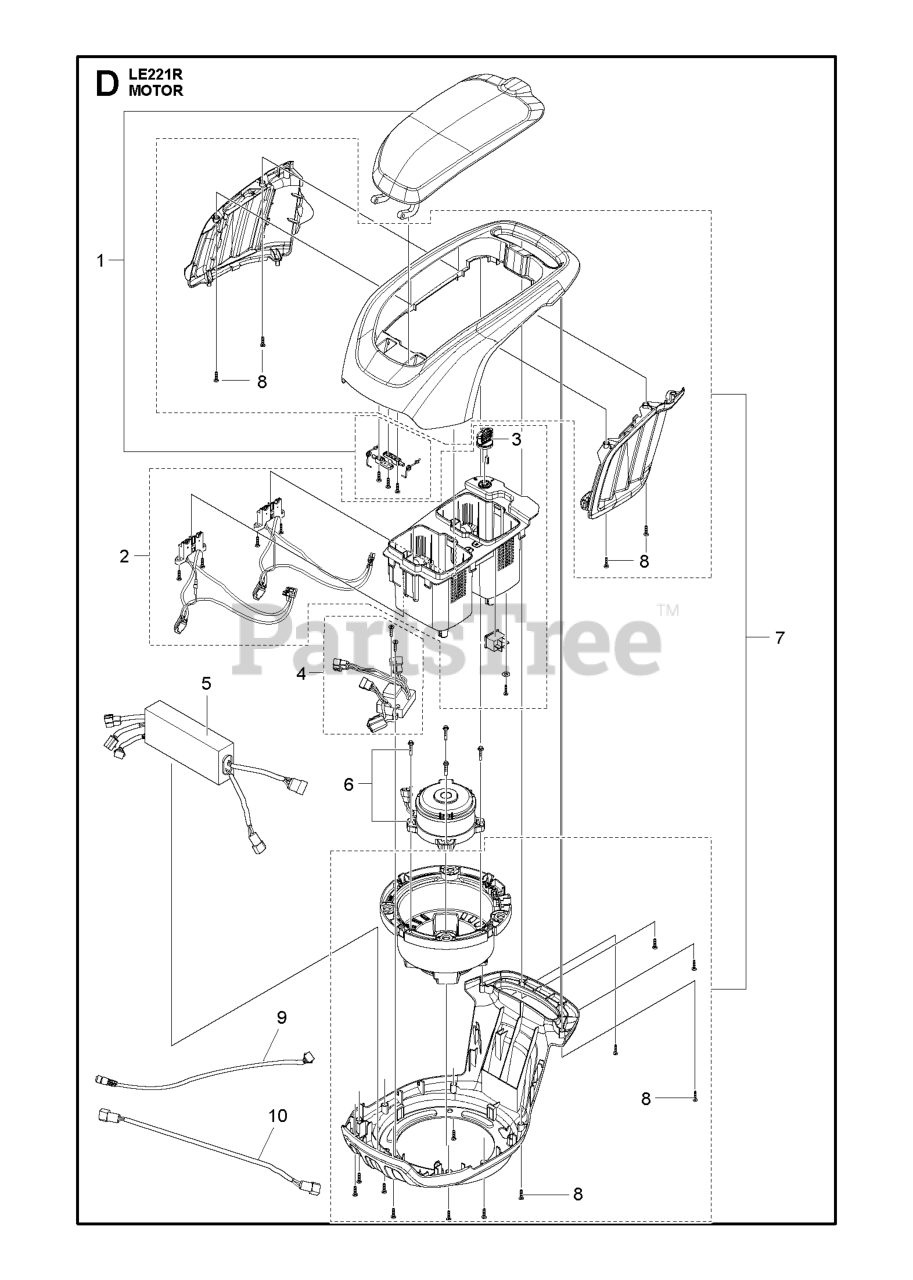

MOTOR Parts Diagram

  • Title

6

Husqvarna 593783801

MOTOR

Note: Brushless motor 900W

$319.99

$

Usually ships in 3-10 days

0

5

Husqvarna 593300302

CONTROL UNIT FOR POWER UNIT LE

$250.99

$

Usually ships in 3-10 days

0

4

Husqvarna 593133601

CONTACT PLATE SPARE PART ASSY

Note: Control plate assy

$68.99

$

Usually ships in 3-10 days

0

8

Husqvarna 593755501

SCREW SELF TAPPING DAYE# A2680

Note: Engine hood screws

$3.49

$

Usually ships in 3-10 days

0

3

Husqvarna 501490101

KEY

Note: battery pocket key

$6.99

$

Usually ships in 3-10 days

0

6

Husqvarna 593783803

NEEDS DESCRIPTION

Note: Use in models after S/N 20191000001

$

$

Currently unavailable

9

Husqvarna 593783901

CABLE HANDLE LE121P / LE221R

Note: To handle

$34.99

$

In Stock, only 1 left!

0

5

Husqvarna 593300305

NEEDS DESCRIPTION

Note: Use in models after S/N 20191000001

$227.99

$

Usually ships in 0 days

0

2

Husqvarna 593124501

BATTERY BOX SPARE PART ASSY LC

Note: Battery pocket assy

$84.99

$

Usually ships in 3-10 days

0

10

Husqvarna 593722601

CABLE TRANSMISSION LC347VLI

Note: To transmission

$20.99

$

Usually ships in 3-10 days

0

7

Husqvarna 593203901

ENGINE HOOD ASSY POWER UNIT LC

Note: Power unit plastic cover assy

$182.99

$

Usually ships in 3-10 days

0

4

Husqvarna 593133603

NEEDS DESCRIPTION

Note: Use in models after S/N 20191000001

$

$

Currently unavailable

1

Husqvarna 593124301

LID ASSY SPARE PART ASSY LC247

Note: Battery pocket lid

$20.99

$

Usually ships in 3-10 days

0
