LE 116 R (967820601) - Husqvarna Walk-Behind Mower (2018-02) MOWER DECK / CUTTING DECK Parts Diagram

Walk-Behind Mower

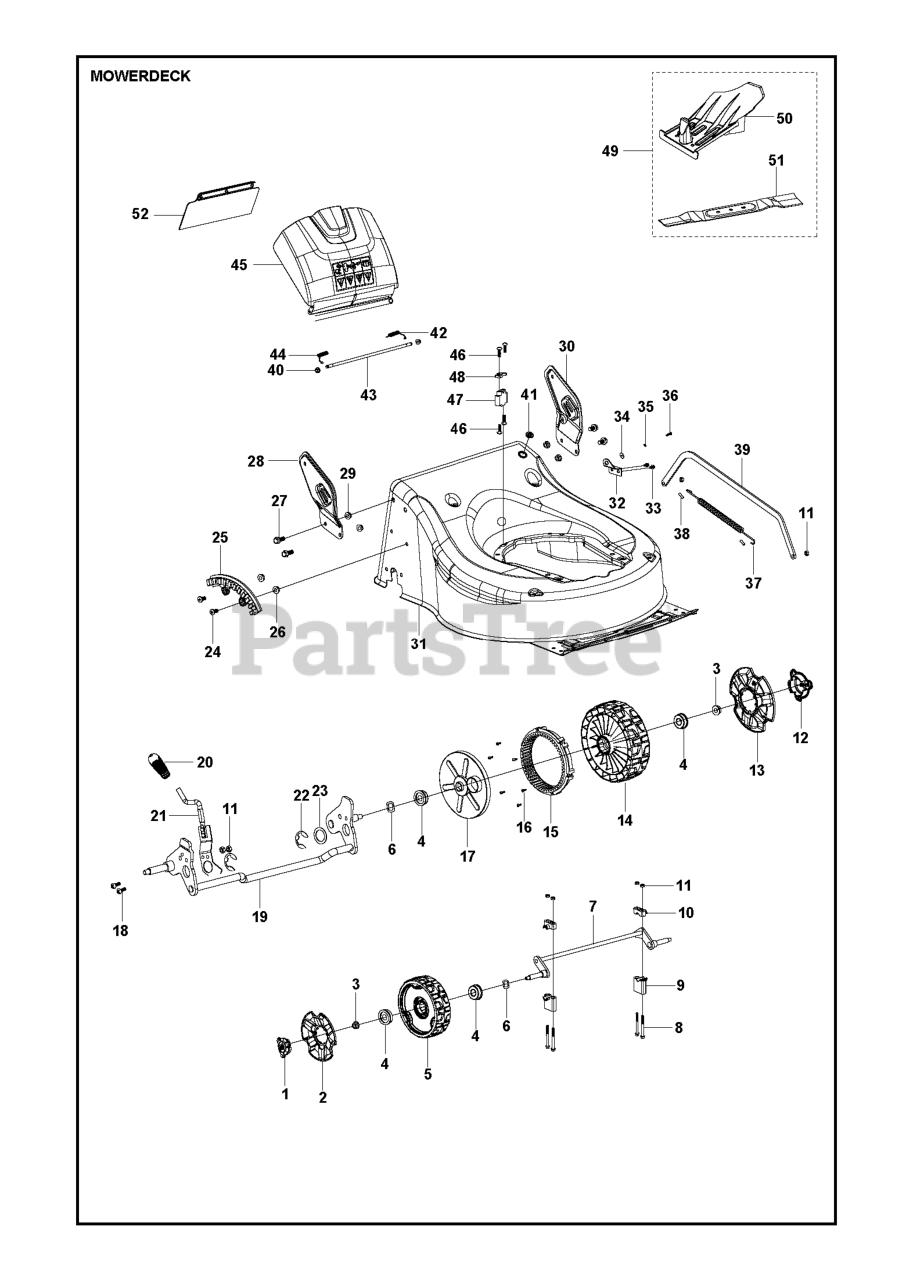

MOWER DECK / CUTTING DECK Parts Diagram

  • Title
15

Husqvarna 587910101

GEAR WHEEL #25229900201

$17.99

$

Usually ships in 3-10 days

0

39

Husqvarna 579685301

CONNECTING ROD

$34.99

$

Usually ships in 3-10 days

0

6

Husqvarna 587914601

WASHER Ï?12 #26800706202

$3.49

$

Usually ships in 3-10 days

0

$7.49

$

Usually ships in 3-10 days

0

7

Husqvarna 579684801

FRONT AXLE ASSY

$78.99

$

Usually ships in 3-10 days

0

$13.99

$

Usually ships in 3-10 days

0

14

Husqvarna 587585501

WHEEL 8" #25341200101

$34.99

$

Usually ships in 3-10 days

0

30

Husqvarna 579688101

BRACKET LEFT

$22.99

$

Usually ships in 3-10 days

0

$3.99

$

Usually ships in 3-10 days

0

31

Husqvarna 589758101

CHASSIS # 21062009970013A

$182.99

$

Usually ships in 3-10 days

0

44

Husqvarna 587915101

SPRING #26801125501

$4.99

$

Usually ships in 3-10 days

0

23

Husqvarna 587910801

WASHER #26300107601

$4.99

$

Usually ships in 3-10 days

0

25

Husqvarna 587909901

SEGMENT #25214200102

$6.99

$

Usually ships in 3-10 days

0

52

Husqvarna 595077501

NEEDS DESCRIPTION

$

$

Currently unavailable

49

Husqvarna 582872801

NEEDS DESCRIPTION

$

$

Currently unavailable

$7.49

$

Usually ships in 3-10 days

0

11

Husqvarna 587913101

LOCKING BOLT M6,GB889.1 #26800

$3.49

$

Usually ships in 3-10 days

0

37

Husqvarna 587914901

SPRING #26801103903

$5.99

$

Usually ships in 3-10 days

0

17

Husqvarna 587586201

COVER #25342800101

$10.99

$

Usually ships in 3-10 days

0

51

Husqvarna 579856901

BLADE 26300349801

$31.99

$

Usually ships in 3-10 days

0

2

Husqvarna 501491501

COVER 7 WHEEL COVER

$10.99

$

Usually ships in 3-10 days

0

47

Husqvarna 589760501

HOLDER # 2109100010N

$9.99

$

Usually ships in 3-10 days

0

50

Husqvarna 582895101

PLUG MULCHING

$

$

Not available

10

$8.99

$

Usually ships in 3-10 days

0

19

Husqvarna 589757801

SHAFT ASSY REAR #26300298401

$72.99

$

Usually ships in 3-10 days

0

3

Husqvarna 587913501

LOCKING BOLT M8,GB6187.1 #2680

$3.49

$

Usually ships in 3-10 days

0

$7.49

$

Usually ships in 3-10 days

0

$3.99

$

Usually ships in 3-10 days

0

42

Husqvarna 587915001

BRACKET #26801125401

$5.99

$

Usually ships in 3-10 days

0

33

Husqvarna 589758301

BOLT # 26800611201
(Superseded to 587914101)

$3.49

$

Usually ships in 3-10 days

0

1

Husqvarna 587585001

WHEEL COVER 6" #25340700101

$4.99

$

Usually ships in 3-10 days

0

$3.99

$

Usually ships in 3-10 days

0

36

Husqvarna 589759101

SCREW TAPPING # A26800105402

$3.99

$

Usually ships in 3-10 days

0

35

Husqvarna 589759001

SPRING WASHER # A26800800402

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 501054401

BRACKET RH

$22.99

$

Usually ships in 3-10 days

0

13

Husqvarna 587585301

WHEEL COVER 8" #25341100101

$6.99

$

Usually ships in 3-10 days

0

$6.49

$

Usually ships in 3-10 days

0

45

Husqvarna 589760401

FLAP REAR # 2100X03758

$51.99

$

Usually ships in 3-10 days

0

20

Husqvarna 587585701

KNOB HEIGHT ADJUSTMENT #25341

$13.99

$

Usually ships in 3-10 days

0

21

Husqvarna 502502701

HANDLE ASSY

$11.99

$

Usually ships in 3-10 days

0

27

Husqvarna 587913901

BOLT M8*16 #26800606401

$3.49

$

Usually ships in 3-10 days

0

18

Husqvarna 587912701

WASHER M6*14 #26800203001

$3.49

$

Usually ships in 3-10 days

0

22

Husqvarna 587914801

WASHER Ï?19*1.5,GB896 #2680090

$4.99

$

Usually ships in 3-10 days

0

41

Husqvarna 587910001

COVER #25217800104

$4.99

$

Usually ships in 3-10 days

0

40

Husqvarna 587913401

LOCK NUT M6,GB/T6187.1-2000 #2

$3.49

$

Usually ships in 3-10 days

0

$14.99

$

Usually ships in 3-10 days

0

5

Husqvarna 501491601

WHEEL ASSY 7 WHEEL

$28.99

$

Usually ships in 3-10 days

0

$3.99

$

Usually ships in 3-10 days

0

38

Husqvarna 587915801

TUBING #29000300101

$5.99

$

Usually ships in 3-10 days

0

34

Husqvarna 589758401

WASHER # A26800700901

$4.99

$

Usually ships in 3-10 days

0

32

Husqvarna 589758201

GUIDE PLATE # 26300360001

$6.99

$

Usually ships in 3-10 days

0

12

Husqvarna 587585101

WHEEL COVER 8" #25341000101

$5.99

$

Usually ships in 3-10 days

0
