LE 100 (25B-552J710) - Cub Cadet Edger (2015) General Assembly LE100 Parts Diagram

Edger

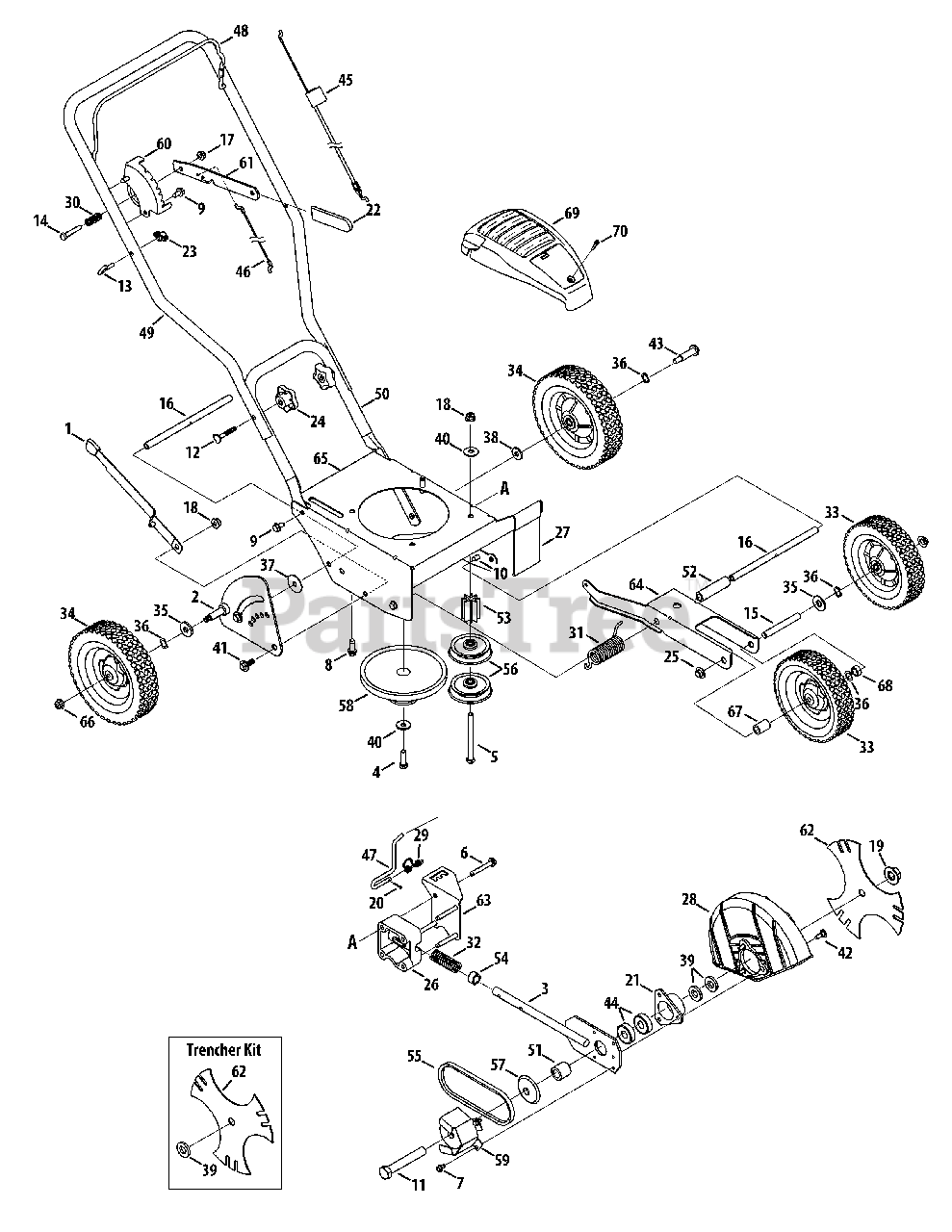

General Assembly LE100 Parts Diagram

  • Title

1

Cub Cadet 687-02022

Curb Height Adjustment Lever

$70.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 687-02585

Curb Height Adjuster Plate

$30.99

$

In Stock, only 1 left!

0

3

Cub Cadet 687-02126

Blade Plate Assembly

$56.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-0191

Screw 3/8-24

$4.99

$

In Stock, Qty 9

0

5

Cub Cadet 710-0411

Screw 3/8-16

$8.49

$

In Stock, Qty 17

0

6

Cub Cadet 710-04389

Hex Screw, 5/16-18

$6.99

$

In Stock, only 1 left!

0

7

Cub Cadet 710-0599

Self-tapping Screw, 1/4-20

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-0654A

Screw, 3/8-16

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-0726

Hex Screw, 5/16-12

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 710-0870

Hex Screw 5/16-18

$6.49

$

In Stock, only 1 left!

0

11

Cub Cadet 710-1143A

Hex Screw, 5/8-18

$11.99

$

In Stock, only 1 left!

0

12

Cub Cadet 710-1174

Carriage Bolt, 5/16-18

$7.49

$

In Stock, Qty 20+

0

13

Cub Cadet 710-1205

Rope Guide (Eye Bolt)

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 710-3180

Hex Screw, 5/16-18

$5.49

$

In Stock, Qty 20+

0

15

Cub Cadet 711-05696

Axle Shaft .50x6.65

$5.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 711-04440

Frame Spacer .50x9.25

$29.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 712-04063

Lock Flange Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 712-04065

Flange Nut 3/8-16

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 712-0417A

Flange Nut, 5/8-18

$6.99

$

In Stock, Qty 20+

0

20

Cub Cadet 714-3010

Clevis Pin 3/32 x .625

$4.99

$

In Stock, only 1 left!

0

21

Cub Cadet 718-04012

Bearing Cup

$21.99

$

In Stock, only 1 left!

0

22

Cub Cadet 720-0142

Grip

$3.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 720-0279

Wing Nut

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 720-04072A

Star Knob

$6.99

$

In Stock, Qty 9

0

25

Cub Cadet 726-0299

Push Cap 1/2" rod

$8.49

$

In Stock, Qty 20+

0

26

Cub Cadet 931-04207

Bearing Block

$27.99

$

In Stock, only 1 left!

0

27

Cub Cadet 731-05063

Debris Guard

$6.49

$

In Stock, only 1 left!

0

28

Cub Cadet 731-05064

Blade Guard
(Superseded to 731P05064)

$27.99

$

In Stock, only 1 left!

0

29

Cub Cadet 732-0188A

Double Torsion Spring

$12.99

$

In Stock, Qty 10

0

30

Cub Cadet 932-0369

Compression Spring

$10.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 732-04045

Torsion Spring

$15.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 932-04169

Compression Spring

$10.99

$

In Stock, only 1 left!

0

33

Cub Cadet 734-05075

Wheel 7 x 1.75 T-Tread

$40.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 734-04623

Wheel 8 x 1.75 T-Tread

$48.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 736-04019

Flat Washer, .531 x 1.25 x .181

$7.99

$

In Stock, only 1 left!

0

36

Cub Cadet 936-0232

Wave Washer .531 x .781 x .013
(Superseded to 736-0232)

$4.99

$

In Stock, Qty 12

0

37

Cub Cadet 736-0234

Flat Washer, .385 x 1.5 x .075

$6.49

$

Usually ships in 3-6 days

0

38

Cub Cadet 736-0258

Flat Washer .385 x 1.0 x .135

$4.49

$

In Stock, only 2 left!

0

39

Cub Cadet 936-04088

Flat Washer .635x1.24x.181
(Superseded to 736-04088)

$4.49

$

In Stock, only 2 left!

0

40

Cub Cadet 936-0452

Bell Washer,.396 x 1.140
(Superseded to 736-0452)

$4.99

$

In Stock, Qty 5

0

41

Cub Cadet 738-04149

Shoulder Screw, 3/8-16

$4.49

$

In Stock, Qty 20+

0

42

Cub Cadet 738-0706C

Shoulder Screw
(Superseded to 738-0706D)

$4.49

$

In Stock, only 2 left!

0

43

Cub Cadet 738-0929

Shoulder Screw, 3/8-16

$7.99

$

In Stock, only 2 left!

0

44

Cub Cadet 941-0524A

Bearing, .625 ID x 1.57 OD

$23.99

$

In Stock, Qty 20+

0

45

Cub Cadet 946-05156

Control Cable

$21.99

$

In Stock, only 2 left!

0

46

Cub Cadet 946-04036

Wheel Adjustment Cable

$18.99

$

In Stock, Qty 7

0

47

Cub Cadet 747-04110A

Blade Adjustment Rod

$17.99

$

In Stock, Qty 20+

0

48

Cub Cadet 747-0976A-0637

Bail Handle
(Superseded to 747-0976B)

$25.99

$

In Stock, only 1 left!

0

49

Cub Cadet 749-04183A

Upper Handle

Variations

Cub Cadet 749-04183A-0637

USE 749-04183A HANDLE-UPPER - POWDER BLACK (0637)

$69.99

$

Usually ships in 3-6 days

0

$69.99

$

Usually ships in 3-6 days

0

50

Cub Cadet 749-04234

Lower Handle

Variations

Cub Cadet 749-04234-0637

Lower Handle for Edger - POWDER BLACK (0637)

$50.99

$

In Stock, only 1 left!

0

$50.99

$

In Stock, only 1 left!

0

51

Cub Cadet 950-04105

Spacer, .63 x 1.12 x 1.06

$15.99

$

Usually ships in 3-6 days

0

52

Cub Cadet 750-04129

Spacer

$4.99

$

Usually ships in 3-6 days

0

53

Cub Cadet 950-04142

Pulley Mount Spacer

$14.99

$

Usually ships in 3-6 days

0

54

Cub Cadet 750-0547

Spacer, .64 x.88 x .50

$5.99

$

In Stock, only 2 left!

0

55

Cub Cadet 954-04032B

Belt

$25.99

$

In Stock, Qty 17

0

56

Cub Cadet 756-04148

Flat Idler Pulley, 2.5 OD

$41.99

$

In Stock, only 2 left!

0

57

Cub Cadet 956-0449

Sheave

$14.99

$

In Stock, only 2 left!

0

58

Cub Cadet 756-05069

Combination Flywheel Pulley

$164.99

$

Usually ships in 3-6 days

0

59

Cub Cadet 781-0427-0637

Belt Guard

$20.99

$

Usually ships in 3-6 days

0

60

Cub Cadet 781-0741A

Depth Index Bracket

Variations

Cub Cadet 781-0741A-0637

BRACKET-INDEX DEPTPOWDER BLACK - POWDER BLACK (0637)

$8.49

$

In Stock, only 1 left!

0

$7.99

$

Usually ships in 3-6 days

0

61

Cub Cadet 781-0742-0637

Depth Index Lever

$39.99

$

Usually ships in 3-6 days

0

62

Cub Cadet 781-0748-0637

Tri-Star Blade

$21.99

$

In Stock, Qty 13

0

63

Cub Cadet 787-01081A-4021

Bracket Plate
(Superseded to 787-01081A-0637)

$6.49

$

Usually ships in 3-6 days

0

64

Cub Cadet 787-01240-4021

Dual Wheel Bracket

$29.99

$

Usually ships in 3-6 days

0

65

Cub Cadet 787-01304-4021

Frame

$79.99

$

Usually ships in 3-6 days

0

66

Cub Cadet 712-04217

Flange Lock Nut, 3/8-16

$4.49

$

In Stock, Qty 16

0

67

Cub Cadet 750-05548

Spacer., .525 x .775 x .93

$3.99

$

Usually ships in 3-6 days

0

68

Cub Cadet 750-0664

Spacer., .505ID x .88OD x .440

$6.99

$

In Stock, only 2 left!

0

69

Cub Cadet 731-09094A

Engine Shroud
(Superseded to 731-09094B)

$26.99

$

In Stock, Qty 5

0

70

Cub Cadet 710-04509

Screw, #10-16 x 1.25

$3.99

$

Usually ships in 3-6 days

0
