LCT5218BV - Exmark 52" Lazer Z CT Zero-Turn Mower, 18hp Briggs & Stratton (SN: 510000 - 539999) (2005) Engine Group Parts Diagram

52" Lazer Z CT Zero-Turn Mower, 18hp Briggs & Stratton

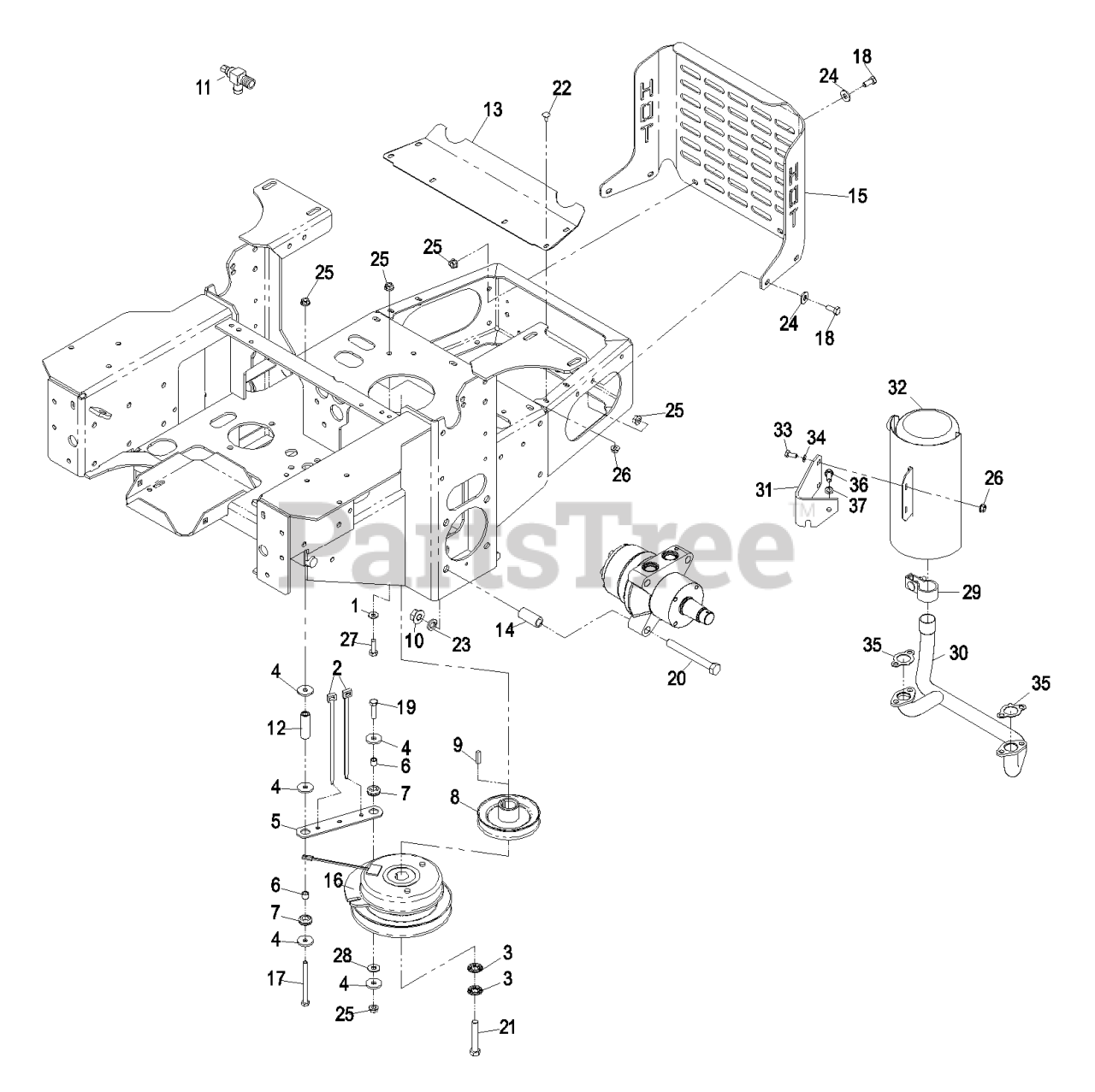

Engine Group Parts Diagram

  • Title

1

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 4 left!

0

2

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

3

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 5

0

4

Exmark 1-613235

WASHER

$1.99

$

In Stock, Qty 5

0

5

Exmark 1-633543-03

STRAP-CLUTCH, BRAKE

$14.99

$

In Stock, only 1 left!

0

6

Exmark 1-633545

SPACER

$2.99

$

In Stock, Qty 15

0

7

Exmark 1-633630

GROMMET

$5.99

$

In Stock, Qty 8

0

8

Exmark 103-3913

PULLEY

$66.99

$

In Stock, only 4 left!

0

9

Exmark 1-807259

KEY

$2.99

$

In Stock, only 2 left!

0

10

Exmark 32128-49

NUT-HHF

$1.99

$

In Stock, Qty 20+

0

11

Exmark 103-1963

VALVE-DRAIN, OIL

Note: Use a Teflon Pipe Sealant or equivalent on threads of drain valve.

$85.99

$

Usually ships in 3-6 days

0

12

Exmark 103-2614

SPACER

$

$

Not available

13

Exmark 103-2740-03

DEFLECTOR-SHORT

$27.99

$

Usually ships in 3-6 days

0

14

Exmark 1-633380

SPACER-WHEEL, SHORT

$8.49

$

Usually ships in 3-6 days

0

Exmark 103-8503

SPACER-MOTOR, WHEEL

$6.99

$

Usually ships in 3-6 days

0

15

Exmark 103-4048-03

BUMPER-REAR

$

$

Not available

16

Exmark 104-3624

109-7035
(Superseded to 109-7035)

$485.99

$

Usually ships in 3-6 days

0

17

Exmark 322-22

SCREW-HH

$4.49

$

In Stock, Qty 12

0

18

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

19

Exmark 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

20

Exmark 325-14

SCREW-HH

$4.49

$

Usually ships in 3-6 days

0

Exmark 325-18

SCREW-HH

$3.49

$

Usually ships in 3-6 days

0

21

Exmark 3212-10

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on clutch bolt.

$6.49

$

In Stock, only 1 left!

0

22

Exmark 3229-10

SCREW-CARR

$1.49

$

In Stock, only 4 left!

0

23

Exmark 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

24

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

25

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

26

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

27

Exmark 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

28

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

29

Exmark 103-8368

CLAMP-MUFFLER, 1.25 FLAT

$16.99

$

Usually ships in 3-6 days

0

30

Exmark 103-7993

DISCONTINUED

$

$

Not available

31

Exmark 103-8266-03

BRACKET,EXHAUST 21BV

$30.99

$

Usually ships in 3-6 days

0

32

Exmark 103-8106

MUFFLER

$143.99

$

Usually ships in 3-6 days

0

33

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

34

Exmark 1-303435

WASHER-SPRING

$1.49

$

In Stock, Qty 14

0

35

Exmark 103-8361

94-5844
(Superseded to 94-5844)

$13.99

$

In Stock, only 2 left!

0

36

Exmark 33114-020

SCREW-HH

$0.99

$

In Stock, Qty 13

0

37

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 12

0
