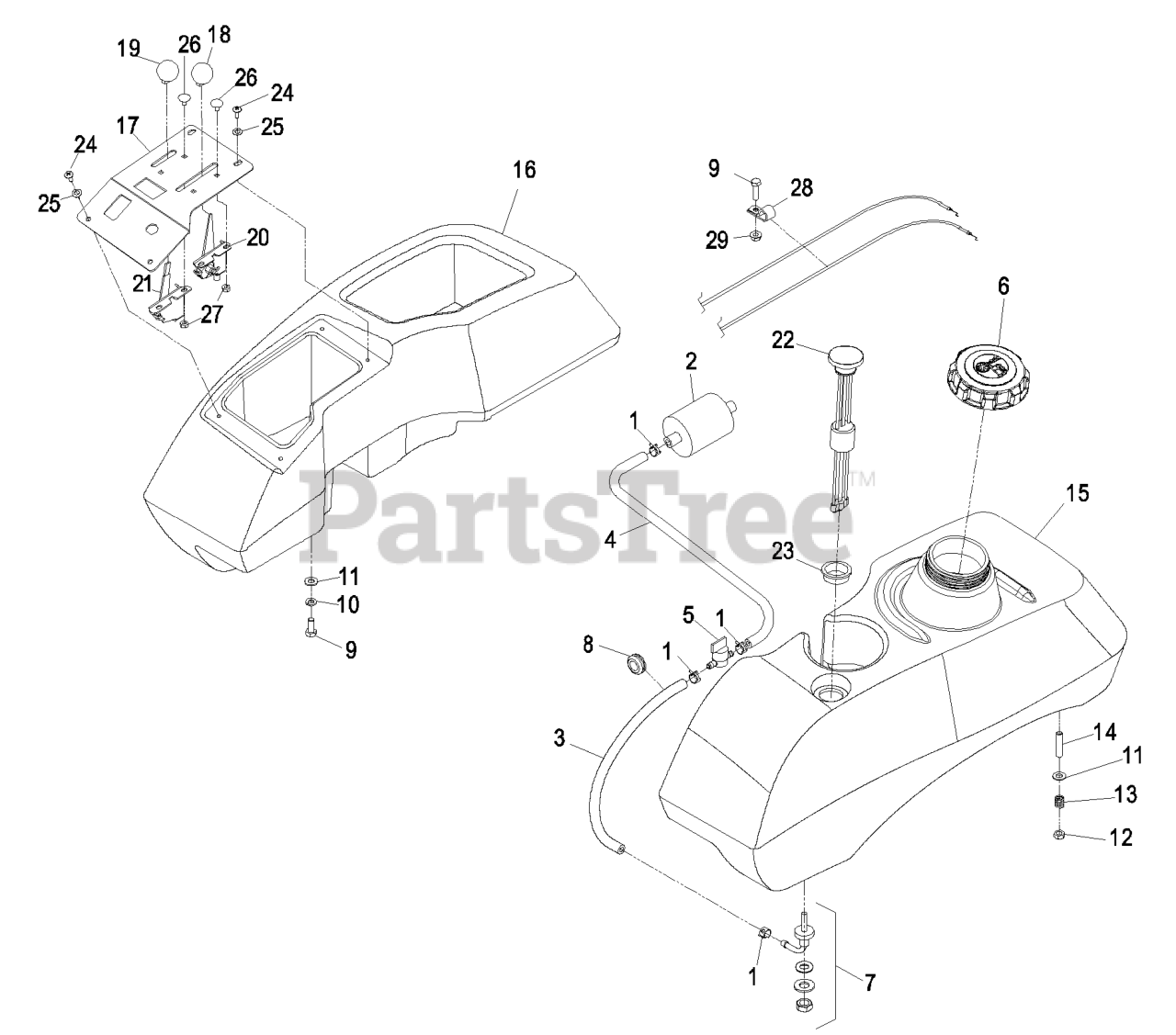

LCT4819KA - Exmark 48" Lazer Z CT Zero-Turn Mower, 19hp Kawasaki (SN: 440000 - 509999) (2004) Fuel Group For S/N 458,000 And Higher Parts Diagram
48" Lazer Z CT Zero-Turn Mower, 19hp Kawasaki
Fuel Group For S/N 458,000 And Higher Parts Diagram
Exmark 1-303077
$1.49
$
Note: Refer to Engine Owner's manual. (Fuel filter Must be 15 Micron or smaller).
$
$
Not available
Exmark 1-303472
$
$
Not available
Exmark 1-603955
$5.49
$
Exmark 1-603770
$8.49
$
$21.99
$
Exmark 103-2605
Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on fuel fitting.
$36.99
$
Exmark 103-2784
$13.99
$
Exmark 1-543296
$8.49
$
Exmark 322-3
$0.99
$
Exmark 1-805005
$1.49
$
Exmark 3256-23
$2.49
$
Exmark 3296-47
$3.99
$
Exmark 1-633349
$5.49
$
Exmark 1-633023
Note: Use Pro-Lock, Retaining Type (P/N 1-840023, .5ml tube) on stud threads going into tank.
$6.49
$
Exmark 103-5995
Note: Includes tank and studs. LH tank also includes cap, fitting and fuel gauge.
$
$
Not available
Exmark 103-5998
Note: Includes tank and studs. LH tank also includes cap, fitting and fuel gauge.
$
$
Not available
Exmark 103-4896
$
$
Not available
Exmark 1-513592
$6.99
$
Exmark 1-513593
$5.49
$
Exmark 103-5809
$
$
Not available
Exmark 103-4091
$54.99
$
Exmark 103-5810
$
$
Not available
Exmark 103-4091
$54.99
$
$72.99
$
Exmark 95-8972
$11.99
$
Exmark 32122-30
Note: Snug fit only on slotted holes, Do Not Overtighten, tank must be able to expand.
$1.49
$
Exmark 1-303435
$1.49
$
Exmark 1-807513
$2.99
$
Exmark 3296-2
$2.49
$
Exmark 1-633396
$5.49
$
Exmark 32128-20
$1.49
$
