LCT4818KC - Exmark 48" Lazer Z CT Zero-Turn Mower, 18hp Kohler (SN: 440000 - 509999) (2004) Deck Group 44", 48" And 52" Parts Diagram

48" Lazer Z CT Zero-Turn Mower, 18hp Kohler

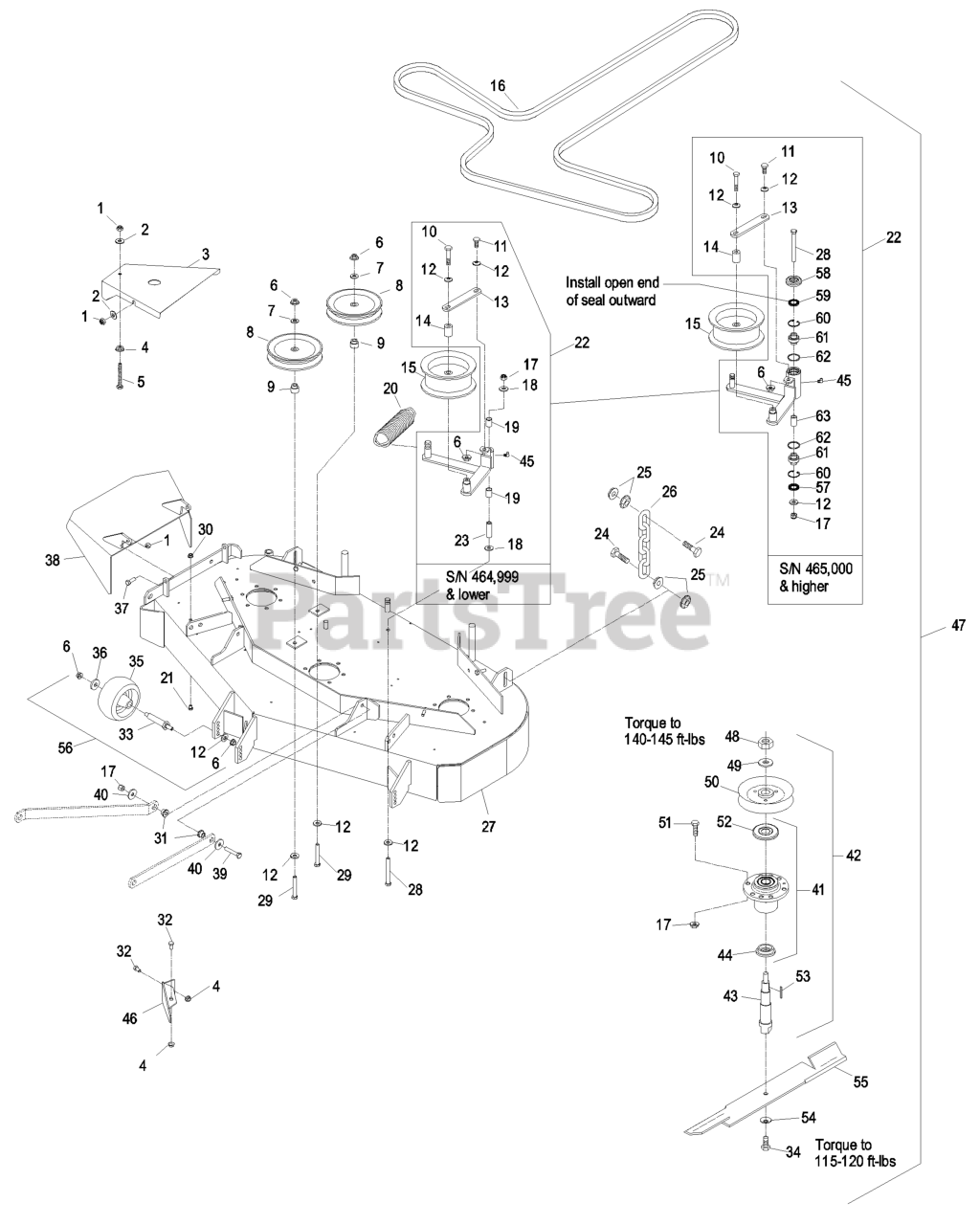

Deck Group 44", 48" And 52" Parts Diagram

  • Title

1

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

2

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

3

Exmark 103-2970-01

SHIELD,BELT

$33.99

$

In Stock, Qty 5

0

4

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

5

Exmark 1-800017

BOLT,TAP HH

$6.99

$

In Stock, only 2 left!

0

6

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

7

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

8

Exmark 1-613098

PULLEY-IDLER

$47.99

$

In Stock, Qty 6

0

9

Exmark 1-413113

BUSHING-IDLER

$5.99

$

In Stock, only 1 left!

0

10

Exmark 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

11

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

12

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

13

Exmark 1-653189

PLATE

Note: This component is required for units with S/N 464,999 and lower.

$11.99

$

In Stock, only 2 left!

0

Exmark 103-5668

PLATE,GUIDE BELT (PLTD)

Note: This component is required for units with S/N 465,000 and higher.

$8.99

$

In Stock, only 1 left!

0

14

Exmark 1-653190

SPACER

$17.99

$

In Stock, only 2 left!

0

15

Exmark 1-413099

116-4666
(Superseded to 116-4666)

$67.99

$

In Stock, Qty 17

0

16

Exmark 1-413093

BELT - V, B

$137.99

$

In Stock, only 2 left!

0

Exmark 1-413308

BELT,DECK DRIVE

$143.99

$

In Stock, only 2 left!

0

Exmark 1-653368

BELT,BLADE DRIVE

$147.99

$

In Stock, only 1 left!

0

17

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

18

Exmark 1-809107

WASHER-HARDENED

Note: This component is required for units with S/N 464,999 and lower.

$5.49

$

In Stock, only 2 left!

0

19

Exmark 103-4681

SLEEVE-BEARING

Note: This component is required for units with S/N 464,999 and lower.

$5.49

$

In Stock, Qty 20+

0

20

Exmark 103-3330

116-6317
(Superseded to 116-6317)

$28.99

$

In Stock, Qty 7

0

21

Exmark 321-1

SCREW-HH

$1.99

$

In Stock, only 1 left!

0

22

Exmark 103-5698

KIT,DECK IDLER LHP/LCT

Note: 103-5698 kit includes components shown for S/N 465,000 and higher and services all serial numbers.

$218.99

$

In Stock, Qty 7

0

23

Exmark 1-603384

BUSHING-PIVOT, IDLER

Note: This component is required for units with S/N 464,999 and lower.

$14.99

$

In Stock, Qty 18

0

24

Exmark 1-800811

SCREW-CAP, HH

$11.99

$

In Stock, only 3 left!

0

25

Exmark 32128-37

NUT-HF

$4.49

$

In Stock, Qty 17

0

26

Exmark 1-633447

CHAIN-LIFT, DECK

$10.99

$

In Stock, Qty 16

0

27

Exmark 103-4667

ASM,DECK W/DECALS LCT44

$

$

Not available

Exmark 103-4382

ASM,DECK W/DECALS LCT48

$

$

Not available

Exmark 103-6490

ASM,DECK W/ DECALS LCT52

$

$

Not available

28

Exmark 1-800805

SCREW-HH

Note: This component is required for units with S/N 464,999 and lower.

$5.49

$

In Stock, only 2 left!

0

Exmark 323-39

SCREW-HH

Note: This component is required for units with S/N 465,000 and higher.

$11.99

$

In Stock, Qty 20+

0

29

Exmark 323-13

SCREW-HH

$3.99

$

In Stock, only 4 left!

0

30

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

31

Exmark 103-3900

SPACER-STRUT

$7.99

$

In Stock, Qty 14

0

32

Exmark 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

33

Exmark 99-2842

126-2928
(Superseded to 126-2928)

$27.99

$

In Stock, Qty 5

0

Exmark 99-2842

126-2928
(Superseded to 126-2928)

$27.99

$

In Stock, Qty 5

0

34

Exmark 103-1026

SCREW-CAP

$5.49

$

In Stock, Qty 13

0

35

Exmark 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 10

0

Exmark 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 10

0

36

Exmark 1-373034

WASHER

$3.49

$

In Stock, Qty 20+

0

Exmark 1-373034

WASHER

$3.49

$

In Stock, Qty 20+

0

37

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

38

Exmark 1-402106-01

WLD,CHUTE 48

$159.99

$

In Stock, only 2 left!

0

Exmark 1-652375-01

WLD,DISCHARGE CHUTE

$181.99

$

In Stock, only 1 left!

0

39

Exmark 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

40

Exmark 63-8410

WASHER

$1.99

$

In Stock, Qty 14

0

41

Exmark 103-2547

103-8280
(Superseded to 103-8280)

$254.99

$

In Stock, only 3 left!

0

42

Exmark 103-4666

103-8281
(Superseded to 103-8281)

Note: Complete cutter housings also include items #54 & #34.

$531.99

$

Usually ships in 3-6 days

0

Exmark 103-3207

103-8282
(Superseded to 103-8282)

$505.99

$

In Stock, only 1 left!

0

Exmark 103-5981

DISCONTINUED
(Superseded to 103-8283)

$528.99

$

In Stock, only 1 left!

0

43

Exmark 103-2788

SPINDLE,SHAFT

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-sieze) between the spindles & bearings and spindles & sheaves and under top bearing guard. DO NOT use a copper or nickel based anti-sieze.

$79.99

$

In Stock, Qty 8

0

44

Exmark 103-2535

SPACER-GUARD, BOTTOM

$12.99

$

In Stock, only 3 left!

0

45

Exmark 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 8

0

46

Exmark 1-522480-01

116-2297-01
(Superseded to 116-2297-01)

$28.99

$

In Stock, only 1 left!

0

Exmark 1-602913-01

WLD,BAFFLE DISCHARGE

$46.99

$

In Stock, only 4 left!

0

47

Exmark 103-4668

Asm, Deck Complete (44")

Note: Includes all item shown plus decals. Does not include struts.

$

$

Currently unavailable

Exmark 103-4366

Asm, Deck Complete (48")

$

$

Currently unavailable

Exmark 103-5992

Asm, Deck Complete (52")

$

$

Currently unavailable

48

Exmark 3217-46

NUT-HH

$12.99

$

In Stock, Qty 13

0

49

Exmark 103-2802

WASHER

$5.49

$

In Stock, Qty 14

0

50

Exmark 1-653099

SHEAVE,W/HUB

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-sieze) between the spindles & bearings and spindles & sheaves and under top bearing guard. DO NOT use a copper or nickel based anti-sieze.

$70.99

$

Usually ships in 3-6 days

0

Exmark 1-413424

SHEAVE,W/HUB 5.72

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-sieze) between the spindles & bearings and spindles & sheaves and under top bearing guard. DO NOT use a copper or nickel based anti-sieze.

$67.99

$

In Stock, Qty 8

0

Exmark 1-653386

SHEAVE,6.13 EOD

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-sieze) between the spindles & bearings and spindles & sheaves and under top bearing guard. DO NOT use a copper or nickel based anti-sieze.

$91.99

$

In Stock, only 1 left!

0

51

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

52

Exmark 103-1330

GUARD-BEARING, TOP

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-sieze) between the spindles & bearings and spindles & sheaves and under top bearing guard. DO NOT use a copper or nickel based anti-sieze.

$5.49

$

In Stock, only 2 left!

0

53

Exmark 1-807268

KEY-RECTANGLE

$2.99

$

In Stock, Qty 14

0

54

Exmark 1-513208

WASHER-SPRING

$8.99

$

In Stock, only 2 left!

0

55

Exmark 103-2529

103-2529-S
(Superseded to 103-2529-S)

$37.99

$

In Stock, Qty 10

0

Exmark 103-2509

DISCONTINUED
(Superseded to 103-2509-S)

$

$

Not available

Exmark 103-2519

103-2519-S
(Superseded to 103-2519-S)

Note: Requires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N MK443(44"), MK483(48") and MK523(52")

$38.99

$

In Stock, only 3 left!

0

Exmark 103-1579

103-1579-S
(Superseded to 103-1579-S)

$30.99

$

In Stock, only 1 left!

0

Exmark 103-2527

103-6583-S
(Superseded to 103-6583-S)

$31.99

$

In Stock, Qty 20+

0

Exmark 103-2507

103-6738-S
(Superseded to 103-6738-S)

$31.99

$

In Stock, Qty 7

0

Exmark 103-2517

103-6581-S
(Superseded to 103-6581-S)

Note: Requires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N MK443(44"), MK483(48") and MK523(52")

$34.99

$

In Stock, only 4 left!

0

Exmark 103-1577

103-1577-S
(Superseded to 103-1577-S)

$37.99

$

In Stock, Qty 6

0

Exmark 103-2528

103-6584-S
(Superseded to 103-6584-S)

$31.99

$

In Stock, Qty 5

0

Exmark 103-2508

103-6580-S
(Superseded to 103-6580-S)

$34.99

$

In Stock, Qty 13

0

Exmark 103-2518

103-6582-S
(Superseded to 103-6582-S)

Note: Requires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N MK443(44"), MK483(48") and MK523(52")

$31.99

$

In Stock, Qty 20+

0

Exmark 103-1578

103-1578-S
(Superseded to 103-1578-S)

$37.99

$

In Stock, only 3 left!

0

56

Exmark 103-4051

116-9981
(Superseded to 116-9981)

$52.99

$

In Stock, Qty 20+

0

Exmark 103-4051

116-9981
(Superseded to 116-9981)

$52.99

$

In Stock, Qty 20+

0

57

Exmark 103-3505

SEAL-LIP, DOUBLE

Note: This component is required for units with S/N 465,000 and higher.

$5.49

$

In Stock, Qty 20+

0

58

Exmark 103-2916

GUARD-TOP

Note: This component is required for units with S/N 465,000 and higher.

$2.99

$

In Stock, Qty 9

0

59

Exmark 103-3506

SEAL-LIP, SINGLE

Note: This component is required for units with S/N 465,000 and higher.

$5.49

$

In Stock, Qty 19

0

60

Exmark 32120-10

RING-SNAP

Note: This component is required for units with S/N 465,000 and higher.

$1.49

$

In Stock, Qty 20+

0

61

Exmark 103-3504

BEARING-SPHERICAL

Note: This component is required for units with S/N 465,000 and higher.

$25.99

$

In Stock, Qty 20+

0

62

Exmark 106-7159

O-RING

Note: This component is required for units with S/N 465,000 and higher.

$1.49

$

In Stock, Qty 20+

0

63

Exmark 1-603401

SPACER

Note: This component is required for units with S/N 465,000 and higher.

$6.99

$

In Stock, Qty 8

0

Exmark 1-850337

PAINT,SPRAY RED

$27.99

$

In Stock, Qty 16

0
