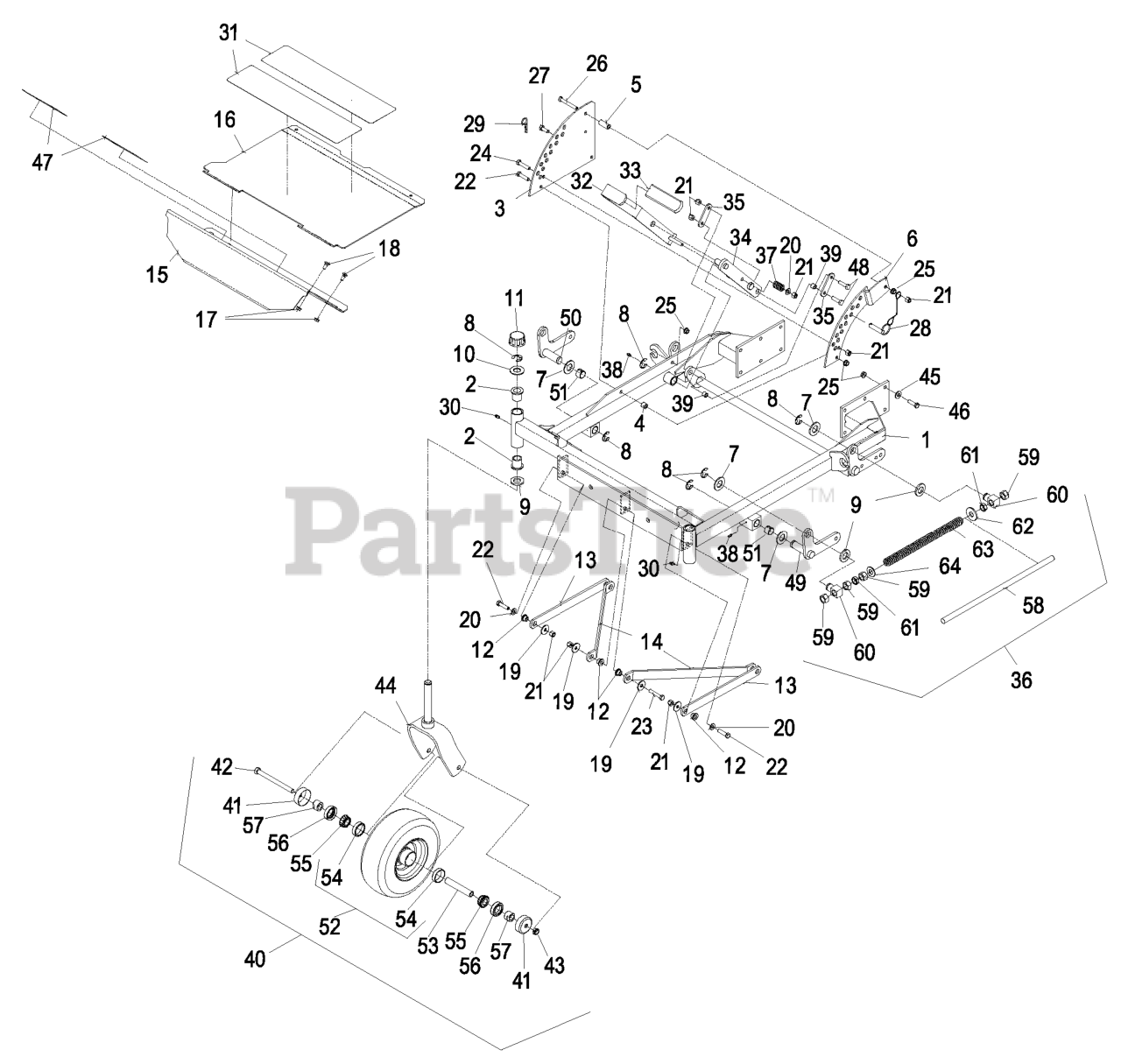

LCT4818KC - Exmark 48" Lazer Z CT Zero-Turn Mower, 18hp Kohler (SN: 370000 - 439999) (2003) Front Frame Group Parts Diagram

48" Lazer Z CT Zero-Turn Mower, 18hp Kohler

Front Frame Group Parts Diagram

  • Title

1

Exmark 103-4338-01

DISCONTINUED

Note: Includes frame weldment plus items 49, 50. Does not include grease fittings items 30.

$

$

Not available

2

Exmark 1-303514

BEARING-FLANGED

$12.99

$

In Stock, Qty 19

0

3

Exmark 1-653230-01

PLATE-LIFT, DECK

$71.99

$

Usually ships in 3-6 days

0

4

Exmark 1-413088

BUSHING-LEVER, LIFT

$10.99

$

In Stock, only 1 left!

0

5

Exmark 1-633082

BUSHING-LEVER, LIFT

$11.99

$

Usually ships in 3-6 days

0

6

Exmark 1-652235-01

PLATE-LIFT, DECK

$

$

Not available

7

Exmark 3256-29

WASHER-FLAT

$2.99

$

Usually ships in 3-6 days

0

8

Exmark 32151-103

RING-RETAINING, EXT

$3.49

$

In Stock, Qty 9

0

9

Exmark 1-513338

WASHER-FLAT

$4.49

$

In Stock, Qty 20+

0

10

Exmark 104-8076

WASHER

$5.49

$

In Stock, Qty 10

0

11

Exmark 61-9780

CAP-HUB

$7.49

$

In Stock, Qty 8

0

12

Exmark 103-3900

SPACER-STRUT

$7.99

$

In Stock, Qty 14

0

13

Exmark 103-3898-01

103-3898
(Superseded to 103-3898)

$23.99

$

In Stock, only 4 left!

0

14

Exmark 103-3899-01

103-3899
(Superseded to 103-3899)

$27.99

$

Usually ships in 3-6 days

0

15

Exmark 103-4135-01

Asm, Floorpan (103-4033-01) W/Decals & Pads

$

$

Currently unavailable

16

Exmark 103-4316

ASM,FLOORPAN

$196.99

$

Usually ships in 3-6 days

0

17

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

18

Exmark 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

19

Exmark 63-8410

WASHER

$1.99

$

In Stock, Qty 14

0

20

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

21

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

22

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

23

Exmark 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

24

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

25

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

26

Exmark 323-13

SCREW-HH

$3.99

$

Usually ships in 3-6 days

0

27

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

28

Exmark 1-633097

PIN-HITCH (W/LANYARD)

$23.99

$

In Stock, only 2 left!

0

29

Exmark 1-806005

PIN-COTTER

$2.99

$

In Stock, Qty 20+

0

30

Exmark 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

31

Exmark 1-633553

PAD-ANTISKID

$12.99

$

In Stock, Qty 6

0

32

Exmark 103-2081

ASM, LIFT LEVER / GRIP

$

$

Not available

33

Exmark 1-633295

GRIP-LEVER, LIFT

$7.99

$

In Stock, only 1 left!

0

34

Exmark 103-3718-03

WLD, DECK LIFT ARM-LHP

$112.99

$

Usually ships in 3-6 days

0

35

Exmark 1-633068

ARM-LIFT, DECK

$11.99

$

Usually ships in 3-6 days

0

36

Exmark 103-1987

FRONT SPRING ASM

$88.99

$

In Stock, only 1 left!

0

37

Exmark 1-633325

SPRING-COMPRESSION

$5.49

$

Usually ships in 3-6 days

0

38

Exmark 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 8

0

39

Exmark 103-1918

BUSHING

$7.99

$

In Stock, Qty 6

0

40

Exmark 103-3800

WHEEL AND TIRE ASM

$240.99

$

In Stock, only 4 left!

0

41

Exmark 103-2768

GUARD-SEAL

$3.49

$

In Stock, Qty 20+

0

42

Exmark 325-20

SCREW-HH

$7.99

$

In Stock, Qty 20+

0

43

Exmark 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

44

Exmark 103-3904-01

WLD,CASTER FORK

$142.99

$

Usually ships in 3-6 days

0

45

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

46

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

47

Exmark 106-6572

PAD-ANTI SKID

$11.99

$

In Stock, Qty 7

0

48

Exmark 323-29

SCREW-HH

$0.99

$

In Stock, Qty 7

0

49

Exmark 103-3902-01

WLD,SHAFT LH

$

$

Not available

50

Exmark 103-3903-01

WLD,SHAFT RH

$65.99

$

Usually ships in 3-6 days

0

51

Exmark 103-1982

BUSHING,SPRING

$

$

Not available

52

Exmark 103-3151

103-3798
(Superseded to 103-3798)

$209.99

$

In Stock, only 3 left!

0

53

Exmark 103-3157

126-5359
(Superseded to 126-5359)

$18.99

$

In Stock, only 2 left!

0

54

Exmark 1-543508

CUP-BEARING

$7.99

$

In Stock, Qty 18

0

55

Exmark 1-633585

BEARING-CONE, TAPERED ROLLER

$21.99

$

In Stock, Qty 12

0

56

Exmark 103-0063

SEAL-CASTER

$8.99

$

In Stock, Qty 6

0

57

Exmark 103-3051

SPACER-NUT

Note: Use Pro-Lock, Nut Type (P/N 840022, .5ml tube) on spacer nut item 57.

$9.49

$

In Stock, only 2 left!

0

58

Exmark 1-653011

ROD-LIFT, DECK

$21.99

$

Usually ships in 3-6 days

0

59

Exmark 3217-11

NUT-HEX

$3.49

$

In Stock, Qty 15

0

60

Exmark 1-633441

SWIVEL-DECK MOUNT, REAR

$26.99

$

Usually ships in 3-6 days

0

61

Exmark 3218-6

NUT-JAM

$6.49

$

In Stock, Qty 10

0

62

Exmark 1-805517

WASHER

$6.99

$

Usually ships in 3-6 days

0

63

Exmark 1-653009

SPRING-COMPRESSION

$17.99

$

Usually ships in 3-6 days

0

64

Exmark 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 5

0

Exmark 1-850337

PAINT,SPRAY RED

$27.99

$

In Stock, Qty 16

0

Exmark 840022

Pro-Lock, Nut Type

$

$

Currently unavailable
