LCT4818KC - Exmark 48" Lazer Z CT Zero-Turn Mower, 18hp Kohler (SN: 370000 - 439999) (2003) 44" And 48" Deck Group Parts Diagram

48" Lazer Z CT Zero-Turn Mower, 18hp Kohler

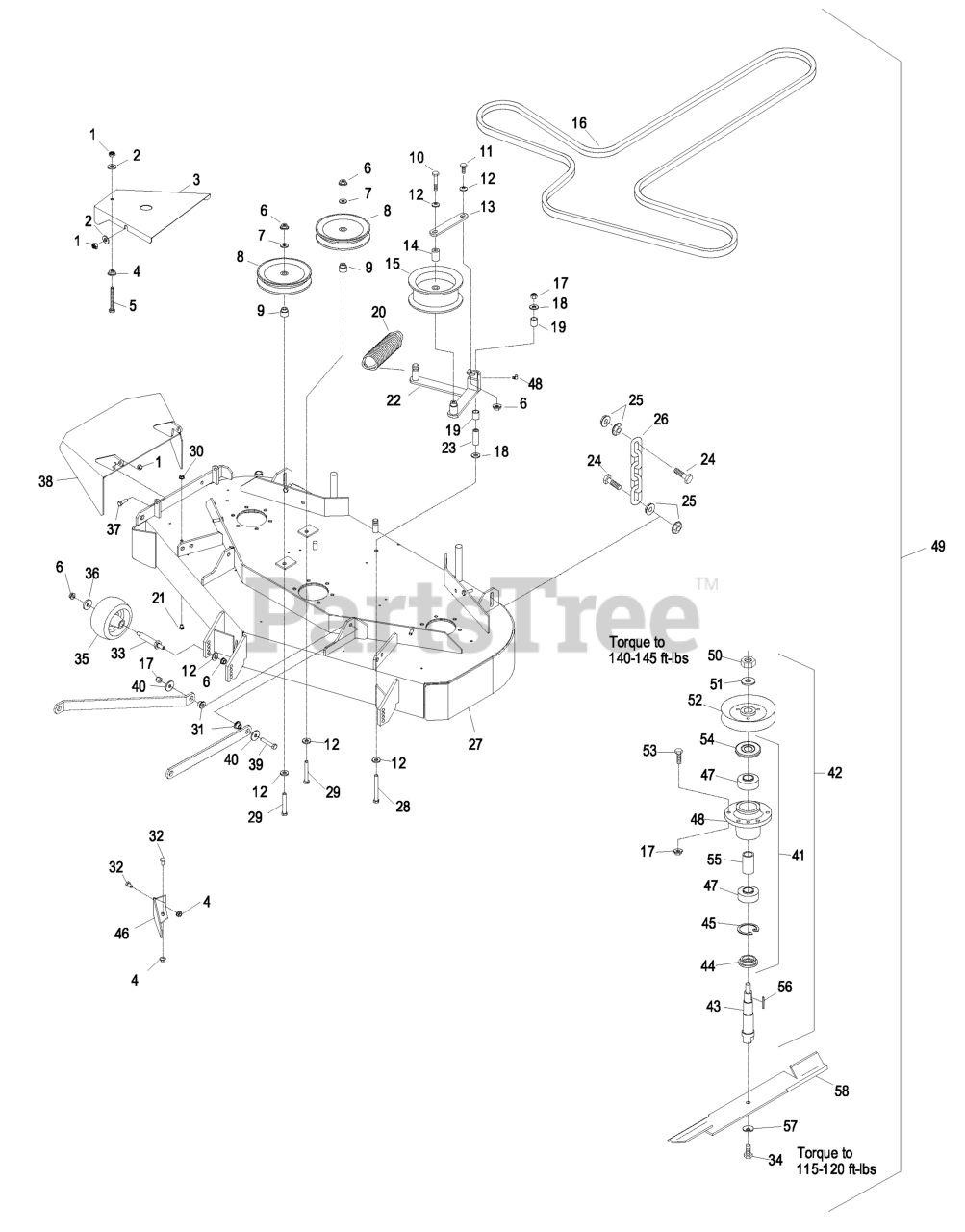

44" And 48" Deck Group Parts Diagram

  • Title

1

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

2

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

3

Exmark 103-2970-01

SHIELD,BELT

$33.99

$

In Stock, Qty 5

0

4

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

5

Exmark 1-800017

BOLT,TAP HH

$6.99

$

In Stock, only 2 left!

0

6

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

7

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

8

Exmark 1-613098

PULLEY-IDLER

$49.99

$

In Stock, Qty 7

0

9

Exmark 1-413113

BUSHING-IDLER

$5.99

$

In Stock, only 4 left!

0

10

Exmark 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

11

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

12

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

13

Exmark 1-653189

PLATE

$11.99

$

In Stock, only 2 left!

0

14

Exmark 1-653190

SPACER

$17.99

$

In Stock, only 2 left!

0

15

Exmark 1-413099

116-4666
(Superseded to 116-4666)

$69.99

$

In Stock, Qty 17

0

16

Exmark 1-413308

BELT,DECK DRIVE

$143.99

$

In Stock, only 2 left!

0

Exmark 1-413093

BELT - V, B

$137.99

$

In Stock, only 1 left!

0

17

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

18

Exmark 1-809107

WASHER-HARDENED

$5.49

$

In Stock, only 2 left!

0

19

Exmark 1-513034

SLEEVE-BEARING

$7.49

$

In Stock, Qty 20+

0

20

Exmark 103-3330

116-6317
(Superseded to 116-6317)

$27.99

$

In Stock, Qty 12

0

21

Exmark 321-1

SCREW-HH

$1.99

$

In Stock, only 1 left!

0

Exmark 321-1

SCREW-HH

$1.99

$

In Stock, only 1 left!

0

22

Exmark 1-652192-01

103-5698
(Superseded to 103-5698)

$218.99

$

In Stock, Qty 7

0

Exmark 1-654193

103-5698
(Superseded to 103-5698)

$218.99

$

In Stock, Qty 7

0

23

Exmark 1-603384

BUSHING-PIVOT, IDLER

$14.99

$

In Stock, Qty 20+

0

24

Exmark 1-800811

SCREW-CAP, HH

$11.99

$

In Stock, only 3 left!

0

25

Exmark 32128-37

NUT-HF

$4.49

$

In Stock, Qty 18

0

26

Exmark 1-633447

CHAIN-LIFT, DECK

$10.99

$

In Stock, Qty 16

0

27

Exmark 103-4382

ASM,DECK W/DECALS LCT48

$

$

Not available

Exmark 103-4667

ASM,DECK W/DECALS LCT44

$

$

Not available

28

Exmark 1-800805

SCREW-HH

$5.49

$

In Stock, only 4 left!

0

29

Exmark 323-13

SCREW-HH

$3.99

$

Usually ships in 3-6 days

0

30

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

31

Exmark 103-3900

SPACER-STRUT

$7.99

$

In Stock, Qty 14

0

32

Exmark 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

33

Exmark 99-2842

126-2928
(Superseded to 126-2928)

$26.99

$

In Stock, Qty 7

0

34

Exmark 103-1026

SCREW-CAP

$5.49

$

In Stock, Qty 13

0

35

Exmark 1-603299

ROLLER-SCALP, ANTI

Note: Kit 103-4051 includes antiscalp roller, bushing, and mounting hardware.

$22.99

$

In Stock, Qty 20+

0

36

Exmark 1-373034

WASHER

$3.49

$

In Stock, Qty 20+

0

37

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

38

Exmark 1-402106-01

WLD,CHUTE 48

$159.99

$

In Stock, only 2 left!

0

39

Exmark 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

40

Exmark 63-8410

WASHER

$1.99

$

In Stock, Qty 14

0

41

Exmark 103-2547

103-8280
(Superseded to 103-8280)

$254.99

$

In Stock, only 4 left!

0

42

Exmark 103-3207

103-8282
(Superseded to 103-8282)

$505.99

$

In Stock, only 1 left!

0

Exmark 103-4666

103-8281
(Superseded to 103-8281)

$531.99

$

Usually ships in 3-6 days

0

43

Exmark 103-2788

SPINDLE,SHAFT

Note: Apply Mobil HTS grease (or a food-grade anti-sieze) between the spindles & bearings and spindles & sheaves and under top bearing guard. DO NOT use a copper or nickel based anti-sieze.

$79.99

$

In Stock, Qty 9

0

44

Exmark 103-2535

SPACER-GUARD, BOTTOM

$12.99

$

In Stock, only 3 left!

0

45

Exmark 32120-8

RING-SNAP

$2.99

$

In Stock, Qty 16

0

46

Exmark 1-522480-01

116-2297-01
(Superseded to 116-2297-01)

$28.99

$

In Stock, only 1 left!

0

47

Exmark 103-2477

BEARING-JACKSHAFT

Note: Apply Mobil HTS grease (or a food-grade anti-sieze) between the spindles & bearings and spindles & sheaves and under top bearing guard. DO NOT use a copper or nickel based anti-sieze.

$58.99

$

In Stock, Qty 11

0

48

Exmark 1-323532

103-8280
(Superseded to 103-8280)

$254.99

$

In Stock, only 4 left!

0

49

Exmark 103-4668

Deck Complete Service (44")

Note: Struts are not included in complete service deck, item 49

$

$

Currently unavailable

Exmark 103-4366

Deck Complete Service (48")

$

$

Currently unavailable

50

Exmark 3217-46

NUT-HH

$12.99

$

In Stock, Qty 13

0

51

Exmark 103-2802

WASHER

$5.49

$

In Stock, Qty 16

0

52

Exmark 1-653099

SHEAVE,W/HUB

Note: Apply Mobil HTS grease (or a food-grade anti-sieze) between the spindles & bearings and spindles & sheaves and under top bearing guard. DO NOT use a copper or nickel based anti-sieze.

$70.99

$

Usually ships in 3-6 days

0

Exmark 1-413424

SHEAVE,W/HUB 5.72

Note: Apply Mobil HTS grease (or a food-grade anti-sieze) between the spindles & bearings and spindles & sheaves and under top bearing guard. DO NOT use a copper or nickel based anti-sieze.

$67.99

$

In Stock, Qty 8

0

53

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

54

Exmark 103-1330

GUARD-BEARING, TOP

Note: Apply Mobil HTS grease (or a food-grade anti-sieze) between the spindles & bearings and spindles & sheaves and under top bearing guard. DO NOT use a copper or nickel based anti-sieze.

$5.49

$

In Stock, only 2 left!

0

55

Exmark 103-2534

SPACER-BEARING

$9.49

$

In Stock, Qty 5

0

56

Exmark 1-807268

KEY-RECTANGLE

$2.99

$

In Stock, Qty 15

0

57

Exmark 1-513208

WASHER-SPRING

$8.99

$

In Stock, only 2 left!

0

58

Exmark 103-2529

103-2529-S
(Superseded to 103-2529-S)

$37.99

$

In Stock, Qty 10

0

Exmark 103-2509

DISCONTINUED
(Superseded to 103-2509-S)

$

$

Not available

Exmark 103-2519

103-2519-S
(Superseded to 103-2519-S)

Note: Requires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N MK443 (44"), MK483 (48")

$38.99

$

In Stock, only 3 left!

0

Exmark 103-1579

103-1579-S
(Superseded to 103-1579-S)

$30.99

$

In Stock, only 1 left!

0

Exmark 103-2527

103-6583-S
(Superseded to 103-6583-S)

$31.99

$

In Stock, Qty 20+

0

Exmark 103-2507

103-6738-S
(Superseded to 103-6738-S)

$31.99

$

In Stock, Qty 7

0

Exmark 103-2517

103-6581-S
(Superseded to 103-6581-S)

Note: Requires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N MK443 (44"), MK483 (48")

$34.99

$

In Stock, only 4 left!

0

Exmark 103-1577

103-1577-S
(Superseded to 103-1577-S)

$37.99

$

In Stock, Qty 6

0

Exmark 1-850337

PAINT,SPRAY RED

$27.99

$

In Stock, Qty 16

0

Exmark MK443

Mulch Kit (44")

$

$

Currently unavailable

Exmark MK483

Mulch Kit (48")

$

$

Currently unavailable
