LCT4818BV - Exmark 48" Lazer Z CT Zero-Turn Mower, 18hp Briggs & Stratton (SN: 540000 - 599999) (2005) Mainframe Group Parts Diagram

48" Lazer Z CT Zero-Turn Mower, 18hp Briggs & Stratton

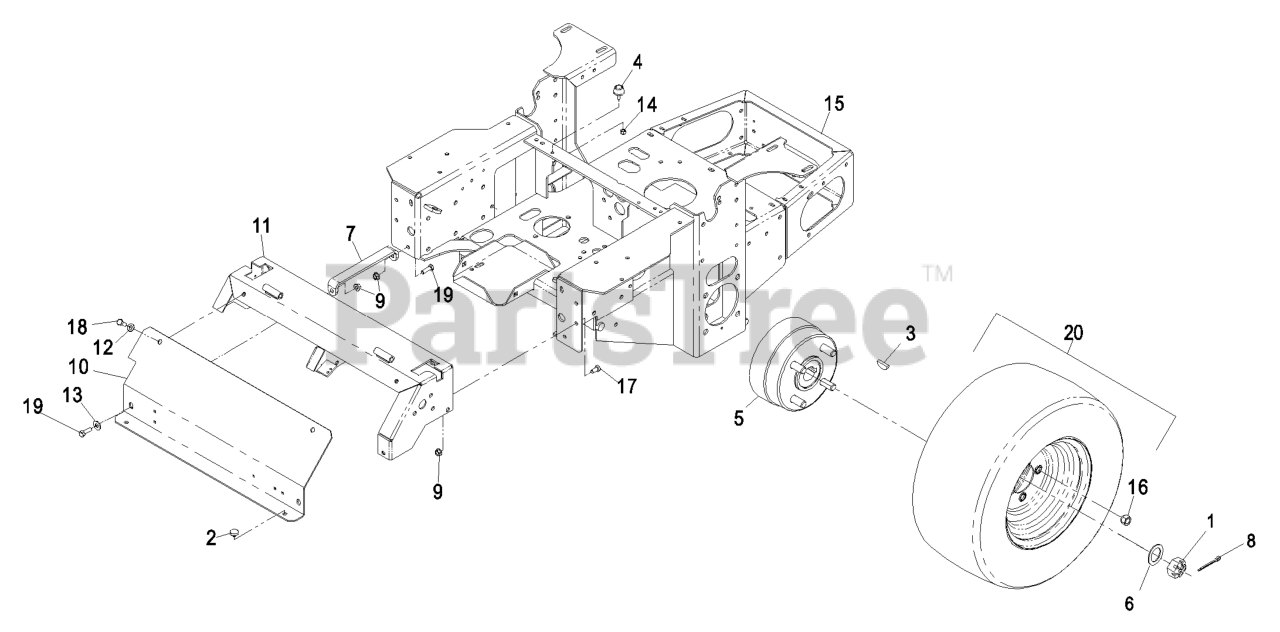

Mainframe Group Parts Diagram

  • Title

1

Exmark 1-809036

NUT-HH

$37.99

$

In Stock, Qty 5

0

2

Exmark 1-513658

BUMPER

$6.49

$

In Stock, Qty 9

0

3

Exmark 3257-42

KEY-WOODRUFF

$6.49

$

In Stock, Qty 10

0

4

Exmark 1-523420

109-2365

$14.99

$

Usually ships in 3-6 days

0

5

Exmark 103-0590

WHEEL HUB ASM

$182.99

$

In Stock, Qty 10

0

Exmark 1-633926

STUD-WHEEL

$4.99

$

In Stock, Qty 20+

0

6

Exmark 1-523157

WASHER-SPACER

$1.49

$

In Stock, Qty 20+

0

7

Exmark 1-653089-03

103-7935-03
(Superseded to 103-7935-03)

$

$

Not available

8

Exmark 1-806800

PIN-COTTER

$2.99

$

In Stock, Qty 17

0

9

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

10

Exmark 103-4895

DISCONTINUED

$

$

Not available

11

Exmark 103-3452

ASM,CONSOLE WELDMENT W/DE

$

$

Not available

12

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

13

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

15

Exmark 103-8401-03

Wld, Mainframe

$

$

Currently unavailable

16

Exmark 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

In Stock, only 4 left!

0

17

Exmark 322-2

SCREW-HH

$2.99

$

In Stock, Qty 17

0

18

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

19

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

20

Exmark 1-543396

WHEEL AND TIRE ASM
(Superseded to 144-3664)

$192.99

$

Usually ships in 3-6 days

0

Exmark 1-513042

WHEEL

$

$

Not available

Exmark 1-543680

99-4506
(Superseded to 99-4506)

$

$

Not available
