LCT4418KC - Exmark 44" Lazer Z CT Zero-Turn Mower, 18hp Kohler (SN: 370000 - 439999) (2003) Fuel Group Parts Diagram

44" Lazer Z CT Zero-Turn Mower, 18hp Kohler

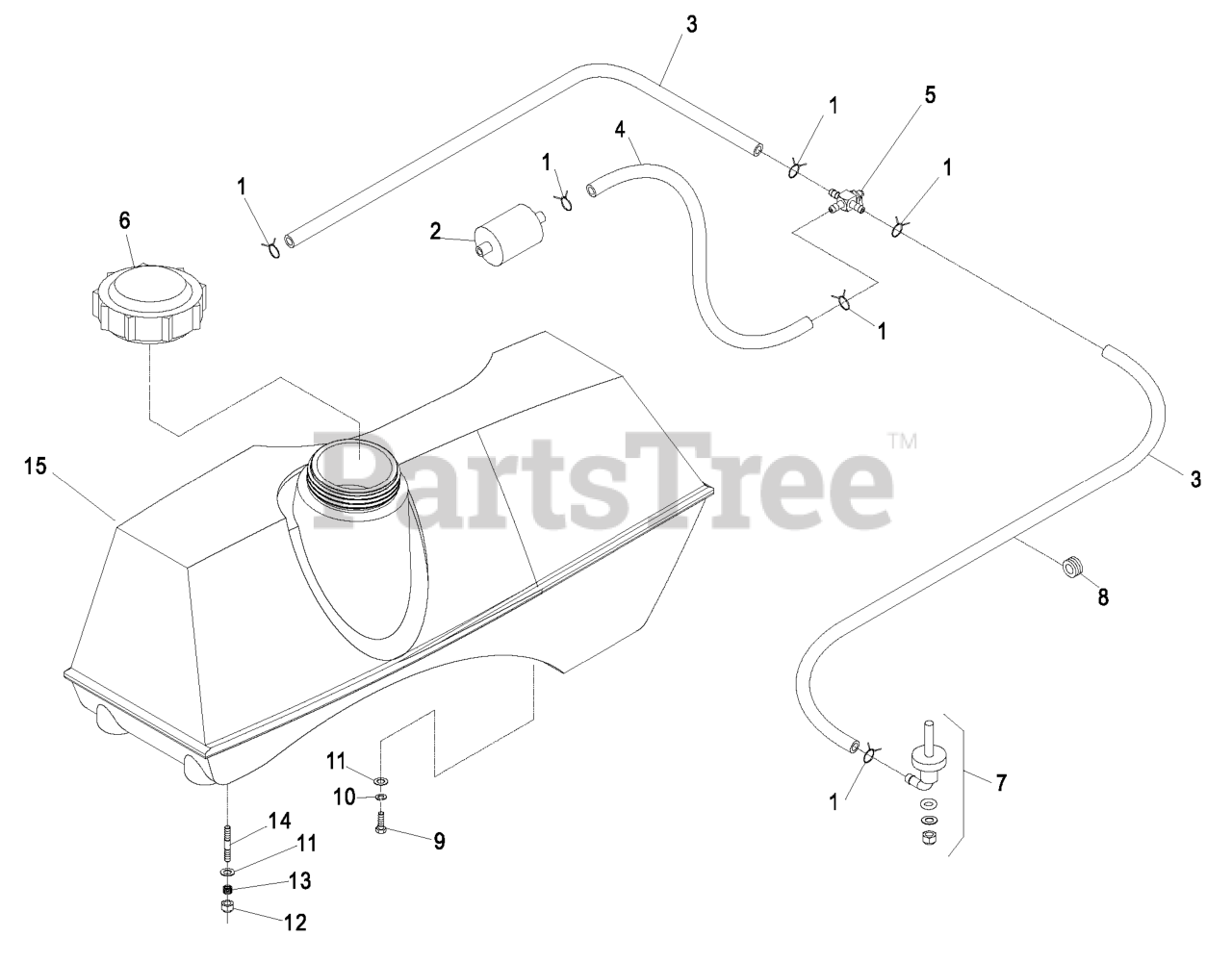

Fuel Group Parts Diagram

  • Title

1

Exmark 1-303077

CLAMP

$1.49

$

In Stock, Qty 8

0

2

Kohler Part No. 2405002 Fuel Filter

Note: Refer to Engine Owner's Manual (Fuel filter Must be 15 Micron or smaller).

$

$

Not available

3

Exmark 1-543526

109-0302
(Superseded to 109-0302)

$12.99

$

In Stock, Qty 5

0

4

Exmark 103-4250

103-1419
(Superseded to 103-1419)

$15.99

$

Usually ships in 3-6 days

0

5

Exmark 1-633347

VALVE-FUEL

$74.99

$

In Stock, only 3 left!

0

6

Exmark 103-2107

109-0346
(Superseded to 109-0346)

$21.99

$

In Stock, Qty 16

0

7

Exmark 103-2605

FITTING-FUEL, BULKHEAD

Note: Use Pro-Lock, Nut Type (P/N 840022, .5ml tube) on fuel fitting.

$36.99

$

In Stock, only 2 left!

0

Exmark 103-2784

O-RING,BULKHEAD FITTING

$13.99

$

In Stock, only 3 left!

0

8

Exmark 1-543296

GROMMET

$8.49

$

In Stock, only 4 left!

0

9

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

10

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 12

0

11

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

12

Exmark 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 8

0

13

Exmark 1-633349

SPRING-TANK, FUEL

$5.49

$

In Stock, only 2 left!

0

14

Exmark 1-633023

STUD

Note: Use Pro-Lock, Retaining Type (P/N 840023, .5ml tube) on stud threads going into tank.

$6.49

$

Usually ships in 3-6 days

0

15

Exmark 103-2122

KIT,FUEL TANK LH LHP

Note: Not Illustrated;

$493.99

$

In Stock, only 1 left!

0

Exmark 103-2123

KIT,FUEL TANK LHP RH

Note: Includes tank, cap, fitting, and studs.

$538.99

$

Usually ships in 3-6 days

0

Exmark 840022

Pro-Lock, Nut Type

$

$

Currently unavailable

Exmark 840023

Pro-Lock, Nut Type

$

$

Currently unavailable
