LCT4418BV - Exmark 44" Lazer Z CT Zero-Turn Mower, 18hp Briggs & Stratton (SN: 510000 - 539999) (2005) Park Brake Group Parts Diagram

44" Lazer Z CT Zero-Turn Mower, 18hp Briggs & Stratton

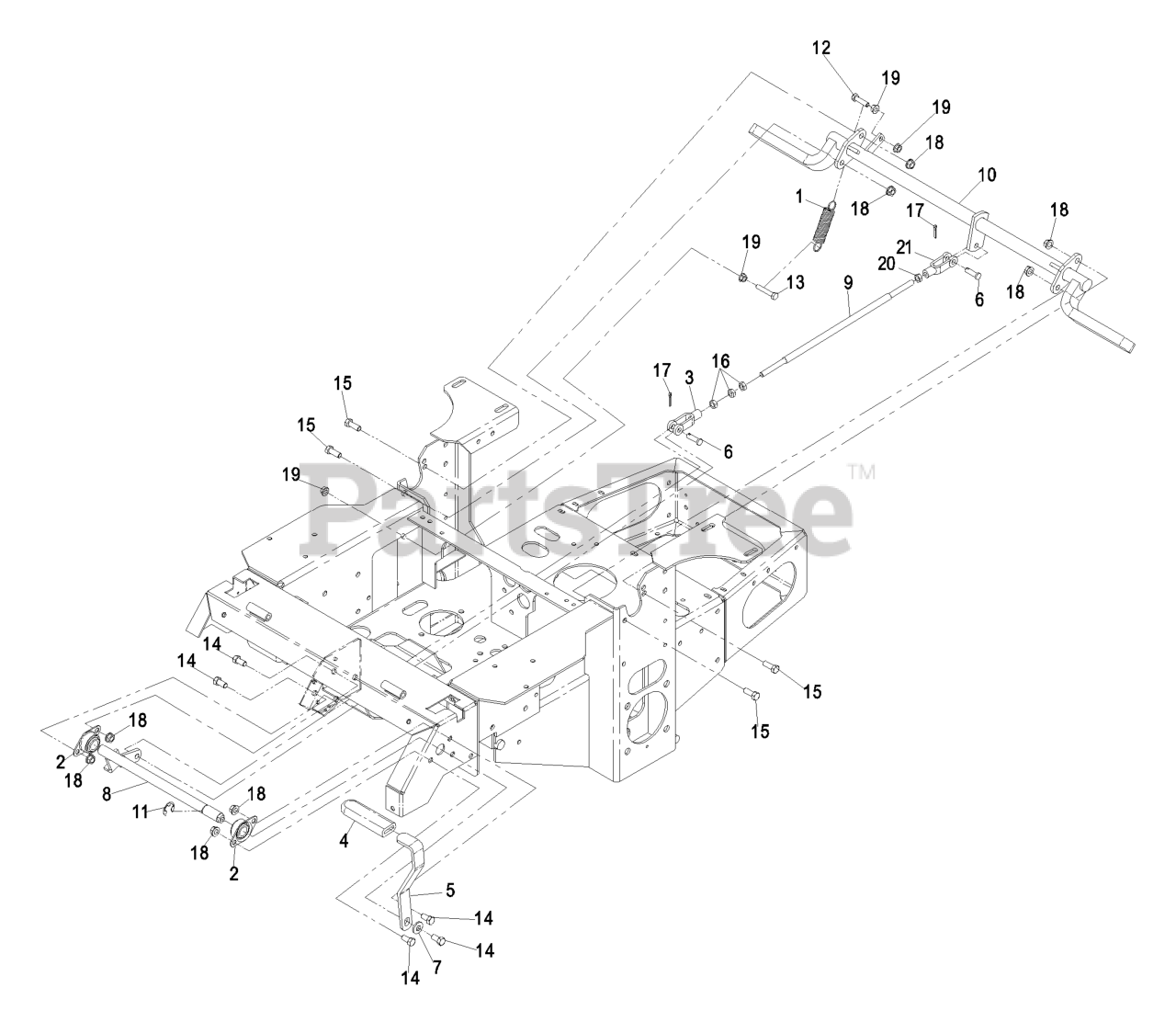

Park Brake Group Parts Diagram

  • Title

1

Exmark 1-323161

SPRING-IDLER

$11.99

$

In Stock, only 3 left!

0

2

Exmark 1-633102

BEARING-FLANGE, SIDE

$18.99

$

In Stock, only 2 left!

0

3

Exmark 1-633131

YOKE-LINKAGE, BRAKE

$15.99

$

In Stock, Qty 8

0

4

Exmark 1-633268

GRIP-LEVER

$14.99

$

In Stock, only 4 left!

0

5

Exmark 103-4630

ASM,BRAKE HANDLE W/ GRIP

$

$

Not available

6

Exmark 1-808285

PIN-CLEVIS

$3.49

$

In Stock, Qty 5

0

7

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

8

Exmark 103-3116

SHAFT-BRAKE, PARKING

$99.99

$

Usually ships in 3-6 days

0

9

Exmark 103-8408

LINKAGE, BRAKE (PLTD)

$

$

Not available

10

Exmark 103-3960-03

BRAKE

$

$

Not available

11

Exmark 32151-48

E-RING

$1.99

$

In Stock, Qty 14

0

12

Exmark 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

13

Exmark 322-9

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

14

Exmark 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

15

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

16

Exmark 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

17

Exmark 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

18

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

19

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

20

Exmark 3219-20

NUT-HEX, LH

$2.99

$

Usually ships in 3-6 days

0

21

Exmark 103-8407

YOKE, LH YZ

$18.99

$

Usually ships in 3-6 days

0
