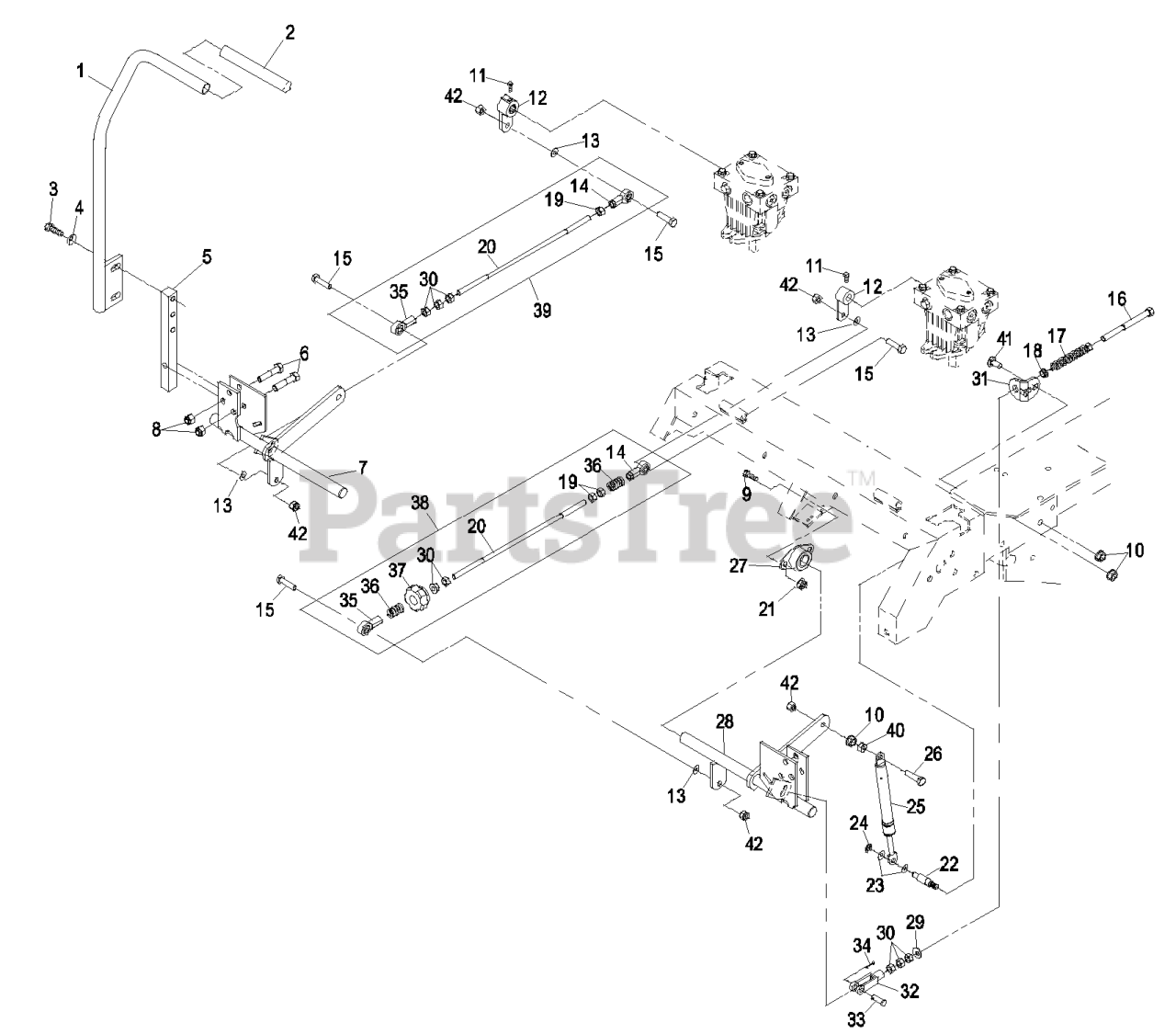

LCT23BV603 - Exmark 60" Lazer Z CT Zero-Turn Mower, 23hp Briggs & Stratton (SN: 720000 - 789999) (2008) Motion Control Group Parts Diagram

60" Lazer Z CT Zero-Turn Mower, 23hp Briggs & Stratton

Motion Control Group Parts Diagram

  • Title

1

Exmark 103-0632

RH LEVER ASM

Note: (RH)

$95.99

$

Usually ships in 3-6 days

0

Exmark 103-0631

LH LEVER ASM

Note: (LH) Not Illustrated.

$95.99

$

Usually ships in 3-6 days

0

2

Exmark 1-633257

GRIP-CONTROL, MOTION

$14.99

$

In Stock, only 4 left!

0

3

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

4

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

5

Exmark 103-0407

ARM-SHAFT, CONTROL

$30.99

$

In Stock, only 2 left!

0

6

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

7

Exmark 103-4773

109-3911
(Superseded to 109-3911)

Note: (RH)

$

$

Not available

8

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

9

Exmark 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

10

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

11

Exmark 1-803022

SCREW-SET

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on setscrews.

$2.99

$

In Stock, Qty 20+

0

12

Exmark 103-3717

ARM-CONTROL

$18.99

$

In Stock, only 3 left!

0

13

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Exmark 1-633152

BALLJOINT-LH

Note: (LH)

$20.99

$

In Stock, only 3 left!

0

15

Exmark 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

16

Exmark 1-603737

BOLT-RETURN, NEUTRAL

Note: (Neutral Return)

$9.49

$

In Stock, only 2 left!

0

17

Exmark 1-603807

SPRING-RETURN, NEUTRAL

Note: (Neutral Return)

$3.49

$

In Stock, Qty 17

0

18

Exmark 109-3769

BUSHING-NYLON, FLANGED

Note: (Reverse Ind.)

$

$

Not available

19

Exmark 1-804524

NUT

Note: (LH)

$2.99

$

In Stock, only 2 left!

0

20

Exmark 103-3066

LINK-ROD, TRACKING

$

$

Not available

21

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

22

Exmark 103-4101

PIN-DAMPER

$21.99

$

In Stock, only 1 left!

0

23

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

24

Exmark 32120-35

RING-RETAINING, EXT

$4.49

$

In Stock, Qty 6

0

25

Exmark 109-2339

DAMPER-CONTROL, MOTION

$76.99

$

In Stock, only 3 left!

0

26

Exmark 1-403180

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

27

Exmark 1-633102

BEARING-FLANGE, SIDE

$18.99

$

In Stock, only 2 left!

0

28

Exmark 103-4774

CONTROL-MOTION, LH

Note: (LH)

$148.99

$

In Stock, only 1 left!

0

29

Exmark 3256-2

WASHER-FLAT
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

30

Exmark 3219-2

NUT-HEX

$0.99

$

In Stock, Qty 11

0

31

Exmark 109-3908

TAB-ADJUSTMENT

$6.49

$

Usually ships in 3-6 days

0

32

Exmark 1-303105

YOKE-ADJUSTABLE

$12.99

$

In Stock, only 1 left!

0

33

Exmark 1-808280

PIN-CLEVIS

$2.99

$

In Stock, only 2 left!

0

34

Exmark 3272-5

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

35

Exmark 1-543017

BALLJOINT-RH

Note: (RH)

$20.99

$

In Stock, only 4 left!

0

36

Exmark 1-323245

SPRING-COMPRESSION

$6.49

$

In Stock, only 2 left!

0

37

Exmark 103-3060

KNOB-TRACKING

$6.99

$

In Stock, only 2 left!

0

38

Exmark 103-4326

TRACKING ROD ASM

$84.99

$

Usually ships in 3-6 days

0

39

Exmark 103-4327

TRACKING ASM

$66.99

$

Usually ships in 3-6 days

0

40

Exmark 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

41

Exmark 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

42

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0
