LCT23BV603 - Exmark 60" Lazer Z CT Zero-Turn Mower, 23hp Briggs & Stratton (SN: 600000 - 669999) (2006) Park Brake Group (Type B) Parts Diagram

60" Lazer Z CT Zero-Turn Mower, 23hp Briggs & Stratton

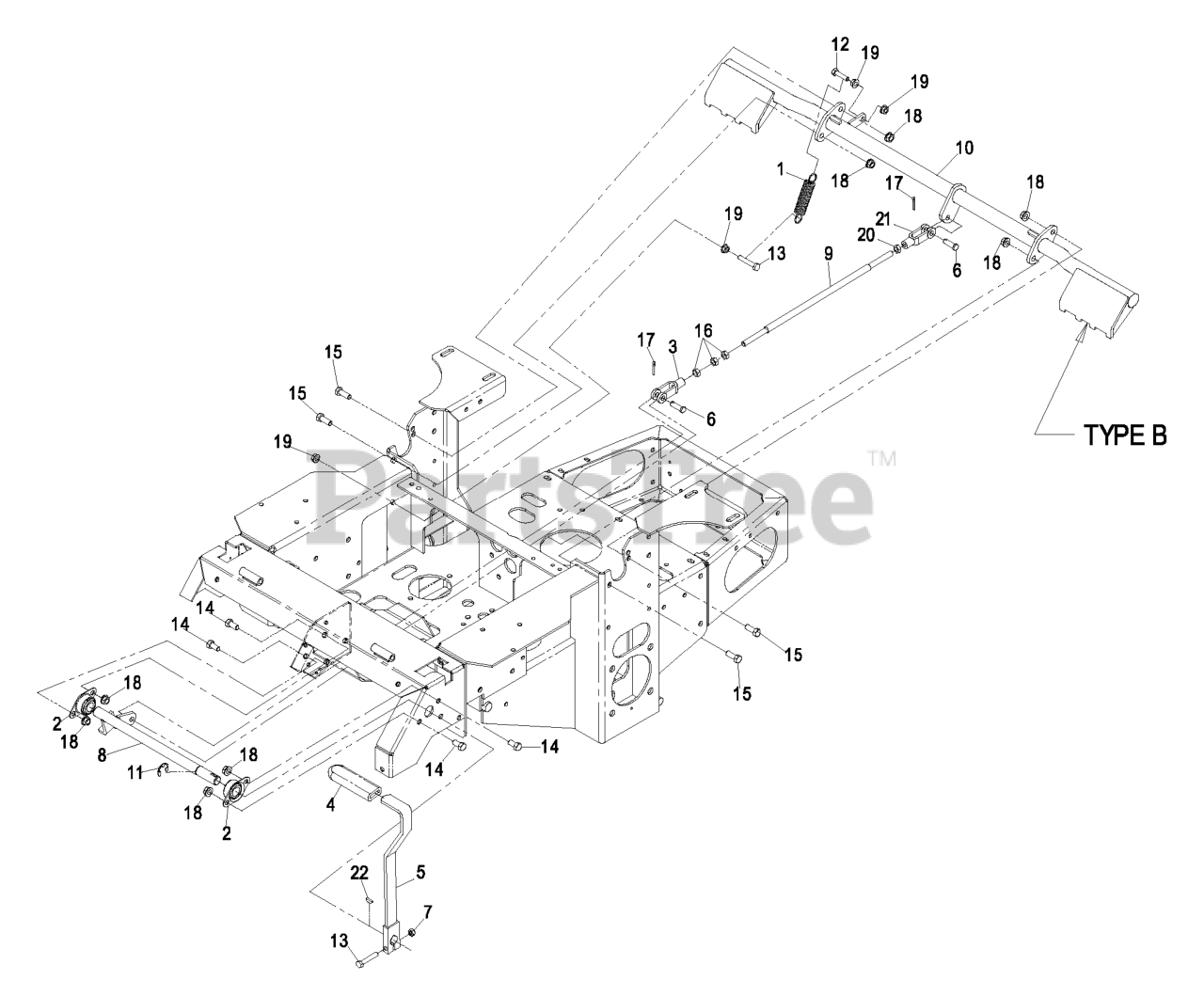

Park Brake Group (Type B) Parts Diagram

  • Title

1

Exmark 1-323161

SPRING-IDLER

$11.99

$

In Stock, only 2 left!

0

2

Exmark 1-633102

BEARING-FLANGE, SIDE

$18.99

$

In Stock, only 3 left!

0

3

Exmark 1-633131

YOKE-LINKAGE, BRAKE

$15.99

$

In Stock, Qty 14

0

4

Exmark 1-633268

GRIP-LEVER

$14.99

$

In Stock, Qty 12

0

5

Exmark 109-2543

HANDLE,PARK BRAKE W/GRIP

$

$

Not available

6

Exmark 1-808285

PIN-CLEVIS

$3.49

$

In Stock, Qty 14

0

7

Exmark 1-803013

NUTTORQUE ZKPLT

$

$

Not available

8

Exmark 109-2122

WELD,SHAFT/PARK BRAKE

$

$

Not available

9

Exmark 103-8408

LINKAGE, BRAKE (PLTD)

$

$

Not available

10

Exmark 109-2129-03

DISCONTINUED

$

$

Not available

11

Exmark 32151-48

E-RING

$1.99

$

In Stock, Qty 14

0

12

Exmark 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

13

Exmark 322-9

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

14

Exmark 323-4

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

15

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

16

Exmark 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

17

Exmark 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 11

0

18

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

19

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

20

Exmark 3219-20

NUT-HEX, LH

$2.99

$

Usually ships in 3-6 days

0

21

Exmark 103-8407

YOKE, LH YZ

$21.99

$

Usually ships in 3-6 days

0

22

Exmark 3257-32

KEY-WOODRUFF

$2.99

$

In Stock, Qty 20+

0
