LCT18BV483 - Exmark 48" Lazer Z CT Zero-Turn Mower, 18hp Briggs & Stratton (SN: 720000 - 789999) (2008) Front Frame Group (cont.) Parts Diagram

48" Lazer Z CT Zero-Turn Mower, 18hp Briggs & Stratton

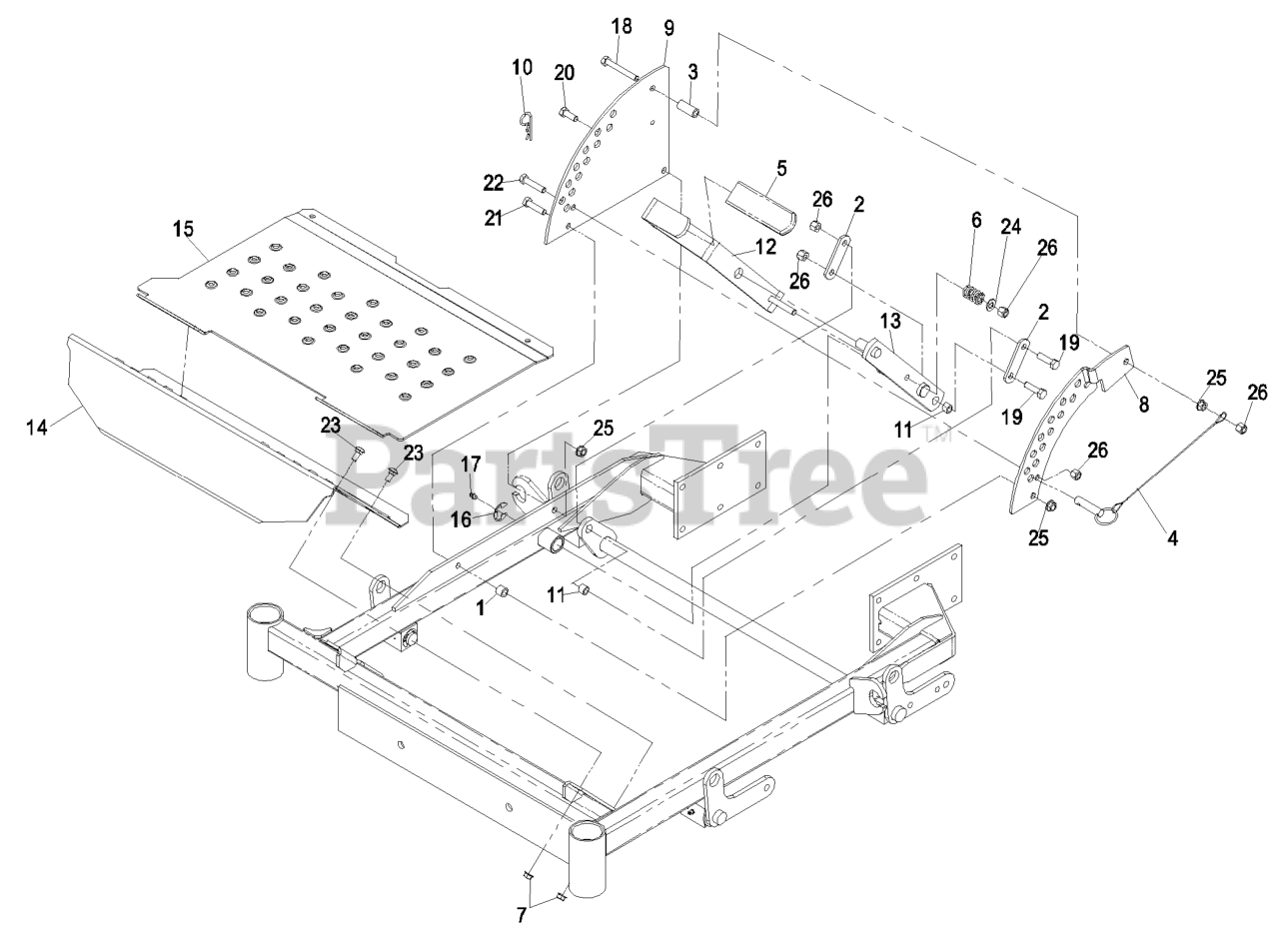

Front Frame Group (cont.) Parts Diagram

  • Title

1

Exmark 1-413088

BUSHING-LEVER, LIFT

$10.99

$

In Stock, only 1 left!

0

2

Exmark 1-633068

ARM-LIFT, DECK

$11.99

$

Usually ships in 3-6 days

0

3

Exmark 1-633082

BUSHING-LEVER, LIFT

$11.99

$

Usually ships in 3-6 days

0

4

Exmark 1-633097

PIN-HITCH (W/LANYARD)

Note: Includes hitch pin plus hairpin item #10.

$23.99

$

In Stock, only 2 left!

0

5

Exmark 1-633295

GRIP-LEVER, LIFT

$7.99

$

In Stock, only 3 left!

0

6

Exmark 1-633325

SPRING-COMPRESSION

$5.49

$

Usually ships in 3-6 days

0

7

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

8

Exmark 109-1901

PLATE-LIFT, DECK W/DECAL

$

$

Not available

9

Exmark 1-653230-01

PLATE-LIFT, DECK

$

$

Not available

10

Exmark 1-806005

PIN-COTTER

$2.99

$

In Stock, Qty 20+

0

11

Exmark 103-1918

BUSHING

$7.99

$

In Stock, Qty 6

0

12

Exmark 103-2081

ASM, LIFT LEVER / GRIP

$

$

Not available

13

Exmark 103-3718-03

WLD, DECK LIFT ARM-LHP

$112.99

$

Usually ships in 3-6 days

0

14

Exmark 103-4315

DISCONTINUED

$

$

Not available

15

Exmark 103-4316

ASM,FLOORPAN

$196.99

$

Usually ships in 3-6 days

0

16

Exmark 32151-103

RING-RETAINING, EXT

$3.49

$

In Stock, Qty 7

0

17

Exmark 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 8

0

18

Exmark 323-13

SCREW-HH

$3.99

$

In Stock, only 4 left!

0

19

Exmark 323-29

SCREW-HH

$0.99

$

In Stock, Qty 6

0

20

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

21

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

22

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

23

Exmark 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

24

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

25

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

26

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0
