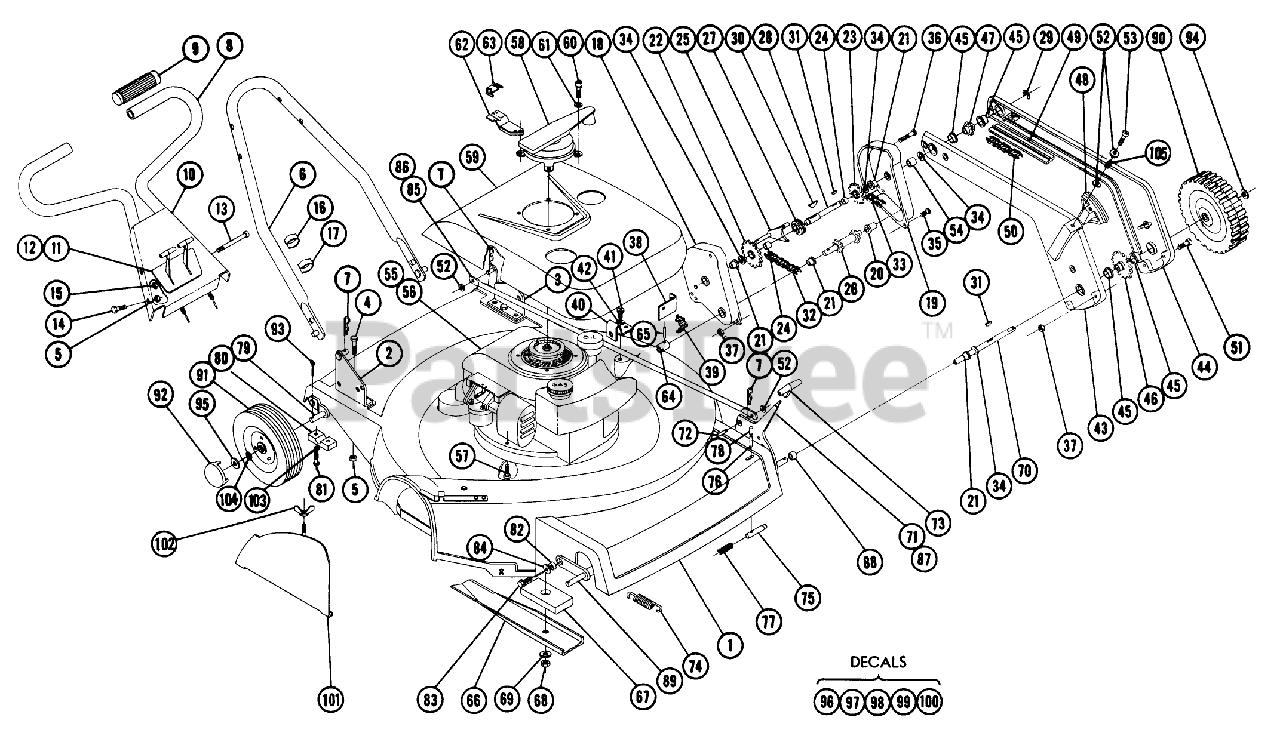

LCP-521 - Toro 21" Walk-Behind Mower (1969) PARTS LIST Parts Diagram

21" Walk-Behind Mower

PARTS LIST Parts Diagram

  • Title

1

Toro 6289

Ass-y. Deck

$

$

Currently unavailable

2

Toro MW-8591

Ass-y. Bracket-Handle R.H.

$

$

Currently unavailable

3

Toro MW-8590

Ass-y. Bracket-Handle L.H.

$

$

Currently unavailable

4

Toro 908017-4

Bolt 5/16-18 x

$

$

Currently unavailable

5

Toro 915112-6

Nut-Nylok

$

$

Currently unavailable

6

Toro MW-8555

Ass-y Handle-Lower

$

$

Currently unavailable

7

Toro 933504-4

Hairpin

$

$

Currently unavailable

8

Toro MW-8664

Handle-Upper

$

$

Currently unavailable

9

Toro 6223

Grip-Handle

$

$

Currently unavailable

10

Toro 6224

Plate-Control MT-G

$

$

Currently unavailable

12

Toro 6226

Control-Throttle & Clutch
(Superseded to 703313)

$

$

Not available

13

Toro 911063-4

Screw-Soc. Hd 1/4-28 x 3

$

$

Currently unavailable

14

Toro 5364

Bolt-Hex. 5/16-18 x 1

$

$

Currently unavailable

15

Toro 915691-4

Nut-Elastic Stop-1/4-28

$

$

Currently unavailable

16

Toro 6227

Clip-Double

$

$

Currently unavailable

18

Toro 6214

Case-Trans. R.H.

$

$

Not available

19

Toro 6215

Case-Trans. L.H.

$

$

Not available

20

Toro 6229

BUSHING

$10.99

$

In Stock, only 2 left!

0

21

Toro 6230

BRONZE BUSHING

$

$

Not available

22

Toro 6232

Ass-y. Sprocket & Hub
(Superseded to 703314)

$

$

Not available

23

Toro 6235

Ass-y. Sprocket & Hub
(Superseded to 703316)

$

$

Not available

24

Toro 6237

Bearing

$

$

Currently unavailable

25

Toro 6238

Ass-y Yoke & Shaft

$

$

Not available

26

Toro 6241

Ass-y. Input Shaft & Sprocket
(Superseded to 741209)

$193.99

$

Usually ships in 3-6 days

0

27

Toro 6248

Collar-Shift

$

$

Currently unavailable

28

Toro 6245

Shaft-Output

$

$

Currently unavailable

29

Toro 5701

E Ring
(Superseded to 32120-47)

$1.49

$

In Stock, Qty 8

0

30

Toro 937158

HI PRO KEY

$

$

Not available

31

Toro 937007

WOODRUFF KEY

$

$

Not available

32

Toro 6246

Chain-Roller

$

$

Currently unavailable

33

Toro 6247

Chain-Roller

$

$

Currently unavailable

34

Toro MW-4327

Washer-Thrust

$

$

Currently unavailable

35

Toro 909138-4

Bolt #10-32

$

$

Currently unavailable

36

Toro 909149-4

Bolt #10-32 x 234 Round Head

$

$

Currently unavailable

37

Toro 5924

HEX NUT 10-32 E.S.

$

$

Not available

38

Toro 6249

Bracket-Shift Control

$

$

Currently unavailable

39

Toro 6250

Clip-Tinnerman

$

$

Not available

40

Toro 6251

Bracket-Trans. Support

$

$

Currently unavailable

41

Toro 6317

Screw 1/4-20 x 5/8 S.T.

$

$

Currently unavailable

42

Toro 920122

LOCKWASHER

$

$

Not available

43

Toro 6252

Housing-Drive R.H.

$

$

Not available

44

Toro 6253

Housing-Drive L.H.

$

$

Not available

45

Toro 6254

BUSHING

$20.99

$

In Stock, only 2 left!

0

46

Toro 6255

Ass-y.-Sprocket & Hub
(Superseded to 100279)

$

$

Not available

47

Toro 6258

Ass-y.-Sprocket & Hub

$

$

Not available

48

Toro 6261

Guide-Upper

$

$

Currently unavailable

49

Toro 6262

Guide-Lower

$

$

Not available

50

Toro 6263

Chain-Roller

$

$

Not available

51

Toro 6318

Screw-Machine #10-32 x 1 1/4

$

$

Currently unavailable

52

Toro 920007-4

Washer

$

$

Currently unavailable

53

Toro 910068-4

Nut Hex #10-32 Elastic Stop

$

$

Currently unavailable

54

Toro 6264

Spacer

$

$

Not available

55

Toro 6265

87SIM-5637/38 WARDS

$3.23

$

Usually ships in 3-6 days

0

57

Toro 960179-4

Bolt-Flg. 5/16-18 x 1

$

$

Currently unavailable

58

Toro MW-8581

Ass-y. Starter-Impulse

$

$

Currently unavailable

59

Toro 6267

Shroud

$

$

Currently unavailable

60

Toro 911566-4

Screw & L.W. Ass-y. 1/4-28 x 5/8 Fil. Hd.

$

$

Currently unavailable

61

Toro 920218-4

Washer

$

$

Currently unavailable

62

Toro 6268

Bracket-Starter Release
(Superseded to 704286)

$

$

Not available

63

Toro 6269

Clip-Tinnerman

$

$

Currently unavailable

64

Toro 6272

Coupling

$

$

Currently unavailable

65

Toro 933197

Roll Pin

$

$

Not available

66

Toro 6281

Blade
(Superseded to 6744)

$

$

Not available

67

Toro 6282

Plate-Blade Drive

$

$

Currently unavailable

68

Toro 915639

Nut 5/18 Elastic Stop
(Superseded to 3296-33)

$2.99

$

Usually ships in 3-6 days

0

69

Toro 920013-4

Washer, 5/8

$

$

Currently unavailable

70

Toro 6283

Axle-Front

$

$

Not available

71

Toro 6284

Ass-y. Lever-Height Adj.

$

$

Currently unavailable

72

Toro 6199

Screw

$

$

Currently unavailable

73

Toro 6290

Knob

$

$

Not available

74

Toro 6291

Spring
(Superseded to 8594)

$

$

Not available

75

Toro 6292

HOSE BARB,1/4 NPT X 3/8

$

$

Currently unavailable

76

Toro 933157

Roll Pin 1/8 x 1 1/8

$

$

Currently unavailable

77

Toro 6293

PLUNGER SPRING

$

$

Not available

78

Toro 6294

Cap

$

$

Currently unavailable

79

Toro 6295

Ass-y Axle-Rear

$

$

Currently unavailable

80

Toro 6301

Cap-Rear Axle Support

$

$

Currently unavailable

81

Toro 926468-4

Screw-Hex. Hd. Slotted, #10-24 x 3/4

$

$

Currently unavailable

82

Toro 2091

Spacer

$

$

Not available

83

Toro MW-4203

Screw & L.W. Ass-y. 5/16-18 x 1 Hex S.T.

$

$

Currently unavailable

84

Toro 920008-4

Washer

$

$

Currently unavailable

86

Toro 6303

Rod-Wheel Adj. Link

$

$

Currently unavailable

90

Toro 6310

Ass-y.-Wheel Front
(Superseded to 7-158)

$3.23

$

Usually ships in 3-6 days

0

92

Toro 6312

Cap-Hub

$

$

Currently unavailable

93

Toro 932008-4

Hairpin

$

$

Currently unavailable

94

Toro 920011-4

Washer

$

$

Currently unavailable

96

Toro 6332

4XC6485 GIS ROTARY

$3.23

$

Usually ships in 3-6 days

0

97

Toro 6313

Decal-Height Indicator

$

$

Currently unavailable

98

Toro 6151

Decal-Reo
(Superseded to 83-3410)

$

$

Not available

99

Toro 6181

Decal-Caution
(Superseded to 704093)

$

$

Not available

100

Toro 6314

Decal-Chain Adjustment

$

$

Currently unavailable

101

Toro 6228

Ass-y Leaf Mulcher

$

$

Currently unavailable

102

Toro MW-8756

Nut-Wing 1/4-20

$

$

Currently unavailable

103

Toro 920120-4

Lockwasher #10 External

$

$

Currently unavailable

105

Toro 6390

Spring

$

$

Not available

11

Toro 6225

Control Throttle

$

$

Currently unavailable

17

Toro MW-4846

Clip-Single

$

$

Currently unavailable

56

Toro 6266

Ass-y. Engine

$

$

Currently unavailable

58

Toro MW8581

Ass-y. Starter-Impulse

$

$

Currently unavailable

85

Toro 6302

Rod-Wheel Adj. Link

$

$

Currently unavailable

87

Toro 6304

Ass-y. Lever-Height Adj. Front

$

$

Currently unavailable

88

Toro 6309

Spacer

$

$

Not available

89

Toro 6305

Axle

$

$

Currently unavailable

91

Toro 6311

84 Washer

$

$

Not available

95

Toro 920009-4

Washer

$

$

Currently unavailable

104

Toro MW-4405

Washer

$

$

Currently unavailable
