LC (990149) - Simplicity Two-Wheeled Tractor, 3hp Tractor Group - Parts List (3580I01) Parts Diagram

Two-Wheeled Tractor, 3hp

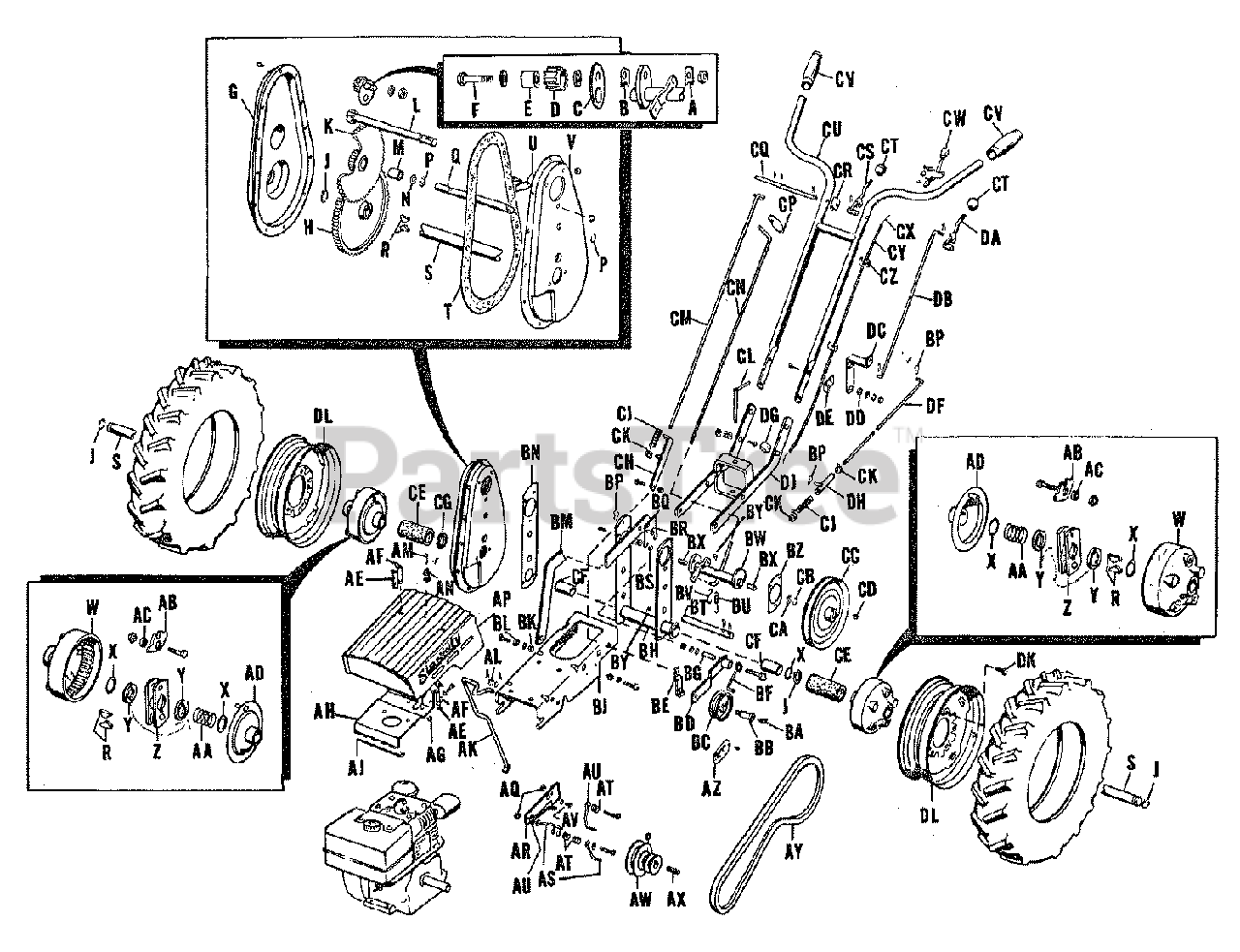

Tractor Group - Parts List (3580I01) Parts Diagram

  • Title

A

Simplicity 121139

LOCK PLATE

$

$

Not available

B

Simplicity 121107

SPACER

$

$

Not available

C

Simplicity 153094

SHIELD

$

$

Not available

D

Simplicity 121118

PINION, Reverse

$

$

Not available

E

Simplicity 121163

SPACER

$

$

Not available

F

Simplicity 2121184

BOLT

$

$

Not available

G

Simplicity 153106

COVER, Gear Case

$

$

Not available

H

Simplicity 153056

GEAR, Drive

$

$

Not available

J

Simplicity 8151063

RING, Retaining

$

$

Not available

K

Simplicity 121119

GEAR ASSEMBLY, Intermediate (Available Only As Two Gears, Assembled)

$

$

Not available

L

Simplicity 2121115SM

PINION AND PULLEY SHAFT ASSEMBLY

$90.99

$

Usually ships in 2-12 days

0

M

Simplicity 2153078

BEARING, Intermediate Pinion

$

$

Not available

N

Simplicity 2153079

WASHER

$

$

Not available

P

Simplicity 2153124SM

RING, Retaining

$5.99

$

In Stock, Qty 20+

0

Q

Simplicity 153080

SHAFT, Intermediate

$

$

Not available

R

Simplicity 2725501

KEY, Hi-Pro, HP-608

$

$

Not available

S

Simplicity 153113

AXLE

$

$

Not available

T

Simplicity 153115

GASKET, Gear Case

$

$

Not available

U

Simplicity 153095

SPRING, Drag

$

$

Not available

V

Simplicity 153105

CASE, Gear

$

$

Not available

W

Simplicity 153039

HUB, Wheel

$

$

Not available

X

Simplicity 153088

WASHER

$

$

Not available

Y

Simplicity 153077

WASHER, Axle

$

$

Not available

Z

Simplicity 153051

CAGE ASSEMBLY, Ratchet

$

$

Not available

AA

Simplicity 153093

SPRING, Axle

$

$

Not available

AB

Simplicity 153002

RATCHET

$

$

Not available

AC

Simplicity 2153081

SPACER

$

$

Not available

AD

Simplicity 153065

COVER ASSEMBLY, Ratchet Cage

$

$

Not available

AE

Simplicity 151048

LATCH, Stub

$

$

Not available

AF

Simplicity 153008

LATCH, Stub

$

$

Not available

AG

Simplicity 2717513

NUT, Hex, Full, Lock, 1/4-20 NC

$

$

Not available

AH

Simplicity 153007

BRACKET ASSEMBLY, Hood

$

$

Not available

AJ

Simplicity 153005

PIN, Hinge

$

$

Not available

AK

Simplicity 152011

STAND ASSEMBLY

$

$

Not available

AL

Simplicity 2152006SM

SPRING, Stand

$8.49

$

Usually ships in 2-12 days

0

AM

Simplicity 153006

PIN, Hood

$

$

Not available

AN

Simplicity 2153010SM

SPRING, Hood

$8.99

$

Usually ships in 2-12 days

0

AP

Simplicity 153018

HOOD ASSEMBLY

$

$

Not available

AQ

Simplicity 2717011

NUT, Hex, Jam, 5/16-18 NC

$

$

Not available

AR

Simplicity 153123

HOLDER, Belt Stop

$

$

Not available

AS

Simplicity 1729264

STOP, Belt

$

$

Not available

AT

Simplicity 1729278SM

SPRING

$2.49

$

Usually ships in 2-12 days

0

AU

Simplicity 8021073

STOP, Belt

$

$

Not available

AV

Simplicity 153026

SCREW, Holder

$

$

Not available

AW

Simplicity 151038

PULLEY, Engine

$

$

Not available

AX

Simplicity 1729279SM

KEY, Engine Pulley
(Superseded to 703889)

$4.49

$

In Stock, only 3 left!

0

AY

Simplicity 2153091

V-BELT

$

$

Not available

AZ

Simplicity 153151

PLATE, Serial No.

$

$

Not available

BA

Simplicity 2727004

FITTING, Grease, Alemite #1911

$

$

Not available

BB

Simplicity 8051037

PIN, Idler Pulley

$

$

Not available

BC

Simplicity 2156124SM

PULLEY ASSEMBLY, Idler

$

$

Not available

BD

Simplicity 153069

LEVER ASSEMBLY, Idler

$

$

Not available

BE

Simplicity 8151028

EXTENSION, Idler Lever

$

$

Not available

BF

Simplicity 8021073

STOP, Belt

$

$

Not available

BG

Simplicity 1729261SM

SPACER, Idler Lever

$13.99

$

Usually ships in 2-12 days

0

BH

Simplicity 153108

HOUSING ASSEMBLY, Axle

$

$

Not available

BJ

Simplicity 153118

BASE

$

$

Not available

BK

Simplicity 2717510

NUT, Hex, Full, Lock 3/8-16 NC

$

$

Not available

BL

Simplicity 2153073

SPACER, Lock Bar

$

$

Not available

BM

Simplicity 153119

BAR, Lock

$

$

Not available

BN

Simplicity 153114

GASKET, Bearing Housing

$

$

Not available

BP

Simplicity 1918196SM

CLIP, Spring
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

BQ

Simplicity 153009

HANDLE

$

$

Not available

BR

Simplicity 1708298SM

PIN, Lock

$

$

Not available

BS

Simplicity 2717011

NUT, Hex, Jam, 5/16-18 NC

$

$

Not available

BT

Simplicity 153116

PIVOT

$

$

Not available

BU

Simplicity 153121

SPRING, Reverse Lever

$

$

Not available

BV

Simplicity 153011

EXTENSION, Spring

$

$

Not available

BW

Simplicity 153044

HOUSING ASSEMBLY, Bearing

$

$

Not available

BX

Simplicity 2156064SM

BEARING

$22.99

$

Usually ships in 2-12 days

0

BY

Simplicity 2727002

FITTING, Grease, Alemite #1641

$

$

Not available

BZ

Simplicity 153097

PLATE

$

$

Not available

CA

Simplicity 2153079

WASHER

$

$

Not available

CB

Simplicity 2153124SM

RING, Retaining

$5.99

$

In Stock, Qty 20+

0

CC

Simplicity 153096

PULLEY, Transmission

$

$

Not available

CD

Simplicity 2725003

KEY, Woodruff, #9

$

$

Not available

CE

Simplicity 153117

TUBE, Rubber

$

$

Not available

CF

Simplicity 153089

BEARING, Axle

$

$

Not available

CG

Simplicity 8061055

WASHER, Retainer

$

$

Not available

CH

Simplicity 1729265SM

CLUTCH ROD, Guide Assembly

$41.99

$

Usually ships in 2-12 days

0

CJ

Simplicity 1729277SM

SPRING

$6.99

$

In Stock, only 1 left!

0

CK

Simplicity 1729276SM

COLLAR, Set

$

$

Not available

CL

Simplicity 8061502

PIN ASSEMBLY, Hitch

$

$

Not available

CM

Simplicity 153084

ROD, Clutch

$

$

Not available

CN

Simplicity 153083

ROD, Reverse

$

$

Not available

CP

Simplicity 153017

GRIP, Reverse Rod

$

$

Not available

CQ

Simplicity 153085

SHAFT, Lever

$

$

Not available

CR

Simplicity 153074

GUIDE, Reverse Rod

$

$

Not available

CS

Simplicity 8021507

LEVER ASSEMBLY, R.H.

$

$

Not available

CT

Simplicity 1729255SM

BALL, Clutch Lever

$12.99

$

Usually ships in 2-12 days

0

CU

Simplicity 153040

HANDLE ASSEMBLY

$

$

Not available

CV

Simplicity 2153043

GRIP, Handle

$

$

Not available

CW

Simplicity 8061087

CONTROL, Throttle

$

$

Not available

CX

Simplicity 153087

WIRE, Throttle

$

$

Not available

CY

Simplicity 153086

CABLE, Throttle

$

$

Not available

CZ

Simplicity 80611-08

CLIP, Throttle

$

$

Not available

DA

Simplicity 8061506

LEVER ASSEMBLY, L.H.

$

$

Not available

DB

Simplicity 153082

ROD, Upper Idler

$

$

Not available

DC

Simplicity 8021091

LEVER, Lower Clutch

$

$

Not available

DD

Simplicity 1663752SM

BUSHING

$5.99

$

In Stock, only 2 left!

0

DE

Simplicity 8021121

STOP, Lever

$

$

Not available

DF

Simplicity 151015

ROD, Lower Clutch

$

$

Not available

DG

Simplicity 8061117

CLAMP, Cable

$

$

Not available

DH

Simplicity 8161518

SOCKET ASSEMBLY, Rod

$

$

Not available

DJ

Simplicity 153014

FRAME ASSEMBLY

$

$

Not available

DK

Simplicity 1729280SM

HUB, Bolt

$6.49

$

In Stock, only 2 left!

0

DL

Simplicity 8262024

WHEEL

$

$

Not available
