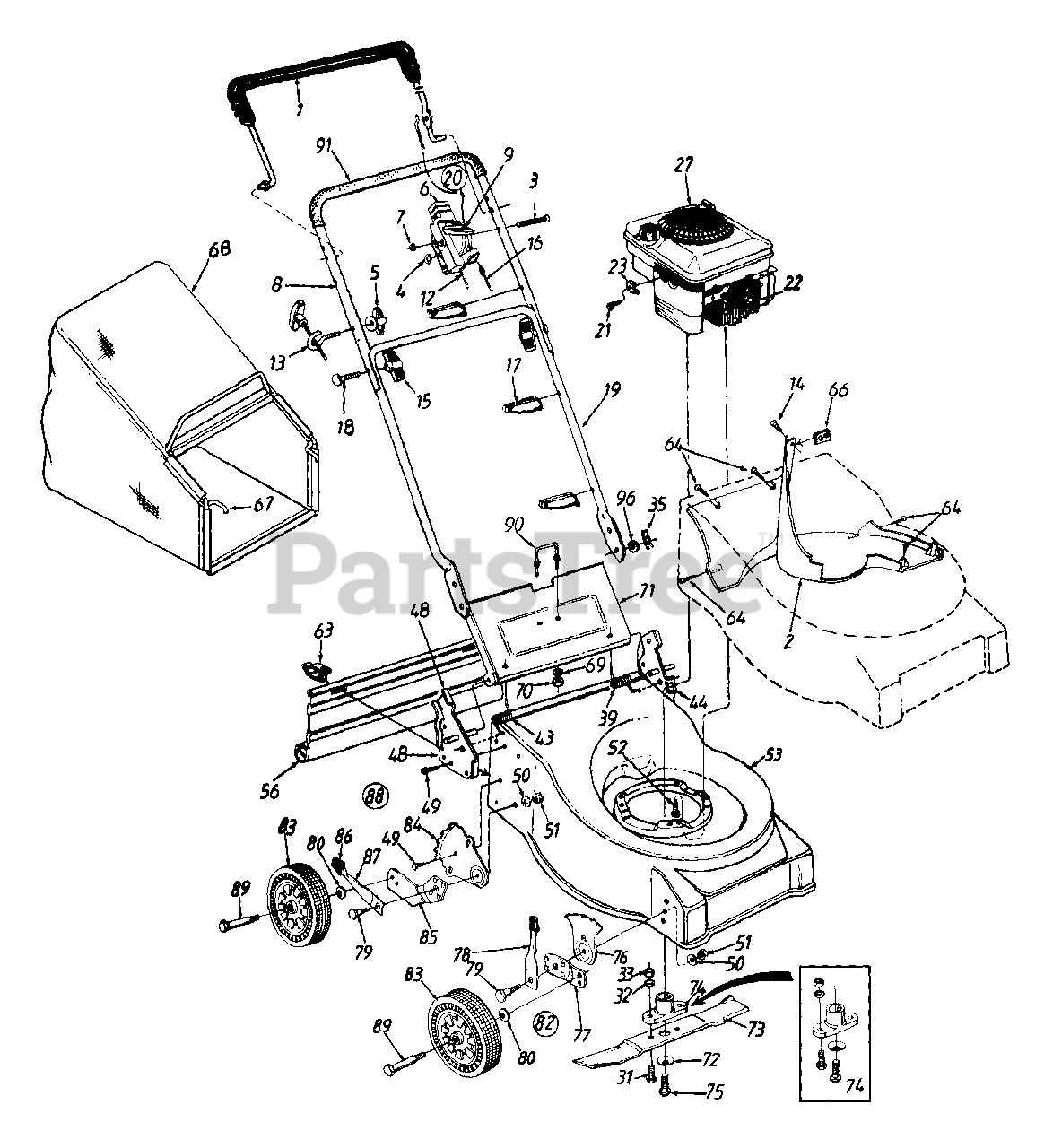

LC-662 E (115-662E190) - White Outdoor Lawn Boss 18" Walk-Behind Mower (1995) Main Assembly Parts Diagram

Lawn Boss 18" Walk-Behind Mower

Main Assembly Parts Diagram

  • Title

1

White Outdoor 647-0004

Control Handle Ass'y
(Superseded to 747-0824B-0637)

$65.99

$

In Stock, only 1 left!

0

2

731-1516

Rear Baffle

$

$

Not available

3

White Outdoor 710-0605

Oval C-Sunk Mach. Scr.

$4.49

$

In Stock, only 3 left!

0

4

White Outdoor 736-0501

Spr. Wash. .66" I.D.
(Superseded to 936-0501)

$6.99

$

Usually ships in 3-6 days

0

5

712-0279

Wing Nut 1/4-20 Thd.

$

$

Not available

6

White Outdoor 646-0875

Throttle Body
(Superseded to 946-0875)

$9.49

$

In Stock, only 4 left!

0

7

White Outdoor 712-0324

Hex L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

8

White Outdoor 749-0538C

Upper Handle
(Superseded to 749-0538E-0637)

Variations

White Outdoor 749-0538C-0637

UPPER HANDLE BLACK - POWDER BLACK (0637)

$

$

Not available

$

$

9

White Outdoor 746-0876

Throttle Lever
(Superseded to 946-0876)

$8.49

$

In Stock, only 2 left!

0

12

White Outdoor 746-0841

Throttle Control Wire - 60"
(Superseded to 946-0674A)

$18.99

$

In Stock, only 1 left!

0

13

White Outdoor 710-1205

Rope Guide

$3.99

$

In Stock, only 2 left!

0

14

White Outdoor 710-0351

Recess Hd. B-Tap Scr. #10-16 Thd.

$4.49

$

In Stock, only 2 left!

0

15

White Outdoor 720-0276

Hand Knob
(Superseded to 920-0276)

$3.99

$

In Stock, Qty 9

0

16

White Outdoor 746-0557

Control Cable - 47"
(Superseded to 946-0557)

$26.99

$

Usually ships in 3-6 days

0

17

White Outdoor 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

18

White Outdoor 710-1174

Curved Hd. Bolt 5/16-18 x 2" Lg.

$7.49

$

In Stock, Qty 20+

0

19

White Outdoor 749-0928

Lower Handle
(Superseded to 749-0928A)

Variations

White Outdoor 749-0928-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, only 3 left!

0

$33.99

$

In Stock, only 3 left!

0

20

White Outdoor 811-00185

Throttle Box Comp.
(Superseded to 811-0185)

Note: Incl. Ref 3, 4, 5, 6, 9

$36.99

$

In Stock, only 1 left!

0

21

White Outdoor 710-1237

Hex Self-Tap Scr. #10-32 x .62"

$4.49

$

Usually ships in 3-6 days

0

22

White Outdoor 735-0639

Spark Plug Boot

$

$

Not available

23

White Outdoor 751B213146

Casing Clamp
(Superseded to BS-690798)

$5.49

$

In Stock, only 1 left!

0

?25

White Outdoor 710-0252

Hex Bolt 1/4-20 x .85" Lg.
(Superseded to 710-3015)

$3.99

$

In Stock, Qty 20+

0

27

Engine

$

$

Not available

31

White Outdoor 710-1055

Hex Bolt 3/8-24 x 1" Lg.

$4.99

$

Usually ships in 3-6 days

0

32

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

33

White Outdoor 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

35

White Outdoor 714-0104

Int. Cotter Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

39

White Outdoor 732-0677

Torsion Spring - L.H.
(Superseded to 932-0677)

$

$

Not available

?41

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

?42

White Outdoor 712-0711

Hex Jam Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

43

White Outdoor 732-0678

Torsion Spring - R.H.

$8.49

$

Usually ships in 3-6 days

0

44

White Outdoor 682-3027A

Handle Brkt. Ass'y. - L.H.

$

$

Not available

48

White Outdoor 682-3028A

Handle Brkt. Ass'y. - R.H.

$

$

Not available

49

White Outdoor 710-0892

Hex L-Wash. AB-Tap Scr. 1/4 x .62" Lg.
(Superseded to 910-0892)

$

$

Not available

50

White Outdoor 736-0356

Bell-Wash. .39" I.D.
(Superseded to 936-0356)

$

$

Not available

51

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

52

White Outdoor 710-0654A

Hex L-Wash. Hd. Scr. 3/8-16 x 1" Lg.

$4.49

$

In Stock, only 3 left!

0

53

White Outdoor 682-0035

18" Deck Ass'y.

Variations

White Outdoor 682-0035-0638

No Longer Available DECK ASSY-EURO RD - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

56

White Outdoor 731-1028

Rear Flap 16" Lg.

$34.99

$

In Stock, only 1 left!

0

63

White Outdoor 17098

Hinge Clip
(Superseded to 17098P)

$

$

Not available

64

White Outdoor 710-0969

Truss Mach. Scr. #12 x 1" Lg.

$4.49

$

In Stock, only 2 left!

0

66

White Outdoor 712-0400

"U"-Nut #10-16 Thd.
(Superseded to 912-0400)

$5.99

$

Usually ships in 3-6 days

0

67

White Outdoor 747-0913

Grass Bag Frame
(Superseded to 747-0913-0637)

Variations

White Outdoor 747-0913-0637

FRAME-GRASS BAG - POWDER BLACK (0637)

$

$

Not available

$

$

68

764-0458

Grass Bag

$

$

Not available

69

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

70

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

71

White Outdoor 782-7568

Chute Door

Variations

White Outdoor 782-7568-0637

No Longer Available CHUTE DOOR - POWDER BLACK (0637)

$

$

Not available

$

$

72

White Outdoor 736-0452

Bell-Wash. .39" I.D.

$4.99

$

In Stock, Qty 7

0

73

White Outdoor 742-0618

18" Blade

$

$

Not available

74

White Outdoor 753-0484

Blade Adapter Kit

$23.99

$

In Stock, only 1 left!

0

75

White Outdoor 710-1044

Hex Bolt 3/8-24 x 1.5" Lg.

$3.99

$

In Stock, Qty 8

0

76

White Outdoor 15261A

Height Adj. Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

77

White Outdoor 15262B

Pivot Bar

Variations

White Outdoor 15262B-0637

PIVOT BAR - POWDER BLACK (0637)

$14.99

$

In Stock, only 1 left!

0

$14.99

$

In Stock, only 1 left!

0

78

White Outdoor 14832

Spring Lever Ass'y. w/Knob
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

79

White Outdoor 738-0507B

Shld. Bolt .50" Dia. x .357"

$4.49

$

In Stock, only 4 left!

0

80

White Outdoor 736-0105

Bell-Wash. .38" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

82

White Outdoor 14578

Height Adj. Ass'y. Comp. - R.H.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

White Outdoor 14579

Height Adj. Ass'y. Comp - L.H.
(Superseded to 753-06761)

Note: Not shown

$65.99

$

In Stock, Qty 7

0

83

White Outdoor 734-1797

Wheel Ass'y. Comp.

$

$

Not available

84

White Outdoor 14764C

Index Plate

$8.49

$

Usually ships in 3-6 days

0

85

White Outdoor 14765

Pivot Bar - R.H.

$19.99

$

Usually ships in 3-6 days

0

White Outdoor 14766

Pivot Bar - L.H.

Note: Not shown

$19.99

$

Usually ships in 3-6 days

0

86

White Outdoor 720-0190

Spring Lever Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

87

White Outdoor 732-0417A

Spring Lever

$

$

Not available

88

White Outdoor 16106

Rear Height Adj. Ass'y. Comp. - R H.

$

$

Not available

White Outdoor 16107

Rear Height Adj. Ass'y. Comp. - L.H.

Note: Not shown

$

$

Not available

89

White Outdoor 738-0102

Axle Bolt

$9.99

$

In Stock, Qty 10

0

90

White Outdoor 747-0623

Chute Door Handle

$

$

Not available

91

White Outdoor 720-0226

Foam Grip
(Superseded to 720-0295)

$33.99

$

Usually ships in 3-6 days

0

96

White Outdoor 736-0105

Bell-Wash. .38" I.D.

$4.49

$

In Stock, Qty 20+

0
