LC 56 B (961410273-00) - Husqvarna Walk-Behind Mower (2013-02) FRAME & ENGINE Parts Diagram

Walk-Behind Mower

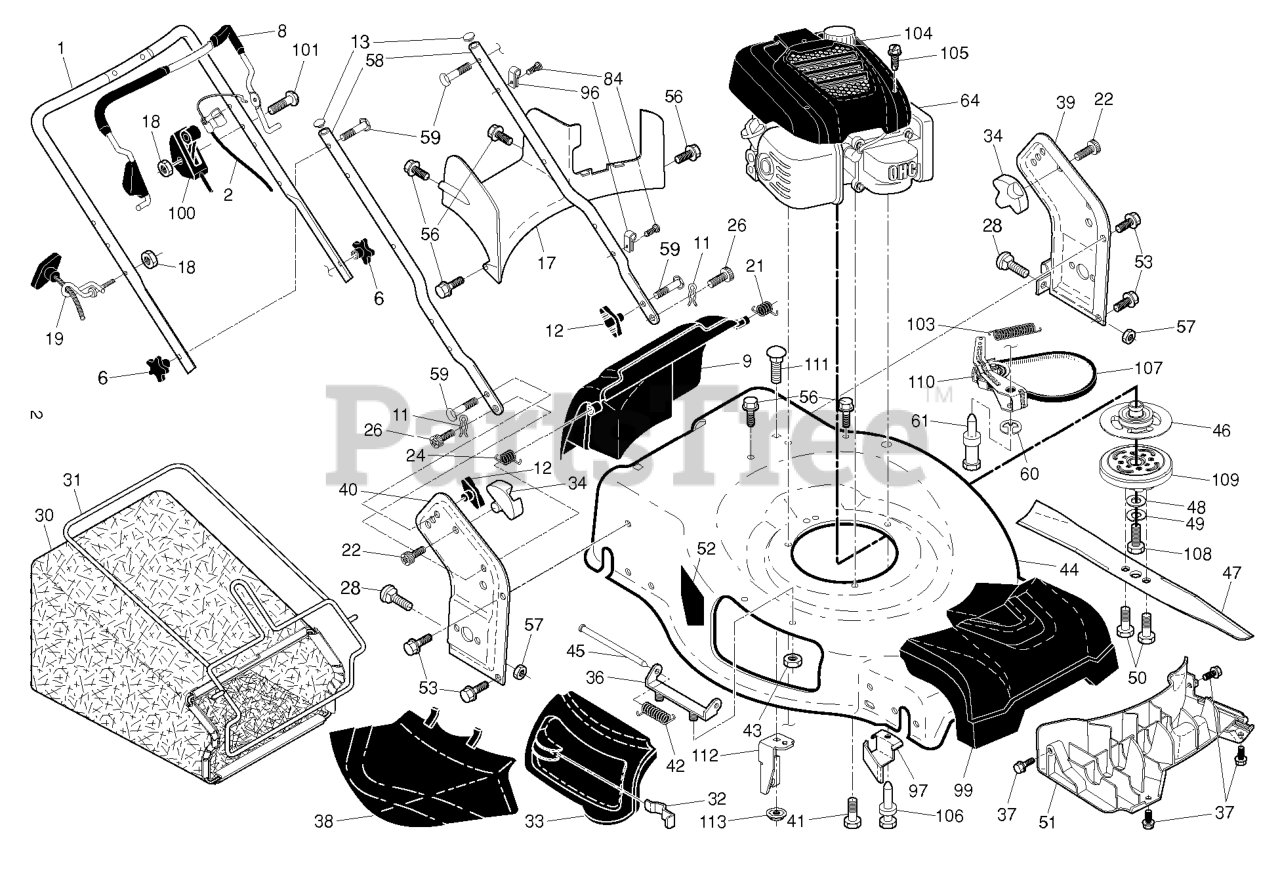

FRAME & ENGINE Parts Diagram

  • Title

64

000000000

Note: HONDA GCV160-AOSBHE

$

$

Not available

84

Husqvarna 532428124

FASTENER.PUSH.O.250X0.783

$6.49

$

In Stock, only 2 left!

0

8

Husqvarna 580749706

RP.BAIL.ASM.BBC.ERGO.ORG/BL
(Superseded to 587564109)

$37.99

$

Usually ships in 3-10 days

0

46

Husqvarna 581277401

PULLEY.BBC.DRIVING

$74.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532426129

DEFLECTOR.CLIPPING.22.BLACK

$11.99

$

In Stock, Qty 8

0

53

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 12

0

113

Husqvarna 532438130

NUT.FLANGE.1-4-20-SERR

$

$

Not available

1

Husqvarna 580638706

HANDLE.UPPER.3.POS.BS.AW2.GREY

$

$

Not available

103

Husqvarna 581530701

SPRING.BRAKE.RESET

$4.99

$

Usually ships in 3-10 days

0

60

Husqvarna 579482801

E-RING.12MM.SHAFT

$4.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$7.49

$

Usually ships in 3-10 days

0

36

Husqvarna 532175735

BRACKET.ASM.HINGE.21.FWGD.

$

$

Not available

18

Husqvarna 532132004

NUT
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

96

Husqvarna 532197991

CLIP.CABLE.BLK

$7.49

$

In Stock, Qty 6

0

107

Husqvarna 579273201

BELT.COG.BBC

$60.99

$

In Stock, only 1 left!

0

97

Husqvarna 581115302

BRACKET.BELT.GUIDE.22+.BZP

$

$

Not available

52

Husqvarna 532182166

DECAL.INTERNATIONL.CUTFINGER
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

39

Husqvarna 581353702

BRACKET.ASM.HNDL.LT.22+.GREY

Note: LH

$

$

Not available

50

Husqvarna 532180460

BOLT.BLADE

$9.99

$

In Stock, only 2 left!

0

19

Husqvarna 532194788

RB GUIDE.ROPE.STD.BLK.ZIN WSL
(Superseded to 586122501)

$18.99

$

In Stock, Qty 5

0

59

Husqvarna 532191574

BOLT, HANDLE 5/16-18X1.75

$6.99

$

In Stock, only 4 left!

0

26

Husqvarna 532419945

SCREW,DOOR/HANDLE.PIVOT

$6.49

$

In Stock, Qty 20+

0

45

Husqvarna 532175650

ROD.HINGE.21

$7.49

$

In Stock, Qty 10

0

104

Husqvarna 580290001

SHROUD.ASM.HONDA.HUSQVARNA

Note: NOT SHOWN

$31.99

$

In Stock, only 1 left!

0

51

Husqvarna 581238901

BAFFLE.FRONT.22+PLASTIC.(2 2)

$47.99

$

Usually ships in 3-10 days

0

110

Husqvarna 581354501

ARM.BBC.TNSION.ARM.PULL(2 2MC)

$376.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532441192

LATCH.DOOR.ZINC

$

$

Not available

106

Husqvarna 579146901

BOLT.BRAKE.RESET.SPRING

$

$

Not available

56

Husqvarna 817411312

SCREW.HX.13X.750

$7.49

$

In Stock, Qty 20+

0

13

Husqvarna 532437516

PLUG.PLASTIC.7/8".14-20.GAUGE

$4.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532437345

SCREW.HI-LO.5/16 X.75

$6.49

$

In Stock, Qty 20+

0

31

Husqvarna 532419951

RB FRAME.GBAG.22PLUS
(Superseded to 585054702)

$34.99

$

In Stock, Qty 6

0

6

Husqvarna 532182398

KNOB.HANDLE.PLASTIC.STAR.BLACK

$7.49

$

In Stock, only 4 left!

0

22

Husqvarna 532141841

SCREW.PAN.HEAD.#10

$7.49

$

In Stock, only 2 left!

0

24

Husqvarna 532419948

SPRING.RH.GRAY

Note: RH

$6.49

$

In Stock, only 3 left!

0

101

Husqvarna 532183365

SCREW

$6.49

$

Usually ships in 3-10 days

0

28

Husqvarna 872250505

BOLT
(Superseded to 872140505)

$3.99

$

In Stock, Qty 20+

0

11

Husqvarna 532425575

COTTER.HAIRPIN.DOOR/HANDLE.PIV

$6.49

$

In Stock, Qty 18

0

34

Husqvarna 532438134

BRACKET.GRASSBAG.ATTACHING.BLK

$

$

Not available

112

Husqvarna 579471802

BRACKET.CABLE MOUNTING.22+

$

$

Not available

30

Husqvarna 580947307

GBAG.A3610247T.SILV.HUSWT.BLUE
(Superseded to 580947302)

$87.99

$

Usually ships in 3-10 days

0

58

Husqvarna 532441197

HANDLE.LOWER.22+BT.2PC.GRY

$17.99

$

Usually ships in 3-10 days

0

108

Husqvarna 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

105

Husqvarna 580768701

SCREW.SHROUD.HONDA

Note: NOT SHOWN

$3.49

$

Usually ships in 3-10 days

0

109

Husqvarna 581308101

HUB.FREE.BBC.ASSEMBLY(2 2MC)

$103.99

$

In Stock, only 1 left!

0

99

Husqvarna 532437389

COVER.ASM.FRONT.SHROUD.HUSQ.

$66.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532191938

KNOB, DEFLECTOR
(Superseded to 532189713)

$9.49

$

In Stock, Qty 18

0

100

Husqvarna 532439468

CONTROL.THROTTLE.HOND.BBC.58.5

$74.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532431390

DOOR.REAR.ASM.22+.HUSQ.FG/RGD
(Superseded to 593304501)

$45.99

$

Usually ships in 3-10 days

0

48

Husqvarna 579273801

WASHER.CRANK.BOLT

$6.99

$

In Stock, Qty 5

0

40

Husqvarna 581353602

BRACKET.ASM.HNDL.RT.22+.GREY

Note: RH

$

$

Not available

43

Husqvarna 532191730

NUT.HEX.FLANGE.1/4

$7.49

$

In Stock, Qty 5

0

33

Husqvarna 532419927

DOOR.MULCH.22 PLUS.HUSQ.GREY
(Superseded to 594942002)

$10.99

$

In Stock, Qty 13

0

111

Husqvarna 872140405

BOLT T

$7.49

$

In Stock, Qty 7

0

44

Husqvarna 581708317

$

$

Currently unavailable

49

Husqvarna 532850263

LOCKWASHER
(Superseded to 810040600)

$4.99

$

In Stock, Qty 19

0

2

Husqvarna 579484202

CABLE.BBC.22+.AW2.BS.ERGO.WALK

$40.99

$

In Stock, Qty 7

0

17

Husqvarna 581782101

BAFFLE.REAR.22+RGD.AWD.PLASTIC

$47.99

$

In Stock, Qty 6

0

47

Husqvarna 581045203

BLADE.22.4-N-1.BBC.
(Superseded to 581045202)

$27.99

$

In Stock, Qty 6

0

42

Husqvarna 532193000

SPRING.TORSION

$7.49

$

In Stock, only 3 left!

0

61

Husqvarna 581424501

BOLT.BBC.TENSION.PIVOT

$14.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532419949

SPRING.LH.BLACK

Note: LH

$6.49

$

In Stock, Qty 8

0

57

Husqvarna 532155377

NUT.FLANGE.5/16

$6.49

$

Usually ships in 3-10 days

0
