LC-538 A (125-694A190) - White Outdoor Lawn Boss 18" Walk-Behind Mower (1995) Transmission Parts Diagram

Lawn Boss 18" Walk-Behind Mower

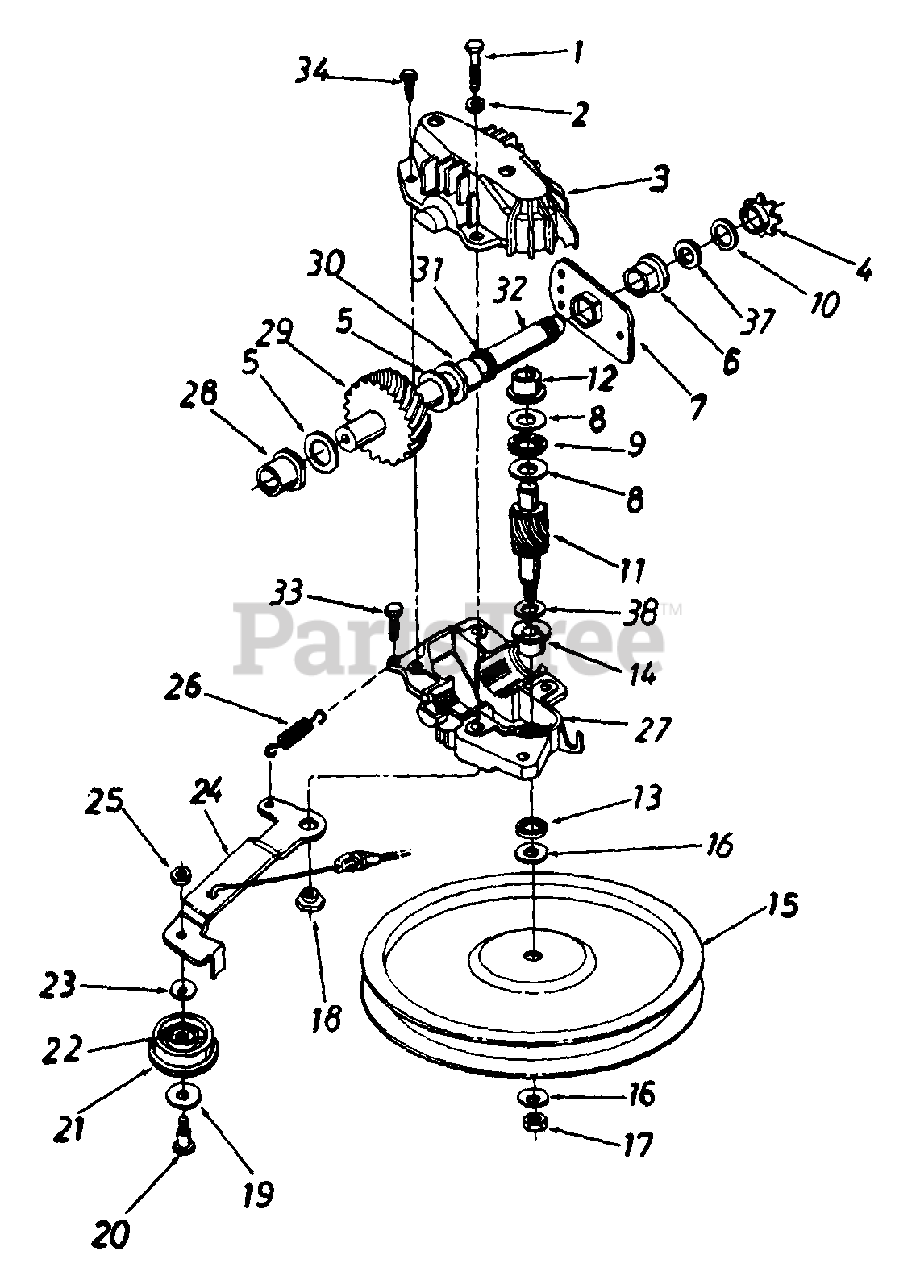

Transmission Parts Diagram

  • Title

1

White Outdoor 710-1062

Hex Bolt 1/4-20 x 1.25" Lg. w/Patch

$6.49

$

Usually ships in 3-6 days

0

2

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

3

White Outdoor 618-0133

Upper Hsg. Half
(Superseded to 618-0133A)

$27.99

$

Usually ships in 3-6 days

0

4

White Outdoor 713-0438

#48 Sprocket 6 Tooth x 1/2" Pitch

$

$

Not available

5

White Outdoor 736-0336

Fl-Wash. 5/8" I.D. x .03" Thk.
(Superseded to 936-0336)

$4.49

$

In Stock, Qty 7

0

6

White Outdoor 741-0324

Hex Flange Bearing .506" I.D.
(Superseded to 741-0324A)

$7.99

$

In Stock, Qty 5

0

7

782-0031

Bearing Bracket

$

$

Not available

8

White Outdoor 736-0314

Thrust Wash. .382" I.D. x .70" O.D.

$6.99

$

Usually ships in 3-6 days

0

9

White Outdoor 741-0479

Thrust Brg. .375" I.D. x .812" O.D.

$11.99

$

Usually ships in 3-6 days

0

10

MTD 736-3024

Fl-Wash. 7/16" I.D. x .75" O.D.

$3.99

$

In Stock, only 1 left!

0

11

White Outdoor 717-1433

10 Tooth Pinion Shaft

$40.99

$

Usually ships in 3-6 days

0

12

White Outdoor 748-0208A

Flange Bearing

$4.49

$

Usually ships in 3-6 days

0

13

White Outdoor 721-0329

Oil Seal
(Superseded to 921-0329)

$10.99

$

Usually ships in 3-6 days

0

14

White Outdoor 748-0373

Flange Brg. .503" I.D.

$4.49

$

Usually ships in 3-6 days

0

15

White Outdoor 756-0618

Fl-Pulley 5.06" O.D.
(Superseded to 756-0656)

$36.99

$

Usually ships in 3-6 days

0

16

White Outdoor 736-0425

Bell-Wash. .325" I.D. x .93" O.D.

$4.99

$

In Stock, Qty 13

0

17

White Outdoor 712-3045

Hex Jam Nut 5/16-24 L.H. Thd.
(Superseded to 912-3045)

$4.99

$

Usually ships in 3-6 days

0

18

White Outdoor 738-0440

Shld. Spacer .375" I.D. x .165"

$5.99

$

In Stock, only 4 left!

0

19

White Outdoor 736-0344

Fl-Wash. .390" I.D. x 1" O.D.

$4.99

$

In Stock, Qty 20+

0

20

White Outdoor 738-0826

Shld. Bolt .375" Dia. x .4"

$12.99

$

Usually ships in 3-6 days

0

21

White Outdoor 656-0008

Idler Pulley Ass'y.
(Superseded to 956-0008)

Note: Incl. Ref. #22

$20.99

$

In Stock, only 3 left!

0

22

White Outdoor 741-0556

Needle Brg.

$17.99

$

In Stock, only 3 left!

0

23

White Outdoor 736-0270

Bell-Wash. .265" I.D. x .75"

$3.99

$

In Stock, Qty 20+

0

24

White Outdoor 17052A

Idler Brkt. Ass'y.

$

$

Not available

25

White Outdoor 712-0138

Hex Nut 1/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

26

White Outdoor 732-0357A

Ext. Spring 1.12" Lg.

$4.49

$

In Stock, only 3 left!

0

27

White Outdoor 618-0132

Lower Hsg. Half

$28.99

$

Usually ships in 3-6 days

0

28

White Outdoor 741-0415

Flange Bearing .566" Dia.
(Superseded to 941-0415)

$10.99

$

Usually ships in 3-6 days

0

29

White Outdoor 717-1432

34 Tooth Helical Gear

$58.99

$

Usually ships in 3-6 days

0

30

White Outdoor 741-0414

Flange Bearing .629" Dia.

$10.99

$

Usually ships in 3-6 days

0

31

White Outdoor 721-0213

Oil Seal

$10.99

$

In Stock, only 1 left!

0

32

White Outdoor 711-1019

Gear Sprocket Shaft

$

$

Not available

33

White Outdoor 710-0589

Hex Hd. Tap Scr. #10-16 x .75" Lg.

$6.99

$

Usually ships in 3-6 days

0

34

White Outdoor 710-0436

Hex B-Tap Scr. #10 x .62" Lg.
(Superseded to 710-0651)

$3.99

$

Usually ships in 3-6 days

0

37

White Outdoor 736-0369

Fl-Wash. 1/2" I.D. x 1" O.D.

$4.49

$

In Stock, Qty 8

0

38

White Outdoor 736-0520

Fl-Wash..504" I.D. x .7" O.D.
(Superseded to 936-0520)

$5.99

$

Usually ships in 3-6 days

0

White Outdoor 618-0134

Transmission Comp.

$

$

Not available
