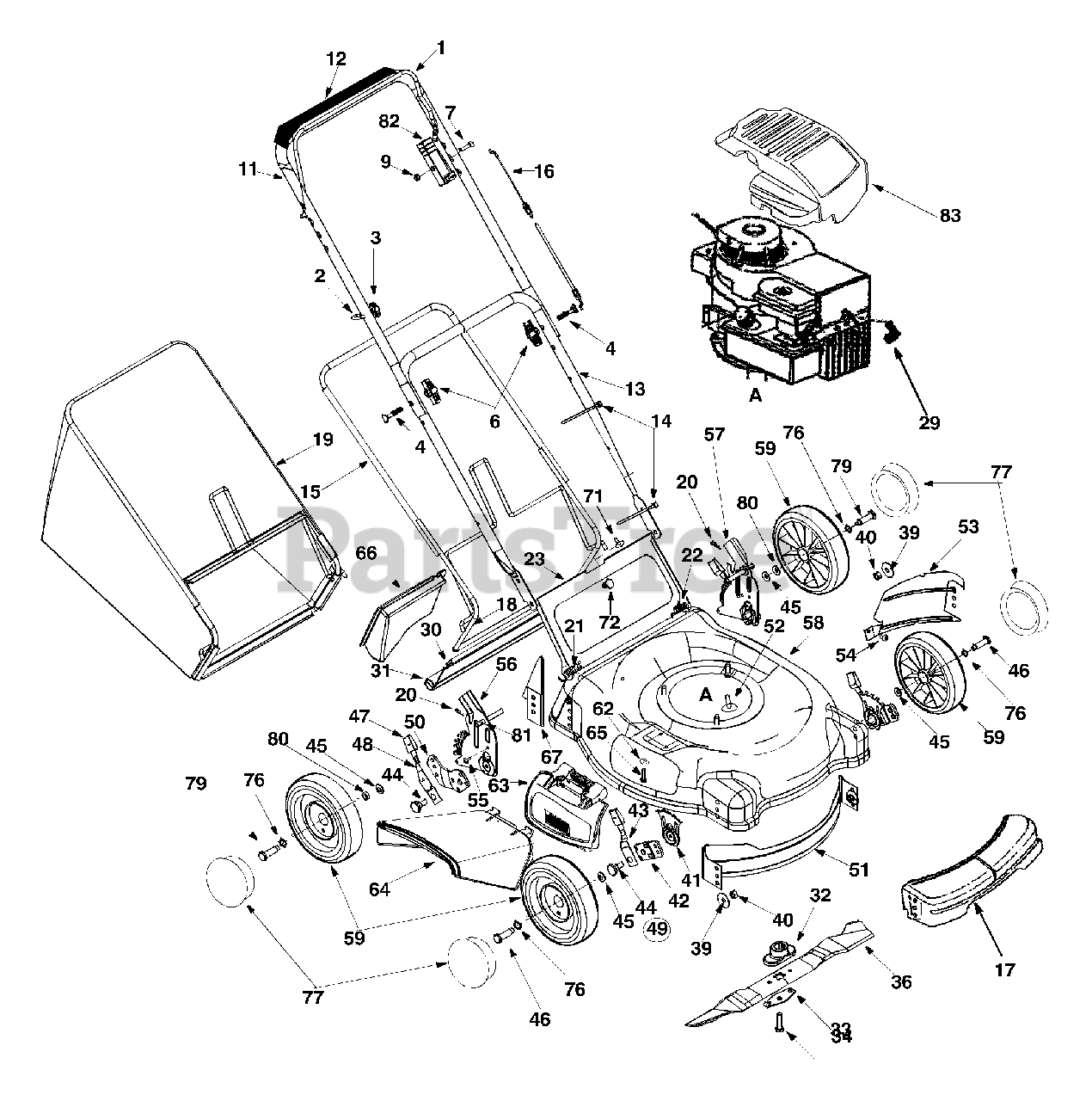

LC-436 (11A-439B190) - White Outdoor Lawn Boss 21" Walk-Behind Mower (2000) General Assembly Parts Diagram

Lawn Boss 21" Walk-Behind Mower

General Assembly Parts Diagram

  • Title

1

White Outdoor 647-0004

Control Handle Assembly
(Superseded to 747-0824B-0637)

$65.99

$

In Stock, only 1 left!

0

2

White Outdoor 710-1205

Rope Guide

$3.99

$

In Stock, Qty 20+

0

3

White Outdoor 720-0279

Handle Knob 1/4-20 Thd.

$4.49

$

In Stock, Qty 20+

0

4

White Outdoor 710-1174

Curved Hd. Bolt 5/16-18 x 2" Lg.

$7.49

$

In Stock, Qty 20+

0

6

White Outdoor 720-0314

Hand Knob

$6.49

$

In Stock, only 1 left!

0

7

White Outdoor 710-1270

Oval C-Sunk Mach. Scr.

$4.49

$

Usually ships in 3-6 days

0

9

White Outdoor 712-0324

Hex L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

11

White Outdoor 749-0705

Upper Handle

Variations

White Outdoor 749-0705-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

12

White Outdoor 720-0295

Foam Grip

$33.99

$

Usually ships in 3-6 days

0

13

White Outdoor 749-0928

Lower Handle
(Superseded to 749-0928A)

Variations

White Outdoor 749-0928-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, only 2 left!

0

$33.99

$

In Stock, only 2 left!

0

14

White Outdoor 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

15

White Outdoor 764-0310

Rear Catcher Frame
(Superseded to 764-0310A-0637)

Variations

White Outdoor 764-0310-0637

Grass Catcher Bag Frame - POWDER BLACK (0637)

$46.99

$

Usually ships in 3-6 days

0

$46.99

$

Usually ships in 3-6 days

0

16

White Outdoor 746-0550

Control Cable - 39"
(Superseded to 946-0550)

$21.99

$

In Stock, only 3 left!

0

17

White Outdoor 731-1950

Front Cover: Gray

$

$

Not available

18

White Outdoor 764-0311

Front Catcher Frame
(Superseded to 764-0311-0637)

Variations

White Outdoor 764-0311-0637

FRONT CATCHER FRAME - POWDER BLACK (0637)

$

$

Not available

$

$

19

White Outdoor 764-0636

Grass Bag

$

$

Not available

20

White Outdoor 714-0104

Int. Cotter Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

21

White Outdoor 732-0678

Door Spring - R.H.

$8.49

$

Usually ships in 3-6 days

0

22

White Outdoor 732-0677

Door Spring - L.H.
(Superseded to 932-0677)

$

$

Not available

23

White Outdoor 782-7000

Rear Discharge Door

Variations

White Outdoor 782-7000-0483

DOOR-REAR DISCHARG - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 782-7000-0637

DOOR-REAR DISCHARG - POWDER BLACK (0637)

$

$

Not available

White Outdoor 782-7000-0638

DOOR-REAR DISCHARG - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 782-7000-0662

DOOR-REAR DISCHARG - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 782-7000-0665

DOOR-REAR DISCHARG - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 782-7000-0674

No Longer Available DOOR-REAR DISCHARG - YARDMAN YELLOW (0674)

$

$

Not available

$

$

29

White Outdoor 735-0639

Spark Plug Boot

$

$

Not available

30

White Outdoor 732-0700

Wire Rod
(Superseded to 732P0700)

$4.49

$

In Stock, only 4 left!

0

31

White Outdoor 731-1236

Rear Flap
(Superseded to 731-04998)

$31.99

$

In Stock, Qty 7

0

32

White Outdoor 753-0588

Blade Adapter
(Superseded to 753-06315)

Note: (Kit includes 32-34)

$16.99

$

In Stock, only 1 left!

0

33

White Outdoor 710-1044

Hex Bolt 3/8-24 x 1.5" Lg.

$3.99

$

In Stock, only 2 left!

0

34

White Outdoor 736-0524A

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 5

0

36

White Outdoor 742-0741

21" Mulching Blade
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

39

White Outdoor 736-0356

Bell-Wash. .39" I.D. x 1.38"
(Superseded to 936-0356)

$

$

Not available

40

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

41

White Outdoor 15261A

Height Adj. Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

42

White Outdoor 15262B

Pivot Bar

Variations

White Outdoor 15262B-0637

PIVOT BAR - POWDER BLACK (0637)

$14.99

$

In Stock, only 1 left!

0

$14.99

$

In Stock, only 1 left!

0

43

White Outdoor 14832

Front Spring Lever Ass'y. w/Knob
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

44

White Outdoor 738-0507B

Shld. Bolt .5" Dia. x .357"

$4.49

$

In Stock, Qty 20+

0

45

White Outdoor 736-0105

Bell-Wash. .38" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

46

White Outdoor 738-0102

Front Axle Bolt

$9.99

$

In Stock, Qty 10

0

47

White Outdoor 720-0190

Spring Lever Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

48

White Outdoor 732-0417A

Rear Spring Lever

$

$

Not available

49

White Outdoor 14578

Height Adj. Assy. Comp. - RH
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

?N/I

White Outdoor 14579

Height Adj. Assy. Comp. - LH
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

50

White Outdoor 14765

Pivot Bar R.H.

$19.99

$

Usually ships in 3-6 days

0

?N/I

White Outdoor 14766

Pivot Bar L.H.

$19.99

$

Usually ships in 3-6 days

0

51

White Outdoor 782-5002

Front Baffle
(Superseded to 782P5002B)

Variations

White Outdoor 782-5002-0637

Front Baffle - POWDER BLACK (0637)

$

$

Not available

$

$

52

White Outdoor 710-0654A

Hex L-Wash.Scr. 3/8-16 x 1" Lg.

$4.49

$

In Stock, Qty 20+

0

53

White Outdoor 782-5003

Rear Baffle
(Superseded to 782-5003A)

Variations

White Outdoor 782-5003-0637

Left Rear Baffle - POWDER BLACK (0637)

$30.99

$

Usually ships in 3-6 days

0

$30.99

$

Usually ships in 3-6 days

0

54

White Outdoor 710-1017

Torx Mach AB-Tap Scr. 1/4 x.62"

$8.49

$

In Stock, Qty 9

0

55

White Outdoor 710-0896

Hex Ind Wash. Scr. 1/4-14:.625

$4.49

$

In Stock, Qty 20+

0

56

White Outdoor 682-0516A

Handle Brkt. Ass'y. - RH
(Superseded to 753-05994)

$82.99

$

Usually ships in 3-6 days

0

57

White Outdoor 682-0515A

Handle Brkt. Ass'y. - LH
(Superseded to 753-05994)

$82.99

$

Usually ships in 3-6 days

0

58

White Outdoor 782-0047A

Cutting Deck

Variations

White Outdoor 782-0047A-0498

No Longer Available DECK SHELL 21 - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 782-0047A-0638

No Longer Available DECK SHELL 21 - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 782-0047A-0650

No Longer Available DECK SHELL 21 - RED METALLIC (0650)

$

$

Not available

White Outdoor 782-0047A-0662

Deck - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 782-0047A-0665

No Longer Available DECK SHELL 21 YM - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 782-0047A-0667

No Longer Available DECK SHELL 21" MID - MIDNIGHT BLUE (0667)

$

$

Not available

White Outdoor 782-0047A-0691

No Longer Available - BLACK JACK (0691)

$

$

Not available

White Outdoor 782-0047A-0709

No Longer Available DECK SHELL 21 - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

59

White Outdoor 734-1978

Wheel Black Link

$48.99

$

Usually ships in 3-6 days

0

62

White Outdoor 736-0270

Bell-Washer 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0

63

White Outdoor 682-7000

Hinged Mulching Plug

$

$

Not available

64

White Outdoor 731-1409

Chute Deflector: Side Discharge
(Superseded to 731-1409B)

$28.99

$

In Stock, Qty 5

0

65

White Outdoor 710-0599

Hex Hd Self-Tp Scr. 1/4-20 x .5" L.

$4.49

$

In Stock, Qty 20+

0

66

White Outdoor 782-5007A

Mulching Baffle Plug
(Superseded to 782-5007C)

$52.99

$

In Stock, only 1 left!

0

67

White Outdoor 782-5004

Mulching Baffle - R.R.
(Superseded to 782-5004B)

Variations

White Outdoor 782-5004-0637

MULCHING BAFFLE - POWDER BLACK (0637)

$24.99

$

Usually ships in 3-6 days

0

White Outdoor 782-5004-0638

MULCHING BAFFLE - MTD/TROY-BILT RED (0638)

$24.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

71

White Outdoor 710-0192

Truss Scr. #10-24 x .38" Lg.

$3.99

$

In Stock, Qty 12

0

72

White Outdoor 720-0275

Knob

$

$

Not available

76

White Outdoor 736-0504

Wave Washer
(Superseded to 936-0504)

$4.49

$

In Stock, Qty 9

0

77

White Outdoor 731-0981A

Hub Cap - Rad. Spoke - Grey
(Superseded to 731-0981C)

$10.99

$

In Stock, only 2 left!

0

79

White Outdoor 738-0213

Rear Axle Bolt

$7.99

$

In Stock, only 2 left!

0

80

White Outdoor 750-0535

Spacer
(Superseded to 950-0535)

$4.49

$

In Stock, Qty 20+

0

81

710-1248

Weld Pin

$

$

Not available

82

White Outdoor 746-0883

Throttle Housing w/o Lever

$16.99

$

In Stock, only 3 left!

0

83

White Outdoor 751B281451

Engine Shroud: Oyster Gray

$

$

Not available
