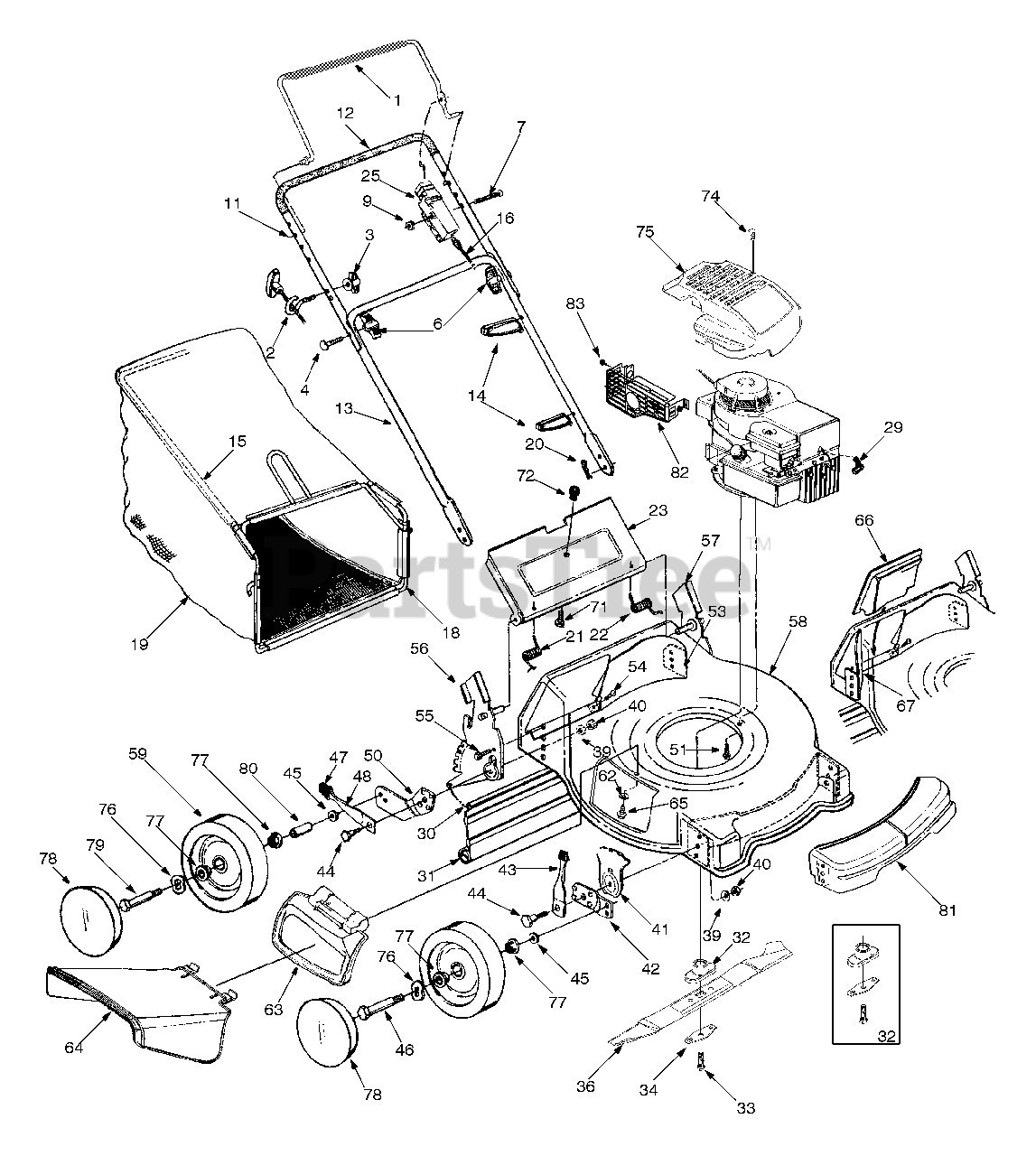

LC-436 (11A-438C190) - White Outdoor Lawn Boss 21" Walk-Behind Mower (1999) General Assembly Parts Diagram

Lawn Boss 21" Walk-Behind Mower

General Assembly Parts Diagram

  • Title

1

White Outdoor 647-0004

Control Handle Assembly
(Superseded to 747-0824B-0637)

$65.99

$

In Stock, only 1 left!

0

2

White Outdoor 710-1205

Rope Guide

$3.99

$

In Stock, Qty 20+

0

3

White Outdoor 720-0279

Handle Knob 1/4-20 Thd.

$4.49

$

In Stock, Qty 20+

0

4

White Outdoor 710-1174

Curved Hd. Bolt 5/16-18 x 2"

$7.49

$

In Stock, Qty 20+

0

6

White Outdoor 720-0276

Hand Knob
(Superseded to 920-0276)

$3.99

$

In Stock, Qty 9

0

7

White Outdoor 710-1270

Oval C-Sunk Mach. Scr.

$4.49

$

Usually ships in 3-6 days

0

9

White Outdoor 712-0324

Hex Lock Nut

$3.99

$

In Stock, Qty 16

0

11

White Outdoor 749-0538C

Upper Handle
(Superseded to 749-0538E-0637)

Variations

White Outdoor 749-0538C-0637

UPPER HANDLE BLACK - POWDER BLACK (0637)

$

$

Not available

$

$

12

White Outdoor 720-0295

Foam Grip

$33.99

$

Usually ships in 3-6 days

0

13

White Outdoor 749-0928

Lower Handle
(Superseded to 749-0928A)

Variations

White Outdoor 749-0928-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, only 2 left!

0

$33.99

$

In Stock, only 2 left!

0

14

White Outdoor 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

15

White Outdoor 764-0310

Rear Catcher Frame
(Superseded to 764-0310A-0637)

Variations

White Outdoor 764-0310-0637

Grass Catcher Bag Frame - POWDER BLACK (0637)

$46.99

$

Usually ships in 3-6 days

0

$46.99

$

Usually ships in 3-6 days

0

16

White Outdoor 746-0553

Control Cable
(Superseded to 946-0553)

$24.99

$

Usually ships in 3-6 days

0

18

White Outdoor 764-0311

Front Catcher Frame
(Superseded to 764-0311-0637)

Variations

White Outdoor 764-0311-0637

FRONT CATCHER FRAME - POWDER BLACK (0637)

$

$

Not available

$

$

19

White Outdoor 764-0476A

Grass Bag 21" Soft Top
(Superseded to 964-0309)

$151.99

$

Usually ships in 3-6 days

0

20

White Outdoor 714-0104

Internal Cotter Pin

$4.49

$

In Stock, Qty 20+

0

21

White Outdoor 732-0678

Door Spring - R.H.

$8.49

$

Usually ships in 3-6 days

0

22

White Outdoor 732-0677

Door Spring - L.H.
(Superseded to 932-0677)

$

$

Not available

23

White Outdoor 782-7000

Chute Door: Rear Discharge

Variations

White Outdoor 782-7000-0483

DOOR-REAR DISCHARG - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 782-7000-0637

DOOR-REAR DISCHARG - POWDER BLACK (0637)

$

$

Not available

White Outdoor 782-7000-0638

DOOR-REAR DISCHARG - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 782-7000-0662

DOOR-REAR DISCHARG - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 782-7000-0665

DOOR-REAR DISCHARG - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 782-7000-0674

No Longer Available DOOR-REAR DISCHARG - YARDMAN YELLOW (0674)

$

$

Not available

$

$

25

White Outdoor 746-0883

Control Housing

$16.99

$

In Stock, only 3 left!

0

?27

Engine

$

$

Not available

29

White Outdoor 735-0639

Spark Plug Boot

$

$

Not available

30

White Outdoor 732-0700

Wire Rod
(Superseded to 732P0700)

$4.49

$

In Stock, only 4 left!

0

31

White Outdoor 731-1236

Rear Flap
(Superseded to 731-04998)

$31.99

$

In Stock, Qty 7

0

32

White Outdoor 753-0588

Blade Adapter Kit
(Superseded to 753-06315)

$16.99

$

In Stock, only 1 left!

0

33

White Outdoor 710-1044

Hex Bolt 3/8-24 x 1.5"

$3.99

$

In Stock, only 1 left!

0

34

White Outdoor 736-0524A

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, only 1 left!

0

36

White Outdoor 742-0741

Mulching Blade 21"
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

?37

White Outdoor 736-0169

Lock Washer 3/8 I.D.

$3.99

$

In Stock, Qty 20+

0

?38

White Outdoor 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

39

White Outdoor 736-0356

Bell Washer
(Superseded to 936-0356)

$

$

Not available

40

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

41

White Outdoor 15261A

Height Adj. Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

42

White Outdoor 15262B

Pivot Bar

Variations

White Outdoor 15262B-0637

PIVOT BAR - POWDER BLACK (0637)

$14.99

$

In Stock, only 1 left!

0

$14.99

$

In Stock, only 1 left!

0

43

White Outdoor 14832

Spring Lever Assembly w/Knob
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

44

White Outdoor 738-0507B

Shoulder Bolt

$4.49

$

In Stock, Qty 20+

0

45

White Outdoor 736-0105

Bell Washer, 38" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

46

White Outdoor 738-0102

Front Axle Bolt

$9.99

$

In Stock, Qty 10

0

47

White Outdoor 720-0190

Spring Lever Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

48

White Outdoor 732-0417A

Spring Lever

$

$

Not available

?49

White Outdoor 14578

Height Adj. Assy - R.H.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

White Outdoor 14579

Height Adj. Assy - L.H.
(Superseded to 753-06761)

Note: (Not Shown)

$65.99

$

In Stock, Qty 7

0

50

White Outdoor 14765

Pivot Bar

$19.99

$

Usually ships in 3-6 days

0

51

White Outdoor 782-5002

Front Baffle
(Superseded to 782P5002B)

Variations

White Outdoor 782-5002-0637

Front Baffle - POWDER BLACK (0637)

$

$

Not available

$

$

?52

White Outdoor 710-0654A

Hex Lock Washer Hd. Scr. 3/8-16 x 1"

$4.49

$

In Stock, Qty 20+

0

53

White Outdoor 782-5003

Rear Baffle
(Superseded to 782-5003A)

Variations

White Outdoor 782-5003-0637

Left Rear Baffle - POWDER BLACK (0637)

$30.99

$

Usually ships in 3-6 days

0

$30.99

$

Usually ships in 3-6 days

0

54

White Outdoor 710-1017

Torx Mach. AB-Tap. Scr. 1/4 x .62"

$8.49

$

In Stock, Qty 9

0

55

White Outdoor 710-1652

Hex Lock Washer Hd. AB-Tap Scr.

Note: Code: N notates a new part (not previously existing).

$4.49

$

In Stock, Qty 20+

0

56

White Outdoor 682-0516

Handle Bracket Assembly - R.H.
(Superseded to 682-0516-0637)

Variations

White Outdoor 682-0516-0637

BRACKET-HGT ADJ-RH - POWDER BLACK (0637)

$

$

Not available

$

$

57

White Outdoor 682-0515

Handle Bracket Assembly - L.H.
(Superseded to 753-05994)

Variations

White Outdoor 682-0515-0637

Handle Bracket Kit - POWDER BLACK (0637)

$82.99

$

Usually ships in 3-6 days

0

$82.99

$

Usually ships in 3-6 days

0

58

White Outdoor 782-0047A-0662

Deck

Note: Code: N notates a new part (not previously existing).

$

$

Not available

59

White Outdoor 734-1978

Wheel Assembly Comp.

Note: Code: N notates a new part (not previously existing).

$48.99

$

Usually ships in 3-6 days

0

62

White Outdoor 736-0270

Bell Washer 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0

63

White Outdoor 682-7000

Hinged Mulching Plug

$

$

Not available

64

White Outdoor 731-1409

Chute Deflector: side discharge
(Superseded to 731-1409B)

$28.99

$

In Stock, Qty 5

0

65

White Outdoor 710-0599

Hex Hd. Self-Tap. Scr. 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

66

White Outdoor 782-5007A

Mulching Baffle Plug
(Superseded to 782-5007C)

Note: Code: N notates a new part (not previously existing).

$52.99

$

In Stock, only 1 left!

0

67

White Outdoor 782-5004

Mulching Baffle - Rear
(Superseded to 782-5004B)

Variations

White Outdoor 782-5004-0637

MULCHING BAFFLE - POWDER BLACK (0637)

$24.99

$

Usually ships in 3-6 days

0

White Outdoor 782-5004-0638

MULCHING BAFFLE - MTD/TROY-BILT RED (0638)

$24.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

?68

White Outdoor 731-1405

Deflector
(Superseded to 731-1405A)

Note: (Optional)

$

$

Not available

?69

White Outdoor 711-0996

Rod

Note: (Optional)

$45.99

$

Usually ships in 3-6 days

0

?70

White Outdoor 726-0201

Push Speed Nut

Note: (Optional)

$6.99

$

In Stock, only 2 left!

0

71

White Outdoor 710-0192

Truss Scr. #10-24 x .38

$3.99

$

In Stock, Qty 12

0

72

White Outdoor 720-0275

Knob: Chute Door

$

$

Not available

74

White Outdoor 710-1256

Hi-Lo Scr. #10 x 1.25

$5.99

$

In Stock, only 2 left!

0

75

White Outdoor 751B281451

XTL Gray Shroud

$

$

Not available

76

White Outdoor 736-0504

Wave Washer
(Superseded to 936-0504)

$4.49

$

In Stock, Qty 9

0

77

White Outdoor 741-0180

Ball Bearings
(Superseded to 941-0180)

$18.99

$

Usually ships in 3-6 days

0

78

White Outdoor 731-0981A

Hub Cap: Radial Spoke Gray
(Superseded to 731-0981C)

$10.99

$

In Stock, only 2 left!

0

79

White Outdoor 738-0213

Rear Axle Bolt

$7.99

$

In Stock, only 2 left!

0

80

White Outdoor 750-0535

Spacer
(Superseded to 950-0535)

$4.49

$

In Stock, Qty 20+

0

81

White Outdoor 731-1950

Cover: Front Deck Gray

$

$

Not available

82

White Outdoor 751B224437

Muffler Guard

Note: Code: N notates a new part (not previously existing).

$

$

Not available

83

White Outdoor 710-1268

Hex Washer Head Screw

Note: Code: N notates a new part (not previously existing).

$4.49

$

In Stock, Qty 20+

0
