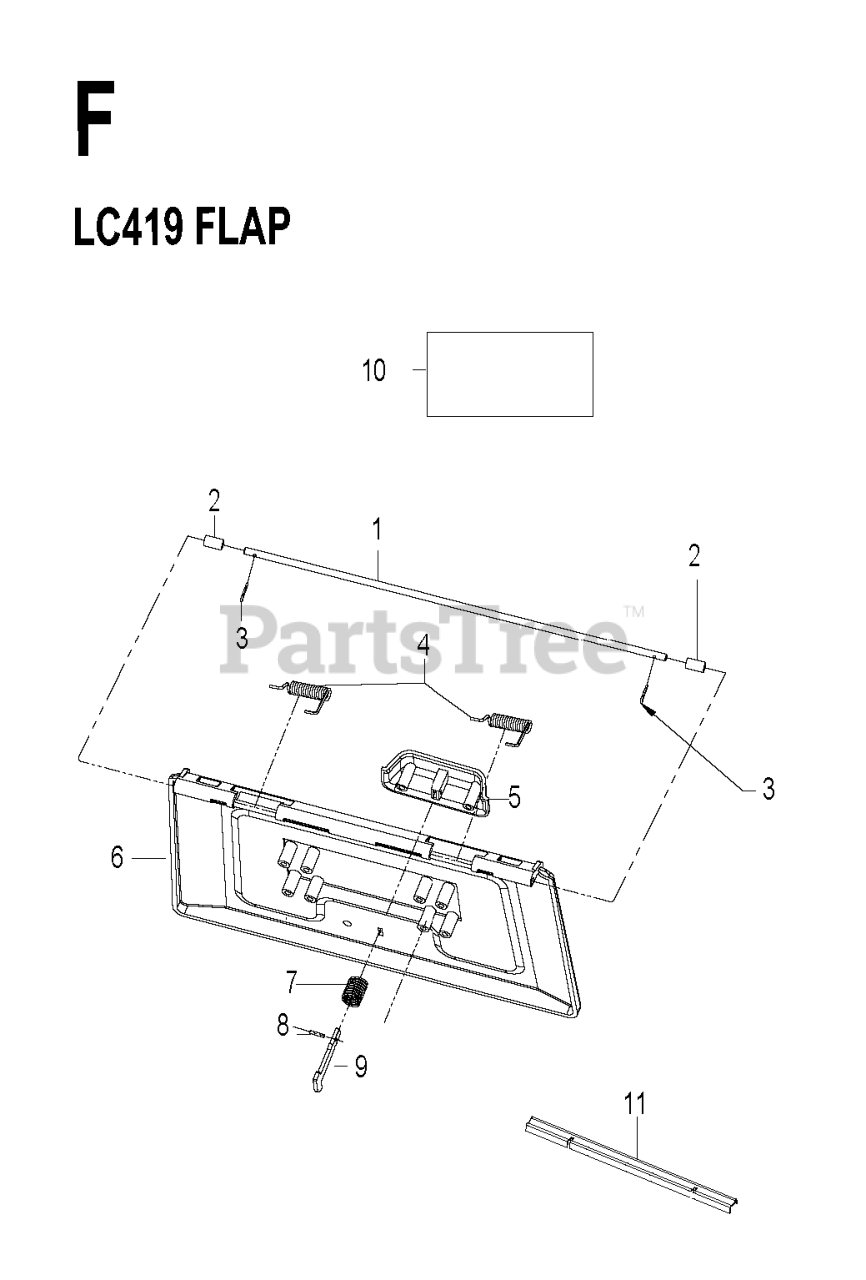

LC 419 - Husqvarna 19" Walk-Behind Mower (2019-04) FLAP Parts Diagram

19" Walk-Behind Mower

FLAP Parts Diagram

  • Title
5

Husqvarna 581457701

NEEDS DESCRIPTION

Note: Handle for Deflector

$

$

Currently unavailable

7

Husqvarna 581457301

NEEDS DESCRIPTION

Note: Spring for Deflector Handle

$

$

Currently unavailable

8

Husqvarna 581457201

NEEDS DESCRIPTION

Note: 3*10 Elastic Pin

$

$

Currently unavailable

11

Husqvarna 581399801

NEEDS DESCRIPTION

Note: Seal for Flap

$

$

Currently unavailable

10

Husqvarna 581860801

NEEDS DESCRIPTION

Note: Label, Warning

$

$

Currently unavailable

9

Husqvarna 581457501

NEEDS DESCRIPTION

Note: T-type Hook

$

$

Currently unavailable

6

Husqvarna 581398901

NEEDS DESCRIPTION

Note: Deflector

$

$

Currently unavailable

4

Husqvarna 581399601

NEEDS DESCRIPTION

Note: Spring for Deflector

$

$

Currently unavailable

1

Husqvarna 585684401

NEEDS DESCRIPTION

Note: Axle of Flap

$

$

Currently unavailable

2

Husqvarna 581399501

NEEDS DESCRIPTION

Note: Transparent pipe

$

$

Currently unavailable

3

Husqvarna 581406401

NEEDS DESCRIPTION

Note: Clip for Connecting Link

$

$

Currently unavailable
