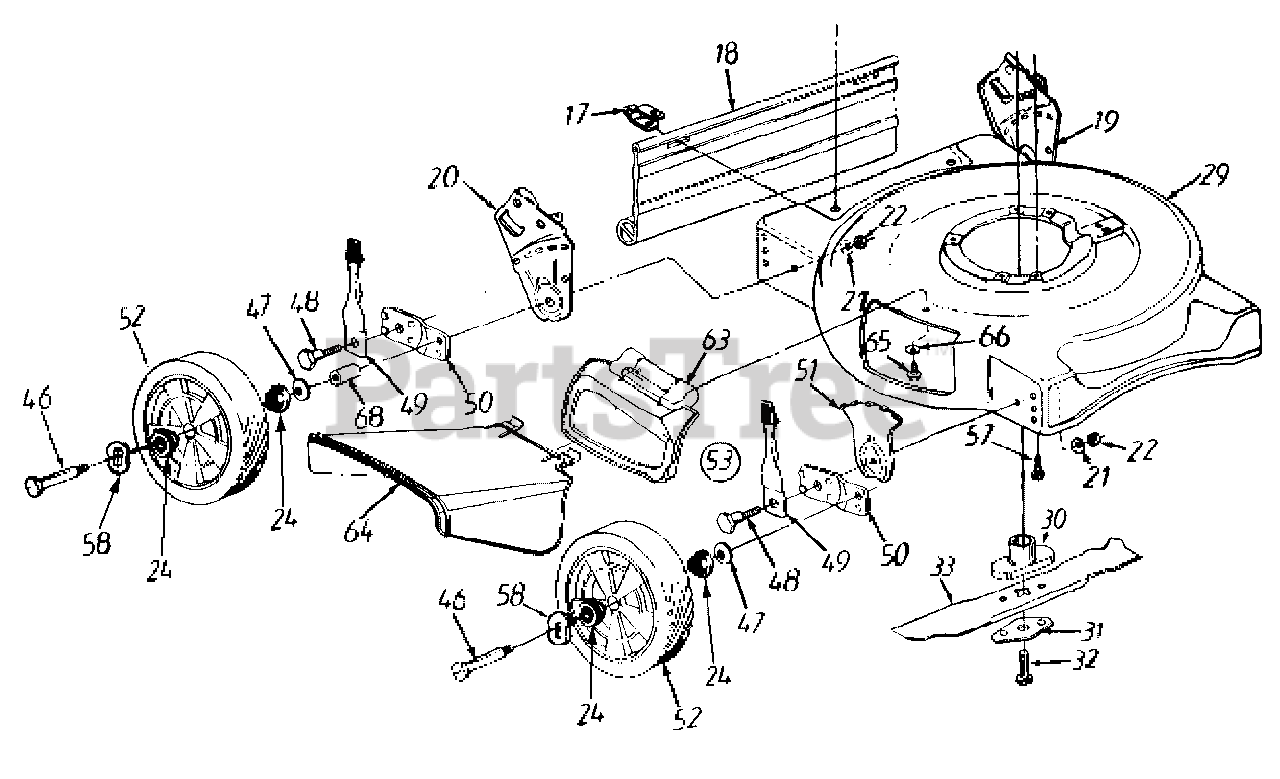

LC-40 (11A-702A190) - White Outdoor Lawn Boss 20" Walk-Behind Mower (1998) Deck Assembly Parts Diagram

Lawn Boss 20" Walk-Behind Mower

Deck Assembly Parts Diagram

  • Title

17

White Outdoor 17098

Hinge Clip
(Superseded to 17098P)

$

$

Not available

18

White Outdoor 731-0872A

Rear Flap
(Superseded to 731-0872B)

Note: For model LC 106 only

$39.99

$

In Stock, Qty 6

0

White Outdoor 731-1028

Rear Flap

Note: For model LC 40 only

$34.99

$

In Stock, only 1 left!

0

19

White Outdoor 682-3025

Handle Bracket Ass'y LH
(Superseded to 987-02107A)

Note: For model LC 106 only

Variations

White Outdoor 682-3025-0637

Handle and Height Bracket Assembly - POWDER BLACK (0637)

$45.99

$

In Stock, only 3 left!

0

$45.99

$

In Stock, only 3 left!

0

White Outdoor 682-3001A

Handle Bracket Ass'y. LH
(Superseded to 753-05962)

Note: For model LC 40 only

$65.99

$

Usually ships in 3-6 days

0

20

White Outdoor 682-3024

Handle Bracket Ass'y RH
(Superseded to 987-02106A)

Note: For model LC 106 only

Variations

White Outdoor 682-3024-0637

Handle Bracket Assembly, RH - POWDER BLACK (0637)

$52.99

$

Usually ships in 3-6 days

0

$52.99

$

Usually ships in 3-6 days

0

White Outdoor 682-3000A

Handle Bracket Ass'y RH
(Superseded to 753-05962)

Note: For model LC 40 only

$65.99

$

Usually ships in 3-6 days

0

21

White Outdoor 736-0356

Bell Washer .39" ID x 1.38"
(Superseded to 936-0356)

$

$

Not available

22

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

?23

White Outdoor 731-0981A

Hub Cap: Radial Grey
(Superseded to 731-0981C)

$10.99

$

Usually ships in 3-6 days

0

24

White Outdoor 741-0484

Bearing
(Superseded to 941-0484)

$7.49

$

In Stock, only 1 left!

0

29

White Outdoor 682-0025A-0662

Deck Assembly
(Superseded to 682-0139-0662)

Note: For model LC 106 only. Code: N Notates a new part (not previously existing)

$

$

Not available

White Outdoor 682-0018-0662

Deck Assembly

Note: For model LC 40 only

$

$

Not available

30

White Outdoor 753-0588

Blade Adapter Kit
(Superseded to 753-06315)

$16.99

$

In Stock, only 1 left!

0

31

White Outdoor 736-0524A

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 17

0

32

White Outdoor 710-1044

Hex Bolt 7/16-20 x 1.5"

$3.99

$

In Stock, Qty 7

0

33

White Outdoor 742-0740

20" Mulch Blade
(Superseded to 942-0740)

$23.99

$

In Stock, only 3 left!

0

White Outdoor 742-0738

18" Mulch Blade
(Superseded to 942-0738)

$28.99

$

Usually ships in 3-6 days

0

46

White Outdoor 738-0102

Axle Bolt

$9.99

$

In Stock, Qty 10

0

47

White Outdoor 736-0105

Bell Washer .400" ID x .88"

$4.49

$

In Stock, Qty 20+

0

48

White Outdoor 738-0507B

Shoulder Bolt

$4.49

$

In Stock, only 4 left!

0

49

White Outdoor 14832

Spring Lever Ass'y w/Knob
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

50

White Outdoor 15262B

Pivot Bar

Variations

White Outdoor 15262B-0637

PIVOT BAR - POWDER BLACK (0637)

$14.99

$

In Stock, only 1 left!

0

$14.99

$

In Stock, only 1 left!

0

51

White Outdoor 15261A

Height Adj. Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

52

White Outdoor 734-1819

Wheel Assembly
(Superseded to 734-1978)

$48.99

$

Usually ships in 3-6 days

0

53

White Outdoor 14578

Height Adj. Ass'y. Comp. R.F. & L.R.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

White Outdoor 14579

Height Adj. Ass'y. Comp. L.F. & R.R.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

57

White Outdoor 710-0654A

Hex Lock Washerhead Screw 3/8-16 x 1.0" Lg.

$4.49

$

In Stock, only 3 left!

0

58

White Outdoor 736-0504

Wave Washer
(Superseded to 936-0504)

$4.49

$

In Stock, Qty 10

0

63

White Outdoor 682-7002

Mulching Plug

$

$

Not available

64

White Outdoor 731-1409

Chute Deflector
(Superseded to 731-1409B)

$28.99

$

In Stock, Qty 5

0

65

White Outdoor 736-0270

Bell Washer

$3.99

$

In Stock, Qty 20+

0

66

White Outdoor 710-0599

Hex Washerhead TT Screw 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

?67

White Outdoor 738-0213

Shoulder Screw (Rear Wheel)

Note: For model LC 40 only

$7.99

$

In Stock, only 2 left!

0

68

White Outdoor 750-0535

Spacer
(Superseded to 950-0535)

Note: For model LC 40 only

$4.49

$

In Stock, only 4 left!

0

?69

White Outdoor 731-1950

Cover: Front End

Note: For model LC 106 only. Code: N Notates a new part (not previously existing)

$

$

Not available
