LC 356 VP (967988801) - Husqvarna Walk-Behind Mower (2019-11) HANDLE Parts Diagram

Walk-Behind Mower

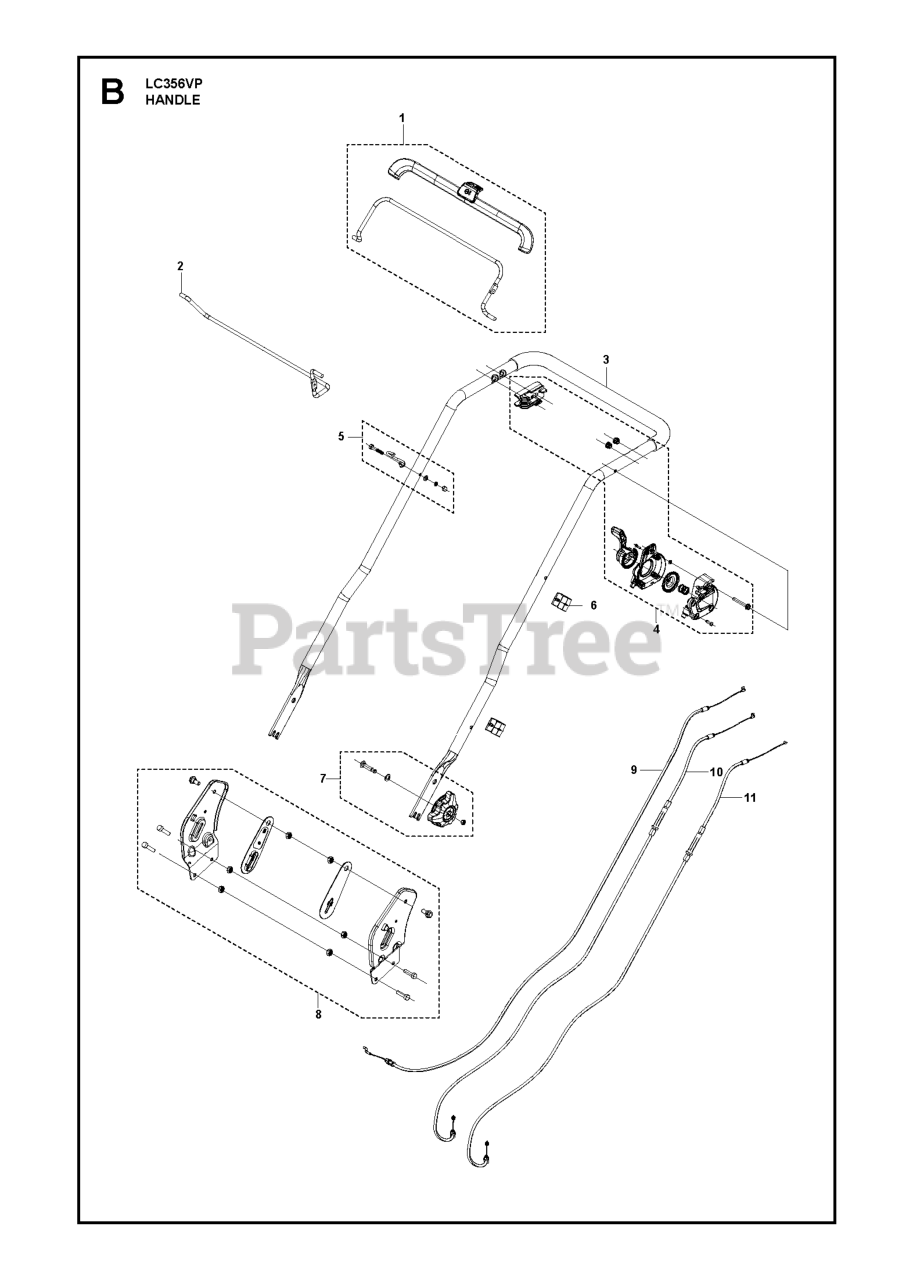

HANDLE Parts Diagram

  • Title

11

Husqvarna 598861701

NEEDS DESCRIPTION

Note: Variable speed cable assembly. Use in models before S/N 20204900021.

$

$

Currently unavailable

10

Husqvarna 598861801

NEEDS DESCRIPTION

Note: DRIVE CABLE ASSY. Use in models before S/N 20204900021.

$

$

Currently unavailable

11

Husqvarna 534207501

NEEDS DESCRIPTION

Note: Variable speed cable assembly. Use in models after S/N 20204900021.

$

$

Currently unavailable

9

Husqvarna 598861502

NEEDS DESCRIPTION

Note: choke cable assy

$

$

Currently unavailable

7

Husqvarna 598684125

NEEDS DESCRIPTION

Note: KNOB

$

$

Currently unavailable

8

Husqvarna 598684113

NEEDS DESCRIPTION

Note: HANDLE BRACKET

$

$

Currently unavailable

5

Husqvarna 598825601

NEEDS DESCRIPTION

Note: HANDLE

$

$

Currently unavailable

10

Husqvarna 534207401

NEEDS DESCRIPTION

Note: DRIVE CABLE ASSY. Use in models after S/N 20204900021.

$

$

Currently unavailable

3

Husqvarna 598721901

NEEDS DESCRIPTION

Note: HANDLE AND SHEATH

$

$

Currently unavailable

4

Husqvarna 598748201

NEEDS DESCRIPTION

Note: BAIL ARM

$

$

Currently unavailable

2

Husqvarna 598861901

NEEDS DESCRIPTION

Note: drive rod

$

$

Currently unavailable

1

Husqvarna 598818201

NEEDS DESCRIPTION

Note: BAIL ARM

$

$

Currently unavailable

6

Husqvarna 598961501

NEEDS DESCRIPTION

Note: clip

$

$

Currently unavailable
