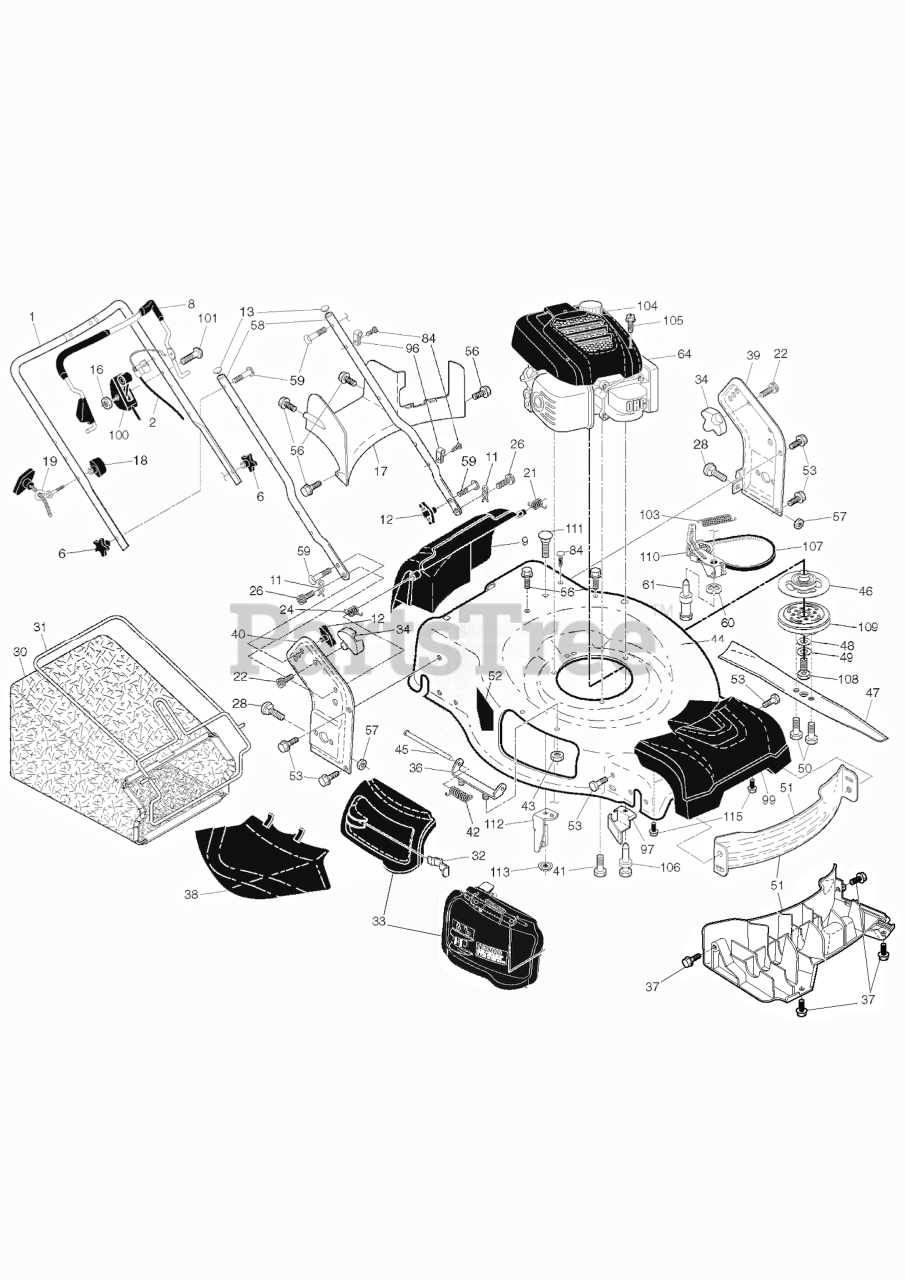

LC 356 VB - Husqvarna Walk-Behind Mower (Original) FRAME & ENGINE Parts Diagram

Walk-Behind Mower

FRAME & ENGINE Parts Diagram

  • Title

47

Husqvarna 581045201

RP.BLADE.22.4N1.BBC.RUST PREV
(Superseded to 581045202)

$27.99

$

In Stock, Qty 6

0

61

Husqvarna 581424501

BOLT.BBC.TENSION.PIVOT

$14.99

$

Usually ships in 3-10 days

0

56

Husqvarna 817411312

SCREW.HX.13X.750

$7.49

$

In Stock, Qty 20+

0

19

Husqvarna 581902101

GUIDE.ROPE.BLK.ZINC.CHROM

$

$

Not available

106

Husqvarna 579146901

BOLT.BRAKE.RESET.SPRING

$

$

Not available

33

Husqvarna 532419927

DOOR.MULCH.22 PLUS.HUSQ.GREY
(Superseded to 594942002)

Note: For all EXCEPT 96141028804

$10.99

$

In Stock, Qty 13

0

41

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$7.49

$

Usually ships in 3-10 days

0

58

Husqvarna 532441197

HANDLE.LOWER.22+BT.2PC.GRY

Note: For 96141028800

$17.99

$

Usually ships in 3-10 days

0

18

Husqvarna 581912601

T-KNOB.NEW ROPE GUIDE

$4.99

$

In Stock, only 2 left!

0

36

Husqvarna 532175735

BRACKET.ASM.HINGE.21.FWGD.

Note: For all EXCEPT 96141028804

$

$

Not available

42

Husqvarna 532193000

SPRING.TORSION

Note: For all EXCEPT 96141028804

$7.49

$

In Stock, only 3 left!

0

57

Husqvarna 532155377

NUT.FLANGE.5/16

$6.49

$

Usually ships in 3-10 days

0

44

Husqvarna 581708328

HOUSING.22+RG.MC.WO.BBC.668.TR

Note: For 96141028803, 96141028804

$

$

Not available

40

Husqvarna 585900803

BRACKET.ASM.HANDLE.RT.22+.GREY

Note: For all EXCEPT 96141028800, RH

$

$

Not available

Husqvarna 532423849

BAG OF HARDWARE.22+

Note: For all EXCEPT 96141028800

$

$

Not available

99

Husqvarna 585668702

COVER.ASM.FRONT.HUSQ.22+RGD

Note: For all EXCEPT 96141028800, 96141028801

$28.99

$

Usually ships in 3-10 days

0

58

Husqvarna 585908203

HANDLE.LOWER.22+.BT.GRAY
(Superseded to 593270403)

Note: For all EXCEPT 96141028800

$17.99

$

In Stock, only 2 left!

0

30

Husqvarna 580943405

GBAG.BA85028ER.GRY/ORG
(Superseded to 580943401)

$45.99

$

Usually ships in 3-10 days

0

103

Husqvarna 581530701

SPRING.BRAKE.RESET

$4.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532438134

BRACKET.GRASSBAG.ATTACHING.BLK

$

$

Not available

50

Husqvarna 532180460

BOLT.BLADE

$9.99

$

In Stock, only 2 left!

0

37

Husqvarna 532437345

SCREW.HI-LO.5/16 X.75

Note: For 96141028800

$6.49

$

In Stock, Qty 20+

0

1

Husqvarna 585854806

HANDLE.UP.3POS.BS.AW2.GREY

Note: For all EXCEPT 96141028800

$

$

Not available

31

Husqvarna 585054702

FRAME.GBAG.22+.BLK

$34.99

$

In Stock, Qty 6

0

46

Husqvarna 581277401

PULLEY.BBC.DRIVING

$74.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532437516

PLUG.PLASTIC.7/8".14-20.GAUGE

$4.99

$

Usually ships in 3-10 days

0

39

Husqvarna 581353702

BRACKET.ASM.HNDL.LT.22+.GREY

Note: For 96141028800, LH

$

$

Not available

26

Husqvarna 532419945

SCREW,DOOR/HANDLE.PIVOT

$6.49

$

In Stock, Qty 20+

0

11

Husqvarna 532425575

COTTER.HAIRPIN.DOOR/HANDLE.PIV

$6.49

$

In Stock, Qty 17

0

17

Husqvarna 581782101

BAFFLE.REAR.22+RGD.AWD.PLASTIC

$47.99

$

In Stock, Qty 6

0

48

Husqvarna 579273801

WASHER.CRANK.BOLT

$6.99

$

In Stock, Qty 5

0

64

000000000

Note: HONDA GCV160-AOSBHE

$

$

Not available

96

Husqvarna 532197991

CLIP.CABLE.BLK

$7.49

$

In Stock, Qty 6

0

43

Husqvarna 532191730

NUT.HEX.FLANGE.1/4

Note: For all EXCEPT 96141028803, 96141028804

$7.49

$

In Stock, Qty 5

0

39

Husqvarna 585900703

BRACKET.ASM.HANDLE.LT.22+.GREY

Note: For all EXCEPT 96141028800, LH

$28.99

$

In Stock, only 2 left!

0

104

Husqvarna 580290001

SHROUD.ASM.HONDA.HUSQVARNA

$31.99

$

In Stock, only 1 left!

0

49

Husqvarna 532850263

LOCKWASHER
(Superseded to 810040600)

$4.99

$

In Stock, Qty 15

0

97

Husqvarna 581115302

BRACKET.BELT.GUIDE.22+.BZP

$

$

Not available

52

Husqvarna 532182166

DECAL.INTERNATIONL.CUTFINGER
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

45

Husqvarna 532175650

ROD.HINGE.21

Note: For all EXCEPT 96141028804

$7.49

$

In Stock, Qty 10

0

24

Husqvarna 532419948

SPRING.RH.GRAY

Note: RH

$6.49

$

In Stock, Qty 8

0

21

Husqvarna 532419949

SPRING.LH.BLACK

Note: LH

$6.49

$

In Stock, Qty 8

0

38

Husqvarna 532426129

DEFLECTOR.CLIPPING.22.BLACK

$11.99

$

In Stock, Qty 7

0

33

Husqvarna 593241102

DOOR ASSY KIT.MULCH DOOR.CE 22

Note: For 96141028804

$

$

Not available

100

Husqvarna 532439468

CONTROL.THROTTLE.HOND.BBC.58.5

$74.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532438130

NUT.FLANGE.1-4-20-SERR

Note: For 96141028803

$

$

Not available

6

Husqvarna 532182398

KNOB.HANDLE.PLASTIC.STAR.BLACK

$7.49

$

In Stock, only 3 left!

0

12

Husqvarna 532191938

KNOB, DEFLECTOR
(Superseded to 532189713)

$9.49

$

In Stock, Qty 13

0

84

Husqvarna 532428124

FASTENER.PUSH.O.250X0.783

$6.49

$

In Stock, only 2 left!

0

1

Husqvarna 580638706

HANDLE.UPPER.3.POS.BS.AW2.GREY

Note: For 96141028800

$

$

Not available

2

Husqvarna 579484202

CABLE.BBC.22+.AW2.BS.ERGO.WALK

$40.99

$

In Stock, Qty 7

0

40

Husqvarna 581353602

BRACKET.ASM.HNDL.RT.22+.GREY

Note: For 96141028800, RH

$

$

Not available

60

Husqvarna 579482801

E-RING.12MM.SHAFT

$4.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532141841

SCREW.PAN.HEAD.#10

$7.49

$

In Stock, only 2 left!

0

108

Husqvarna 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

53

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 12

0

28

Husqvarna 586212501

BOLT.CARRIAGE.LN.5/16-18X.5/8

Note: For all EXCEPT 96141028800

$4.99

$

In Stock, Qty 8

0

51

Husqvarna 581238901

BAFFLE.FRONT.22+PLASTIC.(2 2)

Note: For 96141028800, 96141028801

$47.99

$

Usually ships in 3-10 days

0

112

Husqvarna 579471802

BRACKET.CABLE MOUNTING.22+

$

$

Not available

115

Husqvarna 584299401

SCREW.HI-LO. 5/16 X 1.00

Note: For all EXCEPT 96141028800, 96141028801

$4.99

$

In Stock, Qty 8

0

32

Husqvarna 532441192

LATCH.DOOR.ZINC

Note: For all EXCEPT 96141028804

$

$

Not available

111

Husqvarna 872140405

BOLT T

$7.49

$

In Stock, Qty 7

0

8

Husqvarna 587564109

BAIL.ASM.BBC.EN.ERGO.OM.OR/BK

$37.99

$

In Stock, only 1 left!

0

44

Husqvarna 581708358

KIT.HSG.22+RG.MC.WO.668.CE SYM

Note: For 96141028801, 96141028802

$

$

Not available

28

Husqvarna 872250505

BOLT
(Superseded to 872140505)

Note: For 96141028800

$3.99

$

In Stock, Qty 20+

0

99

Husqvarna 532437389

COVER.ASM.FRONT.SHROUD.HUSQ.

Note: For 96141028800, 96141028801

$66.99

$

Usually ships in 3-10 days

0

51

Husqvarna 532430599

BAFFLE.FRONT.22.PLUS

Note: For all EXCEPT 96141028800, 96141028801

$

$

Not available

37

Husqvarna 584299401

SCREW.HI-LO. 5/16 X 1.00

Note: For 96141028801

$4.99

$

In Stock, Qty 8

0

105

Husqvarna 580768701

SCREW.SHROUD.HONDA

$3.49

$

Usually ships in 3-10 days

0

107

Husqvarna 579273201

BELT.COG.BBC

$60.99

$

In Stock, only 1 left!

0

44

Husqvarna 581708317

Note: For 96141028800

$

$

Currently unavailable

9

Husqvarna 532431391

DOOR.REAR.ASM.22+.HUSQ.F/RG.CE
(Superseded to 593304501)

$45.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532132004

NUT
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

110

Husqvarna 581354501

ARM.BBC.TNSION.ARM.PULL(2 2MC)

$376.99

$

Usually ships in 3-10 days

0

113

Husqvarna 532438130

NUT.FLANGE.1-4-20-SERR

$

$

Not available

101

Husqvarna 532183365

SCREW

$6.49

$

Usually ships in 3-10 days

0

109

Husqvarna 581308101

HUB.FREE.BBC.ASSEMBLY(2 2MC)

$103.99

$

In Stock, only 1 left!

0

59

Husqvarna 532191574

BOLT, HANDLE 5/16-18X1.75

$6.99

$

In Stock, only 2 left!

0
