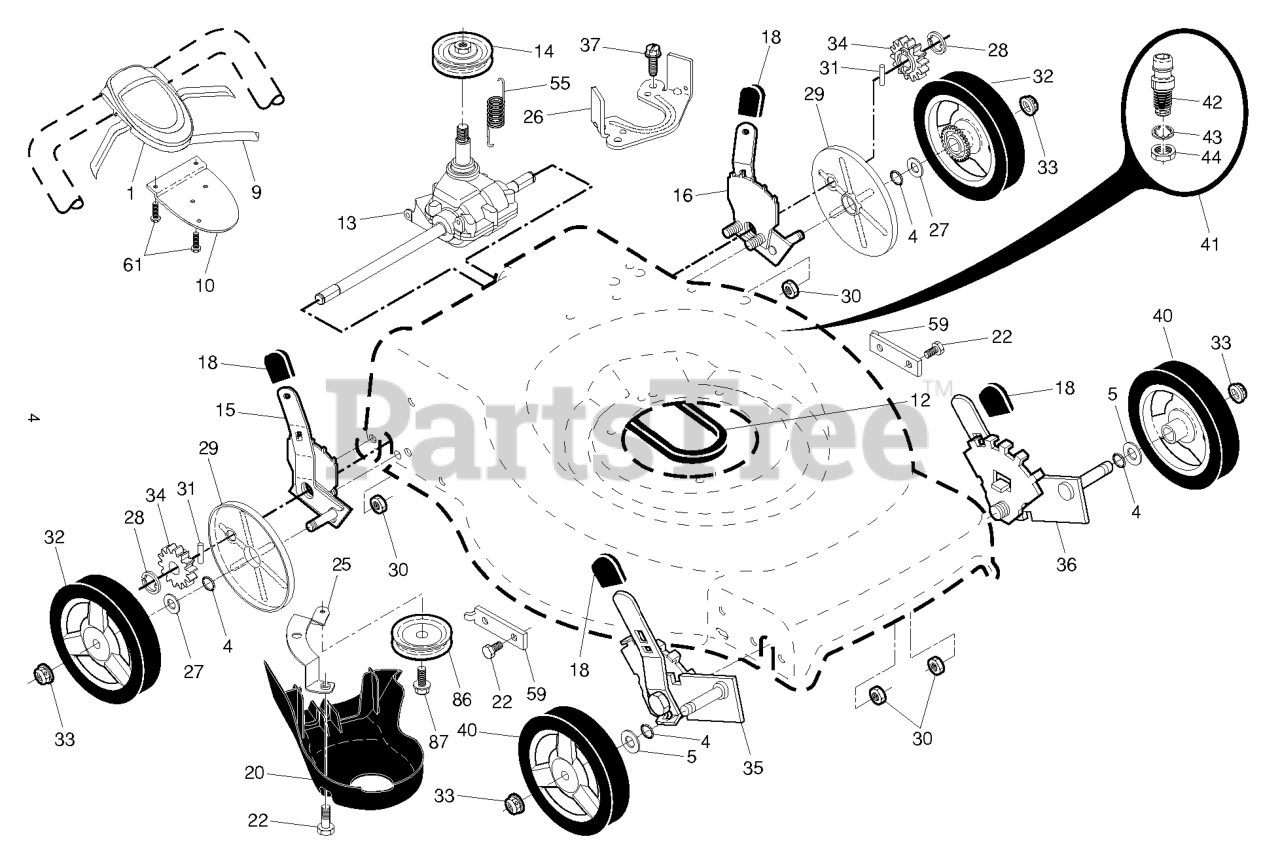

LC 356 VB (961410288-01) - Husqvarna Walk-Behind Mower (2014-10) DRIVE Parts Diagram

Walk-Behind Mower

DRIVE Parts Diagram

  • Title

1

Husqvarna 581950505

CONTROL.AW2.22+RG.BS.GEN.BK/BK
(Superseded to 589818808)

Note: . 9

$47.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532197480

O-RING..070X.487.NEOPRENE

$7.49

$

Usually ships in 3-10 days

0

5

Husqvarna 532088348

WASHER PM

$7.49

$

In Stock, Qty 6

0

9

Husqvarna 581952101

CABLE.DRIVE.RWD.WALK.

$34.99

$

In Stock, Qty 20+

0

10

Husqvarna 532432790

BRACKET.DRIVE.CONTR.GEN2.BLACK

$

$

Not available

12

Husqvarna 580364604

BELT.DRIVE.RWD+.SS.ZINC DUST
(Superseded to 580364611)

$13.99

$

In Stock, Qty 9

0

13

Husqvarna 581975503

TRANMISSION.ASM.22+RGD.W/IDLER
(Superseded to 581975507)

$

$

Not available

14

Husqvarna 532194128

PULLEY

$20.99

$

In Stock, Qty 10

0

15

Husqvarna 581497906

HEIGHT ADJUSTER 9 POS QUICK
(Superseded to 581497908)

Note: RH

$22.99

$

In Stock, Qty 8

0

16

Husqvarna 581497905

HEIGHT ADJUSTER 9 POS QUICK
(Superseded to 581497907)

Note: LH

$

$

Not available

18

Husqvarna 532701037

SELECTOR KNOB

$5.99

$

In Stock, only 4 left!

0

20

Husqvarna 580806901

COVER.REAR.DRIVE.22+2013

$31.99

$

In Stock, only 1 left!

0

22

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 12

0

25

Husqvarna 581313802

BRACKET.DRIVE.COVER.RGD.

$11.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532426066

BRACKET.TRANS.BELT.KEEPER.BZP
(Superseded to 589318302)

$

$

Not available

27

Husqvarna 532067725

WASHER FLUT

$7.49

$

In Stock, Qty 20+

0

28

Husqvarna 812000058

E-RING 7/16 RE

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 581840401

COVER.DUST.WHEEL.INNER.WALK

$6.99

$

In Stock, only 3 left!

0

30

Husqvarna 532191730

NUT.HEX.FLANGE.1/4

$7.49

$

In Stock, Qty 5

0

31

Husqvarna 532404845

PAWL, DRIVE

$5.99

$

In Stock, only 3 left!

0

32

Husqvarna 581685101

WHEEL.8X1.75.3SPK.RAD3.GREY

$28.99

$

In Stock, only 2 left!

0

33

Husqvarna 532409148

NUT.HEX.FLANGE.3/8-16.LO(3 2)
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

34

Husqvarna 532404835

PINIION.14.TOOTH.RGD

$6.99

$

In Stock, Qty 9

0

35

Husqvarna 532437872

ADJUSTER.ASM.9POS.LW.RGD.FR

Note: RH

$

$

Not available

36

Husqvarna 532437871

ADJUSTER.ASM.LH FRONT/RH REAR

Note: LH

$30.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532163409

SCREW

$7.49

$

In Stock, Qty 8

0

40

Husqvarna 532410831

WHEEL & TIRES ASSY, FRONT
(Superseded to 532401273)

$37.99

$

In Stock, only 2 left!

0

41

Husqvarna 532438489

KIT.WASH-OUT.PORT.ZINC.WALK

$18.99

$

In Stock, only 1 left!

0

42

Husqvarna 532434994

WASHOUT.PORT.ZINC.RGD.22+
(Superseded to 532438489)

$18.99

$

In Stock, only 1 left!

0

43

Husqvarna 532415585

WASHER.LOCK.INTERNAL.TOOTH

$4.99

$

In Stock, only 2 left!

0

44

Husqvarna 532415586

LOCKNUT.HEX.WITH.O-RING

$6.49

$

In Stock, only 4 left!

0

55

Husqvarna 581351301

SPRING.RETURN.AUTO.

$10.99

$

In Stock, only 4 left!

0

59

Husqvarna 532442113

BRACKET.SUPPORT.22+RWGD.BZP

$

$

Not available

61

Husqvarna 532181698

SCREW, PHILLIPS HEAD 10 X 5/8

$7.49

$

In Stock, Qty 6

0

86

Husqvarna 580364301

RP PULLEY.AWD.IDLER
(Superseded to 587969201)

$14.99

$

In Stock, only 4 left!

0

87

Husqvarna 581127601

SCREW

$7.99

$

In Stock, Qty 10

0
