LC 356 AWD - Husqvarna Walk-Behind Mower (Original) FRAME & ENGINE Parts Diagram

Walk-Behind Mower

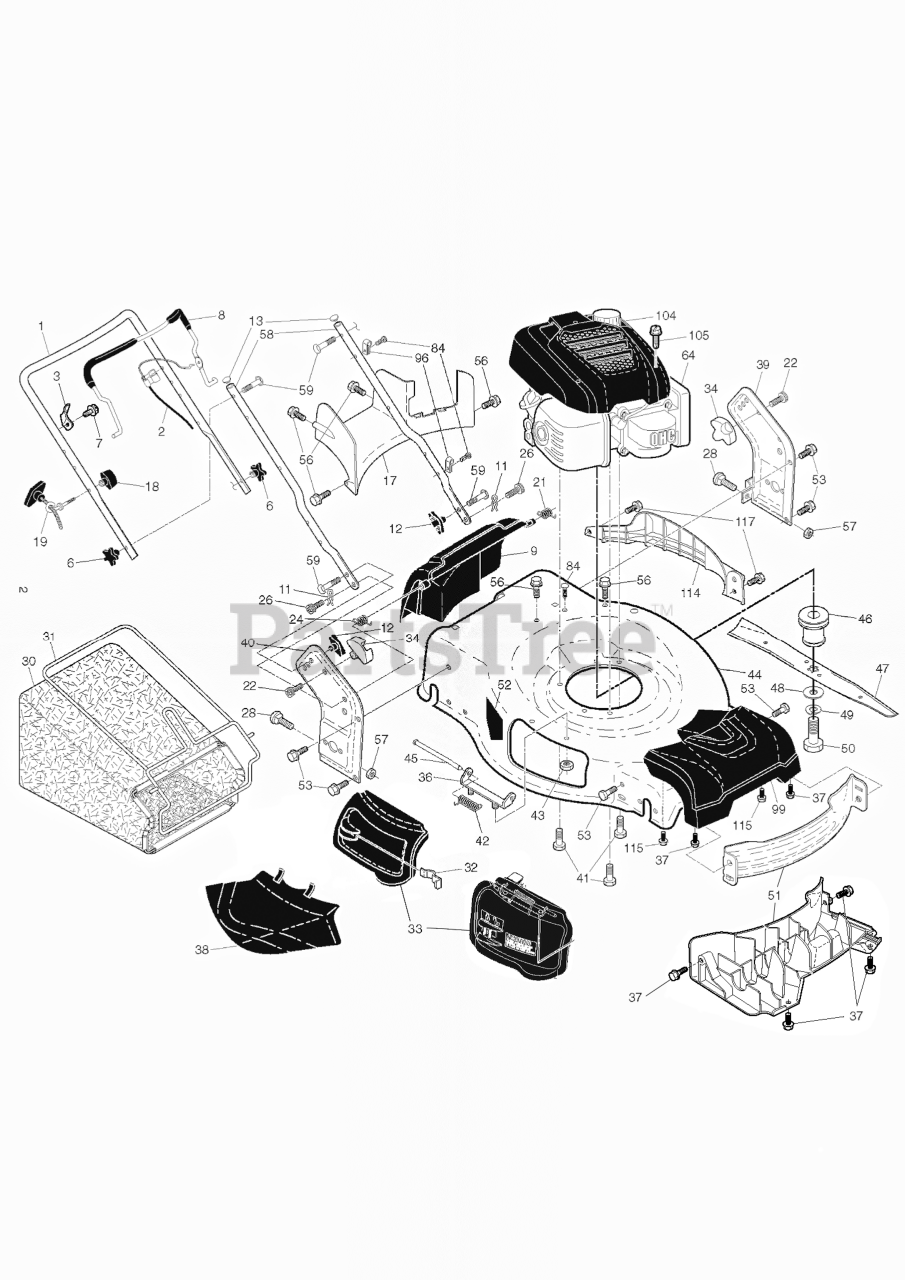

FRAME & ENGINE Parts Diagram

  • Title

114

Husqvarna 587568102

BUMPER.LEFT SIDE 22+.498

Note: For all EXCEPT 96141029200, 96141029201

$62.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532141841

SCREW.PAN.HEAD.#10

$7.49

$

In Stock, only 2 left!

0

44

Husqvarna 581708362

KIT.HSG.22+AW.MC.WO.668.CE SYM

Note: For all EXCEPT 96141029200, 96141029201, 96141029202

$

$

Not available

26

Husqvarna 532419945

SCREW,DOOR/HANDLE.PIVOT

$6.49

$

In Stock, Qty 20+

0

Husqvarna 532423849

BAG OF HARDWARE.22+

Note: For all EXCEPT 96141029200, INCLUDES KEY NUMBERS 12 & 59

$

$

Not available

2

Husqvarna 596288401

CABLE MZR (ZONE) 48.5 CONDUIT

Note: For 96141022000

$10.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532426129

DEFLECTOR.CLIPPING.22.BLACK

$11.99

$

In Stock, Qty 9

0

12

Husqvarna 532191938

KNOB, DEFLECTOR
(Superseded to 532189713)

$9.49

$

In Stock, Qty 20+

0

104

Husqvarna 580290001

SHROUD.ASM.HONDA.HUSQVARNA

Note: For all EXCEPT 96141029201, 96141029202, 96141022000

$31.99

$

In Stock, only 1 left!

0

50

Husqvarna 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

33

Husqvarna 532419927

DOOR.MULCH.22 PLUS.HUSQ.GREY
(Superseded to 594942002)

Note: For 96141029205, 96141022000

$10.99

$

Usually ships in 3-10 days

0

56

Husqvarna 817411312

SCREW.HX.13X.750

$7.49

$

In Stock, Qty 20+

0

11

Husqvarna 532425575

COTTER.HAIRPIN.DOOR/HANDLE.PIV

$6.49

$

In Stock, Qty 18

0

84

Husqvarna 532428124

FASTENER.PUSH.O.250X0.783

$6.49

$

In Stock, only 2 left!

0

105

Husqvarna 580768701

SCREW.SHROUD.HONDA

Note: For all EXCEPT 96141029201, 96141029202, 96141022000

$3.49

$

Usually ships in 3-10 days

0

Husqvarna 114065020

NEEDS DESCRIPTION

Note: NOT SHOWN

$

$

Currently unavailable

57

Husqvarna 532155377

NUT.FLANGE.5/16

$6.49

$

Usually ships in 3-10 days

0

46

Husqvarna 591344701

ADAPTER BLADE, 25 MM 22+ AWD/

Note: For 96141022000

$11.99

$

In Stock, only 1 left!

0

52

Husqvarna 532182166

DECAL.INTERNATIONL.CUTFINGER
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

115

Husqvarna 581330001

SCREW.SHOULDER.5/16X1.375

$6.49

$

In Stock, Qty 12

0

58

Husqvarna 593270403

HANDLE.LOWER.ASM.W/PLUG.22+.49

Note: For 96141022000

$17.99

$

In Stock, only 2 left!

0

9

Husqvarna 532431391

DOOR.REAR.ASM.22+.HUSQ.F/RG.CE
(Superseded to 593304501)

$45.99

$

Usually ships in 3-10 days

0

114

Husqvarna 581253601

RP BUMPER.HUSQVARNA

Note: For 96141029200, 96141029201

$84.99

$

In Stock, only 1 left!

0

44

Husqvarna 581708352

KIT.HSG.22+AW.MC.WO.PB.668.TRI

Note: For 96141029200, 96141029201, 96141029202

$

$

Not available

39

Husqvarna 585900703

BRACKET.ASM.HANDLE.LT.22+.GREY

Note: LH

$28.99

$

In Stock, only 2 left!

0

58

Husqvarna 585908203

HANDLE.LOWER.22+.BT.GRAY
(Superseded to 593270403)

Note: For 96141022000, 96141029200

$17.99

$

In Stock, only 2 left!

0

37

Husqvarna 584299401

SCREW.HI-LO. 5/16 X 1.00

Note: For 96141029200, 96141029201, 96141029202

$4.99

$

Usually ships in 3-10 days

0

31

Husqvarna 585054702

FRAME.GBAG.22+.BLK

$34.99

$

In Stock, Qty 9

0

51

Husqvarna 532430599

BAFFLE.FRONT.22.PLUS

Note: For all EXCEPT 96141029200, 96141029201, 96141029202

$

$

Not available

1

Husqvarna 585854806

HANDLE.UP.3POS.BS.AW2.GREY

Note: For all EXCEPT 96141029200

$

$

Not available

33

Husqvarna 593241102

DOOR ASSY KIT.MULCH DOOR.CE 22

Note: For all EXCEPT 96141029205, 96141022000

$

$

Not available

43

Husqvarna 532438130

NUT.FLANGE.1-4-20-SERR

Note: For all EXCEPT 96141029205, 96141022000

$

$

Not available

19

Husqvarna 581902101

GUIDE.ROPE.BLK.ZINC.CHROM

$

$

Not available

64

000000000

Note: HONDA GCV170-S3HB FOR SERVICE & PARTS 1-800-426-7701

$

$

Not available

2

Husqvarna 532427497

CABLE.MZR.50.SNAP-IN

Note: For 96141029200, 96141029201

$14.99

$

In Stock, Qty 7

0

30

Husqvarna 580943402

GBAG.BA85028EM.NOFRAME.GRY/SLV
(Superseded to 580943401)

$45.99

$

In Stock, only 1 left!

0

8

Husqvarna 587689302

BAIL.OM.ERGO.BENT.MZR.ORAN.668

Note: For all EXCEPT 96141029200, 96141029201

$18.99

$

Usually ships in 3-10 days

0

99

Husqvarna 580992901

COVER.ASM.FRONT.SHROUD.HUS.AWD

Note: For 96141029200, 96141029201, 96141029202

$66.99

$

Usually ships in 3-10 days

0

46

Husqvarna 581851501

ADAPTER.BLADE.25MM.3MPH

Note: For all EXCEPT 96141022000

$17.99

$

In Stock, Qty 20+

0

45

Husqvarna 532175650

ROD.HINGE.21

$7.49

$

In Stock, Qty 11

0

24

Husqvarna 532419948

SPRING.RH.GRAY

Note: RH

$6.49

$

In Stock, Qty 5

0

Husqvarna 114065040

NEEDS DESCRIPTION

Note: NOT SHOWN

$

$

Currently unavailable

8

Husqvarna 580849102

BAIL.OVER.MOLD.ERGO.MZR.ORANGE

Note: For 96141029200, 96141029201

$66.99

$

In Stock, only 3 left!

0

99

Husqvarna 585668701

COVER.ASSEMBLY.FRONT.22+AWD

Note: For all EXCEPT 96141029200, 96141029201, 96141029202

$31.99

$

In Stock, only 1 left!

0

34

Husqvarna 532438134

BRACKET.GRASSBAG.ATTACHING.BLK

$6.49

$

Usually ships in 3-10 days

0

Husqvarna 114065010

NEEDS DESCRIPTION

Note: NOT SHOWN

$

$

Currently unavailable

32

Husqvarna 532441192

LATCH.DOOR.ZINC

Note: For all EXCEPT 96141029205, 96141022000

$

$

Not available

53

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 12

0

49

Husqvarna 532850263

LOCKWASHER
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

117

Husqvarna 532428867

BOLT.HEX.HD.WASHER.5/16-18X.75

$6.49

$

In Stock, Qty 14

0

3

Husqvarna 532430034

BRACKET.UPSTOP.RT

Note: For 96141029200, 96141029201

$6.99

$

In Stock, only 3 left!

0

Husqvarna 114065053

NEEDS DESCRIPTION

Note: NOT SHOWN

$

$

Currently unavailable

13

Husqvarna 532437516

PLUG.PLASTIC.7/8".14-20.GAUGE

Note: For all EXCEPT 96141022000

$4.99

$

Usually ships in 3-10 days

0

96

Husqvarna 532197991

CLIP.CABLE.BLK

$7.49

$

In Stock, Qty 6

0

2

Husqvarna 532424983

CABLE.MZR.ZONE.CONTROL

Note: For 96141022000, 96141029200, 96141029201, 96141029204

$17.99

$

In Stock, Qty 8

0

17

Husqvarna 581782101

BAFFLE.REAR.22+RGD.AWD.PLASTIC

$47.99

$

In Stock, Qty 6

0

Husqvarna 114065050

NEEDS DESCRIPTION

Note: NOT SHOWN

$

$

Currently unavailable

1

Husqvarna 580638706

HANDLE.UPPER.3.POS.BS.AW2.GREY

Note: For 96141029200

$

$

Not available

40

Husqvarna 585900803

BRACKET.ASM.HANDLE.RT.22+.GREY

Note: RH

$

$

Not available

51

Husqvarna 581238901

BAFFLE.FRONT.22+PLASTIC.(2 2)

Note: For 96141029200, 96141029201, 96141029202

$47.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$7.49

$

Usually ships in 3-10 days

0

48

Husqvarna 532851074

WASHER,HARDEN

$4.99

$

In Stock, Qty 7

0

7

Husqvarna 532178848

SCREW

Note: For 96141029200, 96141029201

$7.49

$

In Stock, Qty 20+

0

21

Husqvarna 532419949

SPRING.LH.BLACK

Note: LH

$6.49

$

In Stock, Qty 10

0

28

Husqvarna 586212501

BOLT.CARRIAGE.LN.5/16-18X.5/8

$4.99

$

In Stock, Qty 8

0

58

Husqvarna 532441197

HANDLE.LOWER.22+BT.2PC.GRY

Note: For 96141029200

$17.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532193000

SPRING.TORSION

Note: For all EXCEPT 96141029205, 96141022000

$7.49

$

In Stock, only 4 left!

0

47

Husqvarna 580244001

BLADE.22+4N1.2PIN.5STAR.(P07)
(Superseded to 580244002)

$24.99

$

In Stock, Qty 13

0

59

Husqvarna 532191574

BOLT, HANDLE 5/16-18X1.75

$6.99

$

In Stock, only 2 left!

0

18

Husqvarna 581912601

T-KNOB.NEW ROPE GUIDE

$4.99

$

In Stock, only 2 left!

0

6

Husqvarna 532182398

KNOB.HANDLE.PLASTIC.STAR.BLACK

$7.49

$

In Stock, only 2 left!

0

36

Husqvarna 532175735

BRACKET.ASM.HINGE.21.FWGD.

Note: For all EXCEPT 96141029205, 96141022000

$

$

Not available
