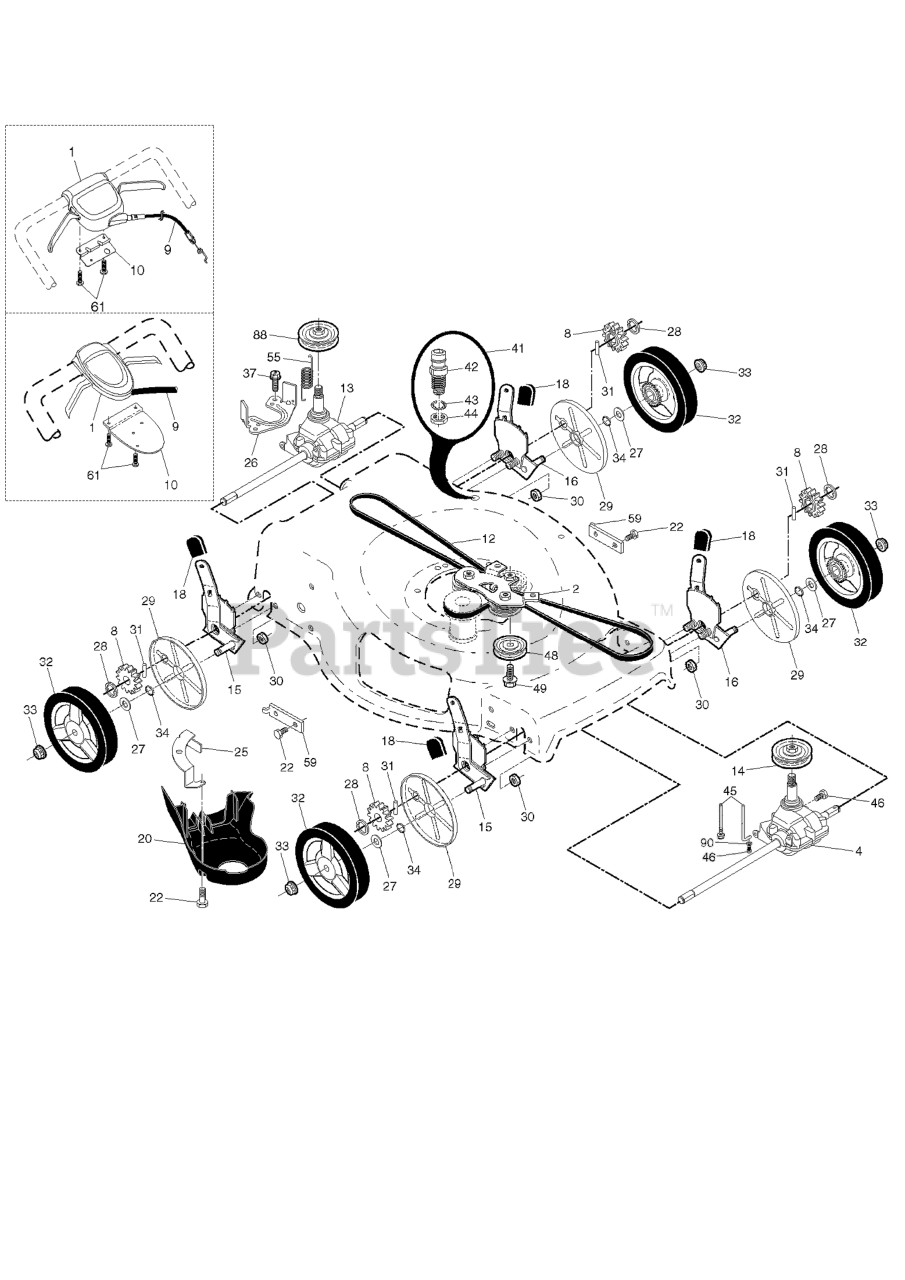

LC 356 AWD - Husqvarna Walk-Behind Mower (Original) DRIVE Parts Diagram

Walk-Behind Mower

DRIVE Parts Diagram

  • Title

26

Husqvarna 581152502

BRACKET.TRAN.BELTKEEPER.22+RGD

$

$

Not available

20

Husqvarna 580806901

COVER.REAR.DRIVE.22+2013

$31.99

$

In Stock, Qty 14

0

12

Husqvarna 580364610

BELT V3L 64.10 CLUTCHING COVER

$17.99

$

In Stock, Qty 20+

0

28

Husqvarna 812000058

E-RING 7/16 RE

$3.99

$

In Stock, Qty 20+

0

55

Husqvarna 581351301

SPRING.RETURN.AUTO.

$10.99

$

In Stock, Qty 20+

0

2

Husqvarna 586072802

BRACKET.ASM.AWD.BZP.BLACK

$

$

Not available

9

Husqvarna 581952101

CABLE.DRIVE.RWD.WALK.

$34.99

$

In Stock, Qty 20+

0

46

Husqvarna 584299401

SCREW.HI-LO. 5/16 X 1.00

$4.99

$

In Stock, Qty 20+

0

25

Husqvarna 532426065

BRACKET.DRIVE.COVER.RGD.BZP

$

$

Not available

45

Husqvarna 587438201

SCREW.HI-LO.5/16-14 X 4.10

Note: For all EXCEPT 96141029200, 96141029201, 96141029202

$4.99

$

In Stock, only 4 left!

0

10

Husqvarna 587249302

BRACKET DUAL TRIGGER CONTROL

$

$

Not available

31

Husqvarna 532404845

PAWL, DRIVE

$5.99

$

In Stock, Qty 20+

0

42

Husqvarna 532434994

WASHOUT.PORT.ZINC.RGD.22+
(Superseded to 532438489)

$18.99

$

In Stock, Qty 8

0

48

Husqvarna 587973001

PULLEY.ASM.22+ AWD

$22.99

$

In Stock, Qty 20+

0

8

Husqvarna 532404835

PINIION.14.TOOTH.RGD

$6.99

$

In Stock, Qty 20+

0

13

Husqvarna 581975504

TRANMISSION.ASM.22+AWD.REAR.14
(Superseded to 581975506)

Note: For 96141029201

$

$

Not available

30

Husqvarna 532438130

NUT.FLANGE.1-4-20-SERR

$

$

Not available

1

Husqvarna 589818808

CONTROL.DR.AW2.22+.BLK.GEN

Note: For all EXCEPT 96141029204, 96141029205, 96141022000

$47.99

$

In Stock, Qty 20+

0

61

Husqvarna 532181698

SCREW, PHILLIPS HEAD 10 X 5/8

$7.49

$

In Stock, Qty 6

0

37

Husqvarna 532163409

SCREW

$7.49

$

In Stock, Qty 6

0

59

Husqvarna 532442113

BRACKET.SUPPORT.22+RWGD.BZP

$

$

Not available

22

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 20+

0

29

Husqvarna 581840401

COVER.DUST.WHEEL.INNER.WALK

$6.99

$

In Stock, Qty 20+

0

27

Husqvarna 532067725

WASHER FLUT

$7.49

$

In Stock, Qty 20+

0

34

Husqvarna 532197480

O-RING..070X.487.NEOPRENE

$7.49

$

Usually ships in 3-10 days

0

32

Husqvarna 580365301

WHEEL.8".AWD.3SP.EXT.DR.GREY

$47.99

$

In Stock, Qty 20+

0

43

Husqvarna 532415585

WASHER.LOCK.INTERNAL.TOOTH

$4.99

$

In Stock, only 2 left!

0

16

Husqvarna 581497907

ADJUSTER.ASM.22+FGD.LF /AWD LT

Note: LH

$

$

Not available

14

Husqvarna 586963001

PULLEY.DRIVE.SM.AWD/RWD
(Superseded to 586963002)

$11.99

$

In Stock, Qty 20+

0

41

Husqvarna 532438489

KIT.WASH-OUT.PORT.ZINC.WALK

$18.99

$

In Stock, Qty 8

0

33

Husqvarna 532409148

NUT.HEX.FLANGE.3/8-16.LO(3 2)
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

10

Husqvarna 532432790

BRACKET.DRIVE.CONTR.GEN2.BLACK

Note: For all EXCEPT 96141029204, 96141029205, 96141022000

$

$

Not available

44

Husqvarna 532415586

LOCKNUT.HEX.WITH.O-RING

$6.49

$

In Stock, only 4 left!

0

1

Husqvarna 589818807

CONTROL.AWD.DT.BS

Note: For 96141029204, 96141029205, 96141022000, Includes Cable

$51.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532701037

SELECTOR KNOB

$5.99

$

In Stock, Qty 20+

0

88

Husqvarna 586038401

RP PULLEY.PM.22+AWD
(Superseded to 586963002)

Note: For all EXCEPT 96141029200

$11.99

$

In Stock, Qty 20+

0

13

Husqvarna 581680801

TRANSMISSION.22+AWD.WALK.MOWER

Note: For all EXCEPT 96141029201

$148.99

$

In Stock, Qty 19

0

90

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

Note: For 96141029202

$3.49

$

In Stock, Qty 20+

0

45

Husqvarna 581241301

BRACKET.AWD.FRONT.BELT.KEEPER

Note: For 96141029200, 96141029201, 96141029202

$6.49

$

In Stock, Qty 13

0

88

Husqvarna 532194128

PULLEY

Note: For 96141029200

$20.99

$

In Stock, Qty 8

0

49

Husqvarna 581334501

SCREW

$15.99

$

In Stock, Qty 20+

0

4

Husqvarna 589599201

TRANSMISSION.22+.AWD.FRT

$136.99

$

In Stock, Qty 11

0

15

Husqvarna 581497908

ADJUSTER.ASM.22+FGD.RF /AWD RT

Note: RH

$22.99

$

In Stock, Qty 20+

0
