LC 347 iV - Husqvarna Walk-Behind Mower MOWER DECK / CUTTING DECK Parts Diagram

Walk-Behind Mower

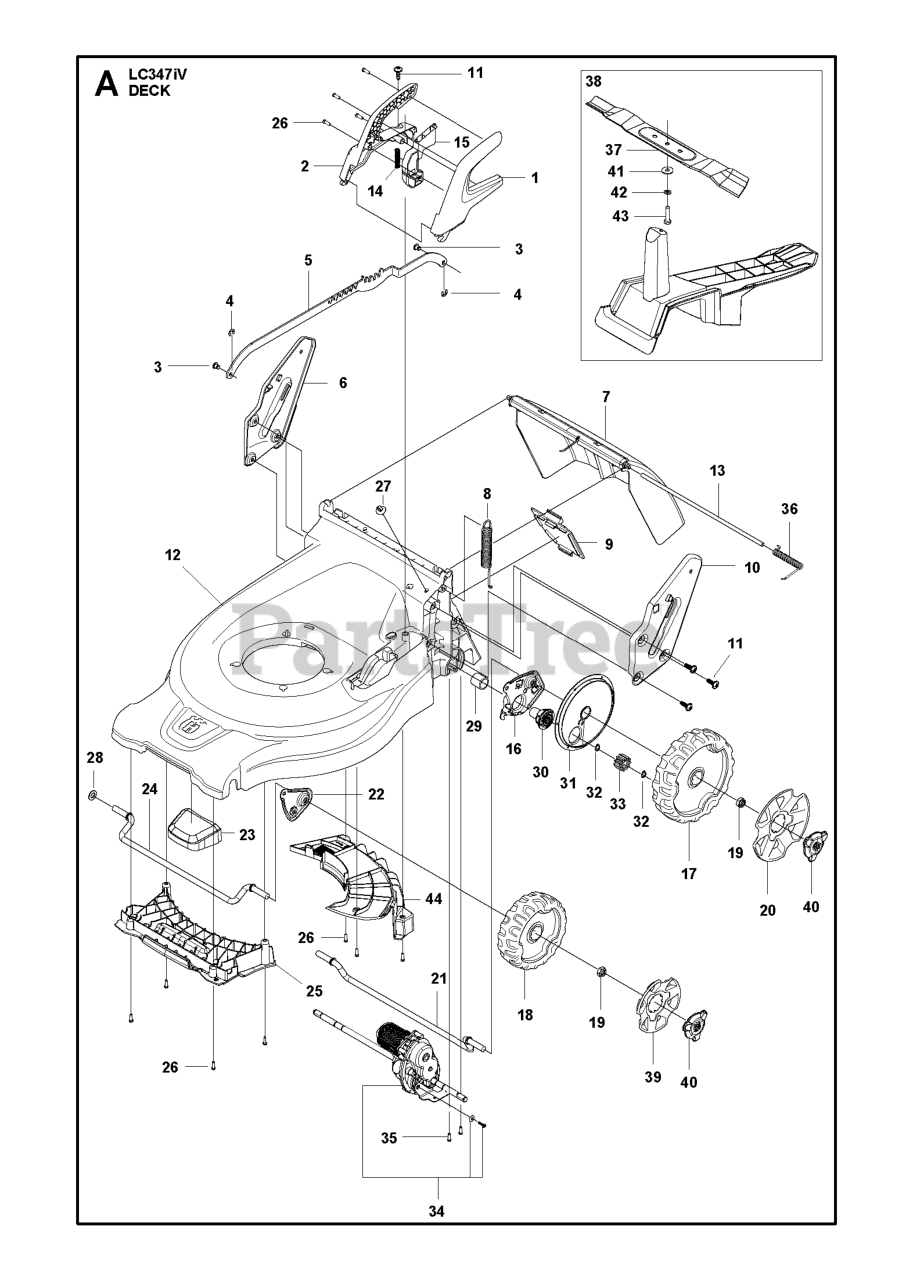

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

35

Husqvarna 502435301

SCREW ITXPANT T50X16 ZN/FE (A

Note: T50x16 Zn/Fe (A009)

$2.49

$

Usually ships in 3-10 days

0

29

Husqvarna 579682802

NEEDS DESCRIPTION

Note: Rubber

$

$

Currently unavailable

39

Husqvarna 587632701

NEEDS DESCRIPTION

Note: Ø170 Husqvarna

$

$

Currently unavailable

12

Husqvarna 587151005

NEEDS DESCRIPTION

Note: Husqvarna,47 cm

$

$

Currently unavailable

25

Husqvarna 588202701

NEEDS DESCRIPTION

Note: Husqvarna,Front

$

$

Currently unavailable

3

Husqvarna 587687001

NEEDS DESCRIPTION

Note: Suspension

$

$

Currently unavailable

15

Husqvarna 587697401

NEEDS DESCRIPTION

Note: ASSY - Suspension - Height adjustment

$

$

Currently unavailable

24

Husqvarna 587072602

NEEDS DESCRIPTION

Note: Front 47 cm,Suspension

$

$

Currently unavailable

2

Husqvarna 587203801

NEEDS DESCRIPTION

Note: Husqvarna,Suspension - Right - Height adjustment

$

$

Currently unavailable

16

Husqvarna 587072501

NEEDS DESCRIPTION

Note: Rear idler 210

$

$

Currently unavailable

34

Husqvarna 590679001

NEEDS DESCRIPTION

Note: Assy

$

$

Currently unavailable

10

Husqvarna 587212102

NEEDS DESCRIPTION

Note: left

$

$

Currently unavailable

28

Husqvarna 577092801

Washers

Note: 12/22/2 FZB ISO7089

$2.49

$

Usually ships in 3-10 days

0

8

Husqvarna 587674401

NEEDS DESCRIPTION

Note: 47 cm,Balance - Suspension

$

$

Currently unavailable

36

Husqvarna 587101501

NEEDS DESCRIPTION

Note: hatch

$

$

Currently unavailable

41

Husqvarna 734116441

SPACER

Note: SRKB 8.4/25X2

$4.99

$

Usually ships in 3-10 days

0

26

Husqvarna 502435301

SCREW ITXPANT T50X16 ZN/FE (A

Note: T50x16 Zn/Fe (A009)

$2.49

$

Usually ships in 3-10 days

0

40

Husqvarna 584159401

NUT CAP

Note: Nut Cap

$5.99

$

Usually ships in 3-10 days

0

9

Husqvarna 587095402

NEEDS DESCRIPTION

Note: Service door

$

$

Currently unavailable

5

Husqvarna 587160801

NEEDS DESCRIPTION

Note: Suspension 170/210

$

$

Currently unavailable

1

Husqvarna 587203701

NEEDS DESCRIPTION

Note: Husqvarna,Suspension - Left - Height adjustment

$

$

Currently unavailable

13

Husqvarna 586984601

NEEDS DESCRIPTION

$

$

Currently unavailable

17

Husqvarna 582305701

NEEDS DESCRIPTION

Note: Husqvarna, With Sleeve,210, idle, medium

$

$

Currently unavailable

4

Husqvarna 735311220

Retaining Ring

Note: 7x0.9 St PP,SHAFTS

$2.99

$

Usually ships in 3-10 days

0

44

Husqvarna 590800401

NEEDS DESCRIPTION

Note: Belt cover

$

$

Currently unavailable

38

Husqvarna 590790901

NEEDS DESCRIPTION

Note: Mulch plug and combi blade kit

$

$

Currently unavailable

22

Husqvarna 587072401

NEEDS DESCRIPTION

Note: Front idler 170

$

$

Currently unavailable

20

Husqvarna 584159301

HUB CAP

Note: Wheel Ø210mm

$6.99

$

Usually ships in 3-10 days

0

33

Husqvarna 544342301

Pinions

Note: Full Width,PM, 11 T, 21.25mm Root Diam

$9.49

$

Usually ships in 3-10 days

0

32

Husqvarna 735311401

NEEDS DESCRIPTION

Note: 12x1 st ZPB,SGA

$

$

Not available

18

Husqvarna 587631501

NEEDS DESCRIPTION

Note: Husqvarna,170, Idler

$

$

Currently unavailable

21

Husqvarna 587072601

NEEDS DESCRIPTION

Note: Rear 47 cm,Suspension

$

$

Currently unavailable

19

Husqvarna 587990901

NEEDS DESCRIPTION

Note: Lock, M12x10

$

$

Currently unavailable

42

Husqvarna 579684201

SPRING WASHER

$4.99

$

Usually ships in 3-10 days

0

14

Husqvarna 589597601

NEEDS DESCRIPTION

Note: HA Button

$

$

Currently unavailable

37

Husqvarna 590701010

NEEDS DESCRIPTION

Note: 47cm

$

$

Currently unavailable

6

Husqvarna 587212302

NEEDS DESCRIPTION

Note: right

$

$

Currently unavailable

11

Husqvarna 578175802

NEEDS DESCRIPTION

Note: 8x24, TBO,For Thermoplastics

$

$

Currently unavailable

27

Husqvarna 579317401

NEEDS DESCRIPTION

Note: FIR TREE 170x5

$

$

Currently unavailable

30

Husqvarna 501861001

Note: ASSY

$

$

Currently unavailable

31

Husqvarna 587204002

NEEDS DESCRIPTION

Note: Drive 210

$

$

Currently unavailable

43

Husqvarna 725245571

SCREW

Note: M8x30 8.8 ZPB

$4.99

$

In Stock, Qty 10

0

7

Husqvarna 590594001

NEEDS DESCRIPTION

Note: HVA, rear discharge

$

$

Currently unavailable
