LC 347 iV - Husqvarna Walk-Behind Mower MOTOR Parts Diagram

Walk-Behind Mower

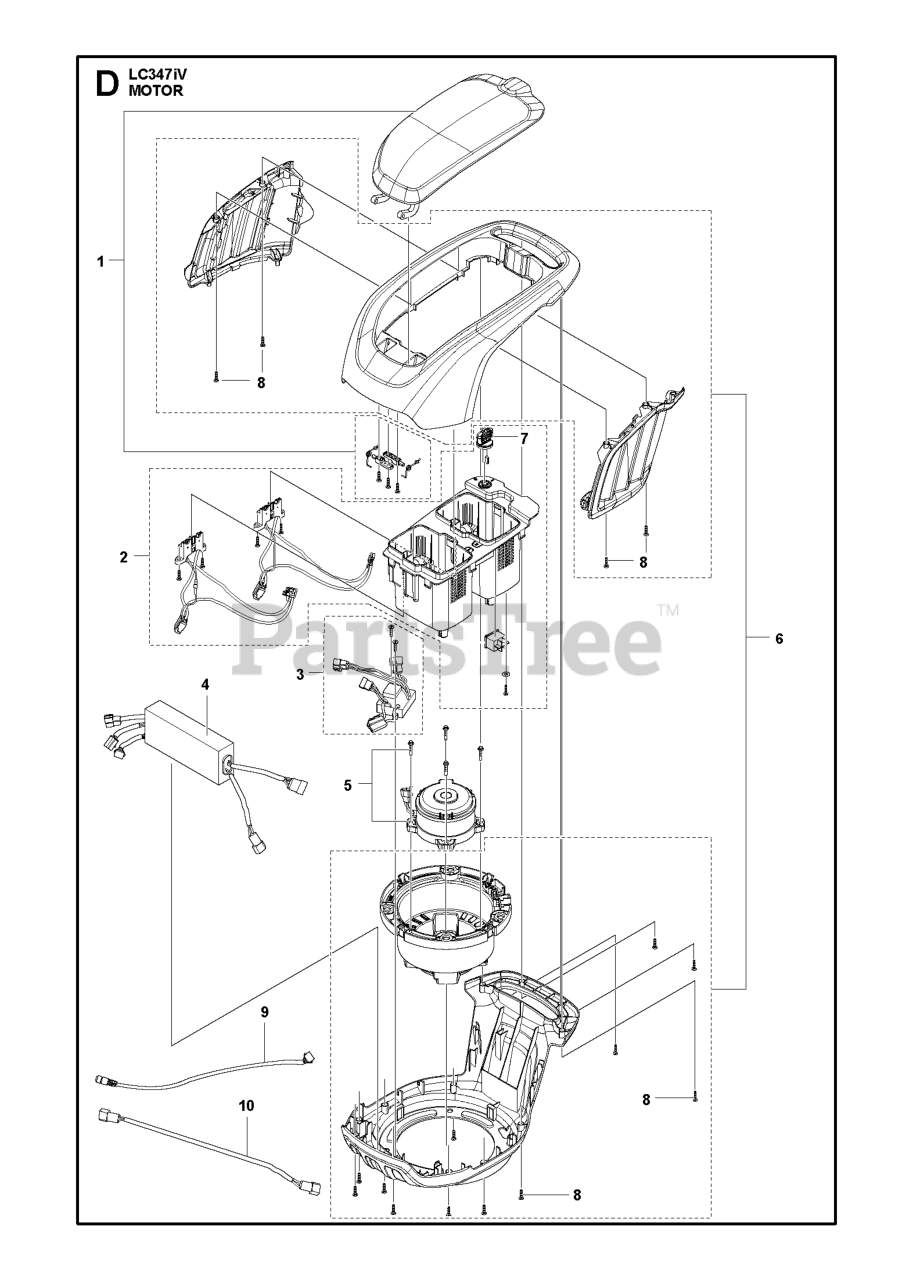

MOTOR Parts Diagram

  • Title

7

Husqvarna 501490101

KEY

Note: battery pocket key

$6.99

$

Usually ships in 3-10 days

0

9

Husqvarna 593722801

NEEDS DESCRIPTION

Note: handle

$

$

Currently unavailable

10

Husqvarna 593722601

CABLE TRANSMISSION LC347VLI

Note: transmission

$20.99

$

Usually ships in 3-10 days

0

1

Husqvarna 593124301

LID ASSY SPARE PART ASSY LC247

Note: Powerhead lid and hinge

$20.99

$

Usually ships in 3-10 days

0

4

Husqvarna 593132701

NEEDS DESCRIPTION

Note: Motor control box

$

$

Currently unavailable

6

Husqvarna 593203901

ENGINE HOOD ASSY POWER UNIT LC

Note: Power unit cover

$182.99

$

Usually ships in 3-10 days

0

5

Husqvarna 592749301

NEEDS DESCRIPTION

Note: Brushless motor 750W

$

$

Currently unavailable

2

Husqvarna 593124501

BATTERY BOX SPARE PART ASSY LC

Note: Battery pocket

$84.99

$

Usually ships in 3-10 days

0

8

Husqvarna 593755501

SCREW SELF TAPPING DAYE# A2680

Note: Engine hood screws

$3.49

$

Usually ships in 3-10 days

0

3

Husqvarna 593133601

CONTACT PLATE SPARE PART ASSY

Note: Battery control plate

$68.99

$

Usually ships in 3-10 days

0
