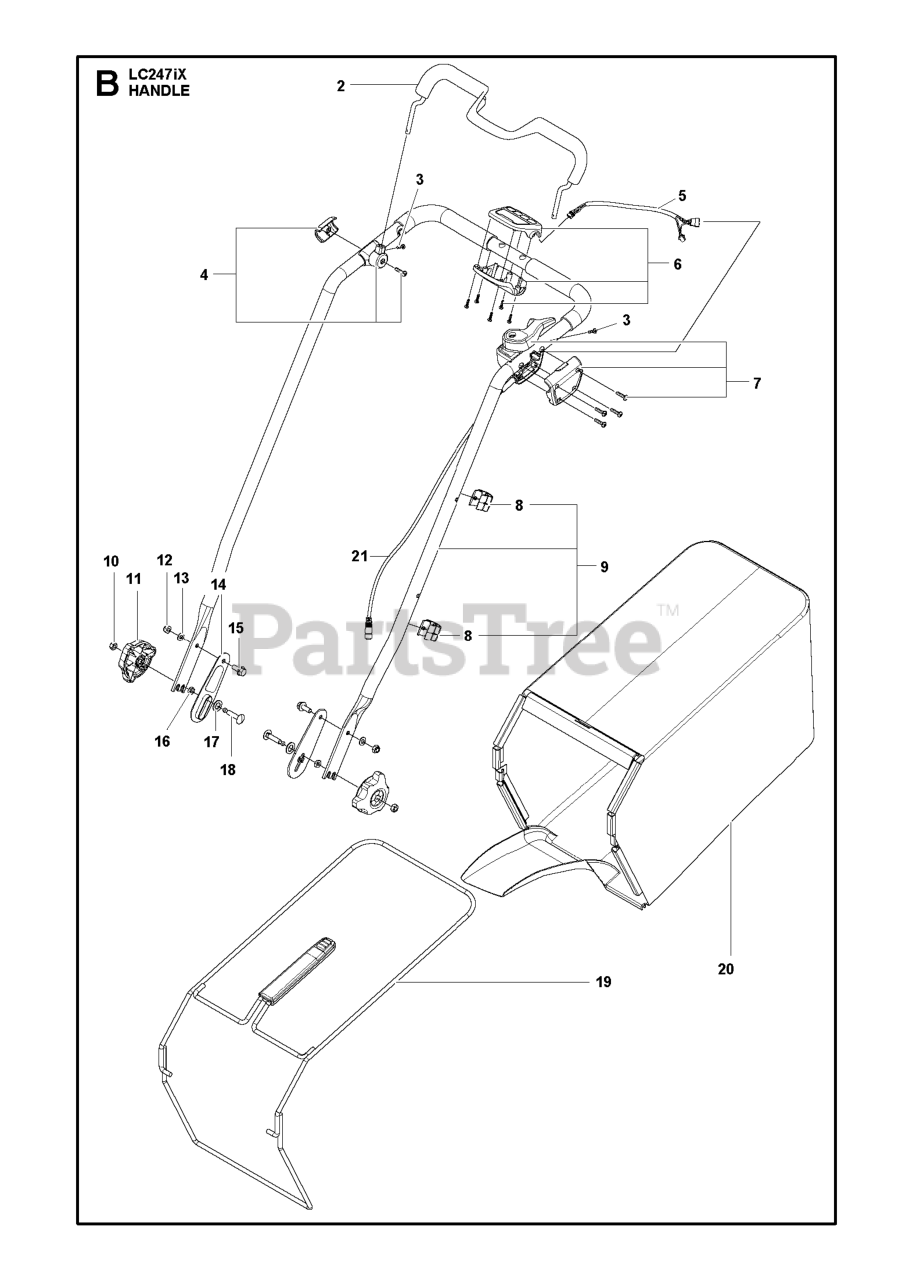

LC 247 iX (967862201) - Husqvarna Walk-Behind Mower (2019-01) HANDLE Parts Diagram

Walk-Behind Mower

HANDLE Parts Diagram

  • Title

11

Husqvarna 587237201

Knobs

Note: handle

$13.99

$

Usually ships in 3-10 days

0

17

Husqvarna 588157401

Washers

Note: Nylon Washer

$3.49

$

Usually ships in 3-10 days

0

5

Husqvarna 593198601

EXTENSION CABLE CONTROL PANEL

Note: Control panel assy cable

$8.99

$

Usually ships in 3-10 days

0

15

Husqvarna 506570104

BOLT

Note: M8x20 8.8 ZPB,EHHFM

$6.49

$

In Stock, only 1 left!

0

4

Husqvarna 593118701

BAIL ARM ASSY SPARE PART ASSY

Note: Bail support assembly

$13.99

$

In Stock, only 1 left!

0

13

Husqvarna 734182051

WASHERS

Note: 8x16x1.5 St ZPB,Type NB

$3.49

$

Usually ships in 3-10 days

0

3

Husqvarna 593198701

DRIVE SCREW HANDLE ASSY M4 BAI

Note: M4 bail screw

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 731431801

NUT ML6M M8

Note: M8 St 04 ZPB,ISO 4035

$3.49

$

In Stock, only 4 left!

0

12

Husqvarna 732211801

LOCKNUT M8

Note: M8-8

$4.99

$

In Stock, Qty 12

0

21

Husqvarna 597688701

Cables

$31.99

$

Usually ships in 3-10 days

0

8

Husqvarna 591086401

CABLE HOLDER HANDLE ASSY

Note: Handle mounted clip

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 596253001

NEEDS DESCRIPTION

Note: Push

$

$

Currently unavailable

18

Husqvarna 588157302

Bolts

Note: Esloc,Carriage Bolt M8

$3.49

$

Usually ships in 3-10 days

0

14

Husqvarna 587780401

Washers

Note: Washer handle/handlesupport

$5.99

$

Usually ships in 3-10 days

0

19

Husqvarna 587182001

NEEDS DESCRIPTION

Note: Grassbag

$

$

Currently unavailable

9

Husqvarna 593119702

NEEDS DESCRIPTION

Note: Upper

$

$

Currently unavailable

10

Husqvarna 731231801

NUT
(Superseded to 695008078)

Note: M8 8 ZPB,ISO 4032

$

$

Not available

2

Husqvarna 596253601

Bails

Note: OPC Bail

$34.99

$

Usually ships in 3-10 days

0

7

Husqvarna 593117901

SWITCHBOX ASSY ASSY LC247LI

Note: Push

$66.99

$

Usually ships in 3-10 days

0

20

Husqvarna 587292301

NEEDS DESCRIPTION

Note: Husqvarna, Fabric assembly

$

$

Currently unavailable
