LC 221 R (961450033-01) - Husqvarna 21" Walk-Behind Mower (2016-09) MOWER DECK / CUTTING DECK Parts Diagram

21" Walk-Behind Mower

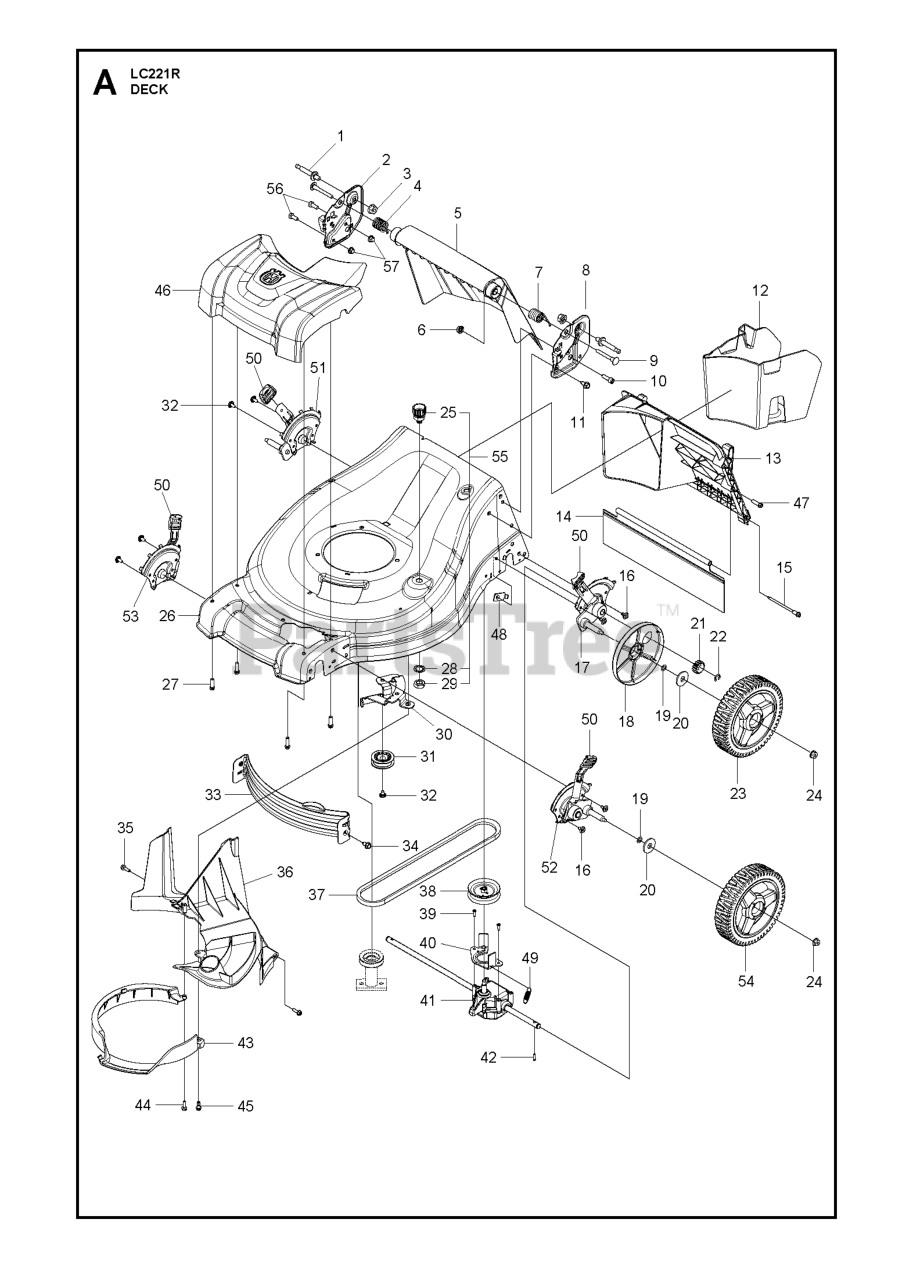

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

Husqvarna 587015201

BOLT.HAND.PIVOT.3125-18.21EFF

Note: "Handle, Pivot, 5/16-18"

$12.99

$

Usually ships in 3-10 days

0

2

Husqvarna 589197802

BRACKET.HANDLE.ADJ.21EF.RH.498

Note: "Adjustable Handle, Right"

$

$

Not available

17

Husqvarna 586920111

ADJUSTER.4PT.21EFF.RF/LR.BLK

Note: "4-Point, Left Rear"

$

$

Not available

34

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

Note: "Hex, 5/16"

$7.49

$

In Stock, Qty 12

0

49

Husqvarna 581351301

SPRING.RETURN.AUTO.

Note: Rear Transmission

$10.99

$

In Stock, Qty 5

0

41

Husqvarna 586137601

TRANSMISSION.AWD.REAR.21EFF

Note: Rear

$148.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532197480

O-RING..070X.487.NEOPRENE

$7.49

$

Usually ships in 3-10 days

0

38

Husqvarna 586963001

PULLEY.DRIVE.SM.AWD/RWD
(Superseded to 586963002)

Note: Transmission

$11.99

$

In Stock, Qty 9

0

8

Husqvarna 589197602

BRACKET.HANDLE.ADJ.21EF.LH.498

Note: "Adjustable Handle, Left"

$

$

Not available

22

Husqvarna 812000058

E-RING 7/16 RE

Note: "7/16, RE-Style"

$3.99

$

Usually ships in 3-10 days

0

12

Husqvarna 586922701

PLUG.MULCH.21 EFF

$26.99

$

In Stock, Qty 20+

0

51

Husqvarna 586920109

ADJUSTER.4PT.21EFF.LF/RR.BLK

Note: Right Rear

$

$

Not available

54

Husqvarna 532410831

WHEEL & TIRES ASSY, FRONT
(Superseded to 532401273)

Note: 8 X 1.75

$37.99

$

In Stock, only 2 left!

0

14

Husqvarna 586698801

SKIRT.REAR.21 EFF

Note: Rear

$13.99

$

In Stock, only 1 left!

0

45

Husqvarna 581726101

BOLT SHOULDER_1/4-20_TRILOB

Note: "Shoulder, 1/4-20 Tri-lobe"

$4.99

$

In Stock, Qty 20+

0

55

Husqvarna 532421114

KIT.WASH-OUT.PORT

Note: Kit

$24.99

$

In Stock, only 2 left!

0

46

Husqvarna 586713703

COVER.DR.FULL.HUSQ.21EFF.RWD

Note: "Drive, Husqvarna "

$26.99

$

Usually ships in 3-10 days

0

47

Husqvarna 587281101

SCREW.HI-LO,5/16-14 X T-45

Note: "Hi-Lo, 5/16 X 1.00"

$3.49

$

In Stock, only 2 left!

0

18

Husqvarna 581840401

COVER.DUST.WHEEL.INNER.WALK

Note: Wheel

$6.99

$

In Stock, only 3 left!

0

42

Husqvarna 532404845

PAWL, DRIVE

Note: Drive

$5.99

$

In Stock, only 3 left!

0

9

Husqvarna 587198901

BOLT.DOOR.PIVOT..375-16.21EFF

Note: Pivot. 3/8-16

$3.49

$

In Stock, only 2 left!

0

4

Husqvarna 587250601

SPRING.RH.DOOR.21 EFF

Note: "Right, Door"

$3.49

$

Usually ships in 3-10 days

0

32

Husqvarna 581127601

SCREW

Note: 1/4-20 Tri-lobe

$7.99

$

In Stock, Qty 10

0

44

Husqvarna 587599801

SCREW.HI-LO.13-16X.750.375XDRV
(Superseded to 532194189)

Note: "Hi-Lo, 13-16 X.750"

$7.49

$

In Stock, Qty 20+

0

5

Husqvarna 586138007

DOOR REAR, 21IN EFF GRAY MS-49
(Superseded to 586138004)

Note: Rear

$31.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532067725

WASHER FLUT

Note: 1/2 X 1-1/2 X .134

$7.49

$

In Stock, Qty 20+

0

10

Husqvarna 587281101

SCREW.HI-LO,5/16-14 X T-45

Note: "Hi-Lo, 5/16-14 X T-45"

$3.49

$

In Stock, only 2 left!

0

29

Husqvarna 532415586

LOCKNUT.HEX.WITH.O-RING

Note: Hex

$6.49

$

In Stock, only 4 left!

0

37

Husqvarna 580364608

BELT.21EFF.RWD

Note: Drive

$11.99

$

In Stock, Qty 20+

0

40

Husqvarna 589318302

BRACKET.TRANS.BELTKEEP.21 RWD

Note: Rear Transmission

$

$

Not available

3

Husqvarna 587599901

NUT.FLANGE.SERRAT.3125-18.5625

Note: "Serrated Flange, 5/16-18"

$4.99

$

In Stock, Qty 12

0

43

Husqvarna 587081001

RING.STRIPPER.21 EFF

Note: Stripper

$7.49

$

Usually ships in 3-10 days

0

27

Husqvarna 584299401

SCREW.HI-LO. 5/16 X 1.00

Note: "Hi-Lo, 5/16 X 1.00"

$4.99

$

In Stock, Qty 8

0

48

Husqvarna 587147301

STRAP.PLATE ATTACH.21 EFF.GLV

Note: Height Adjuster Bracket

$

$

Not available

53

Husqvarna 586920115

ADJUSTER.4PT.21EFF.RF/LR.BU.BK

Note: Right Front

$20.99

$

Usually ships in 3-10 days

0

30

Husqvarna 588062202

BRACKET.IDLER.RWD.BZP

Note: Idler

$

$

Not available

28

Husqvarna 532415585

WASHER.LOCK.INTERNAL.TOOTH

Note: Star

$4.99

$

In Stock, only 2 left!

0

15

Husqvarna 587438201

SCREW.HI-LO.5/16-14 X 4.10

Note: "Hi-Lo, 5/16-14 X 4.10"

$4.99

$

In Stock, Qty 6

0

25

Husqvarna 532419735

FITTING, HOSE, WATER WASHOUT
(Superseded to 532421114)

Note: Blue

$24.99

$

In Stock, only 2 left!

0

16

Husqvarna 581127601

SCREW

Note: 1/4-20 Tri-lobe

$7.99

$

In Stock, Qty 10

0

11

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

Note: "Hex, 5/16"

$7.49

$

In Stock, Qty 12

0

35

Husqvarna 587599801

SCREW.HI-LO.13-16X.750.375XDRV
(Superseded to 532194189)

Note: "Hi-Lo, 13-16 X.750"

$7.49

$

In Stock, Qty 20+

0

56

Husqvarna 874780512

BOLT.FIN.HEX.5/16-18X3/4
(Superseded to 596030501)

Note: Screw

$4.99

$

In Stock, Qty 20+

0

21

Husqvarna 532404835

PINIION.14.TOOTH.RGD

Note: 14 Tooth

$6.99

$

In Stock, Qty 9

0

31

Husqvarna 587969201

PULLEY.RWD.IDLER.DBL SEAL

Note: Idler

$14.99

$

In Stock, only 4 left!

0

36

Husqvarna 586560401

COVER.BELT/REAR BAFFLE.21 EFF

Note: Belt/Rear Baffle

$20.99

$

In Stock, Qty 20+

0

13

Husqvarna 586137501

INSERT.REAR.21 EFF

Note: Rear

$26.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532163409

SCREW

Note: "12 X 5/8, Hi/Lo Thread"

$7.49

$

In Stock, Qty 6

0

50

Husqvarna 532701037

SELECTOR KNOB

Note: Ergonomic

$5.99

$

In Stock, only 4 left!

0

6

Husqvarna 532413284

NUT.FLANGED.3/8-16.ZINC

Note: "Flanged, 3/8-16"

$3.49

$

Usually ships in 3-10 days

0

33

Husqvarna 586698601

BAFFLE.FRONT.21 EFF

Note: Front

$

$

Not available

23

Husqvarna 581685101

WHEEL.8X1.75.3SPK.RAD3.GREY

Note: 8 X 1.75

$28.99

$

In Stock, only 2 left!

0

7

Husqvarna 587249801

SPRING.LH.DOOR.21 EFF

Note: "Left, Door"

$3.49

$

Usually ships in 3-10 days

0

24

Husqvarna 532409148

NUT.HEX.FLANGE.3/8-16.LO(3 2)
(Superseded to 532409149)

Note: "Hex Flange, 3/8-16"

$4.99

$

In Stock, Qty 20+

0

52

Husqvarna 586920113

ADJUSTER.4PT.21EFF.LF/RR.BU.BK

Note: Left Front

$

$

Not available

57

Husqvarna 532427942

NUTNYLOK.FLRANGE.5/16-18
(Superseded to 594944401)

Note: Nut

$6.99

$

In Stock, Qty 20+

0

26

Husqvarna 501457801

KIT.HSG.21EFF.AWD.WO.668.CE SY

Note: "21"" RGD"

$159.99

$

Usually ships in 3-10 days

0
