LC 221 AH (967992901-00) - Husqvarna 21" Walk-Behind Mower (2019-08) MOWER DECK / CUTTING DECK Parts Diagram

21" Walk-Behind Mower

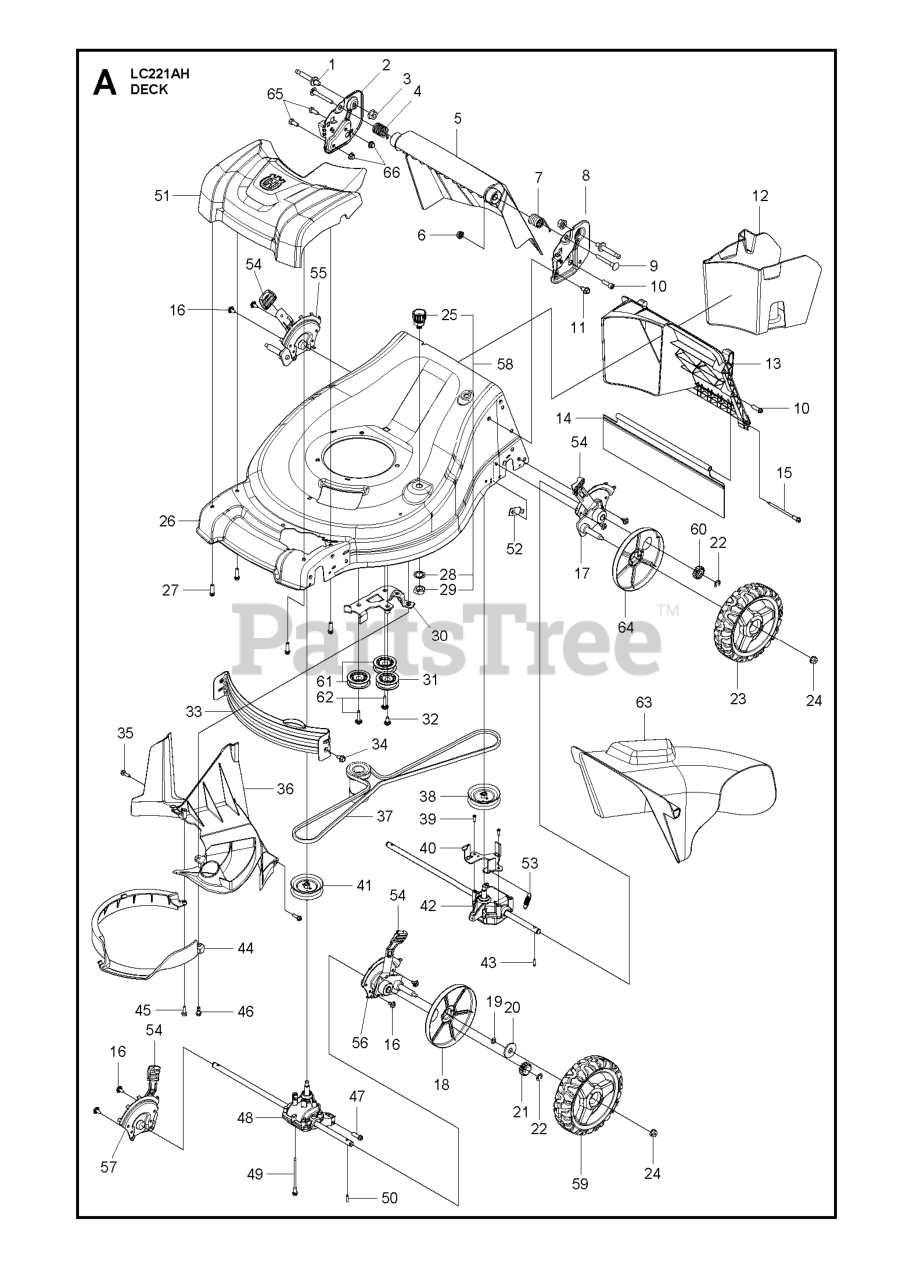

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

37

Husqvarna 580364609

BELT.DRIVE.21EFF.AWD

Note: "Drive, AWD"

$17.99

$

In Stock, Qty 15

0

4

Husqvarna 587250601

SPRING.RH.DOOR.21 EFF

Note: "Right, Door"

$3.49

$

Usually ships in 3-10 days

0

15

Husqvarna 587438201

SCREW.HI-LO.5/16-14 X 4.10

Note: "Hi-Lo, 5/16-14 X 4.10"

$4.99

$

In Stock, Qty 6

0

16

Husqvarna 581127601

SCREW

Note: 1/4-20 Tri-lobe

$7.99

$

In Stock, Qty 10

0

35

Husqvarna 587599801

SCREW.HI-LO.13-16X.750.375XDRV
(Superseded to 532194189)

Note: "Hi-Lo, 13-16 X.750"

$7.49

$

In Stock, Qty 20+

0

23

Husqvarna 501067001

WHEEL.11.H3SP.AWD.LC.460.BB2

Note: "11"", AWD"

$68.99

$

In Stock, Qty 5

0

24

Husqvarna 532409148

NUT.HEX.FLANGE.3/8-16.LO(3 2)
(Superseded to 532409149)

Note: "Hex Flange, 3/8-16"

$4.99

$

In Stock, Qty 20+

0

17

Husqvarna 582261802

ADJUSTER.4PT.21EFF.LR.HW.BK

Note: "4-Point, Left Rear"

$24.99

$

In Stock, only 1 left!

0

2

Husqvarna 589197802

BRACKET.HANDLE.ADJ.21EF.RH.498

Note: "Adjustable Handle, Right"

$

$

Not available

20

Husqvarna 532067725

WASHER FLUT

Note: 1/2 X 1-1/2 X .134

$7.49

$

In Stock, Qty 20+

0

46

Husqvarna 581726101

BOLT SHOULDER_1/4-20_TRILOB

Note: "Shoulder, 1/4-20 Tri-lobe"

$4.99

$

In Stock, Qty 20+

0

25

Husqvarna 532419735

FITTING, HOSE, WATER WASHOUT
(Superseded to 532421114)

Note: Blue

$24.99

$

In Stock, only 2 left!

0

38

Husqvarna 586963001

PULLEY.DRIVE.SM.AWD/RWD
(Superseded to 586963002)

Note: "Transmission, AWD"

$11.99

$

In Stock, Qty 9

0

10

Husqvarna 587281101

SCREW.HI-LO,5/16-14 X T-45

Note: "Hi-Lo, 5/16-14 X T-45"

$3.49

$

In Stock, only 2 left!

0

65

Husqvarna 874780512

BOLT.FIN.HEX.5/16-18X3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

59

Husqvarna 580365301

WHEEL.8".AWD.3SP.EXT.DR.GREY

Note: 8 X 2

$47.99

$

In Stock, Qty 11

0

58

Husqvarna 532421114

KIT.WASH-OUT.PORT

Note: Kit

$24.99

$

In Stock, only 2 left!

0

36

Husqvarna 586560401

COVER.BELT/REAR BAFFLE.21 EFF

Note: Belt/Rear Baffle

$20.99

$

In Stock, Qty 20+

0

57

Husqvarna 586920111

ADJUSTER.4PT.21EFF.RF/LR.BLK

Note: "4-Point, Right Front"

$

$

Not available

31

Husqvarna 596856601

PULLEY IDLER AWD, RWD WITHOUT
(Superseded to 587969201)

Note: Idler

$14.99

$

In Stock, only 4 left!

0

50

Husqvarna 532404845

PAWL, DRIVE

Note: Drive

$5.99

$

In Stock, only 3 left!

0

47

Husqvarna 584299401

SCREW.HI-LO. 5/16 X 1.00

Note: "Hi-Lo, 5/16 X 1.00"

$4.99

$

In Stock, Qty 8

0

48

Husqvarna 586137801

TRANSMISSION.AWD.FRONT.21EF
(Superseded to 589486201)

Note: "AWD, Front"

$125.99

$

In Stock, only 1 left!

0

55

Husqvarna 582261801

ADJUSTER.4PT.21EFF.RR.HW.BK

Note: "4-Point, Right Rear"

$24.99

$

In Stock, only 1 left!

0

45

Husqvarna 587599801

SCREW.HI-LO.13-16X.750.375XDRV
(Superseded to 532194189)

Note: "Hi-Lo, 13-16 X.750"

$7.49

$

In Stock, Qty 20+

0

26

Husqvarna 501457801

KIT.HSG.21EFF.AWD.WO.668.CE SY

Note: "21"" AWD"

$159.99

$

Usually ships in 3-10 days

0

44

Husqvarna 587081001

RING.STRIPPER.21 EFF

Note: Stripper

$7.49

$

Usually ships in 3-10 days

0

43

Husqvarna 532404845

PAWL, DRIVE

Note: Drive

$5.99

$

In Stock, only 3 left!

0

12

Husqvarna 586922701

PLUG.MULCH.21 EFF

$26.99

$

In Stock, Qty 20+

0

14

Husqvarna 586698801

SKIRT.REAR.21 EFF

Note: Rear

$13.99

$

In Stock, only 1 left!

0

9

Husqvarna 587198901

BOLT.DOOR.PIVOT..375-16.21EFF

Note: "Door, Pivot. 3/8-16"

$3.49

$

In Stock, only 2 left!

0

1

Husqvarna 587015201

BOLT.HAND.PIVOT.3125-18.21EFF

Note: "Handle, Pivot, 5/16-18"

$12.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532415586

LOCKNUT.HEX.WITH.O-RING

Note: Hex

$6.49

$

In Stock, only 4 left!

0

5

Husqvarna 586138007

DOOR REAR, 21IN EFF GRAY MS-49
(Superseded to 586138004)

Note: Rear

$31.99

$

Usually ships in 3-10 days

0

27

Husqvarna 584299401

SCREW.HI-LO. 5/16 X 1.00

Note: "Hi-Lo, 5/16 X 1.00"

$4.99

$

In Stock, Qty 8

0

63

Husqvarna 582261901

CHUTE.DISCHARGE.21EFF.HW

$20.99

$

Usually ships in 3-10 days

0

32

Husqvarna 581127601

SCREW

Note: 1/4-20 Tri-lobe

$7.99

$

In Stock, Qty 10

0

42

Husqvarna 586137601

TRANSMISSION.AWD.REAR.21EFF

Note: "AWD, Rear"

$148.99

$

Usually ships in 3-10 days

0

34

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

Note: "Hex, 5/16"

$7.49

$

In Stock, Qty 12

0

22

Husqvarna 812000058

E-RING 7/16 RE

Note: "7/16, RE-Style"

$3.99

$

Usually ships in 3-10 days

0

62

Husqvarna 581334501

SCREW

$15.99

$

In Stock, Qty 20+

0

54

Husqvarna 532701037

SELECTOR KNOB

Note: Ergonomic

$5.99

$

In Stock, only 4 left!

0

60

Husqvarna 587232401

PINION.16.TEETH.HW.AWD.REAR

Note: "16 tooth, HW"

$4.99

$

In Stock, Qty 12

0

21

Husqvarna 532404835

PINIION.14.TOOTH.RGD

Note: "14 Tooth, AWD"

$6.99

$

In Stock, Qty 9

0

33

Husqvarna 586698601

BAFFLE.FRONT.21 EFF

Note: Front

$

$

Not available

66

Husqvarna 532427942

NUTNYLOK.FLRANGE.5/16-18
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

61

Husqvarna 587973001

PULLEY.ASM.22+ AWD

$22.99

$

In Stock, Qty 11

0

56

Husqvarna 586920109

ADJUSTER.4PT.21EFF.LF/RR.BLK

Note: "4-Point, Left Front"

$

$

Not available

49

Husqvarna 587438201

SCREW.HI-LO.5/16-14 X 4.10

Note: "Hi-Lo, 5/16-14 X 4.10"

$4.99

$

In Stock, Qty 6

0

40

Husqvarna 581152502

BRACKET.TRAN.BELTKEEPER.22+RGD

Note: Rear Transmission

$

$

Not available

64

Husqvarna 587251701

COVER.DUST.WHEEL.HW.AWD.REAR

Note: "Wheel, Rear"

$7.99

$

In Stock, only 2 left!

0

51

Husqvarna 586713701

COVER.DR.FULL.HUSQ.21EFF.AWD

Note: "Drive, AWD, Husqvarna "

$30.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532413284

NUT.FLANGED.3/8-16.ZINC

Note: "Flanged, 3/8-16"

$3.49

$

Usually ships in 3-10 days

0

53

Husqvarna 581351301

SPRING.RETURN.AUTO.

Note: "Return, Rear Transmission"

$10.99

$

In Stock, Qty 5

0

52

Husqvarna 587147301

STRAP.PLATE ATTACH.21 EFF.GLV

Note: Height Adjuster Bracket

$

$

Not available

13

Husqvarna 586137501

INSERT.REAR.21 EFF

Note: Rear

$26.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532163409

SCREW

Note: "12 X 5/8, Hi/Lo Thread"

$7.49

$

In Stock, Qty 6

0

8

Husqvarna 589197602

BRACKET.HANDLE.ADJ.21EF.LH.498

Note: "Adjustable Handle, Left"

$

$

Not available

18

Husqvarna 581840401

COVER.DUST.WHEEL.INNER.WALK

Note: "Wheel, Front"

$6.99

$

In Stock, only 3 left!

0

30

Husqvarna 589291002

BRACKET.ASM.IDLR.AWD.21EFF.BZP

Note: "Idler, AWD"

$

$

Not available

3

Husqvarna 587599901

NUT.FLANGE.SERRAT.3125-18.5625

Note: "Serrated Flange, 5/16-18"

$4.99

$

In Stock, Qty 12

0

7

Husqvarna 587249801

SPRING.LH.DOOR.21 EFF

Note: "Left, Door"

$3.49

$

Usually ships in 3-10 days

0

11

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

Note: "Hex, 5/16"

$7.49

$

In Stock, Qty 12

0

28

Husqvarna 532415585

WASHER.LOCK.INTERNAL.TOOTH

Note: Star

$4.99

$

In Stock, only 2 left!

0

19

Husqvarna 532197480

O-RING..070X.487.NEOPRENE

$7.49

$

Usually ships in 3-10 days

0

41

Husqvarna 586963001

PULLEY.DRIVE.SM.AWD/RWD
(Superseded to 586963002)

Note: "Transmission, AWD"

$11.99

$

In Stock, Qty 9

0
