LC 221 AH (961450031-00) - Husqvarna 21" Walk-Behind Mower (2016-09) ENGINE Parts Diagram

21" Walk-Behind Mower

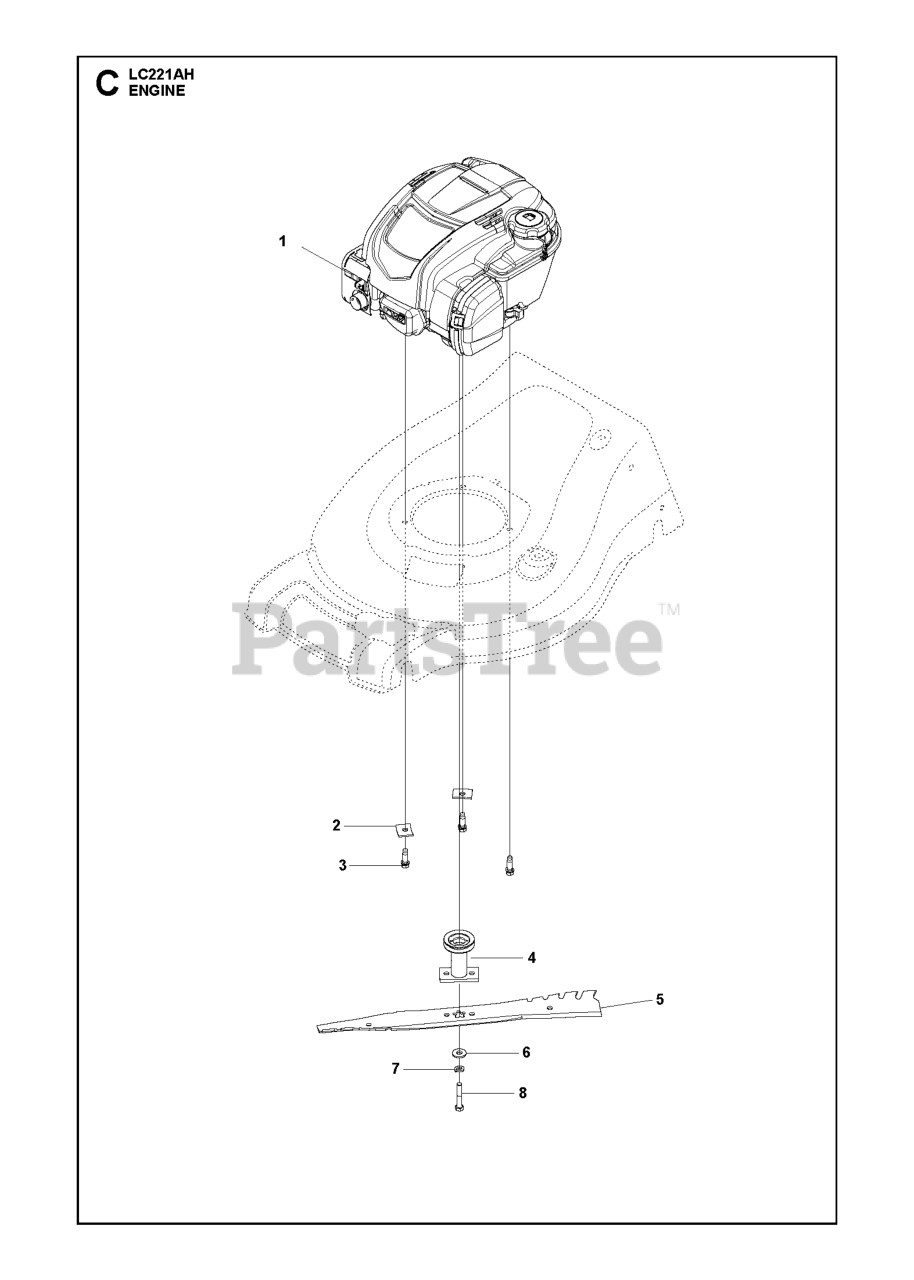

ENGINE Parts Diagram

  • Title

1

000000000

Note: Engine Briggs Stratton 104M02-0002-F1

$

$

Not available

2

Husqvarna 532125078

WASHER.ENGINE.BZP

Note: Engine

$5.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532150406

BOLT 3/8-16X1-1/8

Note: Engine 3 /8-16

$7.49

$

Usually ships in 3-10 days

0

4

Husqvarna 582890101

ADAPTER.BLADE.25M.21EFF.AW/RW
(Superseded to 590044201)

Note: 25 21 AWD

$11.99

$

Usually ships in 3-10 days

0

5

Husqvarna 586859602

BLADE.21.REAPER.WO/NOTCHES
(Superseded to 586859604)

Note: High Lift

$17.99

$

In Stock, Qty 20+

0

6

Husqvarna 532851074

WASHER,HARDEN

Note: Hardened

$4.99

$

In Stock, only 3 left!

0

7

Husqvarna 532850263

LOCKWASHER
(Superseded to 810040600)

Note: 3 /8 Helical Spring

$4.99

$

In Stock, Qty 19

0

8

Husqvarna 582388401

BOLT.ENGINE.PULLEY

Note: Blade Hex Head Machine Screw

$5.99

$

Usually ships in 3-10 days

0
