LC 221 A (961450026) - Husqvarna 21" Walk-Behind Mower (2016-05) ENGINE Parts Diagram

21" Walk-Behind Mower

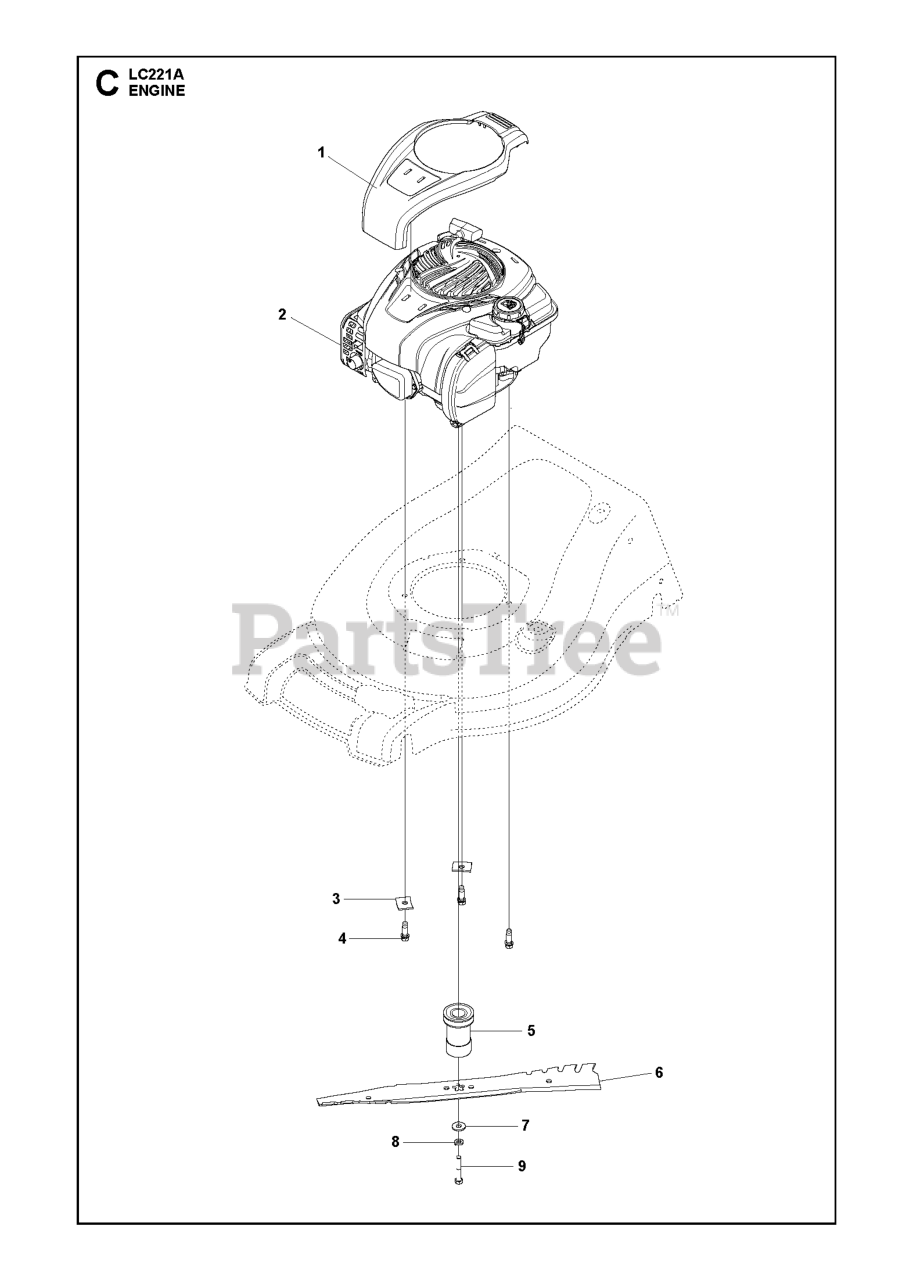

ENGINE Parts Diagram

  • Title

8

Husqvarna 532850263

LOCKWASHER
(Superseded to 810040600)

Note: 3/8, Helical Spring

$4.99

$

In Stock, Qty 15

0

7

Husqvarna 532851074

WASHER,HARDEN

$4.99

$

In Stock, only 2 left!

0

2

000000000

Note: Engine, Briggs & Stratton Model Number 93J02-0068-F1. For Engine service and replacement parts, call Briggs & Stratton at 1-800-233-3723

$

$

Not available

9

Husqvarna 532179617

BOLT.BLADE

Note: Hex Head Machine Screw

$7.49

$

Usually ships in 3-10 days

0

1

Husqvarna 588878701

NEEDS DESCRIPTION

Note: Shroud

$

$

Currently unavailable

4

Husqvarna 532150406

BOLT 3/8-16X1-1/8

Note: 3/8-16

$7.49

$

Usually ships in 3-10 days

0

5

Husqvarna 587037801

ADAPTER.BLADE.7/8.5STR.EFF.AWD

Note: 7/8, 21"

$18.99

$

In Stock, only 1 left!

0

6

Husqvarna 586859602

BLADE.21.REAPER.WO/NOTCHES
(Superseded to 586859604)

Note: High Lift

$17.99

$

In Stock, Qty 20+

0

3

Husqvarna 532125078

WASHER.ENGINE.BZP

Note: Engine

$5.99

$

Usually ships in 3-10 days

0
