LC 219 - Husqvarna 19" Walk-Behind Mower (2019-04) HANDLE Parts Diagram

19" Walk-Behind Mower

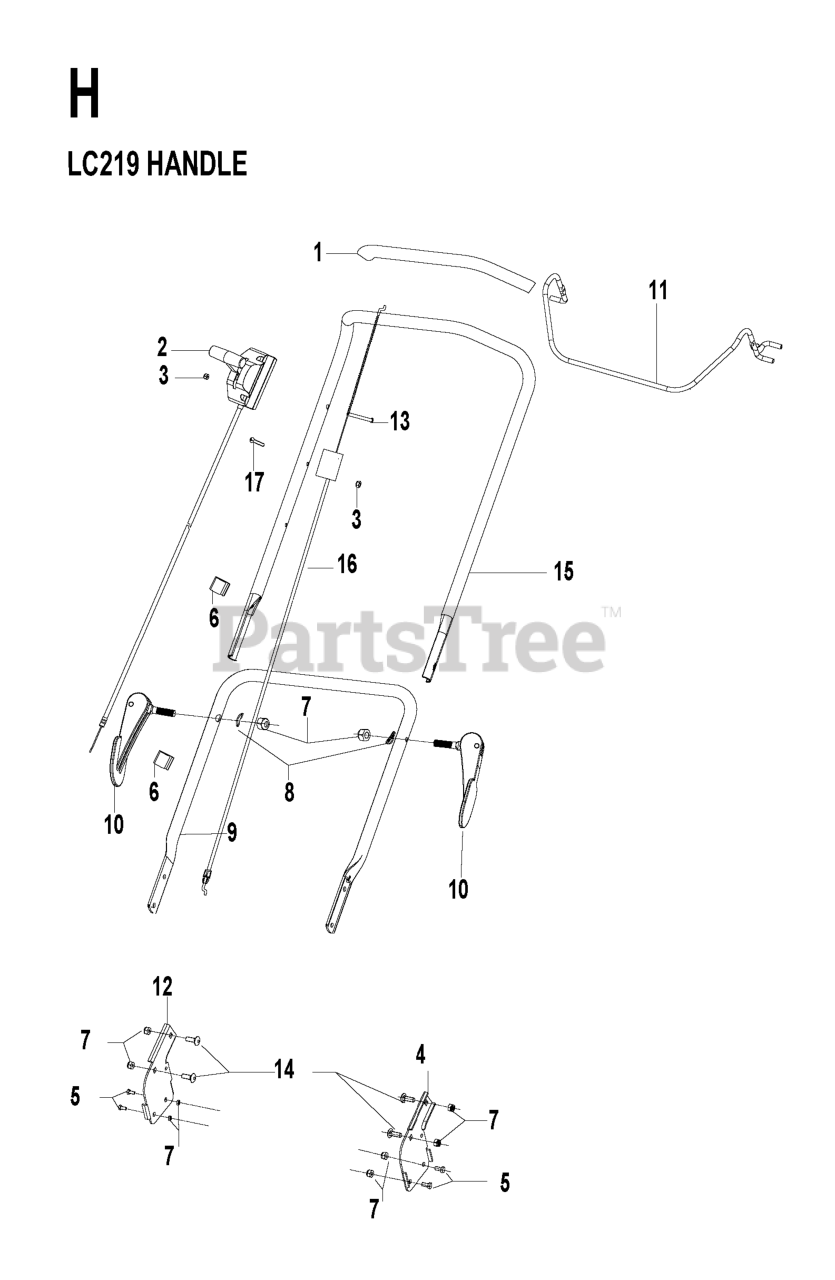

HANDLE Parts Diagram

  • Title
11

Husqvarna 597780001

NEEDS DESCRIPTION

Note: Brake Lever

$

$

Currently unavailable

6

Husqvarna 581403202

NEEDS DESCRIPTION

Note: Cli-Cable single

$

$

Currently unavailable

12

Husqvarna 581403001

NEEDS DESCRIPTION

Note: Left Bracket for handle

$

$

Currently unavailable

15

Husqvarna 597877201

NEEDS DESCRIPTION

Note: Upper Handle

$

$

Currently unavailable

2

Husqvarna 597876601

NEEDS DESCRIPTION

Note: Throttle cable Assy.

$

$

Currently unavailable

1

Husqvarna 581399401

NEEDS DESCRIPTION

Note: Sheath for handle

$

$

Currently unavailable

9

Husqvarna 597779901

NEEDS DESCRIPTION

Note: Lower Handle

$

$

Currently unavailable

3

Husqvarna 581400901

NEEDS DESCRIPTION

Note: Locknut of Nylon M6

$

$

Currently unavailable

17

Husqvarna 597876301

NEEDS DESCRIPTION

Note: M6x35 Bolt

$

$

Currently unavailable

8

Husqvarna 581402401

NEEDS DESCRIPTION

Note: Arc Washer

$

$

Currently unavailable

14

Husqvarna 581402501

NEEDS DESCRIPTION

Note: Square neck bolt

$

$

Currently unavailable

13

Husqvarna 581401601

NEEDS DESCRIPTION

Note: M6x55 Bolt

$

$

Currently unavailable

16

Husqvarna 597876501

NEEDS DESCRIPTION

Note: Clutch Cable Assy. 285x950

$

$

Currently unavailable

7

Husqvarna 581401101

NEEDS DESCRIPTION

Note: Locknut of Nylon M8

$

$

Currently unavailable

5

Husqvarna 581400701

NEEDS DESCRIPTION

Note: Bolt

$

$

Currently unavailable

4

Husqvarna 581402801

NEEDS DESCRIPTION

Note: Left Bracket for handle

$

$

Currently unavailable

10

Husqvarna 581402301

NEEDS DESCRIPTION

Note: Spanner

$

$

Currently unavailable
