LC-215 E (12BE999M190) - White Outdoor Lawn Boss 21" Walk-Behind Mower (2000) General Assembly Parts Diagram

Lawn Boss 21" Walk-Behind Mower

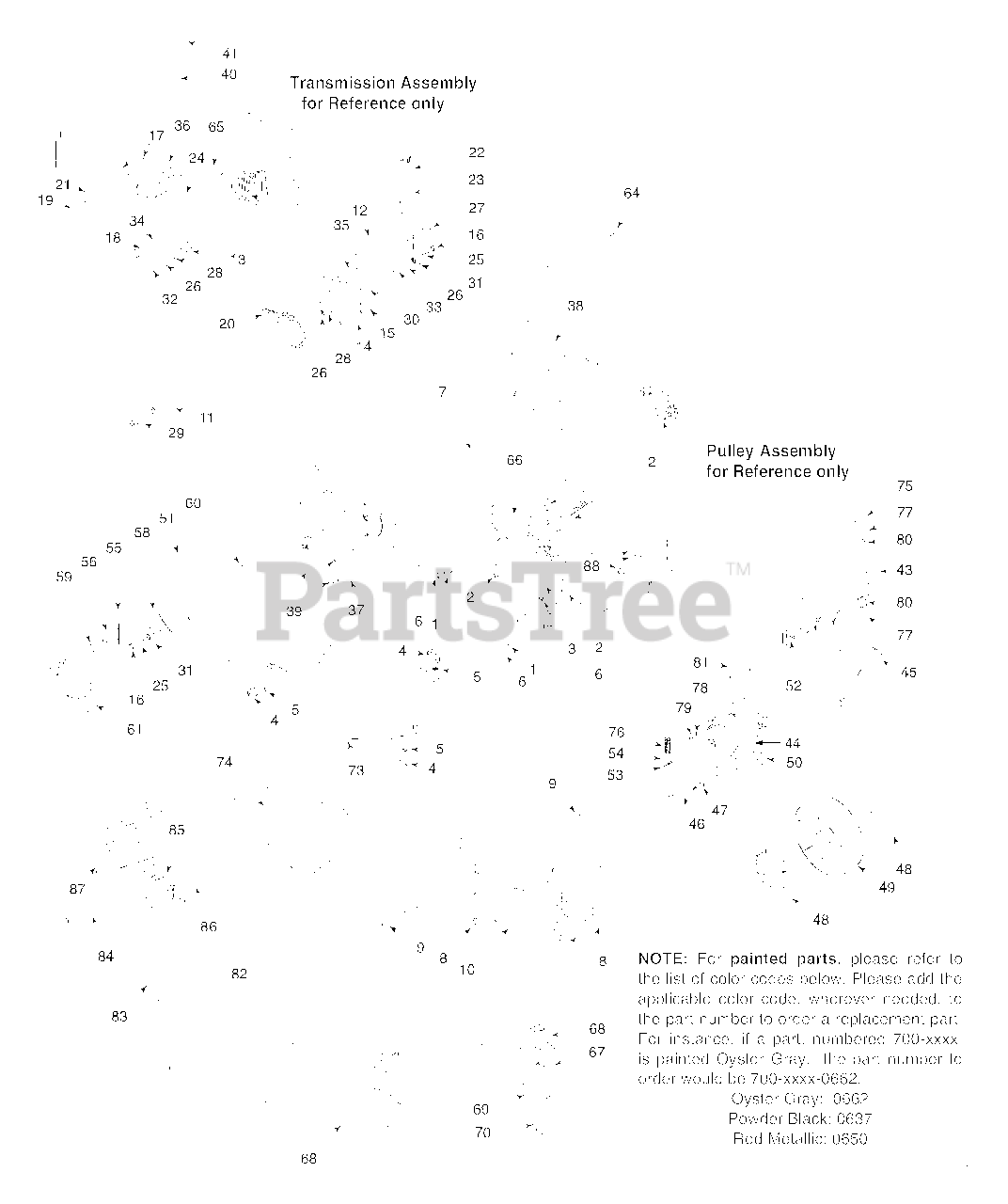

General Assembly Parts Diagram

  • Title

1

White Outdoor 710-0134

Scr. Carr. 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

2

White Outdoor 710-0654A

Scr. TT:3/8-18:1.00

$4.49

$

In Stock, Qty 20+

0

3

White Outdoor 710-0703

Carriage Scr. 1/4-20 x .750

$4.49

$

In Stock, Qty 20+

0

4

White Outdoor 712-0397

Wing Nut 1/4-20
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

5

White Outdoor 726-0233

Nut, Push .25 I.D. x .50 O.D.

$4.49

$

In Stock, Qty 20+

0

6

White Outdoor 736-0204

Wash. Fl. .334 I.D.x .62 x.03

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor 782-0046A

Deck - 21"
(Superseded to 782-0046B)

Variations

White Outdoor 782-0046A-0650

DECK-21" W/O ICON - RED METALLIC (0650)

$

$

Not available

White Outdoor 782-0046A-0665

DECK-21" W/O ICON - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 782-0046A-0662

Deck - 21" - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 782-0046A-0691

No Longer Available 3-N-1 TD - BLACK JACK (0691)

$

$

Not available

$194.99

$

Usually ships in 3-6 days

0

8

White Outdoor 710-0653

Scr. TT. 1/4-20 x .375

$4.49

$

In Stock, Qty 8

0

9

White Outdoor 710-1220

Scr. HL. 1/2-14 x .750

$4.99

$

In Stock, only 4 left!

0

10

White Outdoor 731-1828

Baffle
(Superseded to 731-08190A)

$37.99

$

In Stock, only 1 left!

0

11

White Outdoor 638-0012

Rear Axle Assembly
(Superseded to 938-0012A)

$74.99

$

Usually ships in 3-6 days

0

12

White Outdoor 782-0566B

Pivot Arm Assembly
(Superseded to 782-0566B-0637)

Variations

White Outdoor 782-0566B-0637

Pivot Arm, Rear - POWDER BLACK (0637)

$44.99

$

In Stock, only 1 left!

0

$44.99

$

In Stock, only 1 left!

0

13

White Outdoor 682-7526

Trans. Axle Assembly
(Superseded to 682-7526-0637)

Variations

White Outdoor 682-7526-0637

AXLE CHAIN ASSEMBLY BLACK - POWDER BLACK (0637)

$131.99

$

Usually ships in 3-6 days

0

$131.99

$

Usually ships in 3-6 days

0

14

White Outdoor 682-7528

Chain Cover Assembly
(Superseded to 682-7528-0637)

Variations

White Outdoor 682-7528-0637

Chain Assembly Cover, Black - POWDER BLACK (0637)

$

$

Not available

$

$

15

White Outdoor 710-0653

Scr. TT 1/4-20 x .375

$4.49

$

In Stock, Qty 8

0

16

White Outdoor 710-0751

Cap Screw HH 1/4-20 x .620

$3.99

$

In Stock, Qty 20+

0

17

White Outdoor 710-0896

Scr. AB 1/4-20x.625

$4.49

$

In Stock, Qty 20+

0

18

White Outdoor 710-1315

Scr. 3/8 116 x .25

$4.49

$

In Stock, Qty 20+

0

19

White Outdoor 711-0835

Clevis Pin .50 Dia. x 4.82 Lg.
(Superseded to 911-0835)

$12.99

$

In Stock, only 3 left!

0

20

White Outdoor 713-0453

Chain-Endls. #48 .500P x 24L
(Superseded to 913-0453)

$12.99

$

In Stock, only 1 left!

0

21

White Outdoor 714-0474

Cotter Pin .125 O.D. x .75

$4.99

$

In Stock, Qty 13

0

22

White Outdoor 720-0223

Grip

$14.99

$

In Stock, Qty 7

0

23

White Outdoor 732-0803A

Spring Lever

$15.99

$

In Stock, Qty 16

0

24

White Outdoor 732-0832

Torsion Spring

$19.99

$

Usually ships in 3-6 days

0

25

White Outdoor 736-0270

Bell Wash. .285 x .75 x .082

$3.99

$

In Stock, Qty 20+

0

26

White Outdoor 736-0369

Fl. Wash..508 I.D. 1.000 x.020

$4.49

$

In Stock, Qty 20+

0

27

White Outdoor 738-0529

Nut Shld. .825 Dia. x .165 Lg.
(Superseded to 938-0529)

$11.99

$

In Stock, only 2 left!

0

28

White Outdoor 741-0324

Hx.Flg. Brg..506 I.D. x .590 L.
(Superseded to 741-0324A)

$7.99

$

In Stock, Qty 5

0

29

White Outdoor 741-0522

Hx.Flg. Brg. .506 I.D. x.715 L.

$

$

Not available

30

White Outdoor 741-0978

Hx. Slv. Brg..504 I.D. x .830 L.

$4.99

$

In Stock, only 3 left!

0

31

White Outdoor 748-0318

Wheel Rachet
(Superseded to 948-0318)

$10.99

$

In Stock, Qty 16

0

32

White Outdoor 750-0151

Spacer .550 I.D. x .750 O.D.
(Superseded to 950-0151)

$10.99

$

In Stock, Qty 20+

0

33

White Outdoor 750-0515

Spacer .51 .D. x .70 O.D. x 38 L.

$4.49

$

In Stock, only 4 left!

0

34

White Outdoor 750-0807

Spacer .385 x .624 x .700

$6.49

$

Usually ships in 3-6 days

0

35

White Outdoor 750-1056

Shld. Spacer .385 I.D. X .715 Lg.
(Superseded to 950-1056)

$7.49

$

Usually ships in 3-6 days

0

36

White Outdoor 782-0568

Brkt. - Ht. Adj. Spring
(Superseded to 782-0568B-0637)

Variations

White Outdoor 782-0568-0637

BRACKET.LIFT ASSY. - POWDER BLACK (0637)

$

$

Not available

$

$

37

White Outdoor 682-3052

Handle Brkt. Ass'y. R.H.

Variations

White Outdoor 682-3052-0637

BRACKET HANDLE RH - POWDER BLACK (0637)

$

$

Not available

White Outdoor 682-3052-0665

BRACKET HANDLE RH - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 682-3052-0716

BRACKET HANDLE RH - CUB YELLOW-99 (0716)

$

$

Not available

White Outdoor 682-3052-0650

BRACKET HANDLE RH - RED METALLIC (0650)

$

$

Not available

White Outdoor 682-3052-0662

BRACKET HANDLE RH - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 682-3052-4015

BRACKET HANDLE RH - FIRE RED (4015)

$

$

Not available

$

$

38

White Outdoor 682-3053

Handle Brkt. Ass'y. L.H.

Variations

White Outdoor 682-3053-0637

BRACKET HANDLE LH - POWDER BLACK (0637)

$

$

Not available

White Outdoor 682-3053-0650

BRACKET HANDLE LH - RED METALLIC (0650)

$

$

Not available

White Outdoor 682-3053-0716

BRACKET HANDLE LH - CUB YELLOW-99 (0716)

$

$

Not available

White Outdoor 682-3053-0638

BRACKET HANDLE LH - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 682-3053-0662

BRACKET HANDLE LH - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 682-3053-0665

BRACKET HANDLE LH - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 682-3053-0689

BRACKET HANDLE LH - POLO GREEN (0689)

$

$

Not available

White Outdoor 682-3053-4015

BRACKET HANDLE LH - FIRE RED (4015)

$

$

Not available

$

$

39

White Outdoor 710-1348

Scr. AB 1/4-14 x .500

$6.99

$

In Stock, only 3 left!

0

40

White Outdoor 731-1901

Trail Shield
(Superseded to 731-1901A)

$40.99

$

In Stock, only 2 left!

0

41

White Outdoor 732-0842

Trail Shield Wire

$6.49

$

In Stock, Qty 6

0

43

White Outdoor 682-9020A

Caster Assy. R.H.

Variations

White Outdoor 682-9020A-4028

CASTER ASSEMBLY-RH - SEARS YELLOW (4028)

$89.99

$

In Stock, only 1 left!

0

White Outdoor 682-9020A-0691

CASTER ASSEMBLY-RH - BLACK JACK (0691)

$97.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9020A-0629

CASTER ASSEMBLY-RH - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 682-9020A-0665

CASTER ASSEMBLY-RH - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 682-9020A-0716

CASTER ASSEMBLY-RH - CUB YELLOW-99 (0716)

$

$

Not available

White Outdoor 682-9020A-4021

CASTER ASSEMBLY-RH - CUB YELLOW 2 (4021)

$

$

Not available

White Outdoor 682-9020A-0606

CASTER ASSEMBLY-RH - MAJESTIC ORANGE (0606)

$

$

Not available

White Outdoor 682-9020A-0638

CASTER ASSEMBLY-RH - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 682-9020A-0650

CASTER ASSEMBLY-RH - RED METALLIC (0650)

$

$

Not available

White Outdoor 682-9020A-0662

CASTER ASSEMBLY-RH - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 682-9020A-0667

CASTER ASSEMBLY-RH - MIDNIGHT BLUE (0667)

$

$

Not available

White Outdoor 682-9020A-0689

CASTER ASSEMBLY-RH - POLO GREEN (0689)

$

$

Not available

White Outdoor 682-9020A-4015

CASTER ASSEMBLY-RH - FIRE RED (4015)

$

$

Not available

$97.99

$

Usually ships in 3-6 days

0

43

White Outdoor 682-9021A

Caster Assembly L.H.

Variations

White Outdoor 682-9021A-0716

CASTER ASSEMBLY-LH - CUB YELLOW-99 (0716)

$101.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9021A-0691

CASTER ASSEMBLY-LH - BLACK JACK (0691)

$101.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9021A-4021

CASTER ASSEMBLY-LH - CUB YELLOW 2 (4021)

$125.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9021A-4028

CASTER ASSEMBLY-LH - SEARS YELLOW (4028)

$125.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9021A-0606

CASTER ASSEMBLY-LH - MAJESTIC ORANGE (0606)

$

$

Not available

White Outdoor 682-9021A-0638

CASTER ASSEMBLY-LH - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 682-9021A-0662

CASTER ASSEMBLY-LH - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 682-9021A-0665

CASTER ASSEMBLY-LH - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 682-9021A-0667

CASTER ASSEMBLY-LH - MIDNIGHT BLUE (0667)

$

$

Not available

White Outdoor 682-9021A-0629

CASTER ASSEMBLY-LH - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 682-9021A-0650

CASTER ASSEMBLY-LH - RED METALLIC (0650)

$

$

Not available

White Outdoor 682-9021A-0689

CASTER ASSEMBLY-LH - POLO GREEN (0689)

$

$

Not available

White Outdoor 682-9021A-4015

CASTER ASSEMBLY-LH - FIRE RED (4015)

$

$

Not available

$101.99

$

Usually ships in 3-6 days

0

44

White Outdoor 682-9024

Caster Bracket Assembly: RH

Variations

White Outdoor 682-9024-0629

BRACKET CASTER - SILVER FLAKE (0629)

$81.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9024-0638

Caster Bracket, RH - MTD/TROY-BILT RED (0638)

$81.99

$

In Stock, only 2 left!

0

White Outdoor 682-9024-0650

BRACKET CASTER - RED METALLIC (0650)

$81.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9024-0662

BRACKET CASTER - OYSTER GRAY (0662)

$81.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9024-0665

BRACKET CASTER - YARDMAN GREEN (0665)

$66.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9024-0691

BRACKET CASTER-BLACK JACK - BLACK JACK (0691)

$81.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9024-0716

BRACKET CASTER - CUB YELLOW-99 (0716)

$81.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9024-4021

Caster Bracket, RH - CUB YELLOW 2 (4021)

$81.99

$

In Stock, only 1 left!

0

White Outdoor 682-9024-4028

BRACKET CASTER - SEARS YELLOW (4028)

$76.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9024-0606

BRACKET CASTER - MAJESTIC ORANGE (0606)

$81.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9024-0667

BRACKET CASTER - MIDNIGHT BLUE (0667)

$66.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9024-0689

BRACKET CASTER - POLO GREEN (0689)

$66.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9024-4015

BRACKET CASTER - FIRE RED (4015)

$66.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9024-4033

BRACKET CASTER - FLINT MICA (4033)

$76.99

$

Usually ships in 3-6 days

0

$71.99

$

Usually ships in 3-6 days

0

45

White Outdoor 682-9026

Caster Bracket Assembly: LH
(Superseded to 682-9026A)

Variations

White Outdoor 682-9026-0638

Caster Bracket, LH - MTD/TROY-BILT RED (0638)

$85.99

$

In Stock, only 3 left!

0

White Outdoor 682-9026-0650

Caster Bracket, LH - RED METALLIC (0650)

$85.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9026-0662

BRACKET ASSY-WHEEL LH - OYSTER GRAY (0662)

$79.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9026-0689

BRACKET ASSY-WHEEL LH - POLO GREEN (0689)

$79.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9026-0691

BRACKET ASSY-WHEEL LH - BLACK JACK (0691)

$85.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9026-0716

Caster Bracket, LH - CUB YELLOW-99 (0716)

$85.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9026-4021

Caster Bracket, LH - CUB YELLOW 2 (4021)

$85.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9026-0665

BRACKET ASSY-WHEEL LH - YARDMAN GREEN (0665)

$79.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9026-0667

BRACKET ASSY-WHEEL LH - MIDNIGHT BLUE (0667)

$79.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9026-4015

BRACKET ASSY-WHEEL LH - FIRE RED (4015)

$79.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9026-4028

BRACKET ASSY-WHEEL LH - SEARS YELLOW (4028)

$85.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9026-4033

BRACKET ASSY-WHEEL LH - FLINT MICA (4033)

$79.99

$

Usually ships in 3-6 days

0

$68.99

$

Usually ships in 3-6 days

0

46

White Outdoor 711-1146

Caster Axle .374 Dia x 2.50"
(Superseded to 911-1146)

$13.99

$

In Stock, Qty 11

0

47

White Outdoor 736-0232

Wave Washer

$4.99

$

In Stock, Qty 12

0

48

White Outdoor 731-1887

Hub Cap, Gray w/ Hole

$11.99

$

Usually ships in 3-6 days

0

49

White Outdoor 734-1857

Wheel 7 x 2 Link

$46.99

$

In Stock, Qty 8

0

50

White Outdoor 712-0397

Wing Nut 1/4-20
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

51

White Outdoor 734-1981

Wheel 9 x 2 Link
(Superseded to 734-1981A)

$46.99

$

In Stock, Qty 12

0

52

White Outdoor 712-3004A

Lock Nut 5/15-18

$3.99

$

In Stock, Qty 20+

0

53

White Outdoor 714-0104

Cotter Pin .072 x .12 Lg.

$4.49

$

In Stock, Qty 20+

0

54

White Outdoor 736-0264

Fl. Wash. .330 x .830 x .060

$6.99

$

In Stock, only 1 left!

0

55

White Outdoor 10622B

Spring, Ratchet, Plastic

$5.49

$

In Stock, Qty 20+

0

56

White Outdoor 748-0381

Pawl - R.H.

$11.99

$

Usually ships in 3-6 days

0

56

White Outdoor 748-0188B

Pawl - L.H.
(Superseded to 948-0188B)

$

$

Not available

58

White Outdoor 16855

Ratchet Pawl Plate

$6.49

$

In Stock, Qty 7

0

59

White Outdoor 738-0137A

Scr. Shld. .340 x .285

$10.99

$

In Stock, Qty 10

0

60

White Outdoor 712-0414

Top Lock Tab Weld Nut 1/4-20

$4.49

$

In Stock, Qty 20+

0

61

White Outdoor 731-0981A

Hubcap, Gray w/o hole
(Superseded to 731-0981C)

$10.99

$

In Stock, only 2 left!

0

64

White Outdoor 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

65

White Outdoor 710-0604

Hex Scr. 5/16-18
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

66

White Outdoor 754-0460

Belt, 3/8" x 39.24"
(Superseded to 954-0460)

$19.99

$

In Stock, Qty 20+

0

67

White Outdoor 742-0741

21" Mulching Blade
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

68

White Outdoor 748-0377C

Blade Adapter
(Superseded to 748-0377E)

$19.99

$

In Stock, only 3 left!

0

69

White Outdoor 736-0524A

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 5

0

70

White Outdoor 710-1257

Hex Bolt 3/8-24x2.5" Lg.

$7.99

$

In Stock, only 1 left!

0

73

White Outdoor 731-1832

Side Discharge Chute

$

$

Not available

74

White Outdoor 731-1833

Mulch Cover
(Superseded to 931-1833A)

$44.99

$

In Stock, only 1 left!

0

75

White Outdoor 726-0214

Push Cap

$10.99

$

In Stock, only 3 left!

0

76

White Outdoor 732-0306

Compression Spring
(Superseded to 932-0306A)

$8.49

$

In Stock, only 4 left!

0

77

White Outdoor 736-0366

Fl. Wash. .5/8 I.D. x 1" O.D.

$4.49

$

In Stock, Qty 20+

0

78

White Outdoor 736-0931

Fl. Wash. .203 x .403 x .040

$4.99

$

In Stock, only 1 left!

0

79

White Outdoor 737-3000

Fitting - Grease
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

80

White Outdoor 741-0685

Flange Bearing

$4.49

$

In Stock, Qty 20+

0

81

White Outdoor 747-0924

Locking Pin

$20.99

$

In Stock, only 1 left!

0

82

White Outdoor 631-0066

Chute Ass'y
(Superseded to 931-0066)

$115.99

$

Usually ships in 3-6 days

0

83

White Outdoor 731-1713A

Discharge Chute
(Superseded to 931-0066)

$115.99

$

Usually ships in 3-6 days

0

84

White Outdoor 747-0965

Pivot Rod

$3.49

$

Usually ships in 3-6 days

0

85

White Outdoor 732-0819

Torsion Spring

$9.99

$

Usually ships in 3-6 days

0

86

White Outdoor 726-0111

Push Cap

$

$

Not available

87

White Outdoor 731-1874

Chute Door
(Superseded to 731-1874A)

$17.99

$

Usually ships in 3-6 days

0

88

White Outdoor 710-0260

Carr. Bolt 5/16-18 x.62
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0
