LC-215 E (12AE969D190) - White Outdoor Lawn Boss 21" Walk-Behind Mower (1998) Handle Assembly Parts Diagram

Lawn Boss 21" Walk-Behind Mower

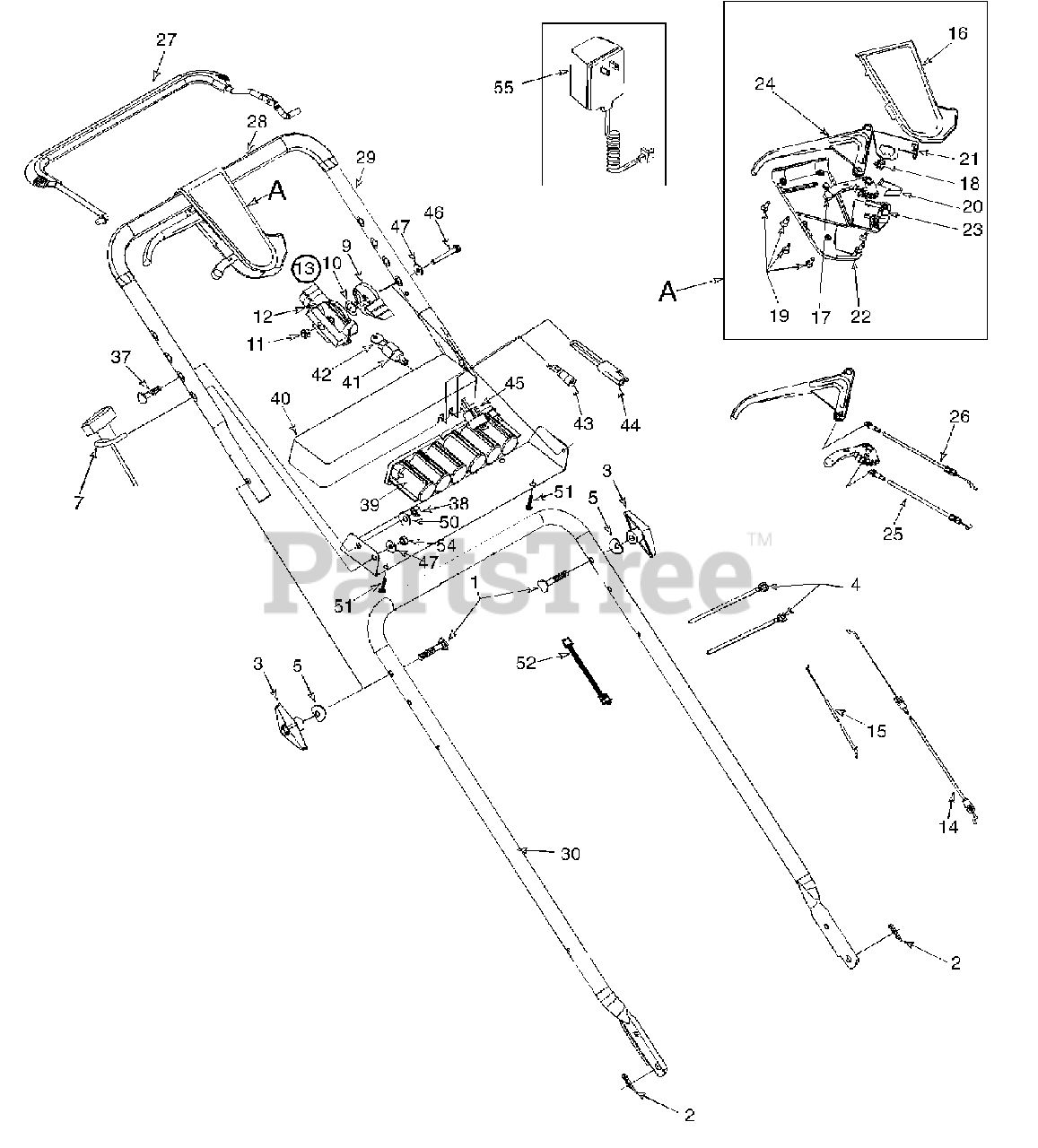

Handle Assembly Parts Diagram

  • Title

1

White Outdoor 710-1174

Bolt Cur. Carr. 5/16-18 x 2.0

$7.49

$

In Stock, Qty 20+

0

2

White Outdoor 714-0104

Cotter Pin .072 x 1.12 Lg.

$4.49

$

In Stock, Qty 20+

0

3

White Outdoor 720-0241

Knob Assembly
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

4

White Outdoor 726-0240

Strap 4.3 Lg.
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

5

White Outdoor 736-0451

Wash. Sad. .320 ID x .830 OD

$4.49

$

In Stock, Qty 11

0

7

White Outdoor 710-1205

Eyebolt

$3.99

$

In Stock, Qty 20+

0

9

White Outdoor 746-0876

Throttle Lever
(Superseded to 946-0876)

$8.49

$

In Stock, only 3 left!

0

10

White Outdoor 736-0501

Spring Wash. Curved
(Superseded to 936-0501)

$6.99

$

Usually ships in 3-6 days

0

11

White Outdoor 712-0324

Nut 1/4-20 Top locknut Insert

$3.99

$

In Stock, Qty 15

0

12

White Outdoor 646-0875

Housing, Throttle
(Superseded to 946-0875)

$9.49

$

In Stock, only 2 left!

0

13

White Outdoor 811-00303

Throttle Control
(Superseded to 811-0185)

Note: (Includes reference 9,10,11 & 12)

$36.99

$

In Stock, Qty 9

0

14

White Outdoor 746-0557

Control Cable 47" Lg.
(Superseded to 946-0557)

$26.99

$

In Stock, Qty 18

0

15

White Outdoor 746-0841

Cable Throttle 60" Lg.
(Superseded to 946-0674A)

$18.99

$

In Stock, only 1 left!

0

16

White Outdoor 731-0904

Upper Control Housing
(Superseded to 753-0717)

$

$

Not available

17

White Outdoor 731-0924

6 Speed Shift Lever

$

$

Not available

18

White Outdoor 713-0397

Gear Insert
(Superseded to 913-0397)

$5.49

$

In Stock, only 4 left!

0

19

White Outdoor 710-0841

C Sunk Tap Screw #10 x .75 L

$4.49

$

Usually ships in 3-6 days

0

20

White Outdoor 732-0627

Shift Lever Spring
(Superseded to 732-0627A)

$9.49

$

In Stock, only 4 left!

0

21

White Outdoor 16864

6 Spd. Rack Cable Brkt.

$11.99

$

Usually ships in 3-6 days

0

22

White Outdoor 731-0905

Lower Control Housing
(Superseded to 753-0717)

$

$

Not available

23

White Outdoor 731-0906

Cable Mounting Cap
(Superseded to 753-0717)

$

$

Not available

24

White Outdoor 731-0620

Control Lever
(Superseded to 731-0620A)

$15.99

$

In Stock, only 1 left!

0

25

White Outdoor 746-0939

6 Spd. Cable
(Superseded to 946-0939A)

$33.99

$

In Stock, only 3 left!

0

26

White Outdoor 746-0710A

S.P. Cable
(Superseded to 946-0710A)

$40.99

$

In Stock, only 4 left!

0

27

White Outdoor 747-0824

Control Handle
(Superseded to 747-0824B-0637)

Variations

White Outdoor 747-0824-0637

Control Handle Assembly - POWDER BLACK (0637)

$65.99

$

In Stock, only 1 left!

0

$65.99

$

In Stock, only 1 left!

0

28

White Outdoor 720-0294

Foam Grip
(Superseded to 720-0294A)

$7.49

$

In Stock, only 3 left!

0

29

White Outdoor 749-0439B

Upper Handle
(Superseded to 749-0439E-0637)

Variations

White Outdoor 749-0439B-0637

Short Upper Handle, Black - POWDER BLACK (0637)

$47.99

$

In Stock, only 1 left!

0

$47.99

$

In Stock, only 1 left!

0

30

White Outdoor 749-0907A

Lower Handle
(Superseded to 749-0907B)

Note: Code: N Notates a new part (not previously existing)

Variations

White Outdoor 749-0907A-0637

LOWER HANDLE - POWDER BLACK (0637)

$50.99

$

In Stock, only 1 left!

0

$50.99

$

In Stock, only 1 left!

0

37

White Outdoor 710-1250

Cur. Carr. Bolt 5/16-18 x 1" Lg.

$4.99

$

In Stock, only 3 left!

0

38

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

39

White Outdoor 725-1276

Battery Pack - 12 Volt
(Superseded to 925-1276)

$185.99

$

Usually ships in 3-6 days

0

40

White Outdoor 731-0891A

Battery Tray

$

$

Not available

41

White Outdoor 725-0873

Ignition Switch
(Superseded to 925-0873)

$

$

Not available

42

White Outdoor 725-0201

Ignition Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

43

425-1428

Fuse Holder

$

$

Not available

White Outdoor 725-0298

Fuse 7-1/2 Amp
(Superseded to 925-0298)

Note: (Not shown)

$

$

Not available

44

White Outdoor 725-1206

Plug
(Superseded to 925-1206)

$

$

Not available

45

White Outdoor 725-1442

Wire Harness
(Superseded to 925-1442)

$

$

Not available

46

White Outdoor 710-0501

Hex Bolt 1/4-20 x 2" Lg.

$7.49

$

Usually ships in 3-6 days

0

47

White Outdoor 736-0270

Bell Wash 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0

?49

White Outdoor 782-9012

Lower Battery Tray
(Superseded to 782-9012-0637)

Variations

White Outdoor 782-9012-0637

BATTERY TRAY - POWDER BLACK (0637)

$

$

Not available

$

$

50

White Outdoor 736-0242

Bell Wash. 5/16" I.D.

$4.49

$

In Stock, Qty 20+

0

51

White Outdoor 710-0969

Truss Mch. Tap Scr. 1" Lg.

$4.49

$

In Stock, only 2 left!

0

52

White Outdoor 725-1538

Harness Ext.

$

$

Not available

54

White Outdoor 712-0287

Hex Nut 1/4-20
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

55

White Outdoor 725-0727

Battery Charger
(Superseded to 925-0727)

$77.99

$

In Stock, only 1 left!

0
