LC-215 (12B-999I190) - White Outdoor Lawn Boss 21" Walk-Behind Mower (2000) Cable Controls Parts Diagram

Lawn Boss 21" Walk-Behind Mower

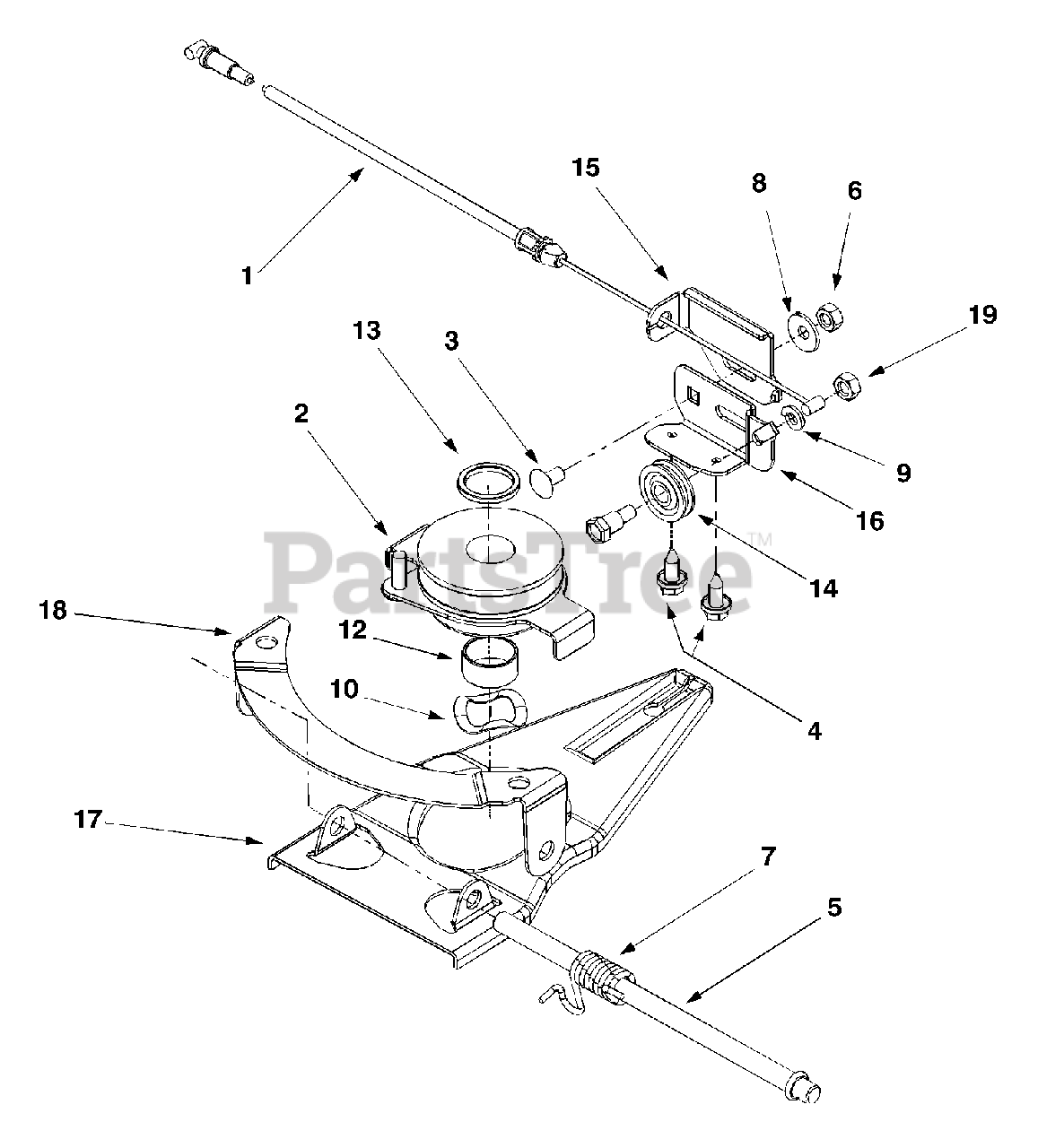

Cable Controls Parts Diagram

  • Title
1

White Outdoor 746-0939

Speed Selector Cable, 53"
(Superseded to 946-0939A)

$33.99

$

In Stock, only 3 left!

0

2

White Outdoor 656-0613

Multi-speed Pulley Assembly
(Superseded to 956-0613A)

$72.99

$

In Stock, only 1 left!

0

3

White Outdoor 710-0167

Carriage Bolt, 1/4-20 x. 5
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

4

White Outdoor 710-0896

Self-tapping Screw, 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

5

$12.99

$

Usually ships in 3-6 days

0

6

White Outdoor 712-0287

Nut, 1/4-20
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

7

White Outdoor 732-0807

LH Torsion Spring
(Superseded to 932-0807)

$7.49

$

Usually ships in 3-6 days

0

8

White Outdoor 736-0270

Bell Washer, .265 x .75 x .062

$3.99

$

In Stock, Qty 20+

0

9

White Outdoor 736-0329

Lock Washer, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

10

White Outdoor 736-0526

Wave Washer, 1.38 x .88 x .029

$6.99

$

Usually ships in 3-6 days

0

?11

White Outdoor 738-0924

Shoulder Bolt, .34 x .35 x 1/4-20
(Superseded to 738-0924A)

$6.99

$

In Stock, Qty 5

0

12

White Outdoor 750-1070

Sleeve Spacer, .88 ID x 1 OD x .48
(Superseded to 950-1070)

$5.99

$

In Stock, Qty 9

0

13

White Outdoor 750-1071

Sleeve Spacer, .88 ID x 1.13 OD x .12
(Superseded to 950-1071)

$4.49

$

In Stock, Qty 5

0

14

White Outdoor 756-0625

Cable Roller

$9.49

$

In Stock, Qty 14

0

15

White Outdoor 782-7574

Cable Adjuster Barcket
(Superseded to 782-7574A-0637)

Variations

White Outdoor 782-7574-0498

Cable Adjusting Bracket - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 782-7574-0637

Cable Adjusting Bracket - POWDER BLACK (0637)

$

$

Not available

White Outdoor 782-7574-0665

Cable Adjusting Bracket - YARDMAN GREEN (0665)

$

$

Not available

$

$

16

White Outdoor 782-7575

Cable Mounting Barcket
(Superseded to 782-7575-0637)

Variations

White Outdoor 782-7575-0498

BRACKET-CABLE MOUNTING - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 782-7575-0637

BRACKET-CABLE MOUNTING - POWDER BLACK (0637)

$

$

Not available

White Outdoor 782-7575-0665

BRACKET-CABLE MOUNTING - YARDMAN GREEN (0665)

$

$

Not available

$

$

17

White Outdoor 782-7596

Control Arm
(Superseded to 782-7596A)

Variations

White Outdoor 782-7596-0637

CONTROL ARM 6 SPEED - POWDER BLACK (0637)

$

$

Not available

$

$

18

White Outdoor 782-7597

Pivot Bracket

Variations

White Outdoor 782-7597-0637

PIVOT BRACKET - POWDER BLACK (0637)

$9.49

$

In Stock, only 1 left!

0

$9.49

$

In Stock, only 1 left!

0

19

White Outdoor 712-0138

Hex Nut, 1/4-20

$6.99

$

Usually ships in 3-6 days

0
