LC-215 (12A-969D190) - White Outdoor Lawn Boss 21" Walk-Behind Mower (1997) Deck, Chute And Wheel Ass'y Parts Diagram

Lawn Boss 21" Walk-Behind Mower

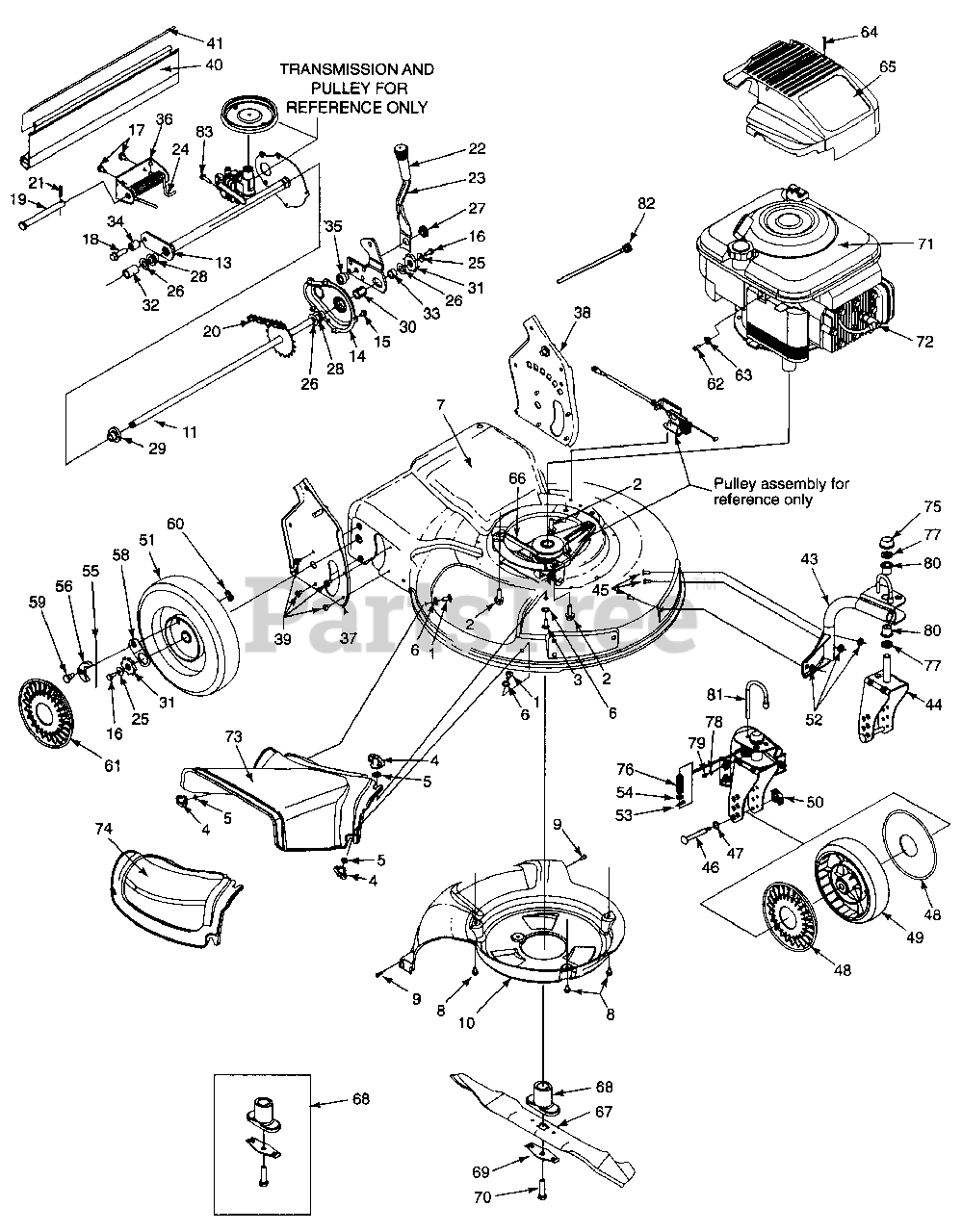

Deck, Chute And Wheel Ass'y Parts Diagram

  • Title

1

White Outdoor 710-0134

Scr. Carr. 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

2

White Outdoor 710-0654A

Scr. TT:3/8-18:1.00

$4.49

$

In Stock, only 3 left!

0

3

White Outdoor 710-0703

Scr. 1/4-20 x .750

$4.49

$

In Stock, Qty 15

0

4

White Outdoor 712-0397

Wing Nut 1/4-20
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

5

White Outdoor 726-0233

Nut, Push .25 I.D. x .50 O.D.

$4.49

$

In Stock, only 3 left!

0

6

White Outdoor 736-0204

Wash. Fl. .334 I.D. x .62 x .03

$4.49

$

In Stock, Qty 8

0

7

White Outdoor 782-0046-0662

Deck - 21"

$

$

Not available

8

White Outdoor 710-0653

Scr. TT. 1/4-20 x .375

$4.49

$

In Stock, Qty 13

0

9

White Outdoor 710-1220

Scr. HL. 1/2-14 x .750

$4.99

$

In Stock, only 4 left!

0

10

White Outdoor 731-1828

Baffle
(Superseded to 731-08190A)

$37.99

$

Usually ships in 3-6 days

0

11

White Outdoor 638-0012

Rear Axle Ass'y
(Superseded to 938-0012A)

$74.99

$

Usually ships in 3-6 days

0

12

White Outdoor 782-0566

Pivot Arm Ass'y
(Superseded to 782-0566B-0637)

$44.99

$

In Stock, only 1 left!

0

13

White Outdoor 682-7526

Trans. Axle Ass'y
(Superseded to 682-7526-0637)

Variations

White Outdoor 682-7526-0637

AXLE CHAIN ASSEMBLY BLACK - POWDER BLACK (0637)

$131.99

$

Usually ships in 3-6 days

0

$131.99

$

Usually ships in 3-6 days

0

14

White Outdoor 682-7528

Chain Cover Ass'y
(Superseded to 682-7528-0637)

Variations

White Outdoor 682-7528-0637

Chain Assembly Cover, Black - POWDER BLACK (0637)

$

$

Not available

$

$

15

White Outdoor 710-0653

Scr. TT 1/4-20 x .375

$4.49

$

In Stock, Qty 13

0

16

White Outdoor 710-0751

Cap Screw HH 1/4-20 x .620

$3.99

$

In Stock, Qty 20+

0

17

White Outdoor 710-0896

Scr. AB 1/4-14 x .825

$4.49

$

In Stock, Qty 20+

0

18

White Outdoor 710-1315

Scr. 3/8-16 x 1.25

$4.49

$

In Stock, only 3 left!

0

19

White Outdoor 711-0835

Clevis Pin .50 Dia. x 4.82 Lg.
(Superseded to 911-0835)

$12.99

$

Usually ships in 3-6 days

0

20

White Outdoor 713-0453

Chain-Endls. #48 .500P x 24L
(Superseded to 913-0453)

$12.99

$

Usually ships in 3-6 days

0

21

White Outdoor 714-0474

Cotter Pin .125 O.D. x .75

$4.99

$

In Stock, Qty 14

0

22

White Outdoor 720-0223

Grip

$14.99

$

In Stock, Qty 6

0

23

White Outdoor 732-0803

Spring Lever
(Superseded to 732-0803A)

$15.99

$

In Stock, Qty 16

0

24

White Outdoor 732-0832

Torsion Spring

$19.99

$

Usually ships in 3-6 days

0

25

White Outdoor 736-0270

Bell Wash. .285 x .75 x .082

$3.99

$

In Stock, Qty 20+

0

26

White Outdoor 736-0369

Fl. Wash. .508 I.D. 1.000 x .

$4.49

$

In Stock, Qty 8

0

27

White Outdoor 738-0529

Nut Shld. .825 Dia. x .165 Lg.
(Superseded to 938-0529)

$11.99

$

In Stock, only 2 left!

0

28

White Outdoor 741-0324

Hx .Flg. Brg. .506 I.D. x .590 L.
(Superseded to 741-0324A)

$7.99

$

In Stock, Qty 5

0

29

White Outdoor 741-0522

Hx .Flg. Brg. .506 I.D. x .715 L.

$

$

Not available

30

White Outdoor 741-0978

Hx . Slv. Brg. .504 I.D. x .830 L.

$4.99

$

In Stock, only 3 left!

0

31

White Outdoor 748-0318

Wheel Rachet
(Superseded to 948-0318)

$10.99

$

In Stock, only 2 left!

0

32

White Outdoor 750-0151

Spa. .550 I.D. x .750 O.D.
(Superseded to 950-0151)

$10.99

$

In Stock, Qty 20+

0

33

White Outdoor 750-0515

Spa. .51 I.D. x .70 O.D. x 38 L.

$4.49

$

In Stock, only 4 left!

0

34

White Outdoor 750-0807

Spa. .385 x .624 x .700

$6.49

$

Usually ships in 3-6 days

0

35

White Outdoor 750-1056

Shld. Spa. .385 I.D. x .715 Lg.
(Superseded to 950-1056)

$7.49

$

Usually ships in 3-6 days

0

36

White Outdoor 782-0568

Brkt. - Ht. Adj. Spring
(Superseded to 782-0568B-0637)

Variations

White Outdoor 782-0568-0637

BRACKET.LIFT ASSY. - POWDER BLACK (0637)

$

$

Not available

$

$

37

White Outdoor 682-3052-0662

Handle Brkt. Ass'y. R.H.

$

$

Not available

38

White Outdoor 682-3053-0662

Handle Brkt. Ass'y. L.H.
(Superseded to 682-3053-0637)

$

$

Not available

39

White Outdoor 710-1348

Scr. AB 1/4-14 x .500

$6.99

$

In Stock, only 3 left!

0

40

White Outdoor 731-1901

Trail Shield
(Superseded to 731-1901A)

$40.99

$

In Stock, only 2 left!

0

41

White Outdoor 732-0842

Trail Shield Wire

$6.49

$

In Stock, Qty 6

0

43

White Outdoor 682-9020-0662

Caster Ass'y R.H
(Superseded to 682-9020A-0662)

$

$

Not available

43

White Outdoor 682-9021-0662

Caster Ass'y L.H.
(Superseded to 682-9021A-0662)

$

$

Not available

44

White Outdoor 682-9024-0662

Brkt. Ass'y, Wheel Caster
(Superseded to 682-9024A-0662)

$81.99

$

Usually ships in 3-6 days

0

45

White Outdoor 710-0260

Carr. Bolt 5/16-18 x .62
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

46

White Outdoor 711-1146

Caster Axle .374 Dia. x 2.50"
(Superseded to 911-1146)

$13.99

$

In Stock, Qty 11

0

47

White Outdoor 736-0232

Wave Wash.

$4.99

$

In Stock, Qty 12

0

48

White Outdoor 731-1887

Hub Cap Whole Gray

$11.99

$

Usually ships in 3-6 days

0

49

White Outdoor 734-1832

Wheel 7 x 2, Caster Gray BB
(Superseded to 734-1857)

$46.99

$

In Stock, Qty 7

0

50

White Outdoor 712-0397

Wing Nut 1/4-20 Thd.
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

51

White Outdoor 734-1837

Wheel 9 x 2 Link Gray, Sleeve
(Superseded to 734-1981A)

$46.99

$

In Stock, Qty 12

0

52

White Outdoor 712-3004A

Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

53

White Outdoor 714-0104

Pin, Cotter .072 x 1.12

$4.49

$

In Stock, Qty 20+

0

54

White Outdoor 736-0264

Fl. Wash. .330 x .830 x .06

$6.99

$

In Stock, only 1 left!

0

55

White Outdoor 10622B

Spring, Ratchet, Plastic

$5.49

$

In Stock, Qty 20+

0

56

White Outdoor 748-0381

Pawl - R.H.

$11.99

$

In Stock, only 1 left!

0

56

White Outdoor 748-0188B

Pawl - L.H.
(Superseded to 948-0188B)

$11.99

$

Usually ships in 3-6 days

0

58

White Outdoor 16855

Ratchet Pawl Plate

$6.49

$

In Stock, Qty 6

0

59

White Outdoor 738-0137A

Shld. Scr. .340 x .285

$10.99

$

In Stock, Qty 10

0

60

White Outdoor 712-0414

Top Lock Tab Weld Nut 1/4-20

$4.49

$

In Stock, only 4 left!

0

60

White Outdoor 712-0414

Top Lock Tab Weld Nut 1/4-20

$4.49

$

In Stock, only 4 left!

0

61

White Outdoor 731-0981A

Hubcap - Gray
(Superseded to 731-0981C)

$10.99

$

Usually ships in 3-6 days

0

62

White Outdoor 710-1237

Screw .620 Hx . Slt. Wsh.

$4.49

$

Usually ships in 3-6 days

0

63

White Outdoor 751B213146

Casing Clamp, Throttle
(Superseded to BS-690798)

$5.49

$

In Stock, only 1 left!

0

64

White Outdoor 710-1256

Scr. Hi-Lo #10 x 1.25

$5.99

$

In Stock, only 3 left!

0

65

White Outdoor 751B281451

Shroud - Gray

$

$

Not available

66

White Outdoor 754-0460

Belt
(Superseded to 954-0460)

$19.99

$

Usually ships in 3-6 days

0

67

White Outdoor 742-0741

21" Mulching Blade
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

68

White Outdoor 753-0609

Blade Adapter Kit

$40.99

$

In Stock, Qty 12

0

69

White Outdoor 736-0524A

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 20+

0

70

White Outdoor 710-1257

Hex Bolt 3/8-24 x 2.5" Lg.

$7.99

$

In Stock, only 2 left!

0

71

Engine

Note: Shown For Reference

$

$

Not available

72

White Outdoor 735-0639

Spark Plug Insulator

$

$

Not available

73

White Outdoor 731-1832

Side Discharge Chute

$

$

Not available

74

White Outdoor 731-1833

Mulch Cover
(Superseded to 931-1833A)

$44.99

$

In Stock, only 1 left!

0

75

White Outdoor 726-0214

Push Cap

$10.99

$

In Stock, only 3 left!

0

76

White Outdoor 732-0306

Compression Spring
(Superseded to 932-0306A)

$8.49

$

In Stock, only 4 left!

0

77

White Outdoor 736-0366

Fl. Wash. 5/8 O.D. x 1" O.D.

$4.49

$

In Stock, only 2 left!

0

78

White Outdoor 736-0931

Fl. Wash. .203 I.D. x .403 O.D.

$4.99

$

In Stock, only 1 left!

0

79

White Outdoor 737-3000

Fitting - Lube
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

80

White Outdoor 741-0685

Flange Bearing

$4.49

$

Usually ships in 3-6 days

0

81

White Outdoor 747-0924

Lock Pin

$20.99

$

In Stock, only 1 left!

0

82

White Outdoor 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

83

White Outdoor 710-0604

Hex Scr. 5/16-18
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0
