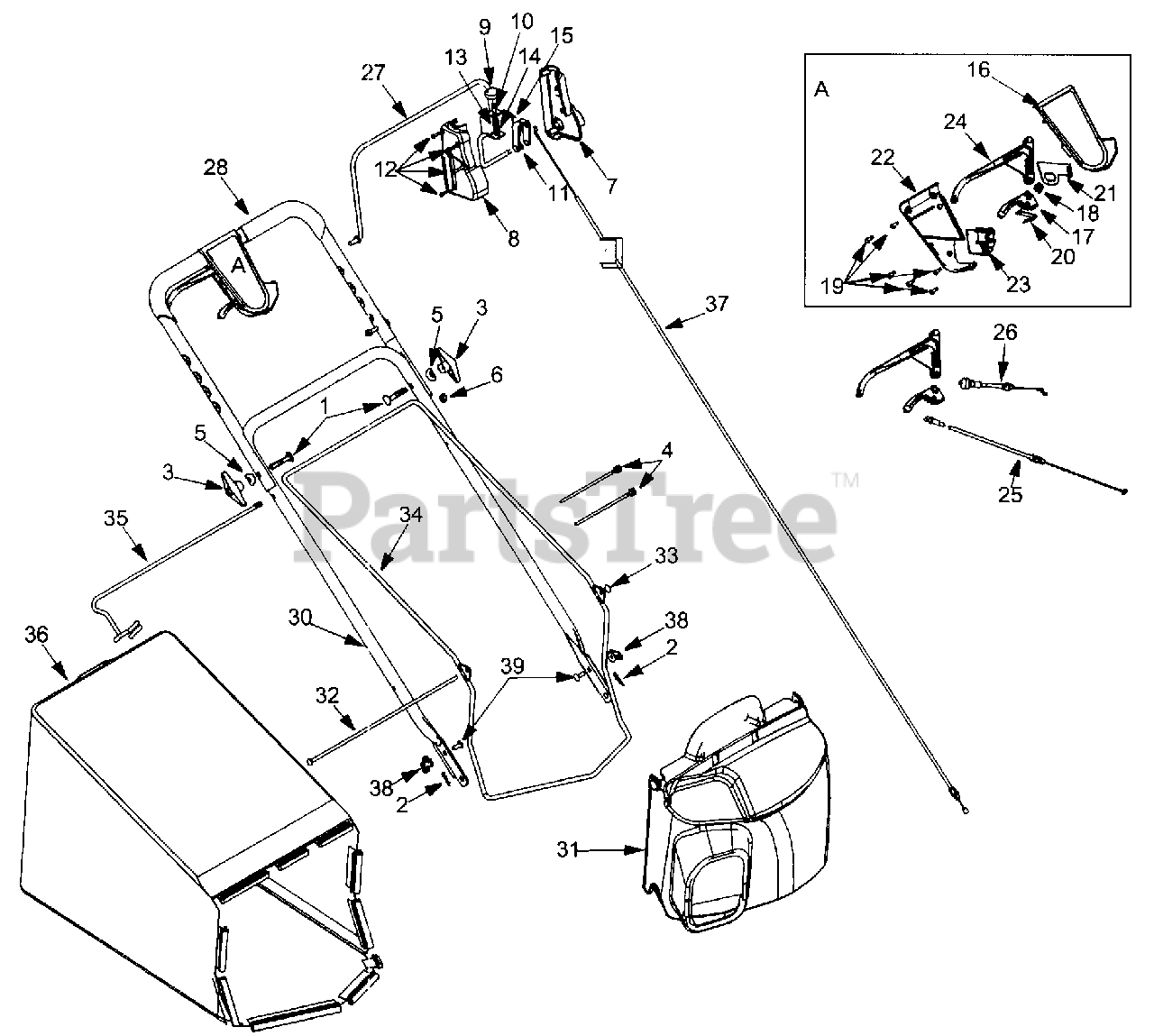

LC-210 SS (12A-979U190) - White Outdoor 21" Walk-Behind Mower (2001) Handle, Control & Bag Parts Diagram

21" Walk-Behind Mower

Handle, Control & Bag Parts Diagram

  • Title

1

White Outdoor 710-1174

Bolt Cur. Carr. 5/16-18 x 2.0

$7.49

$

In Stock, Qty 20+

0

2

White Outdoor 714-0104

Cotter Pin .072 x 1.12 Lg.

$4.49

$

In Stock, Qty 20+

0

3

White Outdoor 720-0241

Knob Ass'y Wing Nut 5/16-18
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

4

White Outdoor 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

5

White Outdoor 736-0451

Wash. Sad. .320 ID x.830 OD

$4.49

$

In Stock, Qty 11

0

6

White Outdoor 712-0429

Hex Nut 5/16

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor 731-2532

Control Cover LH

$

$

Not available

8

White Outdoor 731-2533

Control Cover RH

$

$

Not available

9

White Outdoor 720-0428

Button

$8.99

$

Usually ships in 3-6 days

0

10

White Outdoor 715-0168

Pin

$

$

Not available

11

White Outdoor 782-0156

Lever

$

$

Not available

12

White Outdoor 710-1256

Hi-Low Screw

$5.99

$

In Stock, only 2 left!

0

13

White Outdoor 732-1171

Compression Spring

$

$

Not available

14

White Outdoor 716-0209

Retention Spring

$

$

Not available

15

White Outdoor 732-1172

Torsion Spring

$

$

Not available

16

White Outdoor 731-0904A

Upper Control Housing
(Superseded to 753-0717)

$

$

Not available

17

White Outdoor 731-0924

6-Speed Shift Lever

$

$

Not available

18

White Outdoor 713-0397

Gear Insert
(Superseded to 913-0397)

$5.49

$

In Stock, only 4 left!

0

19

White Outdoor 710-1667A

C-Sunk Tap Screw #10 x .75 L

$4.49

$

In Stock, Qty 13

0

20

White Outdoor 732-0627

Shift Lever Spring
(Superseded to 732-0627A)

$9.49

$

In Stock, only 4 left!

0

21

White Outdoor 16864

6 Speed Rack Cable Brkt.

$11.99

$

Usually ships in 3-6 days

0

22

White Outdoor 731-0905A

Lower Control Housing
(Superseded to 753-0717)

$

$

Not available

23

White Outdoor 731-0906

Cable Mounting Cap
(Superseded to 753-0717)

$

$

Not available

24

White Outdoor 731-0620

Control Lever
(Superseded to 731-0620A)

$15.99

$

In Stock, only 1 left!

0

25

White Outdoor 746-0939

6-Speed Cable
(Superseded to 946-0939A)

$33.99

$

In Stock, only 3 left!

0

26

White Outdoor 746-0711A

Self-Propelled Cable
(Superseded to 946-0711B)

$32.99

$

In Stock, only 1 left!

0

27

White Outdoor 647-0058

Control Handle
(Superseded to 647-0058-0637)

Variations

White Outdoor 647-0058-0637

BAIL ASSY - POWDER BLACK (0637)

$

$

Not available

$

$

28

White Outdoor 720-0294

Foam Grip
(Superseded to 720-0294A)

Note: (2 Reqd.)

$7.49

$

In Stock, Qty 5

0

?29

White Outdoor 749-1405

Upper Handle
(Superseded to 749-1405A-0637)

Variations

White Outdoor 749-1405-0637

HANDLE-UPR SHORT - POWDER BLACK (0637)

$

$

Not available

$

$

30

White Outdoor 749-0907A

Lower Handle
(Superseded to 749-0907B)

Variations

White Outdoor 749-0907A-0637

LOWER HANDLE - POWDER BLACK (0637)

$50.99

$

In Stock, only 1 left!

0

$50.99

$

In Stock, only 1 left!

0

31

White Outdoor 631-0071

Grassbag Cover w/Label

$103.99

$

Usually ships in 3-6 days

0

32

White Outdoor 747-0939

Pivot Rod

$10.99

$

Usually ships in 3-6 days

0

33

White Outdoor 726-0106

Cap Nut

$3.99

$

Usually ships in 3-6 days

0

34

White Outdoor 747-0937

Grassbag Frame
(Superseded to 747-0937-0637)

Variations

White Outdoor 747-0937-0637

Grass Catcher Bag Frame, Upper - POWDER BLACK (0637)

$58.99

$

Usually ships in 3-6 days

0

$58.99

$

Usually ships in 3-6 days

0

35

White Outdoor 747-0940A

Support Rod w/ Rope Guide
(Superseded to 747-0940A-0637)

Variations

White Outdoor 747-0940A-0637

ROD SUPPORT GRASS - POWDER BLACK (0637)

$26.99

$

Usually ships in 3-6 days

0

$26.99

$

Usually ships in 3-6 days

0

36

White Outdoor 664-0112

Grass Bag
(Superseded to 964-0076)

$98.99

$

Usually ships in 3-6 days

0

37

White Outdoor 746-1141

Control Cable 58.25"
(Superseded to 946-1141)

$52.99

$

In Stock, only 3 left!

0

38

White Outdoor 712-0397

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

39

White Outdoor 710-0703

Carriage Bolt 1/4-20

$4.49

$

In Stock, Qty 20+

0
