LC-210 (12C-959I190) - White Outdoor Lawn Boss 21" Walk-Behind Mower (2001) Handle & Controls Parts Diagram

Lawn Boss 21" Walk-Behind Mower

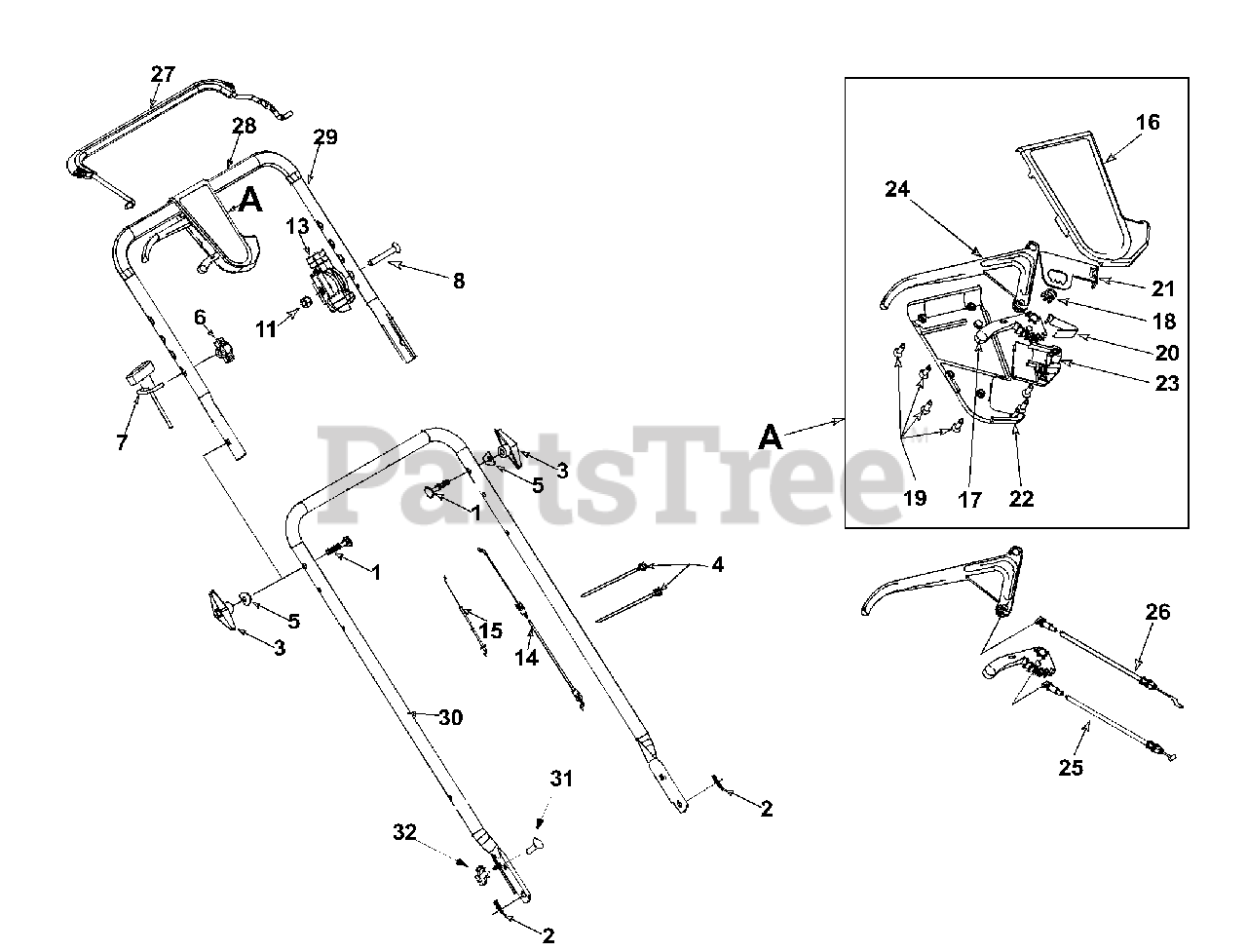

Handle & Controls Parts Diagram

  • Title
1

White Outdoor 710-1174

Bolt Curv. Carr. 5/16-18 x 2.0

$7.49

$

In Stock, Qty 20+

0

2

White Outdoor 714-0104

Cotter Pin .072 x 1.12 Lg.

$4.49

$

In Stock, Qty 20+

0

3

White Outdoor 720-0241

Knob Assembly
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

4

White Outdoor 726-0240

Strap
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

5

White Outdoor 736-0451

Wash. Sad. .320 ID x.830 OD

$4.49

$

Usually ships in 3-6 days

0

6

White Outdoor 720-0279

Knob Handle ERS - 1/4-20

$4.49

$

Usually ships in 3-6 days

0

7

White Outdoor 710-1205

Rope Guide Eyebolt

$3.99

$

In Stock, only 1 left!

0

8

White Outdoor 710-1270

Oval C-Sunk Screw

$4.49

$

Usually ships in 3-6 days

0

11

White Outdoor 712-0324

Nut 1/4-20 Top lock Nut Insert

$3.99

$

In Stock, Qty 17

0

13

White Outdoor 746-0883

Control Housing

$16.99

$

In Stock, only 4 left!

0

14

White Outdoor 746-1131

Control Cable
(Superseded to 946-1131)

$24.99

$

In Stock, only 1 left!

0

15

UNKNOWN

$

$

Not available

16

White Outdoor 731-0904A

Upper Control Housing
(Superseded to 753-0717)

$

$

Not available

17

White Outdoor 731-0924

6 Speed Shift Lever

$

$

Not available

18

White Outdoor 713-0397

Gear Insert
(Superseded to 913-0397)

$5.49

$

In Stock, only 4 left!

0

19

White Outdoor 710-1667A

CSunk Tap Scr #10 x .75 L

$4.49

$

In Stock, Qty 13

0

20

White Outdoor 732-0627

Shift Lever Spring
(Superseded to 732-0627A)

$9.49

$

In Stock, only 4 left!

0

21

White Outdoor 16864

6 Spd. Rack Cable Brkt.

$11.99

$

Usually ships in 3-6 days

0

22

White Outdoor 731-0905A

Lower Control Housing
(Superseded to 753-0717)

$

$

Not available

23

White Outdoor 731-0906

Cable Mounting Cap
(Superseded to 753-0717)

$

$

Not available

24

White Outdoor 731-0620

Control Lever
(Superseded to 731-0620A)

$15.99

$

In Stock, only 1 left!

0

25

White Outdoor 746-0939

6 Speed Cable
(Superseded to 946-0939A)

$33.99

$

In Stock, only 3 left!

0

26

White Outdoor 746-0711A

Control Cable
(Superseded to 946-0711B)

$32.99

$

Usually ships in 3-6 days

0

27

White Outdoor 647-0004

Control Handle
(Superseded to 747-0824B-0637)

$65.99

$

In Stock, only 1 left!

0

28

White Outdoor 720-0294

Foam Grip (2 Reqd.)
(Superseded to 720-0294A)

$7.49

$

In Stock, Qty 5

0

29

White Outdoor 749-0439C

Upper Handle
(Superseded to 749-0439E-0637)

Variations

White Outdoor 749-0439C-0637

Short Upper Handle, Black - POWDER BLACK (0637)

$47.99

$

In Stock, only 1 left!

0

$47.99

$

In Stock, only 1 left!

0

30

White Outdoor 749-0907A

Lower Handle
(Superseded to 749-0907B)

Variations

White Outdoor 749-0907A-0637

LOWER HANDLE - POWDER BLACK (0637)

$50.99

$

In Stock, only 1 left!

0

$50.99

$

In Stock, only 1 left!

0

31

White Outdoor 710-0703

Carriage Bolt

$4.49

$

In Stock, Qty 15

0

32

White Outdoor 712-0397

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0
