LC-210 (12B-959I190) - White Outdoor Lawn Boss 21" Walk-Behind Mower (2000) General Assembly Parts Diagram

Lawn Boss 21" Walk-Behind Mower

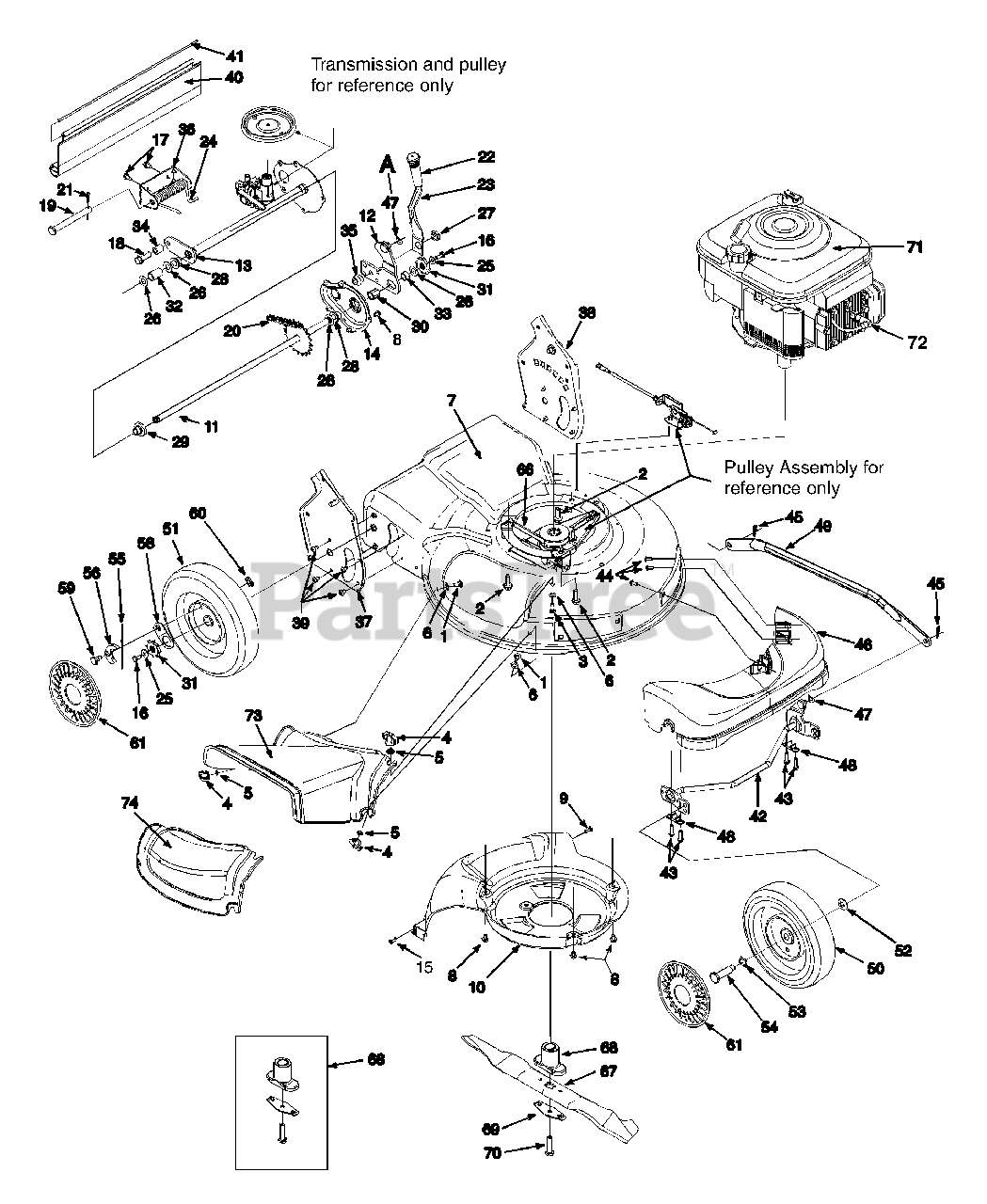

General Assembly Parts Diagram

  • Title

1

White Outdoor 710-0134

Scr. Carr. 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

2

White Outdoor 710-0654A

Scr. TT:3/8-18:1.00

$4.49

$

In Stock, Qty 20+

0

3

White Outdoor 710-0703

Scr. 1/4-20 x .750

$4.49

$

In Stock, Qty 20+

0

4

White Outdoor 712-0397

Wing Nut 1/4-20
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

5

White Outdoor 726-0233

Nut, Push .25 I.D. x .50 O.D.

$4.49

$

In Stock, Qty 20+

0

6

White Outdoor 736-0204

Wash. Fl. .334 I.D.x .62 x.03

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor 782-0046A-0662

Deck - 21"

$

$

Not available

8

White Outdoor 710-0653

Scr. TT. 1/4-20 x .375

$4.49

$

In Stock, Qty 7

0

9

UNKNOWN

$

$

Not available

10

White Outdoor 731-1828

Baffle
(Superseded to 731-08190A)

$37.99

$

In Stock, only 1 left!

0

11

White Outdoor 638-0012

Rear Axle Ass'y
(Superseded to 938-0012A)

$74.99

$

Usually ships in 3-6 days

0

12

White Outdoor 682-0531

Pivot Arm Ass'y
(Superseded to 682-0531-0637)

Variations

White Outdoor 682-0531-0637

Pivot Arm, Rear - POWDER BLACK (0637)

$30.99

$

Usually ships in 3-6 days

0

$30.99

$

Usually ships in 3-6 days

0

13

White Outdoor 682-7526

Trans. Axle Ass'y
(Superseded to 682-7526-0637)

Variations

White Outdoor 682-7526-0637

AXLE CHAIN ASSEMBLY BLACK - POWDER BLACK (0637)

$131.99

$

Usually ships in 3-6 days

0

$131.99

$

Usually ships in 3-6 days

0

14

White Outdoor 682-7528

Chain Cover Ass'y
(Superseded to 682-7528-0637)

Variations

White Outdoor 682-7528-0637

Chain Assembly Cover, Black - POWDER BLACK (0637)

$

$

Not available

$

$

15

White Outdoor 710-0969

Scr., Truss Machine TT 1.0"

$4.49

$

In Stock, only 2 left!

0

16

White Outdoor 710-0751

Cap Screw HH 1/4-20 x .620

$3.99

$

In Stock, Qty 20+

0

17

White Outdoor 710-0896

Scr., AB 1/4-14 x .825

$4.49

$

In Stock, Qty 20+

0

18

White Outdoor 710-1315

Scr., 3/8 116 x .25

$4.49

$

In Stock, Qty 20+

0

19

White Outdoor 711-0835

Clevis Pin .50 Dia. x 4.82 Lg.
(Superseded to 911-0835)

$12.99

$

In Stock, only 3 left!

0

20

White Outdoor 713-0453

Chain-Endls. #48 .500P x 24L
(Superseded to 913-0453)

$12.99

$

In Stock, only 2 left!

0

21

White Outdoor 714-0474

Cotter Pin .1250.D. x .75

$4.99

$

In Stock, Qty 13

0

22

White Outdoor 720-0223

Grip

$14.99

$

In Stock, Qty 7

0

23

White Outdoor 732-0803A

Spring Lever

$15.99

$

In Stock, Qty 16

0

24

White Outdoor 732-0832

Torsion Spring

$19.99

$

Usually ships in 3-6 days

0

25

White Outdoor 736-0270

Bell Wash. .285 x .75 x .082

$3.99

$

In Stock, Qty 20+

0

26

White Outdoor 736-0369

Fl. Wash. .508 I.D. 1.000 x.020

$4.49

$

In Stock, Qty 20+

0

27

White Outdoor 738-0529

Shoulder Nut .825 Dia. x .165
(Superseded to 938-0529)

$11.99

$

In Stock, only 2 left!

0

28

White Outdoor 741-0324

Hx.Flg. Brg. .506 I.D. x .590 L.
(Superseded to 741-0324A)

$7.99

$

In Stock, Qty 5

0

29

White Outdoor 741-0522

Hx.Flg. Brg. .506 I.D. x.715 L.

$

$

Not available

30

White Outdoor 741-0978

Hx. Slv. Brg. .504 I.D. x .830 L.

$4.99

$

In Stock, only 3 left!

0

31

White Outdoor 748-0318

Wheel Rachet
(Superseded to 948-0318)

$10.99

$

In Stock, Qty 15

0

32

White Outdoor 750-0151

Spacer .550 I.D. x .750 O.D.
(Superseded to 950-0151)

$10.99

$

In Stock, Qty 20+

0

33

White Outdoor 750-0515

Spacer .51 .D. x .70 O.D. x 38

$4.49

$

In Stock, only 4 left!

0

34

White Outdoor 750-0807

Spacer .385 x .624 x .700

$6.49

$

Usually ships in 3-6 days

0

35

White Outdoor 750-1056

Shld. Spacer .385 I.D. X .715
(Superseded to 950-1056)

$7.49

$

Usually ships in 3-6 days

0

36

White Outdoor 782-0568

Brkt. - Ht. Adj. Spring
(Superseded to 782-0568B-0637)

Variations

White Outdoor 782-0568-0637

BRACKET.LIFT ASSY. - POWDER BLACK (0637)

$

$

Not available

$

$

37

White Outdoor 682-3052-0662

Handle Brkt. Assembly R.H.

$

$

Not available

38

White Outdoor 682-3053-0662

Handle Brkt. Assembly L.H.
(Superseded to 682-3053-0637)

$

$

Not available

39

White Outdoor 710-1348

Scr. AB 1/4-14 x .500

$6.99

$

In Stock, only 3 left!

0

40

White Outdoor 731-1901

Trail Shield
(Superseded to 731-1901A)

$40.99

$

In Stock, only 2 left!

0

41

White Outdoor 732-0842

Trail Shield Wire

$6.49

$

In Stock, Qty 6

0

42

611-0064-0662

Fr. Axle Ass'y.

$

$

Not available

43

White Outdoor 710-1241

Hx Scr. Wash Hd. Hi. - Lo.

$6.99

$

In Stock, Qty 16

0

44

White Outdoor 710-1242

Scr. Torx, Truss Hi. - Lo.

$4.99

$

In Stock, Qty 19

0

45

White Outdoor 714-0104

Cotter Pin .072 x 1.12 Lg.

$4.49

$

In Stock, Qty 20+

0

46

White Outdoor 731-1834

Fr. Axle Cover

$117.99

$

Usually ships in 3-6 days

0

47

White Outdoor 736-0286

Bowed Washer
(Superseded to 936-0286)

$6.99

$

In Stock, only 2 left!

0

48

White Outdoor 741-0492A

Bush. Block .505 Dia. x .62

$6.49

$

In Stock, Qty 9

0

49

782-0565-0662

Control Arm

$

$

Not available

50

White Outdoor 734-1978

Wheel 8 x 2 Link Gray

$48.99

$

Usually ships in 3-6 days

0

51

White Outdoor 734-1981

Wheel 9 x 2 Link Gray, Sleeve
(Superseded to 734-1981A)

$46.99

$

In Stock, Qty 12

0

52

White Outdoor 736-0105

Spr. Wash. .401 x .870 x .063

$4.49

$

In Stock, Qty 20+

0

53

White Outdoor 736-0504

Wave Wash .510 x .750 x .017
(Superseded to 936-0504)

$4.49

$

In Stock, Qty 9

0

54

White Outdoor 738-0102

Shldr Scr .498 x 1.445 x 3/8-16

$9.99

$

In Stock, Qty 10

0

55

White Outdoor 10622B

Spring, Ratchet, Plastic

$5.49

$

In Stock, Qty 20+

0

56

White Outdoor 748-0381

Pawl - R.H.

$11.99

$

Usually ships in 3-6 days

0

?57

White Outdoor 748-0188B

Pawl - L.H.
(Superseded to 948-0188B)

Note: (Not Illustrated)

$

$

Not available

58

White Outdoor 16855

Ratchet Pawl Plate

$6.49

$

In Stock, Qty 7

0

59

White Outdoor 738-0137A

Hubcap - Gray

$10.99

$

In Stock, Qty 10

0

60

White Outdoor 712-0414

Top Lock Tab Weld Nut 1/4-20

$4.49

$

In Stock, Qty 20+

0

61

White Outdoor 731-0981A

Hubcap - Gray
(Superseded to 731-0981C)

$10.99

$

In Stock, only 2 left!

0

66

White Outdoor 754-0460

Belt
(Superseded to 954-0460)

$19.99

$

In Stock, Qty 20+

0

67

White Outdoor 742-0741

21" Mulching Blade
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

68

White Outdoor 753-0609

Blade Adapter Kit

$40.99

$

In Stock, Qty 12

0

69

White Outdoor 736-0524A

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 14

0

70

White Outdoor 710-1257

Hex Bolt 3/8-24 x 2.5" Lg.

$7.99

$

In Stock, only 1 left!

0

71

Engine

$

$

Not available

72

White Outdoor 735-0639

Spark Plug Insulator

$

$

Not available

73

White Outdoor 731-1832

Side Discharge Chute

$

$

Not available

74

White Outdoor 731-1833

Mulch Cover
(Superseded to 931-1833A)

$44.99

$

In Stock, only 2 left!

0

?75

White Outdoor 710-0604

Scr. Hex. 5/15-18
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

?76

White Outdoor 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0
