LC 153 S - Husqvarna Walk-Behind Mower (Original) CHASSIS Parts Diagram

Walk-Behind Mower

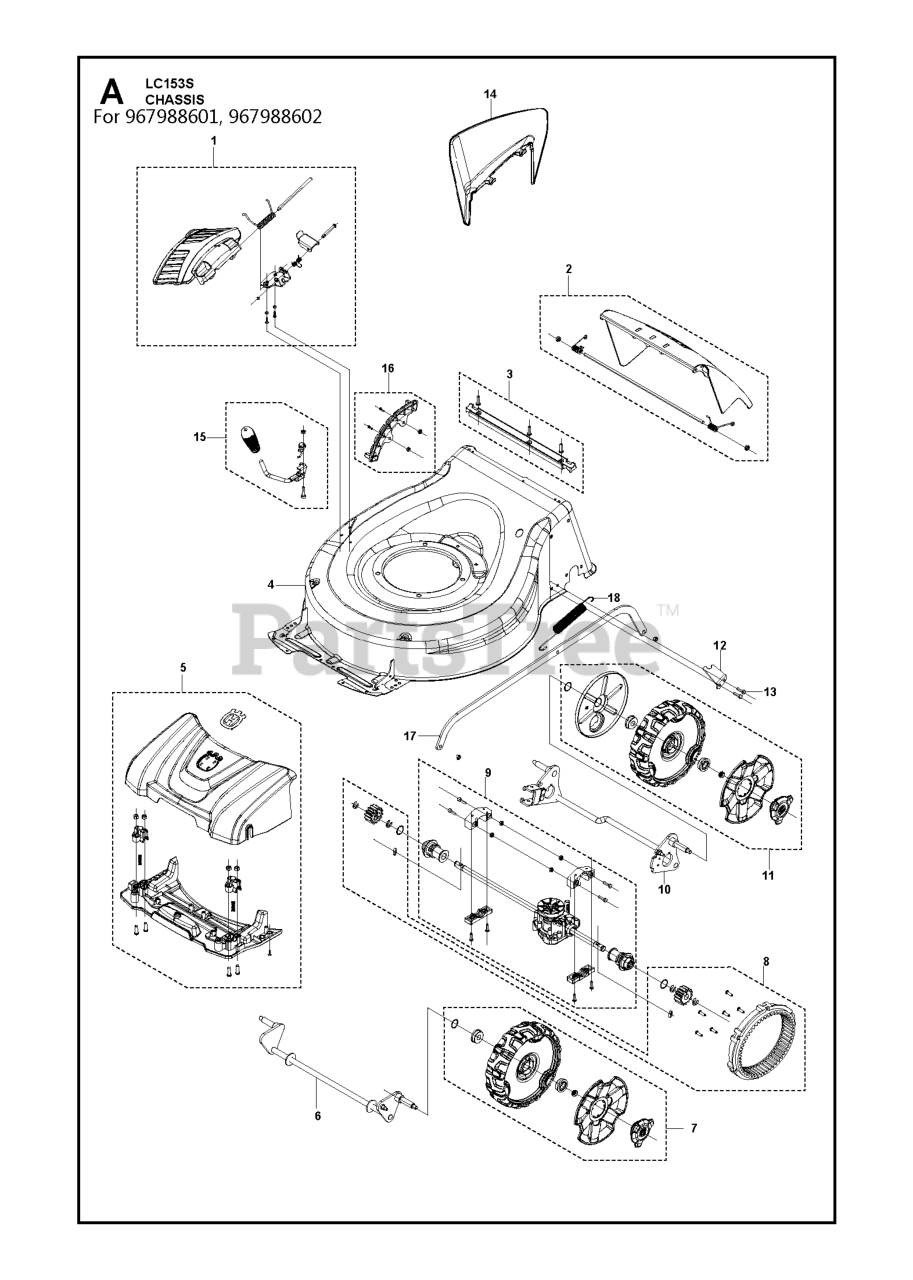

CHASSIS Parts Diagram

  • Title

15

Husqvarna 599139101

NEEDS DESCRIPTION

Note: HEIGHT ADJUSTMENT HANDLE

$

$

Currently unavailable

12

Husqvarna 598860801

NEEDS DESCRIPTION

Note: LOCATION PLATE

$

$

Currently unavailable

18

Husqvarna 599138901

NEEDS DESCRIPTION

Note: tension spring of connecting rod

$

$

Currently unavailable

1

Husqvarna 598684111

NEEDS DESCRIPTION

Note: SIDE DISCHARGE PLATE

$

$

Currently unavailable

9

Husqvarna 598513701

Transmissions

$113.99

$

In Stock, only 1 left!

0

8

Husqvarna 598684117

NEEDS DESCRIPTION

Note: WHEEL DRIVE

$

$

Currently unavailable

2

Husqvarna 598684119

NEEDS DESCRIPTION

Note: REAR DOOR

$

$

Currently unavailable

7

Husqvarna 598512901

Wheels

Note: FRONT WHEEL

$34.99

$

Usually ships in 3-10 days

0

6

Husqvarna 598818701

NEEDS DESCRIPTION

Note: WHEEL AXLE

$

$

Currently unavailable

16

Husqvarna 599139001

NEEDS DESCRIPTION

Note: HEIGHT ADJUSTMENT PLATE

$

$

Currently unavailable

10

Husqvarna 598684109

NEEDS DESCRIPTION

Note: WHEEL AXLE

$

$

Currently unavailable

13

Husqvarna 598861301

NEEDS DESCRIPTION

Note: Hexagonal flange bolt

$

$

Currently unavailable

17

Husqvarna 599138801

NEEDS DESCRIPTION

Note: connecting rod

$

$

Currently unavailable

11

Husqvarna 598684103

NEEDS DESCRIPTION

Note: REAR WHEEL W/O COG WHEEL (POS. 8)

$

$

Currently unavailable

4

Husqvarna 598861201

NEEDS DESCRIPTION

Note: chassis

$

$

Currently unavailable

14

Husqvarna 598819001

NEEDS DESCRIPTION

Note: SIDE DISCHARGE PROTECTIVE COVER

$

$

Currently unavailable

5

Husqvarna 598684122

NEEDS DESCRIPTION

Note: FRONT COVER

$

$

Currently unavailable

3

Husqvarna 598684128

Seals

Note: SEALING PLATE

$5.99

$

Usually ships in 3-10 days

0
