LC 153 S (961410298-01) - Husqvarna Walk-Behind Mower (2015-11) DRIVE Parts Diagram

Walk-Behind Mower

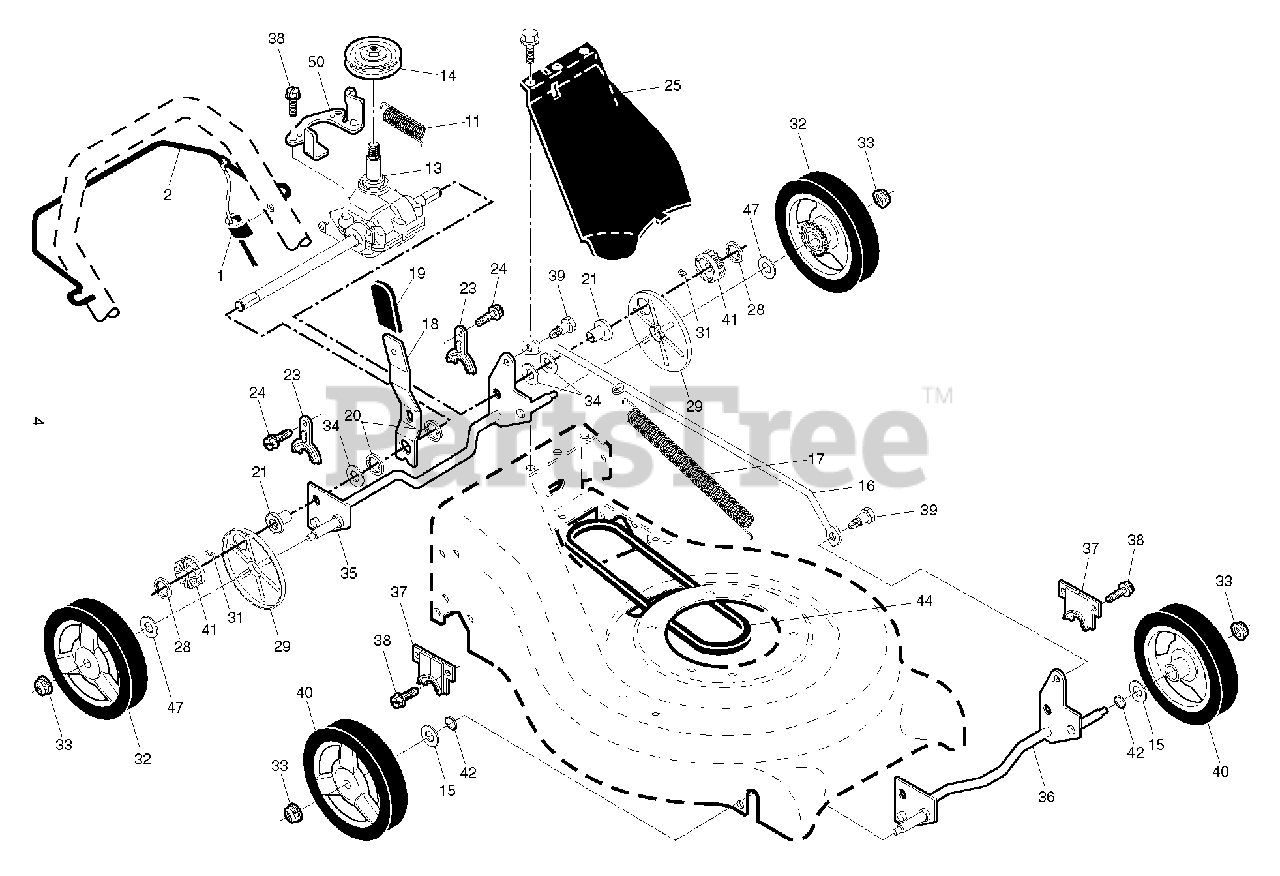

DRIVE Parts Diagram

  • Title

1

Husqvarna 585040801

CABLE.DR.21.RWGD.S.SPEED.MCCL

Note: . 9

$40.99

$

In Stock, only 2 left!

0

2

Husqvarna 585123102

BAIL.CURVED.UNDER.BAIL.BLACK

$14.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532406558

SPRING

$8.99

$

In Stock, Qty 7

0

13

Husqvarna 532419213

TRANSMISSION.21.RWGD

$

$

Not available

14

Husqvarna 532405703

PULLEY.RGD.SS.3.25OP

$13.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532088348

WASHER PM

$7.49

$

In Stock, Qty 6

0

16

Husqvarna 532407147

ROD.CONNECTING.SPT.BLACK

$

$

Not available

17

Husqvarna 532409616

SPRING EXTENSION

$7.49

$

In Stock, only 2 left!

0

18

Husqvarna 532418866

SPRING.SELECTOR.
(Superseded to 532418835)

$7.49

$

In Stock, only 1 left!

0

19

Husqvarna 532190069

KNOB.EXT.ERGO.BLACK

$7.49

$

Usually ships in 3-10 days

0

20

Husqvarna 812000022

E-RING

$4.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532404838

BEARING.ASM.RGD.AUTO.SP

$

$

Not available

23

Husqvarna 532164555

BRACKET
(Superseded to 532161118)

$4.99

$

In Stock, only 1 left!

0

24

Husqvarna 817060410

SCREW 14-20 X 5/8

$7.49

$

Usually ships in 3-10 days

0

25

Husqvarna 532432672

COVER.DR.ASM.199775X418.CE
(Superseded to 532400783)

$12.99

$

Usually ships in 3-10 days

0

28

Husqvarna 812000058

E-RING 7/16 RE

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 581840401

COVER.DUST.WHEEL.INNER.WALK

$6.99

$

In Stock, Qty 5

0

31

Husqvarna 532404845

PAWL, DRIVE

$5.99

$

In Stock, Qty 5

0

32

Husqvarna 581685101

WHEEL.8X1.75.3SPK.RAD3.GREY

$28.99

$

In Stock, only 2 left!

0

33

Husqvarna 532409148

NUT.HEX.FLANGE.3/8-16.LO(3 2)
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

34

Husqvarna 532851226

WASHER

$4.99

$

In Stock, only 1 left!

0

35

Husqvarna 532410922

SHAFT ASSY REAR
(Superseded to 532403102)

$34.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532410933

SHAFT ASSY, FRONT
(Superseded to 532407175)

$27.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532161463

RETAINER.FRONT.SHAFT

$

$

Not available

38

Husqvarna 532163409

SCREW

$7.49

$

In Stock, Qty 6

0

39

Husqvarna 532407059

SHOULDER BOLT SEMI GIMLET PT.

$6.49

$

In Stock, only 1 left!

0

40

Husqvarna 532410831

WHEEL & TIRES ASSY, FRONT
(Superseded to 532401273)

$37.99

$

In Stock, only 2 left!

0

41

Husqvarna 532404835

PINIION.14.TOOTH.RGD

$6.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532197480

O-RING..070X.487.NEOPRENE

$7.49

$

Usually ships in 3-10 days

0

44

Husqvarna 580364604

BELT.DRIVE.RWD+.SS.ZINC DUST
(Superseded to 580364611)

$13.99

$

In Stock, Qty 9

0

47

Husqvarna 532067725

WASHER FLUT

$7.49

$

In Stock, Qty 20+

0

50

Husqvarna 532413722

BRACKET.BELT.KEEPE/AUT*SUBS/2*
(Superseded to 583742001)

$7.99

$

Usually ships in 3-10 days

0
