LC 153 P (967988501) - Husqvarna Walk-Behind Mower (2019-11) CHASSIS Parts Diagram

Walk-Behind Mower

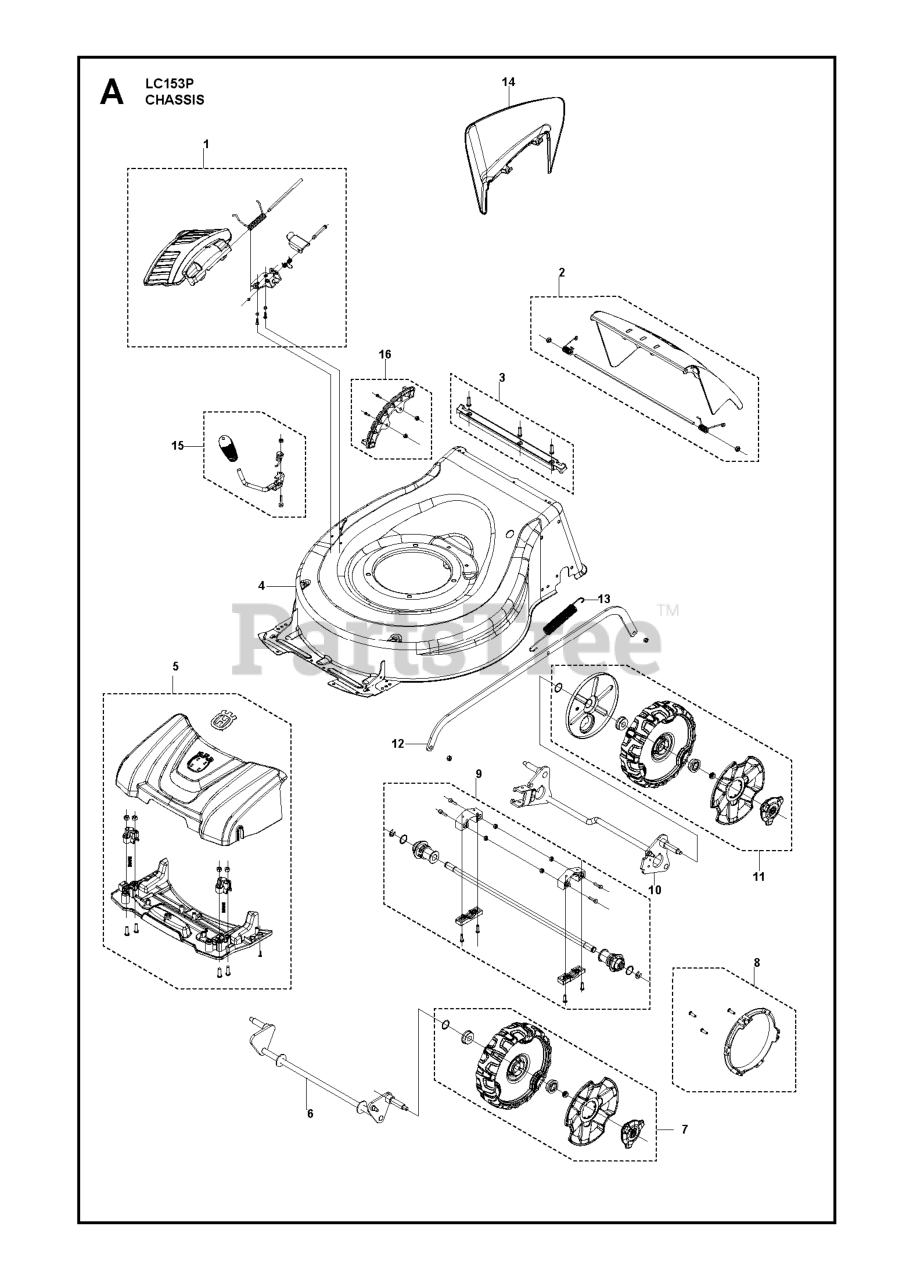

CHASSIS Parts Diagram

  • Title

13

Husqvarna 599138901

NEEDS DESCRIPTION

Note: tension spring of connecting rod

$

$

Currently unavailable

5

Husqvarna 598684122

NEEDS DESCRIPTION

Note: FRONT COVER

$

$

Currently unavailable

15

Husqvarna 599139101

NEEDS DESCRIPTION

Note: HEIGHT ADJUSTMENT HANDLE

$

$

Currently unavailable

12

Husqvarna 599138801

NEEDS DESCRIPTION

Note: connecting rod

$

$

Currently unavailable

1

Husqvarna 598684111

NEEDS DESCRIPTION

Note: SIDE DISCHARGE PLATE

$

$

Currently unavailable

3

Husqvarna 598684128

Seals

Note: SEALING PLATE

$5.99

$

Usually ships in 3-10 days

0

4

Husqvarna 598861201

NEEDS DESCRIPTION

Note: chassis

$

$

Currently unavailable

11

Husqvarna 598684103

NEEDS DESCRIPTION

Note: FRONT WHEEL

$

$

Currently unavailable

8

Husqvarna 598721701

NEEDS DESCRIPTION

Note: DUST-PROOF RING

$

$

Currently unavailable

10

Husqvarna 598684109

NEEDS DESCRIPTION

Note: WHEEL AXLE

$

$

Currently unavailable

7

Husqvarna 598512901

Wheels

Note: FRONT WHEEL

$34.99

$

Usually ships in 3-10 days

0

16

Husqvarna 599139001

NEEDS DESCRIPTION

Note: HEIGHT ADJUSTMENT PLATE

$

$

Currently unavailable

2

Husqvarna 598684119

NEEDS DESCRIPTION

Note: REAR DOOR

$

$

Currently unavailable

9

Husqvarna 598513301

Axles

Note: REAR SHAFT

$28.99

$

Usually ships in 3-10 days

0

6

Husqvarna 598818701

NEEDS DESCRIPTION

Note: WHEEL AXLE

$

$

Currently unavailable

14

Husqvarna 598819001

NEEDS DESCRIPTION

Note: SIDE DISCHARGE PROTECTIVE COVER

$

$

Currently unavailable
