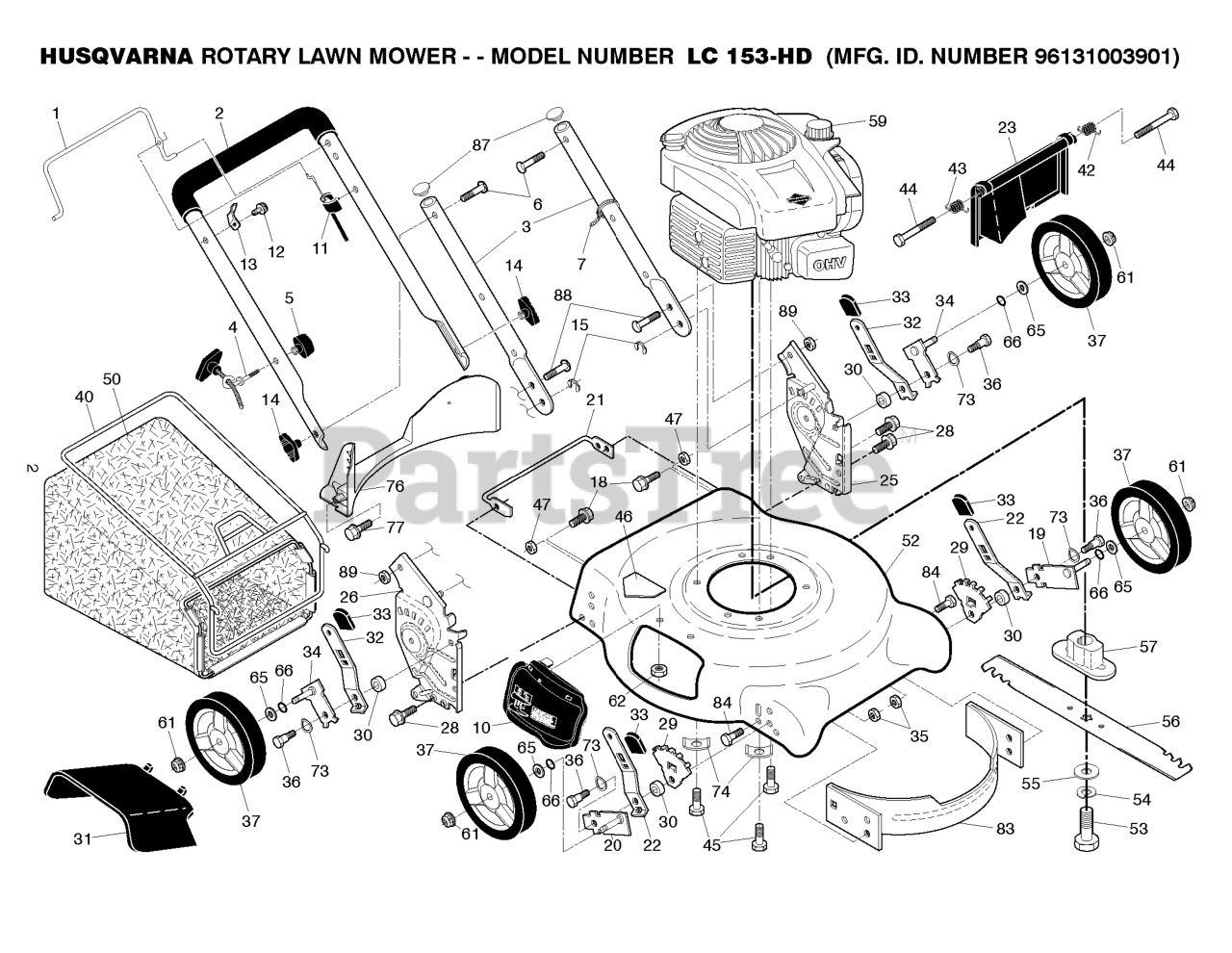

LC 153 HD (961310039-01) - Husqvarna Walk-Behind Mower (2019-11) FRAME & ENGINE Parts Diagram

Walk-Behind Mower

FRAME & ENGINE Parts Diagram

  • Title

35

Husqvarna 532426589

NUT.FLANGE.HEX.5/16X18.BLACK
(Superseded to 585802801)

$5.99

$

In Stock, only 2 left!

0

84

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 12

0

1

Husqvarna 532197203

CONTROL BAR
(Superseded to 532194176)

$

$

Not available

Husqvarna 532182191

DECAL.INTERN.4.SYMBOL.CURVED

Note: NOT SHOWN

$3.49

$

Usually ships in 3-10 days

0

22

Husqvarna 532406428

SELECTOR SPRING, FRONT
(Superseded to 532401621)

$5.99

$

In Stock, only 2 left!

0

52

Husqvarna 581708322

HOUSING.21MC.DOME.ORANGE.CE

$

$

Not available

30

Husqvarna 532401629

SPACER.HEIGHT.ADJUSTER

$6.49

$

In Stock, only 4 left!

0

26

Husqvarna 581714603

BRACKET.ASM.HAND.LW.21.RT.GREY

Note: RT

$14.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532191574

BOLT, HANDLE 5/16-18X1.75

$6.99

$

In Stock, only 2 left!

0

4

Husqvarna 581902101

GUIDE.ROPE.BLK.ZINC.CHROM

$

$

Not available

56

Husqvarna 532199377

BLADE.21.PUSH

$27.99

$

In Stock, only 2 left!

0

19

Husqvarna 532406689

AXLE ARM ASSY FRONT LH
(Superseded to 532401174)

Note: FRONT LT

$

$

Not available

83

Husqvarna 532428501

BAFFLE.FRONT.21.DOME.US

$20.99

$

In Stock, Qty 5

0

89

Husqvarna 873970500

LOCKNUT-FLANGE 5/16-18
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532410890

ARM.ASM.AXLE.REAR.5/9.POS.BZP

$7.49

$

In Stock, only 4 left!

0

76

Husqvarna 589416804

BAFFLE.REAR.21DOM.REGRND.NATUR
(Superseded to 589416801)

$4.99

$

Usually ships in 3-10 days

0

44

Husqvarna 532184193

BOLT

$

$

Not available

Husqvarna 581276301

BAG.OF.PARTS.21 DOME.PUSH

Note: NOT SHOWN

$3.49

$

Usually ships in 3-10 days

0

29

Husqvarna 532410594

WHEEL ADJ BRACKET FRONT
(Superseded to 532407494)

$4.99

$

In Stock, only 2 left!

0

62

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

10

Husqvarna 593241103

NEEDS DESCRIPTION

$

$

Currently unavailable

13

Husqvarna 532430034

BRACKET.UPSTOP.RT

$6.99

$

In Stock, only 3 left!

0

55

Husqvarna 532851074

WASHER,HARDEN

$4.99

$

In Stock, only 2 left!

0

5

Husqvarna 581912601

T-KNOB.NEW ROPE GUIDE

$4.99

$

In Stock, only 2 left!

0

37

Husqvarna 532410831

WHEEL & TIRES ASSY, FRONT
(Superseded to 532401273)

$37.99

$

In Stock, only 2 left!

0

11

Husqvarna 532440934

CABLE.MZR.22.2012

$17.99

$

In Stock, only 4 left!

0

45

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$7.49

$

Usually ships in 3-10 days

0

14

Husqvarna 532191938

KNOB, DEFLECTOR
(Superseded to 532189713)

$9.49

$

In Stock, Qty 13

0

28

Husqvarna 817060410

SCREW 14-20 X 5/8

$7.49

$

Usually ships in 3-10 days

0

21

Husqvarna 532436119

FOOT.GUARD.21.DOM/FGD.CE.10

$15.99

$

Usually ships in 3-10 days

0

3

Husqvarna 580638603

HANDLE.LOWER.DOME.BT.GREY

$

$

Not available

2

Husqvarna 586737602

HANDLE.UP.ASM.DST.ECON.498.GRP

$

$

Not available

53

Husqvarna 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

77

Husqvarna 817411312

SCREW.HX.13X.750

$7.49

$

In Stock, Qty 20+

0

43

Husqvarna 532405423

SPRING.RH.22.REAR.DOOR.EZ.

Note: RT

$4.99

$

In Stock, only 3 left!

0

25

Husqvarna 581714503

BRACKET.ASM.HAND.LW.21.LT.GREY

Note: LT

$

$

Not available

88

Husqvarna 586212501

BOLT.CARRIAGE.LN.5/16-18X.5/8

$4.99

$

In Stock, Qty 8

0

87

Husqvarna 532437516

PLUG.PLASTIC.7/8".14-20.GAUGE

$4.99

$

Usually ships in 3-10 days

0

73

Husqvarna 532401630

WASHER.CURVED.CYLINDRICAL

$4.99

$

In Stock, only 3 left!

0

66

Husqvarna 532197480

O-RING..070X.487.NEOPRENE

$7.49

$

Usually ships in 3-10 days

0

31

Husqvarna 589482401

DEFLECTOR.CLIPPING.21.GREY
(Superseded to 589482402)

$10.99

$

In Stock, only 1 left!

0

47

Husqvarna 817060410

SCREW 14-20 X 5/8

$7.49

$

Usually ships in 3-10 days

0

59

000000000

Note: B&S 93J02-0090-H1 FOR SERVICE & PARTS 1-800-233-3723

$

$

Not available

40

Husqvarna 532411949

FRAME.BAG.21.REAR.DOMED.PUSH

$

$

Not available

32

Husqvarna 532410888

SPRING.SELECTOR.21RD.HTTRT.BZP
(Superseded to 532401623)

$4.99

$

Usually ships in 3-10 days

0

74

Husqvarna 532125078

WASHER.ENGINE.BZP

$5.99

$

Usually ships in 3-10 days

0

54

Husqvarna 532850263

LOCKWASHER
(Superseded to 810040600)

$4.99

$

In Stock, Qty 15

0

15

Husqvarna 812000036

KLIP RING TI

$6.49

$

In Stock, only 1 left!

0

33

Husqvarna 532087877

KNOB

$6.49

$

In Stock, only 1 left!

0

42

Husqvarna 532405421

SPRING.LH.22.REAR.DOOR.EZ.EMPT

Note: LT

$4.99

$

In Stock, only 3 left!

0

61

Husqvarna 532409148

NUT.HEX.FLANGE.3/8-16.LO(3 2)
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

50

Husqvarna 581002112

GBAG.2323029ER.HU.VENT.GRY.SIL
(Superseded to 581002101)

$93.99

$

In Stock, Qty 20+

0

65

Husqvarna 532088348

WASHER.FLAT.1/2

$7.49

$

In Stock, Qty 6

0

20

Husqvarna 532406690

AXLE ARM ASSY FRONT RH
(Superseded to 532401175)

Note: RIGHT LT

$6.99

$

In Stock, only 3 left!

0

23

Husqvarna 581425601

DOOR.REAR.21.DOMED.498
(Superseded to 532401814)

$13.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532178848

SCREW

$7.49

$

In Stock, Qty 20+

0

18

Husqvarna 817600406

SCREW 1/4X20

$6.49

$

Usually ships in 3-10 days

0

36

Husqvarna 532401638

SHOULDER BOLT 5/16-18
(Superseded to 596203801)

$4.99

$

In Stock, Qty 8

0

7

Husqvarna 532066426

TIE GUIDE
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

46

Husqvarna 532182166

DECAL.INTERNATIONL.CUTFINGER
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

57

Husqvarna 581547901

ADAPTOR.BLADE.7/8

$17.99

$

In Stock, Qty 20+
