LC 153 (961310037-04) - Husqvarna Walk-Behind Mower (2018-11) FRAME & ENGINE Parts Diagram

Walk-Behind Mower

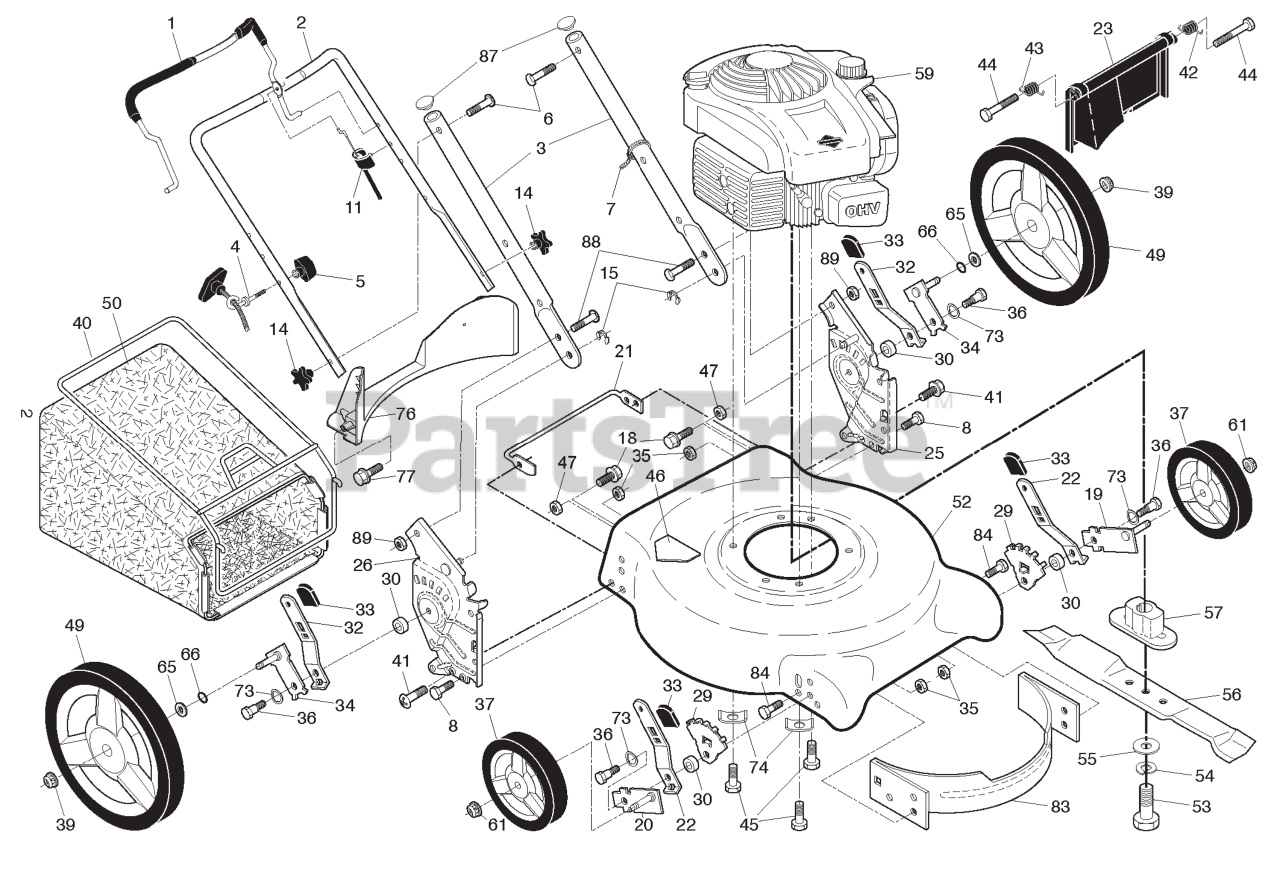

FRAME & ENGINE Parts Diagram

  • Title

57

Husqvarna 581547901

ADAPTOR.BLADE.7/8

$17.99

$

In Stock, Qty 20+

0

6

Husqvarna 532191574

BOLT, HANDLE 5/16-18X1.75

$6.99

$

In Stock, only 2 left!

0

14

Husqvarna 532182398

KNOB.HANDLE.PLASTIC.STAR.BLACK

$7.49

$

In Stock, only 3 left!

0

55

Husqvarna 532851074

WASHER,HARDEN

$4.99

$

In Stock, only 2 left!

0

40

Husqvarna 532411949

FRAME.BAG.21.REAR.DOMED.PUSH

$

$

Not available

89

Husqvarna 873970500

LOCKNUT-FLANGE 5/16-18
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

59

000000000

Note: B&S 093J02-0090-H05 FOR SERVICE & PARTS 1-800-233-3723

$

$

Not available

Husqvarna 532182191

DECAL.INTERN.4.SYMBOL.CURVED

Note: NOT SHOWN

$3.49

$

Usually ships in 3-10 days

0

47

Husqvarna 873751153

$

$

Not available

7

Husqvarna 532066426

TIE GUIDE
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

15

Husqvarna 532051793

HAIRPIN COTTER

Note: KLIP RETAINER

$7.49

$

Usually ships in 3-10 days

0

50

Husqvarna 581002104

GBAG.24710090.GENERIC H-GRY498
(Superseded to 581002101)

$93.99

$

In Stock, Qty 20+

0

74

Husqvarna 532125078

WASHER.ENGINE.BZP

$5.99

$

Usually ships in 3-10 days

0

23

Husqvarna 581425601

DOOR.REAR.21.DOMED.498
(Superseded to 532401814)

$13.99

$

Usually ships in 3-10 days

0

4

Husqvarna 581902101

GUIDE.ROPE.BLK.ZINC.CHROM

$

$

Not available

45

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$7.49

$

Usually ships in 3-10 days

0

39

Husqvarna 532409149

NUT.HEX.FLANGE.3/8-16.LOCKNUT

$4.99

$

In Stock, Qty 20+

0

3

Husqvarna 593270405

NEEDS DESCRIPTION

$

$

Currently unavailable

26

Husqvarna 588912403

BRACKET.ASM.HAND.HW.21.RT.498

Note: RH

$7.99

$

Usually ships in 3-10 days

0

73

Husqvarna 532401630

WASHER.CURVED.CYLINDRICAL

$4.99

$

In Stock, only 3 left!

0

33

Husqvarna 532701037

SELECTOR KNOB

$5.99

$

In Stock, only 4 left!

0

54

Husqvarna 532850263

LOCKWASHER
(Superseded to 810040600)

$4.99

$

In Stock, Qty 15

0

30

Husqvarna 532401629

SPACER.HEIGHT.ADJUSTER

$6.49

$

In Stock, only 4 left!

0

36

Husqvarna 532401638

SHOULDER BOLT 5/16-18
(Superseded to 596203801)

$4.99

$

In Stock, Qty 8

0

1

Husqvarna 587689302

BAIL.OM.ERGO.BENT.MZR.ORAN.668

$18.99

$

Usually ships in 3-10 days

0

52

Husqvarna 532441982

KIT.HSG.21RD.DOME.ORG.CE
(Superseded to 583561901)

$113.99

$

Usually ships in 3-10 days

0

88

Husqvarna 586212501

BOLT.CARRIAGE.LN.5/16-18X.5/8

$4.99

$

In Stock, Qty 8

0

43

Husqvarna 532405423

SPRING.RH.22.REAR.DOOR.EZ.

Note: RH

$4.99

$

In Stock, only 3 left!

0

65

Husqvarna 532088348

WASHER.FLAT.1/2

$7.49

$

In Stock, Qty 6

0

49

Husqvarna 588268602

WHEEL.11X1.75.H3SPK.RAD3.BB1

$26.99

$

In Stock, only 2 left!

0

11

Husqvarna 532408047

CONTROL.ZONE.ASM

$17.99

$

In Stock, only 2 left!

0

42

Husqvarna 532405421

SPRING.LH.22.REAR.DOOR.EZ.EMPT

Note: LH

$4.99

$

In Stock, only 3 left!

0

20

Husqvarna 532406690

AXLE ARM ASSY FRONT RH
(Superseded to 532401175)

Note: FRONT, RIGHT

$6.99

$

In Stock, only 3 left!

0

32

Husqvarna 532441559

SPRING.SEL.22.ECON.HI-WHL.RATO

$6.99

$

Usually ships in 3-10 days

0

25

Husqvarna 588912406

BRACKET ASM.HAND.HW.21.LT.498

Note: LH

$7.99

$

Usually ships in 3-10 days

0

46

Husqvarna 532182166

DECAL.INTERNATIONL.CUTFINGER
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

56

Husqvarna 532199377

BLADE.21.PUSH

$27.99

$

In Stock, only 2 left!

0

41

Husqvarna 817060410

SCREW 14-20 X 5/8

$7.49

$

Usually ships in 3-10 days

0

22

Husqvarna 532406428

SELECTOR SPRING, FRONT
(Superseded to 532401621)

$5.99

$

In Stock, only 2 left!

0

18

Husqvarna 817600406

SCREW 1/4X20

$6.49

$

Usually ships in 3-10 days

0

19

Husqvarna 532406689

AXLE ARM ASSY FRONT LH
(Superseded to 532401174)

Note: FRONT, LEFT

$

$

Not available

Husqvarna 581276301

BAG.OF.PARTS.21 DOME.PUSH

Note: NOT SHOWN

$3.49

$

Usually ships in 3-10 days

0

35

Husqvarna 532426589

NUT.FLANGE.HEX.5/16X18.BLACK
(Superseded to 585802801)

$5.99

$

In Stock, only 2 left!

0

77

Husqvarna 817411312

SCREW.HX.13X.750

$7.49

$

In Stock, Qty 20+

0

5

Husqvarna 581912601

T-KNOB.NEW ROPE GUIDE

$4.99

$

In Stock, only 2 left!

0

61

Husqvarna 532409148

NUT.HEX.FLANGE.3/8-16.LO(3 2)
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

76

Husqvarna 589416804

BAFFLE.REAR.21DOM.REGRND.NATUR
(Superseded to 589416801)

$4.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532410594

WHEEL ADJ BRACKET FRONT
(Superseded to 532407494)

$4.99

$

In Stock, only 2 left!

0

37

Husqvarna 532413183

WHEEL AND TIRE ASSY, REAR
(Superseded to 532401272)

$31.99

$

In Stock, only 4 left!

0

8

Husqvarna 874780512

BOLT.FIN.HEX.5/16-18X3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

83

Husqvarna 532428501

BAFFLE.FRONT.21.DOME.US

$20.99

$

In Stock, Qty 5

0

34

Husqvarna 588912602

ARM ASM.AXLE.BZP

$20.99

$

In Stock, only 3 left!

0

84

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 12

0

44

Husqvarna 532184193

BOLT

$

$

Not available

2

Husqvarna 585854803

HANDLE.UP.CURV.PUSH.498

$

$

Not available

66

Husqvarna 532197480

O-RING..070X.487.NEOPRENE

$7.49

$

Usually ships in 3-10 days

0

21

Husqvarna 532436119

FOOT.GUARD.21.DOM/FGD.CE.10

$15.99

$

Usually ships in 3-10 days

0

87

Husqvarna 532437516

PLUG.PLASTIC.7/8".14-20.GAUGE

$4.99

$

Usually ships in 3-10 days

0

53

Husqvarna 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0
